Used Hmc for sale (39)

Year of construction: 1986, condition: good (used), Technical Details : Gbjdpjd H Ur Ajfx Ag Dji Products - - Flats - 10x3 - 25x3 mm 10x4 - 25x4 mm 12x5 - 20x5 mm - Square - 6x6 - 12x12 mm - (T) Profile - 20x10x3 mm - ( L) Profile - 15x15x3 - 18x18x3 mm Raw Material wire - 8,9,10,11,12,13,14,16 mm Transformer Power - 20 Kw Speed - 35m/min

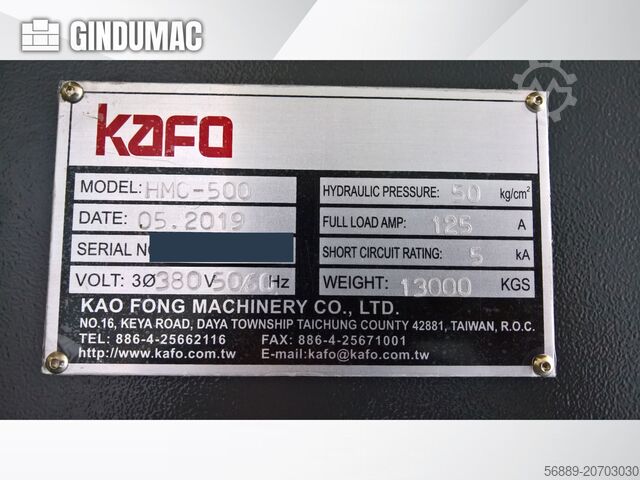

Condition: ready for operation (used), Year of construction: 2019, operating hours: 10,458 h, Control Unit Brand FANUC Model oi-F This 4-axis KAFO HMC-500 was manufactured in 2019 and features a robust FANUC 0i-F control unit. With a spindle speed of up to 10,000 rpm and a tool magazine capacity of 40 tools, it ensures efficient machining. The machine has a pallet size of 500x500 mm and a maximum workpiece size of Ø700 mm by 800 mm. Consider the opportunity to buy this KAFO HMC-500 horizontal machining centre. Contact us for more information about this machine. Application Types Gsdpfx Asx D H H Aog Debi Milling

Condition: like new (used), functionality: fully functional, Year of construction: 2022, Plant as new, used only three times!!! Hammer mill Type: HMC-4 Gbsdpfsx Dhbzjx Ag Dsi Motor power: 4 kW Number of hammers on rotor: 16 Capacity: 150–350 kg/h Material extraction system Type: FM300SN Output: 3900 m³/h Motor power: 2.2 kW This plant is suitable for shredding both plastic parts as well as wooden slats and branches.

Condition: as good as new (ex-display), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 63 m/min, rapid traverse Y-axis: 63 m/min, rapid traverse Z-axis: 63 m/min, nominal power (apparent): 48 kVA, controller manufacturer: Fanuc, controller model: F31i-B Plus, workpiece height (max.): 1,150 mm, workpiece diameter (max.): 800 mm, workpiece weight (max.): 700 kg, table width: 500 mm, table length: 500 mm, table load: 700 kg, spindle speed (min.): 100 rpm, spindle speed (max.): 15,000 rpm, coolant supply: 70 bar, spindle nose: BT40, number of slots in tool magazine: 60, type of input current: three-phase, Equipment: chip conveyor, Machine Technical Specifications: Travels: X: 760mm Y: 760 mm Z: 800 mm Table: 500x500mm Load capacity: 700kg Workpiece dimensions: Ø 800 x 1150mm (depending on workpiece shape) Taper: BT40 (dual contact) Spindle power: 37/26/18.5 kW Maximum speed: 15,000 rpm Controller: FANUC 31i 5Plus Tool magazine slots: 60 Max. tool length: 550mm Max. tool diameter: 95mm (170mm with no tools in adjoining pockets) Godjytfnxspfx Ag Dsbi Max. tool weight: 12kg Machine dimensions: 4605 x 2750 x 3605 mm (L x W x H) Weight: 10,500kg Additional equipment: CTS (Coolant Through-Spindle) preparation High-pressure unit (70 bar) Tool breakage detection in magazine (contact type) Lift-up chip conveyor – scraper type with drum filter & floor magnet (Type E) Soft AC Coolant shower gun (medium pressure)

Condition: used, Horizontal machining center with 2-fold shuttle table STEINEL type BFZ 5 with CNC control SIEMENS Sinumerik 810 M serial no. 34 year of construction 1988 Travel X: 500 mm, Y: 400 mm, Z: 320 mm Clamping surface, table surface 500 x 400 mm Tool holder ISO 40 Spindle speed max. 6300 rpm infinitely variable Main spindle drive 12 kW Mains connection 380 Volt, 50 Hz, 30 kVA - Tool changer with 24 tool positions - Changing table with 2 stations - Interface for data transfer - Coolant unit with chip conveyor Space requirement L x W x H 4100 x 2500 x 2650 mm Weight approx. 8 tons good condition Gjdpfeutuyiox Ag Debi Transport dimensions: Machine L x W x H 3200 x 2500 x 2650 mm, approx. 7.5 tons. Chip conveyor L x W x H 3500 x 1100 x 2100 mm, approx. 600 kg

Condition: used, Horizontal machining center with pallet changer STEINEL type BZ 24 FFZ with CNC control SIEMENS Sinumerik 850 M serial no. 77 year of construction 1990 Travel X: 630 mm, Y: 500 mm, Z: 500 mm Table size per pallet 400 x 400 mm Pallet rotation B-axis Spindle speed max. 7100 rpm infinitely variable Tool holder ISO 40 Mains connection 380 Volt, 50 Hz, 80 Amp. - Tool changer with 60 tool positions and double arm gripper - Pallet changer with 4 pallets - Horizontal pallet position for machining, axis movement = X-axis - Pallet rotation = B-axis - Spindle ram as Z-axis - Spindle ram with transverse movement as Y-axis - KSS spray nozzles on the spindle ram and in the work area - Coolant device with chip conveyor under the work area - CNC control SIEMENS Sinumerik 850 M - Interface for data transfer Godpfx Aedzqmrog Dobi Space requirement L x W x H 9000 x 3100 x 3200 mm Weight 13.5 tons Transport dimensions on truck: Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm Chip conveyor L x W x H 4700 x 1000 x 1450 mm Container loading into a 40" OT HC is possible. good condition

Condition: used, Machine not operational, control system does not start Horizontal Machining Center with Pallet Changer STEINEL Type BZ 24 FFZ with CNC Control SIEMENS Sinumerik 850 M Serial No. 58 Year of manufacture 1990 Travels X: 630 mm, Y: 500 mm, Z: 500 mm Table size per pallet 400 x 400 mm Pallet rotation B-axis Spindle speed max. 7100 rpm, infinitely variable Tool holder ISO 40 Power supply 380 Volt, 50 Hz, 80 Amp. - Tool changer with 60 tool positions and double-arm gripper - Pallet changer with 4 pallets - Horizontally positioned pallet station for machining, axis movement = X-axis - Pallet rotation = B-axis - Ram spindle as Z-axis - Ram spindle with cross movement as Y-axis - Coolant spray nozzles on the ram spindle and in the work area - Coolant system with chip conveyor beneath the work area - CNC Control SIEMENS Sinumerik 850 M with TFT monitor - Interface for data transfer Space requirement (L x W x H) 9000 x 3100 x 3200 mm Weight 13.5 tons Machine not operational, control system does not start – otherwise in good condition Gbodpfx Ajdzqmfsg Dei Transport dimensions: Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm Chip conveyor L x W x H 4700 x 1000 x 1450 mm

Condition: good (used), Year of construction: 2000, MORI SEIKI SH-503/40 TWIN PALLET CNC HORIZONTAL MILLING MACHINE WITH MORI SEIKI MSX-502III CONTROL UKUK Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (22kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 360mm, Maximum Tool Weight 12kg. S/No. 1212 (2000). DESCRIPTION With Renishaw OMP 600 Spindle Probe, Blum Laser Tool Setting/Breakage Unit, Dual Auger To FSE Chip Conveyor, Through Coolant Filtration System, Oil Chiller, Filtermist Mist Extraction Unit, Handwheel & Signal Tower. Overall Dimensions L4,500 x W2,725 x H3,267mm. Weight 14,900kg. Note: Tooling & Tombstones Not Included. Gbjdpfx Aoxqt Tieg Dji

Condition: used, Power supply, control card, input card, control, edge banding machine, edge banding machine -Manufacturer: ELCO -Type: HMC-1B 5V10A -Number: 1x control cards available Gbodscpnl Nopfx Ag Dsi -Price: per piece -Dimensions: 250/135/H60 mm -Weight: 1.3 kg

Year of construction: 2009, condition: good (used), Horizontal machining center (HMC) DECKEL MAHO - DMC65 H duoBLOCK MACH-ID 7722 Make: DECKEL MAHO Type: DMC65 H duoBLOCK Control: HeidenHain iTNC530 Year: 2009 4 Axis Controlled simultenious New WEISS spindle in 2022 New Window SG Glass BLUM laser measuring Renishaw 3D Measuring taster Filtration and coolant system 600 Liter and 40 bar Specifications Metric US Standard X - Travel 650 mm Y - Travel 700 mm Z - Travel 700 mm B-Axis indexing 360 ° Table Length 450 mm Table Width 500 mm Table load 600 Number of pallets 2 Feed rate X-Axis 60000 mm/min. Feed rate Y-Axis 60000 mm/min. Feed rate Z-Axis 60000 mm/min. Spindle Taper 40 ISO/Bt/Mk Power on spindle 13 kW Speeds / ranges 12000 Rpm ATC / revolver 120 Coolant true spindle / Bar 40 Number of controlled axis 4 Chip conveyor Yes Coolantsystem Yes Dimensions (Estimate) Length 5900 mm Width 3586 mm Height 2524 mm Weight Gjdpfsphlvijx Ag Djbi 11000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,400 mm, rapid traverse X-axis: 60,000 m/min, rapid traverse Y-axis: 60,000 m/min, rapid traverse Z-axis: 60,000 m/min, table width: 1,000 mm, table length: 1,250 mm, table load: 3,000 kg, number of slots in tool magazine: 180, Work piece up to 1530 x 1295 x 3500 Kg Tool size up to 650 mm length and 30 Kg Tool size up to 400 x 250 mm and 30 Kg Extende feed rate up to 15 kN-100% ED Coolant Filtration     BLUM Laser NT 3D Quick ser MPC protection 3D Measuring probe DXF Import   Tool package 180 Tool HSK-100A 2 x Cast iron angle plates 1500 mm   15000 Working hours 1e owner machine  X - Travel: 1600mm Y - Travel: 1100mm Z - Travel: 1400mm Gbjdpfxex Sqpte Ag Doi B-Axis indexing: 360000° Table Length: 1250mm Table Width: 1000mm Table load: 3000 Number of pallets: 2 Feed rate X-Axis: 60000mm/min. Feed rate Y-Axis: 60000mm/min. Feed rate Z-Axis: 60000mm/min. Spindle Taper: HSK-100ISO/Bt/Mk Power on spindle: 52kW Speeds / ranges: 12000Rpm ATC / revolver: 180 Number of controlled axis:4 Length: 9170mm Width: 6320mm Height: 3969mm Weight: 39500kg

Year of construction: 2001, condition: ready for operation (used), Horizontal Machining Centre with boring spindle Giddings & Lewis type HMC 410 Godpfx Agsguk Ics Djbi Pallet size: 1.250 x 1.600 mm Pallet load: 7.000 kg max. Pallet change time: 55 sec. Number of pallets 2 pcs Table indexing: B-Axis 0.001° Table cross travel (X) 3.000 mm Spindle vertical travel (Y) 2.100 mm Column longitudinal travel: Z 1.800 mm Feed: X/Y/Z 1 – 40.000 mm/min. Rapid: X/Y/Z 40 m/min Rotary table 6 rpm Max rotary diameter: Ø2.500 mm Spindle taper: ISO 50 Spindle drive motor: 30 KW Spindle speed: 20 – 5.000 rpm ATC 120 pots CNC controller: Siemens Sinumerik 840D Max workpiece height: 2.000 mm Accessories Hexagon radio measuring probe Loading stations 2 PCS Build year 2001 (Siehe auch weitere Angebote des Inserenten.)

Condition: good (used), Year of construction: 2012, Ref. -No.: 10558 Manufacturer: YOU JI Type: HMC 1200 BP Year of construction: 2012 Type of control: CNC Control: FANUC Series 18i-MB Storage location: Halberstadt Country of origin: Taiwan X-Travel: 1800 mm Y-Travel: 1500 mm Z-Travel: 1360 + 990 mm B-Axis: 360 ° W-Axis: 700 mm Table Dimensions (Lengthxwidth): 1200 x 1400 mm Table Load: 5.000 kg Max. Tool Weight: 25 kg Max. Tool Length: 400 mm Max. Tool Diameter: 125 mm Godpfxsxxpbxo Ag Dsbi Spindle Speed: 30 - 3.500 RPM Numbers Of Pallets: 2 Further information: 4-axis simultaneous machining IKZ (internal spindle cooling) AKZ (external spindle cooling) Synchronized walking (rigid thread cutting) Renishaw RMP60 workpiece probe (radio) Number of pallet changers for automatic pallet change: 2 Size: 1200 x 1400 mm Tool magazine, number of tools: 60 The machine is currently in production and can be viewed by appointment.

Condition: used, CNC 5-Axis HMC – Horizontal Machining Center, Milling Center, Manufacturing Center Manufacturer: LICON Model: Liflex 1266 PC B1 Year of construction: 2016, Commissioned: 2017 Equipped with SIEMENS 840D SL (Solution Line) CNC path control, with 5 simultaneously controlled axes Travel paths X: 1200 mm, Y: 660 mm, Z: 650 mm A-axis as swivel bridge +/– 135° (270°) B-axis 360° continuous Axis acceleration X + Y-axis 6 m/s² Axis acceleration Z-axis 9 m/s² Feed force X + Y-axis 7500 N Feed force Z-axis 10000 N Positioning tolerance (X/Y/Z) 0.008 mm A-axis swivel speed 180° rotation in 4 sec. Interference diameter on the swivel bridge max. 1400 mm Transport load on the swivel bridge max. 700 kg Tool holder HSK 63 Spindle speed max. 12,000 rpm, stepless Spindle power 37kW at 40% duty cycle Spindle torque at 40% duty cycle 85 Nm Maximum spindle torque 100 Nm Tool change time (chip-to-chip) approx. 3.7 sec. Tool diameter with adjacent slots occupied Ø 140 mm Tool diameter with adjacent slots free Ø 250 mm Maximum tool length 400 mm Maximum tool weight 20 kg Power supply 400 Volt, 50 Hz Connected load 80 kVA Compressed air connection 5-8 bar - LIFLEX MSP 80/63/85/12,000 motor spindle (output 37kW/40% duty cycle) with liquid cooling and recooling unit - 2-axis rotary tilting table LICON as B- and C-axis, with hydraulic axis clamping - Zero-point clamping system on the swivel axis turntable - Dual pallet changer, without pallets (these need to be newly sourced) - Media transfer of 5 single-action pressure lines for oil or air, for workpiece clamping on the pallets Hydraulic functions from 30-150 bar, with pressure monitoring (controllable via M-functions) - Tool changer with 30 tool positions, disc turret type - Machine designed for dry machining with minimal quantity lubrication (MQL) system - MQL-TSC, internal MQL lubrication supply through the spindle - Scraper belt chip conveyor, discharge height 1150 mm - Licon ECO-Mode (energy-efficient aggregate operation) Gbedpet Ac Efjfx Ag Doi - Direct linear measurement system on all axes - Operating hours (control voltage on) ≈ 7,500 h Space required for operation L x W x H 9,000 x 5,000 x 3,800 mm Space required for transport L x W x H 6,100 x 4,400 x 3,600 mm Base machine weight approx. 21 tons Total weight: approx. 24 tons Very good condition

Condition: excellent (used), Year of construction: 2004, Used Kia Model Kia Centre H63 Twin Pallet Horizontal Machining Centre with 60 Station ATC and Fanuc 18M Control. Serial Number KH630216. Year of Manufacture 2004. MACHINE CONSTRUCTION & FEATURES • One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity • Heavy Duty Oil Cooled 2 Stepped Geared High Torque Spindle • Shuttle Type Pallet Changer • Pre-Tensioned Double Anchored Ballscrews • Fanuc 18M Control with 15 Inch Colour Screen • 20 Bar ‘Cool-Jet’ Through Spindle Coolant • Set of BT50 Toolholders • Filtermist FX5002 Mist Filtration • Frontal and Side Operators Platforms TABLE Table Size 630 X 630 MM Maximum Load Capacity 1,000 KGS Maximum Working Size Ø 1,120 X H 875 MM 0bwkk Minimum Index Angle 1° FEED X-Axis 950 MM Y-Axis 825 MM Z-Axis 760 MM Distance from Table Surface to Spindle Centre 175 ~ 935 MM Distance from Table Centre to Spindle Nose 0 ~825 MM Guide Type HARDENED & GROUND BOX GUIDEWAYS SPINDLE Spindle Taper NT #50 Spindle rpm 4,500 RPM Spindle Motor Output (Max/Cont.) 26.0 / 22.0 KW Spindle Torque (Max/Cont.) 1,267 / 1,071 NM Type 2 STEPPED GEARED HEADSTOCK FEED RATE Cutting Feed Rate X, Y and Z-Axis 5 M / MIN Rapid Feed Rate X, Y and Z-Axis 20 M / MIN ATC Number of Tools 60 Tool Type BT #50 Maximum Tool Diameter Ø 110 MM Max. Tool Diameter without Adjacent Tools Ø 245 MM Maximum Tool Length 600 MM Maximum Tool Weight 20 KGS Tool Selection Method FIXED ADDRESS Tool Change Time – Tool to Tool 6 SEC Tool Change Time – Chip to Chip 11 SEC APC Gbsdpeu A Ut Nefx Ag Doi Number of Pallets 2 APC Type SHUTTLE TANK CAPACITY Coolant Tank 400 L POWER SUPPLY Electric Power Supply 36 KVA Voltage 415V / 3PH / 50HZ MACHINE Floor Space (L x W) 3,610 X 5,320 MM Height 3,140 MM Weight 14,000 KGS

Condition: good (used), Plates Size: 520x520x40mm We have 16 plates in the stock Gbsdel D Nxkjpfx Ag Dji Price for one plate 450 eur

Condition: excellent (used), Year of construction: 2022, operating hours: 8,500 h, functionality: fully functional, travel distance X-axis: 640 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 680 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate Y-axis: 6 m/min, nominal power (apparent): 40 kVA, torque: 200 Nm, controller manufacturer: Fanuc, controller model: OiMF, total height: 3,070 mm, total length: 4,580 mm, total width: 2,720 mm, table load: 500 kg, rotational speed (max.): 15,000 rpm, overall weight: 12,000 kg, spindle speed (min.): 40 rpm, number of spindles: 1, number of slots in tool magazine: 60, tool length: 400 mm, tool weight: 8,000 g, input voltage: 220 V, type of input current: AC, pallet changer: automatic, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Very well-maintained Wele HMC500 for sale. The machine was professionally inspected and disassembled by the JTEKT/Wele factory service team in calendar week 48. The machine is packed and ready for collection, and commissioning by JTEKT/Wele can be arranged at an additional cost. Control power-on hours: approx. 25,000 hours Machine power-on hours: approx. 25,000 hours Automatic mode: approx. 8,500 hours Spindle hours: approx. 8,500 hours Drive hours: approx. 8,500 hours Axes in motion: approx. 8,500 hours Includes measuring probe Includes 4 SK40 tool holders (1 for measuring probe, 3 for tools) The machine was used exclusively for aluminium machining. Machine includes: - 2 pallets with pallet changer (500 x 500 mm) - Table rotation: 0.001 degree - 2 pallet towers, each with 4 sides and 3 Lang Quick Point longitudinal clamps per side Godpfx Aoytcq Rsg Dsbi - Chip conveyor and chip bin included - Coolant tank (500 litres) and oil separator included Feeds: 20/60 m/min Spindle speed: 40–15,000 rpm Motor power: 18.5/22 kW Frequency converter included

Condition: excellent (used), Year of construction: 1997, CNC Lathe Spinner TC67H-MC Year of manufacture: 1997 . Tailstock . Chip conveyor Gsdpfx Agjydlugs Djbi . High-pressure pump . Chuck . Driven tools Technical data: Control: Siemens 840 D X travel: 221 mm Z travel: 590 mm Turning diameter: 300 mm Turning length: 600 mm Spindle speed: 4500 rpm

Condition: ready for operation (used), Year of construction: 2016, A Hoyer three-phase asynchronous motor is available. Protection class: IP55, insulation class: F/B, design: IM B3L, efficiency class: IE3, power: 30kW/36kW, power factor: 0.90, operating mode: S1, weight: approx. 250kg. Including Lenze i550 frequency converter. On-site viewing is possible. Godpfx Agoxmkc Ho Dobi

Condition: good (used), Year of construction: 1995, functionality: fully functional, WORKING DIMENSIONS: 400x250 mm 4 SIDES + EDGE BEVELERS Gedpfx Asx S E Hajg Djbi

Condition: new, functionality: fully functional, overall weight: 25 kg, operating pressure: 500 bar, protection type (IP code): IP55, rotational speed (max.): 4,300 rpm, Hydraulic motor PMH MCF55 Gbedpsv D Hwrjfx Ag Dsi Displacement cc/rev 55 Max output speed rpm 4,300 Max pressure bar: 500 The max output torque: Nm 350 Weight: 25 kg Manufacturer: PMP Industries Part Number: MCL.5502.1 Serial Number: PP0377490 Customer Code / Model: PMH MCF55 Country of Manufacture: Italy 1 piece in stock

Condition: used, Year of construction: 2020, functionality: unexamined, cooling capacity: 128.3 kW (174.44 HP), type of input current: three-phase, type of cooling: water, overall weight: 2,350 kg, input voltage: 400 V, total width: 2,350 mm, total length: 4,400 mm, total height: 2,500 mm, power: 2 kW (2.72 HP), input current: 137 A, heating capacity: 147.7 kW (200.82 HP), input frequency: 50 Hz, Equipment: type plate available, Techno Freddo Reverse Heath pump units Type PHMCD 320 MAD These units can be used for as well heating- as cooling applications Capacity for heating application 147,7 KW with a water temperature of 40˚C/45˚C Capacity for cooling application 128,3 KW with a water temperature of 7˚C/12˚C Refrigerant R290 (propane) Gsdpfxjw U Dx Ss Ag Debi These heath pumps are built as container units with 2 compressors driven by variable frequency drives. We have a total of four of these units on stock. Two of these units are complete and of two units the water pumps are missing. Dimensions of the units are lxwxh 4400x2350x2500 mm. Weight 2350 Kg. Year of built 2020 Price per unit € 10500,00 This is the price fort he complete units including the water pumps. Price per unit € 9500,00 This is the price fort he units where the water pumps are missing.

Condition: used, Year of construction: 2005, Lot consists of: (1) 4-Axis HMC Technical Details: Godpjym Tdzofx Ag Debi X/Y/Z 630 mm, spindle 15,000 rpm / HSK-63-A, A-axis swiveling table, CNC SIEMENS SINUMERIK 840 D.

Condition: used, Year of construction: 1995, functionality: limited functionality, machine/vehicle number: 6173, total height: 2,150 mm, total length: 1,420 mm, total width: 2,000 mm, workpiece weight (max.): 3,100 kg, spindle speed (max.): 6,000 rpm, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 580 mm, Walter Helitronic Power CNC universal 5-axis tool grinding machine No. 6173 CNC control HMC 400 CNC Travel distance X-axis: 400 mm Travel distance Y-axis: 250 mm Travel distance Z-axis: 580 mm C-axis (table rotation): ± 200° Gjdpfsymmw Ujx Ag Dobi Max. grinding wheel diameter: Ø 200 mm Spindle speed (grinding): 3000 / 6000 rpm Without extraction and coolant pump The machine was in operation until recently. If you have any questions regarding the machine, please feel free to contact us by phone or e-mail.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, spindle speed (max.): 7,000 rpm, type of input current: three-phase, grinding wheel diameter: 200 mm, overall weight: 4,650 kg, grinding length: 350 mm, center height: 190 mm, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, travel distance X-axis: 490 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 660 mm, grinding spindle motor power: 24,000 W, workpiece diameter (max.): 320 mm, input voltage: 400 V, nominal power (apparent): 35 kVA, spindle nose: ISO 50, swivel angle A-axis (min.): 360 °, CNC tool grinding machine WALTER Helitronic Power Production TECHNICAL CHARACTERISTICS: CNC control: HMC 500 Software installed: Tool Studio 2.1 R4 Number of axes: 5 Height of centers: 190 [mm] Stroke X: axis 490 [mm] Resolution X axis: 0.00001 [mm] Stroke Y axis: 320 [mm] Resolution Y axis : 0.00001 [mm] Stroke Z axis: 660 [mm] Resolution Z axis: 0.00001 [mm] Traversing feeds X, Y and Z axes: 15000 [mm/min] A axis: 360 [°] C axis: +/- 200 [°] Resolution C axis: 0.0001 [°] Max. workpiece lenght: end face grinding: 320 [mm] Max. grinding length: 350 [mm] Max. grinding diameter: 320 [mm] Grinding spindle attachment: NCT Grinding spindle diameter: 80 [mm] Grinding wheel max. speed: 7000 [rpm] Grinding spindle motor power: 24 [kW] Max. diameter grinding wheel: 200 [mm] Internal workpiece spindle nose: ISO 50 Workpiece spindle max. speed: 60 [rpm] Total power required: 35 [kVA] Weight: 4650 [Kg] EQUIPMENT INCLUDED: x1 TRANSOR 12290-800A filtration unit x1 MTA oil chiller model TAE 015 x1 DSL oil mist extractor model AES-GAMMA 30 x1 RENISHAW part probe x1 disc-type tool loader 40 positions x1 SCHUNK gripper x2 grinding wheel arbor adapters x1 fire protection system - to be inspected by the buyer through a certified organization x1 electrical schematic manual x1 Service Instructions manual LICENSED WALTER WINDOW MODE (WWM) PACKAGES: - Package 001 (cylindrical mills) - Package 002 (tapered mills) - Package 003 (drills) - Package 004 (step drills) - Package 006 (woodwork tools) - Package 013 (reamers) - Package 015 (insert seats) - Package 016 (warmup program) - Package 027 (flexible program) - Package 090 (loader package) - Package 091 (acm) - Package 098 (loader package) - Package 099 (loader package) - Package 100 (reference data m.) - HELICONE (flute calc. conical.) - HELIDRILL (flute calc. drills) - HELIFLUTE (flute calc. cyl. mill.) - MCS (machine control .) - SCHEIBE (wheels menu) - TS_ADVANCED (toolstudio (v1.0-v.) - TS_STANDARD (toolstudio (v1.0-v.) - TS_STEPTOOLS (toolstudio (v1.0-v.) LICENSED TOOLSTUDIO OPTIONS: - Tool Studio 2.0 server/machinecontrol - Tool Studio 2.0 standard license - Tool Studio 2.0 advanced license - Tool Studio 1.9 upgrade options - Tool Studio 2.0 upgrade options - Option steptools - Option profile light (contour roughing ...) - Option calibration w/ touch probe - Option drills Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. Gbodpfx Ajyh Nf Isg Doi The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
