Used Mazak Quick Turn 20 for sale (350)

Condition: used, Year of construction: 2004, max. working diameter 610 mm max. working lenght 1.522 mm travel -x axis 740 mm travel -y axis 410 mm Bodpfx Afsx Avr Sshocu travel -z axis 1.838 mm control MAZATROL Fusion 640M Pro b-axis 240 ° c-axis 360 ° number of spindle speeds 4.000 U/min spindle bore 88 mm milling spindle turning speed range 12.000 U/min numbers of positions in the tool changer 80 CNC Turning- and Milling Center | MAZAK - INTEGREX E-410H The machine is in a well-maintained condition and can be inspected under power at any time in the factory location. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: INTEGREXE41H | INTEGREX 410H | INTEGREX-E410 H

Condition: ready for operation (used), Year of construction: 2007, 3-Axis Vertical Machining Center MAZAK - NEXUS VCN 510 C-II CNC: MAZATROL MATRIX NEXUS Year: 2007 (8,300 spindle hours) Specifications: X-axis travel: 1,050 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Rapid traverse: 36 m/min Table size: 1,300 x 550 mm Maximum table load: 1,200 kg Spindle speed: 12,000 rpm Spindle power: 18.5 kW Spindle taper: BT 40 Max. tool diameter: 80 mm Max. tool length: 350 mm Max. tool weight: 8 kg Approx. machine dimensions: 2,820 x 2,830 x H 2,840 mm Approx. weight: 6,700 kg Equipped with: - 30-tool magazine Bjdpfeyfgw Eex Afhocu - Through-spindle coolant - Chip conveyor - Tool probe

Condition: used, Year of construction: 2019, MAZAK VTC 800/30SR Table size (clamping surface): 3,500 x 820 mm Travel X-axis: 3,000 mm Travel Y-axis: 800 mm Travel Z-axis: 720 mm Rapid traverse X/Y/Z: 50 m/min Max. spindle speed: 18,000 rpm Bcedpfx Afsxqhxmsheu Spindle taper: SK 40 Machine is equipped with: - CNC controller Mazatrol SmoothX - Tool magazine with 48 tool places - Through-spindle cooling - Preparation for Monitoring B-System RMP60 - NC rotary table - Chip conveyor

Condition: excellent (used), Year of construction: 2001, Technical Data: Turning diameter: 686 mm Turning length: 4,000 mm Travel distances (X/Y/Z): 750 / 130 / 4,000 mm CNC control: MAZAK PC Fusion CNC 650 MT Spindle speed: max. 4,000 rpm Tool changer: 60 stations 25x turning tools VDI60j Tool holder: SK 50 Further technical details on request. Machine weight: approx. 22 t Accessories: Complete filtration system Belt filter Chip conveyor Oil cooler Infrared probe Various tools Tool cabinets The seller assumes no liability for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty. Bsdpfx Afsyc Ewlehocu

Condition: excellent (used), Year of construction: 2008, Technical Specifications: Bcodpfx Ajycyn Esfhsu 5 axes: X, Z, Y, C, and B axes Turning diameter: 2350 mm Turning length: 1800 mm 2 pallet positions Travel distances (X/Y/Z): 3055 / 1850 / 1800 mm CNC control: MAZAK MAZATROL MatFix Chuck speed: max. 205 rpm Milling spindle speed: max. 10,000 rpm Tool changer: 80 positions Further technical details upon request Machine weight: approx. 65 t Equipment: Band filter 2 pcs. chip conveyors Spindle cooling unit Oil cooler Infrared probe Various tools Tool cabinets 2 pcs. lifting magnets The seller is not liable for typographical or data transmission errors. The machine’s appearance, technical condition and wear are appropriate for its age; second-hand machines are sold without any warranty.

Condition: excellent (used), Year of construction: 2003, Technical data: 5 axes: X; Z; Y; C, and B axis Turning diameter: 1250 mm Turning length: 1450 mm 2 pallet stations Travel paths (X/Y/Z): 1875 / 1550 / 1345 mm CNC control: MAZAK MAZATROL 640 M Pro Chuck speed: max. 500 rpm Milling spindle speed: max. 10,000 rpm Tool changer: 80 positions Tool holder: SK 50 Further technical details on request Machine weight: approx. 55 t Accessories: Bjdoyctgnopfx Afhocu Belt filter Chip conveyor Spindle cooling unit Oil cooler Infrared probe Various tools Tool cabinets The seller accepts no liability for typographical or data transmission errors. The machine's appearance, technical condition, and wear are appropriate for its age; used machines are sold without any warranty.

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO40 - Spindle speeds : 12.000 [rpm] - Spindle power : 18,5 [kW] LINEAR AXES - Travels on X/Y/Z axes : 1050 / 530 / 510 [mm] - Rapid traverses rates (X/Y/Z) : 42 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 8000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 30 TABLE - Table dimensions : 1300 x 550 [mm] - Maximum weight upon table : 1200 [kg] - Distance table / spindle nose (min./max.) : 150 - 650 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41.15 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.880 x 2.950 [mm] - Machine height : 2.808 [mm] - Machine weight : 6800 [kg] EQUIPMENT - CNC : MAZATROL MATRIX NEXUS 2 - Interface : PCMCIA / RS232 - Electronic handwheel - 3 colors status lamp Bjdeycxudepfx Afhscu - Coolant tank * with high-pressure pump - Coolant through spindle - Chips conveyor - Tool probe

Condition: excellent (used), Year of construction: 2008, CNC Horizontal Machining Center MAZAK HCN 5000 II Year of manufacture: 2008/10 Tool magazine: 40 tools Spindle speed: 18,000 rpm NC rotary table (fourth axis / 0.001 x 360,000 positions) Technical Specifications: Max. workpiece diameter: 800 mm Max. workpiece height: 1,000 mm Bcedpfjx Hgh Ijx Afhsu X-axis travel: 730 mm Y-axis travel: 730 mm Z-axis travel: 740 mm Distance from spindle center to pallet center, min.: 70 mm Distance from spindle center to pallet center, max.: 810 mm Distance from spindle center to pallet surface, min.: 100 mm Distance from spindle center to pallet surface, max.: 830 mm Tool holder: SK40 Tool magazine: 40 tools Spindle speed: 18,000 rpm Pallet working area: 500 x 500 mm NC rotary table (fourth axis / 0.001 x 360,000 positions)

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Equipment: chip conveyor, Options: Left side chip conveyor Coolant temperature control 15,000 rpm spindle High-torque spindle Linear scales on axes Losma extraction Automatic door Detachable handwheel 3-color signal lamp Renishaw RMP 600 Continuous 5 axes ISO 5-axis function Performance package Memory extension Bcodpfxeycr Nus Afhou Robot interface

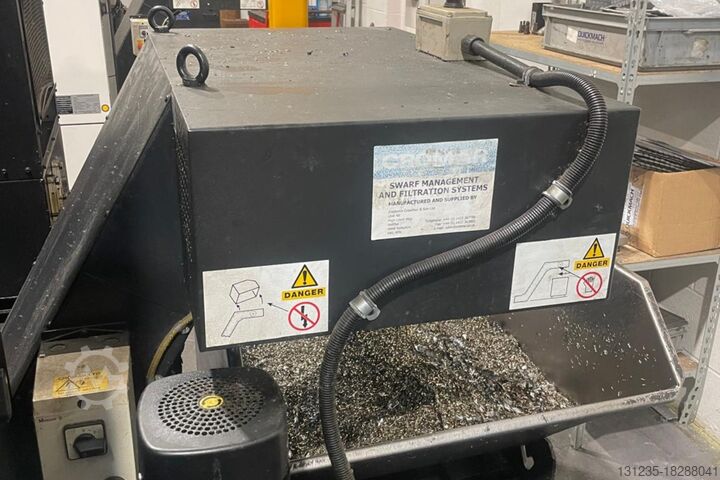

Condition: used, Year of construction: 2017, Mazak HCN - 4000 Machining Centre with Mazatrol Smooth G Control, 120 Station ATC, CAT40 Tooling, X = 560mm, Y = 640mm, Z = 640mm, Max rpm = 18,000min, Swarf Conveyor, Absolent Filtermist. S/No. 283598 (11/2017) with Renishaw OMP60 Probe. Country of Origin: Japan Location: These lots are located in Leamington Spa, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described. Bcedpfxoyfghws Afhou

Condition: used, Year of construction: 2017, Mazak Variaxis I 600 Machining Centre with Mazatrol Smooth X Control, 120 Station ATC, CAT40 Tooling, Travel X = 510mm, Y + 910mm, Z = 510MM, A = 120deg, C = 120deg, Max rpm = 18000min, Swarf Conveyor, Absolent Filtermist. S/No. 283956 (09/2017) with Renishaw RMP600 Probe. Country of Origin: Japan Location: These lots are located in Leamington Spa, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described. Bcsdpfxoyfggme Afhou

Condition: excellent (used), Year of construction: 2021, Turning length: 1,500 mm Max. turning diameter: 670 mm Max. main spindle speed: 5,000 rpm Max. sub spindle speed: 5,000 rpm Milling unit tool holder: CAPTO C6 Includes HAINBUCH chuck with quick-change system Includes bar feeder Includes KNOLL chip conveyor / band filter Bcodpjx Nm Uaefx Afhju Includes various tools Includes complete documentation

Condition: ready for operation (used), Year of construction: 2014, General Data Machine weight 6800 kg Measurements height 2808 mm Dimensions Machine Length 2929 mm Table Table load 1200 kg Main Drive Number of axis 3 Spindle Speed 12000 RPM Spindle motor power 18.5 kW Movement X-Axis Movement 1050 mm Z-Axis Movement 510 mm Y-Axis Movement 530 mm Tools Max weight 8 kg This 3-axis Mazak VCS 530C vertical machining centre was manufactured in 2014. It features a table size of 1300x550 mm, X/Y/Z travels of 1050/530/510 mm, and a maximum spindle speed of 12000 min⁻¹. The machine supports a table load up to 1200 kg and includes a 30-tool magazine with a rapid tool change time of 2.8 seconds. Consider the opportunity to buy this Mazak VCS 530C vertical machining centre. Contact us for more information about this machine. Bjdpfx Afsx E Edxehecu Application Types Milling

Condition: repair required (used), Year of construction: 2002, operating hours: 6,000 h, functionality: not functional, machine/vehicle number: 158187, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 840 mm, controller manufacturer: Fusion 640M, number of spindles: 1, number of slots in tool magazine: 30, Machine: Mazak VTC-300-C II Year of manufacture: 2002, Total spindle hours according to spindle monitor: 47,961 hours. A new spindle was installed, which now has 4,770 hours. Control: Fusion 640 M Travel distances: X-axis = 1,740mm, Y-axis = 760mm, Z-axis = 840mm Spindle: SK-40, 12,000 rpm Bcedox U A Elepfx Afhju Tool magazine with 30 positions Equipped with Renishaw probe Machine dimensions: Length = 4,150mm + 1,260mm chip conveyor, Width = 3,300mm, Height = 3,100mm Individual components can also be purchased (such as spindle, control cabinet, control unit, etc.). The machine is currently defective and is suitable either for repair (costs approx. €4,500) or for dismantling for parts. For further questions, please feel free to call or send an email.

Condition: used, Year of construction: 2015, Mazak HCN-6000 Smooth Twin Pallet Horizontal Machining Centre with Mazak Touch Screen CNC Control, Pallet Size 600mm x 600mm, Travels X Axis 800mm, Y Axis 800mm, Z Axis 800mm, Spindle Speed Max 7000rpm, CAT 50 Spindle Taper, 43 Tool ATC, Filtermist FX5002 Oil Mist Filter, Machine Weight 13700kg. S/No. 269190 (2015). Country of Origin: Japan Location: These lots are located in Dundee, Scotland, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described. Bcsdpfxjyfgw Se Afhou

Condition: excellent (used), Year of construction: 2017, MAZAK vertical machining center in excellent condition. Built in 2016, first use in april 2017. Only used for occasional and simple machining tasks > only 2500 spindle hours (!) Including: High pressure cooling through spindle (15 bar) Dividing wall (removable) Mayfran chip conveyor on left side Synchronous tapping Viewing of the machine in running condition is possible upon appointment. Availability: end of February 2026 Cnc control Mazatrol Matrix Nexus 2 Number of Axes 3 Bcsdoya Etujpfx Afhsu X-axis Travel 1740 mm Y-axis Travel 530 mm Z-axis Travel 510 mm Spindle Speed 12000 RPM Tool taper CAT Number of tool positions 30 Please note: The information on this page has been obtained to the best of our ability and belief. This information is provided in good faith, but its accuracy is not guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. To save unnecessary travel costs for our customers, in most cases we recommend organizing a live video inspection.

Condition: good (used), Year of construction: 2005, Tool holder BT 40, 12.000 rpm, 60 tool places in tool changer, 70 bar IKZ, laser Renishaw OMI-2. Bodswbaqljpfx Afhocu Parts shown by hand not come.

Condition: excellent (used), Year of construction: 2024, operating hours: 1,500 h, functionality: fully functional, turning length: 500 mm, turning diameter: 380 mm, spindle motor power: 26,000 W, spindle speed (min.): 35 rpm, spindle speed (max.): 4,000 rpm, spindle bore: 91 mm, travel distance X-axis: 234 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 21 m/min, rapid traverse Z-axis: 33 m/min, torque: 465 Nm, bar passage: 80 mm, workpiece weight (max.): 400 kg, total height: 1,857 mm, total length: 6,650 mm, total width: 1,845 mm, bar diameter (max.): 80 mm, overall weight: 5,950 kg, Equipment: documentation/manual, Mazak QUICK TURN 250MSY – Complete Package incl. Bar Feeder – As New (Year 2024) Description & Reason for Sale: For sale is a cutting-edge Mazak QT 250MSY (built at the end of 2024) in absolutely full-spec configuration. The machine is optimized for automated complete machining from bar stock and comes with an extensive, high-quality package of tooling and clamping devices. After commissioning, we decided to sell the machine as the control system’s operating concept differs too much from the rest of our machine inventory and does not ideally fit our internal programming workflow. Since we are aiming for a unified operating concept, this powerhouse is now available for immediate sale. The Mazak is currently still integrated into our production. Please note that operating hours may slightly change before the sale date. Inspection under power and in operation is possible on short notice by appointment. Technical Highlights: - Control: MAZATROL SmoothG (19" touchscreen) with Intelligent Safety Shield & collision protection - Working area: Max. turning diameter 380 mm, turning length 500 mm, Y-axis travel 100 mm - Main spindle: 26 kW, max. 4,000 rpm, C-axis (0.0001°), spindle bore 91 mm - Sub spindle: 11 kW, max. 6,000 rpm, for fully automatic rear-side machining - Turret: 12 stations (VDI), all live (5.5 kW, 6,000 rpm) - Dynamics: Rapid traverse X/Y/Z: 30 / 10 / 33 m/min Included Accessories & Automation: - Bar feeder: TOP Automazioni (Magic) short bar loader - Clamping devices: 10” 3-jaw power chuck (main spindle), collet chuck system (main spindle), collets Ø (25, 35, 40, 45, 50, 60, 65, 75, 80) - Various draw tubes and adapters for different diameters (16, 17, 21, 26, 31, 36, 41, 46, 51, 56, 61, 66, 71, 76) - Tool package: Mazak standard holder package Bjdpfx Aex Tcttjfhjcu - Driven WTO angular head for main and sub spindle - 4-position tool holder, drill holder (main/sub), and 4-position boring bar holder - Additional options: Tool Eye (automatic tool measuring), parts catcher, 15 bar high-pressure coolant, Mayfran chip conveyor (side discharge), and engraving function Technical Data: - Year of manufacture: End of 2024 - Max. turning diameter: 380 mm - Max. turning length: 500 mm - Spindle bore: 80 mm (bar) - Main spindle power: 26 kW - Torque: 465 Nm - Weight: approx. 5,950 kg - Dimensions: 6650 x 1,845 x 1,857 mm (incl. bar feeder & chip conveyor)

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, controller manufacturer: SMOOTH TECNOLOGY, table width: 1,100 mm, table length: 600 mm, spindle speed (max.): 12,000 rpm, operating hours of spindle: 20,800 h, spindle nose: SK40, number of spindles: 1, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, Type: Vertical machining center Vertical Brand: MAZAK Bedpfox Ttr Tox Afhecu Model: SMART 530C Year: 2016 C.N.C: SMOOTH TECNOLOGY Table dimensions: 1100x600 mm Longitudinal X-travel: 1050 mm Cross Y-travel: 530 mm Vertical Z-travel: 510 mm Spindle nose: SK40 ISO Spindle speed: 12000 rpm. Motor power: 18,5 Kw Rapid X,Y,Z axis: 40000 mm/min Tool Stations: 30 no.

Condition: ready for operation (used), Year of construction: 2016, operating hours: 16,000 h, travel distance X-axis: 3,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 720 mm, total height: 3,376 mm, table load: 2,500 kg, overall weight: 16,300 kg, spindle speed (max.): 18,000 rpm, spindle motor power: 33,000 W, tool weight: 8,000 g, product length (max.): 5,480 mm, number of axes: 5, This 4-axis Mazak VTC 800/30 SR was manufactured in 2016, featuring a robust vertical machining center with a table width of 3,500 mm and length of 820 mm. It boasts a maximum speed of 18,000 rpm and rapid traverse speeds of 50 m/min on all X, Y, and Z axes. The machine includes a 30-position tool changer and can handle a maximum tool weight of 8 kgf. Consider the opportunity to buy this Mazak VTC 800/30 SR vertical machining center. Contact us for more information. • Travels • Table size: 3,500 x 820 mm • B-axis: +110 degrees • Min. distance spindle nose to table top: 140 mm • Max. distance spindle nose to table top: 860 mm • Work spindle • Steep taper tool holder (40° taper not included when ordering 155 HSK tools) • Feed rates • Rapid traverse speed X/Y/Z: 50 m/min • Worktable • T-slot width: 18 mm • Number of T-slots: 7 • T-slot spacing: 100 mm • Table height from floor: 870 mm • Tool changer • Tool positions: 30 (standard) / 48 (optional) • Tool selection: shortest path • Tool shank: steep taper 40° • With adjacent positions occupied: 80 mm • With adjacent positions free: 130 mm • Total weight of all magazine tools: 150 kgf • Chip-to-chip time: 4.7 s • Utilities • Connection voltage: 380/400/415 V +10% • Connection frequency: 50/60 +1 Hz • Air pressure: 5–9 bar Bjdpfxsx Nkp Uj Afhscu • Air flow rate: 260 l/min • Tank capacity: 500 L Additional equipment • AirFresh FMN V12 extraction system (installed on both sides and connected to a door sensor) • Mounting bracket for vertical operation of the rotary table • 2x Renishaw TS27R integrated tool presetting devices • Spare parts: • Y-axis motor for tool magazine • Linear axis shifter motor • Rotary axis shifter motor • Cylinder for swivel unit

Condition: used, Year of construction: 2008, Mazak QTN 100IIM CNC Lathe Year of manufacture: 2008 C axis, driven tools Chuck: 170 mm Bcedpfx Afsxg Iffjhsu Spindle bore: 51 mm Max turning diameter: 280 mm Max turning length: 334 mm Spindle: 35–6,000 RPM Travels: X - 185 mm Z - 385 mm Main spindle motor: 11 kW Max. torque: 184 Nm Spindle nose: A2–5'' Spindle indexing increments: 0.001° - Tailstock - Parts catcher - Measuring probe - Bar feeder interface - Chip tray with pump - Machine documentation - 10 standard tool holders - 2 driven tool holders 1/1 Weight: 3,800 kg Dimensions (L x W x H): 2.10 x 1.70 x 2.00 m

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 740 mm, workpiece diameter (max.): 500 mm, workpiece weight (max.): 700 kg, total height: 2,813 mm, total length: 5,985 mm, total width: 3,056 mm, table width: 500 mm, table length: 500 mm, rotational speed (min.): 18,000 rpm, rotational speed (max.): 18,000 rpm, overall weight: 11,000 kg, spindle speed (min.): 18,000 rpm, Equipment: chip conveyor, Machine designation: Machining Centre Manufacturer: Mazak Model: HCN 5000-II Year: 2008 Technical details: X-axis travel: 730 mm Y-axis travel: 730 mm Z-axis travel: 740 mm Controller manufacturer: Mazatrol Controller model: Matrix Nexus Max. workpiece weight: 700 kg Overall height: 2,813 mm Overall length: 5,985 mm Overall width: 3,056 mm Table width: 500 mm Table length: 500 mm Total weight: 11,000 kg Max. spindle speed: 18,000 rpm Mazak HC Nexus 5000-II Bcodeyargbepfx Afheu CNC horizontal machining centre Mazatrol Matrix CNC control Pallet table dimensions: 500 x 500 mm Number of pallets: 2 Table load capacity: 700 kg X-Y-Z axes travel: 730 x 730 x 740 mm Table indexing: 0.001° Spindle taper: DIN 69871A-40 Spindle speed: 18,000 rpm Spindle motor: 35-26 kW Tool magazine capacity: 80 For any questions regarding the machine or to arrange a viewing appointment, please contact us by phone or email.

Condition: ready for operation (used), Year of construction: 2016, laser power: 6,000 W, overall weight: 15,500 kg, number of axes: 3, This 3-axis Mazak OPT IPLEX 3015 Fiber II was manufactured in 2016. It features a 6 kW fiber laser, Mazatrol Preview 3 control, and a machining size of 3050 × 1525 mm. Equipped with advanced features like auto nozzle changing, auto focus positioning, and intelligent monitoring functions, it ensures precise and efficient operations. Consider the opportunity to buy this Mazak OPT IPLEX 3015 Fiber II fiber laser cutting machine. Contact us for more information. • Working hours: 53,000 h • Control/Controller: MAZATROL Preview 3 • Mazak Control Box: Included • Machining size: 3050 × 1525 mm • Resonator: IPG • Torch: Multi-Control Torch 2.0 (upgraded) • Intelligent Setup Function (ISF) • Auto nozzle changing (8 holders) • Auto nozzle cleaning • Auto focus positioning • Beam diameter change function • Intelligent Monitoring Function (IMF) • Pierce detection • Burn detection • Plasma detection • Protective window sensor • Condensing lens sensor • Elementary diagram: DD628101002 • Rated capacity: 57 kVA • Power supply: 3AC 380 V, 50/60 Hz • Auxiliary voltages: AC 100 V / DC 24 V Additional equipment • Chip conveyor: Yes • Dust collector: Donaldson • Chiller: IPG Bsdpfx Afox I Sm Eohocu • Workpiece lifter: Yes

Condition: used, Year of construction: 2016, The Mazak VTC 800 series is a line of powerful, large-format 5-axis turning centers for large workpieces, known for their high precision and rigidity, ideal for aerospace, energy and heavy machinery, with functions such as integrated spindles, fast tool change, and for efficient complete processing. Accessories/Options: Tool magazine for 30 tools Tool length measurement, tool breakage detection Factory-installed preparation for chip conveyor (left) Magazine (HSK) for 155 tools Air blower at the workpiece Signal light (end of machining: yellow) Additional: Work area lighting Coolant gun Air blower through the spindle 70 bar preparation, including interface for high-pressure system Automatic opening/closing of the operator door Mazak Monitoring System B RMP 60 (only/H/V) Collision monitoring by Brankamp 2 Renishaw TS27R tool presetting devices NC rotary table Holding device for vertical use of the NC rotary table Table center partition for pendulum machining 3D model of the work area in STEP format 5-axis milling technology Knoll compact filter KF400/2300 (filtration capacity 400 l/min, tank volume 2300 l/min) 1) High-pressure cooling 70 bar, 7 pressure stages Chip conveyor, hinged belt design Additional M-codes: 1 set = 2 M-codes Preparation for dual extraction system (mechanical nozzle) 0.198 mm Transformer for the European market 1 set of manuals in electronic form on CD 1 set of adjustment tools Foundation set (anchor bolts + plates) MAZAK standard paint Work area lighting Additional items: AirFresh FMN V12 extraction system (installed on both sides and coupled with a door sensor) Holding device for vertical operation of the rotary table 2 x Renishaw TS27R integrated tool presetting devices Spare parts: Y-axis motor, tool magazine Linear axis shifter motor Bsdjx Idwiopfx Afhocu Rotary axis shifter motor Cylinder for swivel unit width: 3500 mm length: 820 mm X-axis travel range: 3000 mm Y-axis travel range: 800 mm Traversal range Z-axis: 720 mm min. distance spindle nose to table top: 140 mm max. distance from spindle nose to table top: 860 mm max. table load: 2500 kgf B-axis: ± 110 degrees Working spindle steep taper mount: Steep taper 40 collapses under load 155 tools HSK Max speed: 18,000 RPM Min. Drehzahl: 35 min-1 Rated power: ( 100 % continuous operation) 33,0 kW Emergency travel speed X-Y & Z axis: 50 m/min Working table width: 3500 mm Worktable length: 820 mm Width of T-slots: 18 mm Number of T-slots: 7 Distance of T-slots: 100 mm Table height from the floor: 870 mm Tool changer number of tool places (Standard): 30 Number of tool stations (optional): 48 Tool selection method: shortest path tool shank: Steep cone 40 With occupied side positions: 80 mm With available spaces: 130 mm max. tool weight: 8kgf Total weight of all magazine tools: 150 kgf max. tool length: 350 mm Tool change time: (Span-to-Span) 4.7 s Connected load: 400 V / 50/60 Hz Air pressure: 5 – 9 bar Air volume: 260 l/min Tank capacity: 500 l Dimensions (Height x Length x Width): 3376 x 5480 x 4051 mm Weight approx: 16300 kg colour: Gray / Black

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, MAZAK VCN 410A Nikken 5AX-201 rotary table, 5-axis in continuous mode except tilt, which is managed via the Nikken x21 remote control Table diameter: 200 mm Travels: 560 x 410 x 510 mm Table size: 900 x 410 mm 30-tool magazine Spindle: 12,000 rpm Bcjdpfxoxvra Ss Afhou Chip conveyor
