Used Ricky Grinding Machine for sale (63,722)

Condition: used, Year of construction: 2007, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm diameter of tools min 69,85 mm tooth width max. 58 mm diameter of tools max. 230 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm work piece table - Ø 212,71 mm b-axis + 90,1 / - 1 ° Control 160 i - MB FANUC total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Nkjdeynbdlopfx Ag Nsu Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system "pinion shaft"

Condition: excellent (used), Rotary Table Surface Grinding Machine with Rotating Magnetic Table (Ø 400 mm) and Automatic Feed Grinding Diameter: 400 mm Round Magnetic Chuck: Ø 400 mm Grinding Wheel: 200 x 80 x 78 mm Nsdpjykkhlsfx Ag Noku 2 Speeds: 20/40 rpm Grinding Wheel Speed: max. 2850 rpm Max. Distance between Table and Grinding Wheel: 280 mm Throat Depth: 315 mm Fine Increment: 0.01 mm Motor Power: 3 kW Dimensions (L x W x H): approx. 700 x 900 x 1800 mm Weight: approx. 550 kg The machine comes from a training workshop and is in very well-maintained condition. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: good (used), Year of construction: 2000, Ref. -No.: 10609 Manufacturer: GLEASON - PFAUTER Type: P 2400 G Year of construction: 2000 Type of control: CNC Control: Siemens 840 D Storage location: Halberstadt Country of origin: Germany Machine length: 1100 mm Machine width: 6585 mm Machine Height: 5200 mm Max. Workpiece Diameter: 2640 mm Weight Of The Machine Ca.: 23 t Grinding Wheel Diameter: 400 mm Spindle Speeds (Infinitely Variable): 600 bis 6000 mm Grinding Wheel Width: 80 mm X-Axis: 1200 mm Y-Axis: 300 mm Nksdpfx Agox R R Exe Nou Z-Axis: 1000 mm Z2 - axis: 150 mm Sandable profile depth: 80 mm Workpiece table: 0 bis 5 1 / min Feed rate X-axis: 3000 mm Feed rate Y-axis: 5000 mm Z-axis feed rate: 6000 mm Further information: - Fully automatic centering device - Oil mist separation - Gear tooth measurement - “Profile grinding” software package - Error diagnosis - IFK2 internal milling head - Milling mandrel with spacer discs - Chip conveyor - Oil mist extraction - Technical documentation The machine can be viewed while powered up.

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, workpiece weight (max.): 170 kg, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 220 mm, clamping length: 1,600 mm, Workpiece Clamping Diameter : ø 3 – 220 mm (Optional ø 310 mm) Workpiece Diameter: ø 3 – 400 mm Workpiece Length : 20 – 1.600 mm Centre Hole Diameter : ø 1 – 60 (Optional 100 mm) Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Grinding Process : Manual Sectors: : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. Nkjdpfsym At Sex Ag Nju The Zentroflex M-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex M-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Contact us for more details.

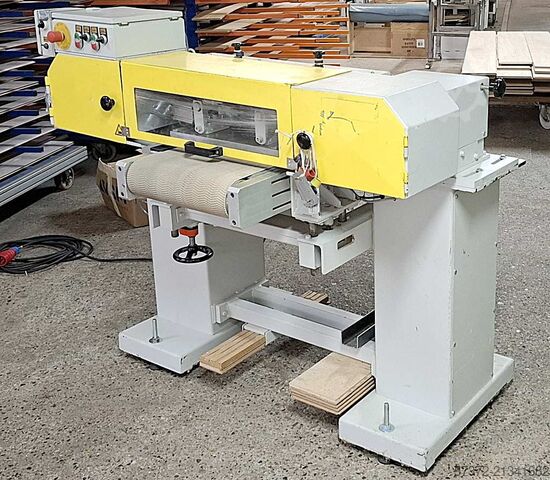

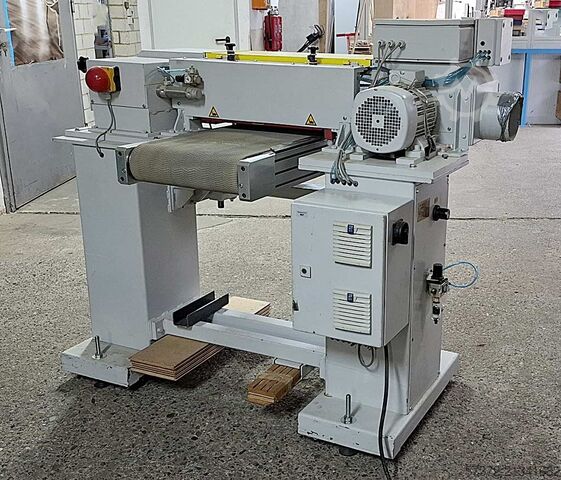

Year of construction: 2015, condition: ready for operation (used), A Trivec wood sanding machine for producing a rough-sawn appearance by means of cross sanding is available. Working width: 400mm, max. product length: 300mm, clearance height: 120mm, working height range: 880mm-920mm, feed rate: 16m/min, sanding belt length: 2600mm, sanding belt width: 150mm. Machine dimensions X/Y/Z: approx. 1450mm/1100mm/1300mm, weight: approx. 750kg. Documentation available. An on-site inspection is possible. Nkjdpfx Agoynltwo Nju

Year of construction: 2016, condition: ready for operation (used), Table dimensions X/Y/Z: approx. 1400mm/800mm, grinding wheel diameter: 150mm, spindle speed: 2000rpm, swivel range: 180°, machine dimensions X/Y/Z: approx. 1600mm/1300mm/1750mm, weight: approx. 400kg. An on-site inspection is possible. Nkedpfxjynluho Ag Nou

Condition: good (used), Year of construction: 1976, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 46244066, Technical Data for Technica AG / TECHNICA Type 5100 (also ZSM 5100 / AG 5100) Center / Center Hole / Universal Grinding Machine Technical Data – TECHNICA / ZSM 5100 Max. workpiece diameter approx. 125 mm Min. workpiece diameter approx. 8 mm Max. workpiece length / center distance approx. 1,100 mm Models up to 2,000 mm Minimum workpiece length 50 mm Maximum workpiece weight approx. 120 kg Certain versions up to 250 kg Center hole diameter approx. 2-50 mm Taper angle of center hole approx. 60° Grinding wheel speeds depending on wheel diameter approx.: Ø 15 mm: 45,000 rpm Nkodsxda Dujpfx Ag Nju Ø 27 mm: 22,500 rpm Ø 48 mm: 13,000 rpm Machine weight approx. 460 kg

Condition: good (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 1137.05, Used tool grinding machine Manufacturer: KAPP Model: AST305B Year of manufacture: 1979 Nedowzk R Nopfx Ag Neku Serial number: 1137.05 With accessories

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Njdpfx Asxtiunsg Nsku Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), Year of construction: 2015, 📌 Glass Processing Center – DENVER Krea / Krea Fit (CNC) General Description: A professional 3-axis CNC glass processing center by DENVER – model Krea (also commonly known as Krea Fit), designed for comprehensive flat glass machining. The machine combines grinding, milling, drilling, edge-shaping, and polishing capabilities, making it an ideal solution for glass manufacturing plants, glass processors, decorative element fabricators, and home appliance producers. ⸻ 🛠️ Technical Features and Functions Nodeyk Dx Dspfx Ag Nsku 🔹 CNC Structure: 3 interpolated axes ensure precise tool guidance and high processing quality. 🔹 Spindle: robust electrospindle with a power output of approximately 6.6–9 kW (S6), optimized for glass applications. 🔹 Automatic Tool Changer: 14-position tool magazine (standard), accelerating operations and increasing operational flexibility. 🔹 CAD-CAM & CNC Control: intuitive CNC control system with CAD-CAM support for easy 2D/3D modeling and machining. 🔹 Automation: optional integrated automatic loading/unloading system, handling cart, and robot for sheet glass manipulation available. 🔹 Vacuum System: additional vacuum tank and manifold for stable glass clamping during processes. 🔹 Included Auxiliary Accessories:  • various vacuum suction cups,  • tool sets,  • reverse osmosis system (e.g., IDROTECNICA IDRO RO 130 ST),  • auxiliary tanks and fittings. ⸻ 📏 Working Range ✅ Supported Materials: flat glass of various thicknesses (typically from a few mm up to approx. 25 mm, depending on tooling and program configuration). ✅ Possible Operations:  • edge grinding,  • hole drilling and milling,  • edge beveling and rounding,  • engraving and shape cutting

Condition: good (used), Year of construction: 2014, spindle turning speed range 170 - 18000 U/min weight of the machine ca. 7,5 t dimensions of the machine ca. 5,00 x 4,00 x 2,20 m --> Control conversion (2014) to Siemens Sinumerik 840D Solutionline --> Overhaul of the new control system in 2016 --> Technical data Grinding diameter: 20 - 300 mm --> Oscillation diameter: 350 (500) mm --> Workpiece length: 300 (1300) mm --> Recommended grinding depth up to: 300 mm --> Grinding table stroke Z-axis (total): 650 (950) mm --> Resolution: 0.001 mm --> Rapid traverse: 12 m/min-1 --> Grinding stroke speed: 0 - 9.99 m/min-1 --> Feed rate: 0 - 99.99 m/min-1 --> Step feed value during reversal: 0 - 0.999 mm --> Grinding table stroke X-axis (total): 150 mm Njdpfx Asw Intajg Nsku --> Resolution: 0.001 mm / Ø --> Rapid traverse: 5 m/min-1/R --> Grinding stroke speed: 0 - 5 m/min-1/R --> Feed rate: 0 - 99.99 m/min-1/R --> Step feed value during reversal: 0 - 0.999 mm / Ø --> Swivel capability of the workpiece headstock: --> B-axis: -32° (-23°) / +2° --> Resolution: 0.0001° (0.36") --> U-axis stroke (total): 300 mm --> Resolution: 0.001 mm / Ø --> Travel speed: 5 m/min-1 --> Centre height above workpiece table: 200 (300) mm --> Centre height above grinding table: 330 (430) mm --> Workpiece spindle passage: 50 (70) mm --> new in 1988

Condition: used, Year of construction: 2006, gebraucht 2006 5539 prompt, Zwischenverkauf v Taiwan 55100 € 1 49600 € 1000 mm 850 mm 1000 x 610 mm 1000 x 600 mm 1000 mm 5 - 25 m/min 1250 mm/min 3 - 32 (0,02) mm 690 mm Nsdewiq Ukspfx Ag Neku max. 400 mm/min mm 400 mm/min 0.001 mm 1450 1/min 11 kW 3.7 kW 0.37 kW 20,6 kW 3700 mm 4000 mm 3250 mm 4800 x 2830 x 2800 mm 7400 kg 1500 kg 1120 kg 1500 kg 355 x 75 x 127 mm Servo drive for grinding wheel feed, hardened and grounded slide ways Grinding wheel spindle on 6 high precision angular contact bearings Electro-magnetic chuck Coolant equiptment with aut. paper filter and magnetic separator Over the wheel automatic dressing device (with automatic compensation) Grinding wheel withgrinding wheel flange machine lamp Machine and equipment according to the CE-regulations User manual in ENGLISH NEW GRINDING SPINDLE, SPINDLE BEARINGS AND GRINDING WHEEL

Condition: good (used), Year of construction: 1986, Inner diameter: 20…400 mm Grinding depth: 315 mm Internal grinding spindle speeds, stepless: 2,640…16,500 rpm Workpiece spindle speed: 40…400 rpm Table feed rate: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Total power requirement: 16 kW Machine weight approx.: 5.8 t Additional information: Njdpfx Aeymnnzjg Noku Grindable diameter within workpiece guard: internal 20…400 mm; external 500 mm Max. workpiece diameter in workpiece guard: 500 mm Max. grinding depth: 315 mm Grindable taper angle: 60° Internal grinding spindle speeds: 2,640…16,500 rpm Drive power for face grinding attachment: 4 kW Drive power for workpiece motor: 1.5 kW Workpiece spindle speeds: 40…400 rpm Table speed: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Max. distance from workpiece spindle flange to grinding spindle carrier: 1,250 mm

Condition: new, Year of construction: 2025, A superfine ball mill is a type of milling machine that is used to grind materials into very fine particles. This type of ball mill has some distinctive features that make it especially suitable for processing even the hardest materials with low contamination and minimal wear. It is commonly used in various industries, including pharmaceuticals, minerals, pigments, and chemicals, for producing micro powder or nanoparticles. Nksdsq Nf Uwopfx Ag Nou Here are some key features and considerations for a superfine ball mill for micro powder: 1. High Grinding Efficiency: Superfine ball mills are designed to achieve high grinding efficiency by utilizing grinding media with a relatively small size, leading to a large surface area for grinding. 2. Precision Control: These mills often come with advanced control systems to regulate parameters like rotation speed, temperature, and grinding time, allowing precise control over the particle size distribution. 3. Specialized Design: The mill is typically designed with features to minimize contamination, such as using materials resistant to wear and corrosion. Some mills also have cooling systems to prevent overheating during the milling process. 4. Variety of Materials: Superfine ball mills can handle a wide range of materials, including both brittle and fibrous substances. They are often used for milling hard materials that require fine grinding, such as ceramics, minerals, or pigments. 5. Size Reduction to Micro or Nano Level: The primary goal of a superfine ball mill is to reduce particle size to the micro or even nano level. This is achieved by the intense grinding action that occurs within the mill. 6. Classifier System: Some superfine ball mills incorporate a classifier system to control the particle size distribution more precisely. This allows for the separation of fine particles from coarser ones during the milling process. 7. Batch or Continuous Operation: Depending on the specific design, these mills can operate in either batch or continuous mode, offering flexibility based on the production requirements. 8. Safety Measures: Safety features may be included, such as monitoring and control systems to prevent overloading, overheating, or other potential issues during operation. When selecting a superfine ball mill for micro powder production, it's important to consider the specific requirements of your application, the characteristics of the materials you're working with, and the desired final particle size distribution. Always follow the manufacturer's guidelines for operation, maintenance, and safety to ensure optimal performance and longevity of the equipment.

Condition: new, Year of construction: 2025, power: 7.5 kW (10.20 HP), Batch ball mills find applications in various industries where the processing of materials in discrete batches is required. The versatility of batch ball mills makes them suitable for a range of applications. Here are some common batch ball mill applications: 1. Ceramics Industry: - *Glaze Preparation:* Batch ball mills are extensively used in the ceramics industry for preparing glazes. Raw materials such as feldspar, quartz, and clay are ground with ceramic balls to achieve the desired particle size for glaze formulation. 2. Chemical Industry: - *Material Grinding:* Batch ball mills are used for grinding and blending various chemical materials. This includes the production of pigments, dyes, and other specialty chemicals where precise particle size control is crucial. 3. Pharmaceuticals: - *Drug Formulation:* In pharmaceutical manufacturing, batch ball mills are used for grinding and blending powders to create drug formulations. The controlled environment provided by these mills is essential for maintaining the integrity of pharmaceutical compounds. 4. Food Industry: - *Ingredient Mixing:* Batch ball mills may find application in the food industry for mixing and grinding ingredients. This can include the production of food additives, flavorings, and other powdered or granular products. 5. Mining and Minerals Processing: - *Ore Grinding:* Batch ball mills are used in mining and minerals processing for grinding minerals and ores. The controlled grinding helps in obtaining the desired particle size for subsequent processes, such as mineral separation or extraction. 6. Paints and Coatings: - *Pigment Dispersion:* In the paints and coatings industry, batch ball mills are employed for dispersing pigments into paint formulations. Achieving a uniform particle size is crucial for the quality and appearance of the final coating. Nkodpfoq I N H Nox Ag Nou 7. Building Materials: - *Raw Material Grinding:* Batch ball mills are used in the preparation of raw materials for the production of building materials, such as cement and concrete. Grinding of materials like limestone and clay helps in obtaining the desired fineness for subsequent processes. 8. Electronic Materials: - *Ceramic Powder Processing:* In the electronics industry, batch ball mills can be employed for processing ceramic powders used in the production of electronic components and insulating materials. 9. Research and Development: - *Material Testing:* Batch ball mills are often used in research and development laboratories for testing and optimizing material formulations. They provide a controlled environment for small-scale processing and experimentation. 10. Customized Applications: - *Specialized Processes:* Batch ball mills can be adapted for various specialized processes in different industries where precise grinding and mixing are required. Custom modifications can be made based on specific application requirements. When using a batch ball mill, it's important to consider factors such as the type of material being processed, desired particle size, and the specific requirements of the end product. Additionally, following the manufacturer's guidelines and maintaining proper operating conditions are essential for efficient and effective milling processes.

Condition: like new (used), functionality: fully functional, Year of construction: 2017, operating hours: 2,600 h, control type: CNC control, controller model: Fanuc 32 C, Equipment: documentation/manual, Standard programs such as parameter settings Dressing settings Speed settings Program management settings Limitation of travel distances x + y Basic parameter settings Grinding wheel management program Warming-up cycle program Surface plunge grinding program Measuring program 15 kVA transformer Full enclosure Meister G3 Spindle upgrade to 3.7 kW, disc 225 mm ETHER interface for network connection Control module with extended memory Fanuc Macro B option Program creation for batch programs Programmable spindle speed WinWop program for contour creation (Windows) WINWop program for error compensation WinWop postprocessor CGS Complete Grinding Solutions software Option Dressing Swiveling profile dressing device Diamond dressing wheel Pre-dressing device VPA 100 L Diamond wheel 100 mm for pre-dressing device Regrinding package diamond wheel G3 / W Option – Clamping and Balancing Magnetic chuck 400 x 200 400 mm stop bar with prism Fully automatic balancing device, size 1 Grinding wheel flange for G3, bore 51 mm Option Filter Systems Belt filter system 175 l Extraction unit for emulsion mist 500 Nkjdpfow I Tt Sex Ag Nou Inquiries only from Europe, preferably the EU.

Condition: excellent (used), Year of construction: 1961, Cylindrical Grinding Machine 3A164A Maximum workpiece diameter for mounting, mm: 400 Maximum workpiece length for mounting, mm: 2800 (2920) Nksdpeya U Uzjfx Ag Nsu

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Ziersch ZT 715 Surface Grinding Machine (2013) Manufacturer: Ziersch Type: ZT 715 Surface Grinding Machine Year of manufacture: 2013 Condition: used, good, still in production Grinding area: 1500 x 700 mm Magnetic chuck with air holes Dressing of angles/radii Coolant band filter system with magnetic separator Glass scale on vertical axis (Y) Column height raised from 600 mm to 700 mm Extraction system Further information to follow. Nksdpsyiukuefx Ag Nju

Year of construction: 1979, condition: ready for operation (used), Max. grinding diameter: 300mm, Max. grinding length: 1950mm, Max. workpiece length: 2000mm Nedpfx Ashq Uigeg Neku Max Feed rate 1 – 30 m/min. Coolant supply 100 l/min Inf. variable speed range 2.000 – 6.000 RPM. Spindle 88 mm Centers height 150 mm Grinding wheels 100 – 250 mm Spindle power 3,5 kW Grinder Power 15 kW – 380 V – 50 Hz

Year of construction: 2009, operating hours: 11,720 h, condition: used, functionality: fully functional, machine/vehicle number: 2008/065, 1 thread grinding support, 1 water groove support, 7 face grinding supports, 3 upper chamfers, 3 lower chamfers, table extension console, belt running direction from right to left. Nedpfx Agjw Exx Ao Nsku

Condition: good (used), Year of construction: 1985, functionality: fully functional, - Table surface 630 x 1000 mm - max. table load 500 kg - Infinitely variable feed rate 0.5 mm – 90 mm/min - Longitudinal table travel 710 mm Nodpexf Ugaefx Ag Njku - Cross table travel 400 mm - Spindle speed of electric grinding spindles 12,000 – 120,000 rpm - Positioning accuracy 0.003 mm - extensive accessories and documentation included - including loading

Condition: good (used), Year of construction: 2004, Ref. -No.: 10629 Manufacturer: MICHAEL DECKEL Nodpfx Agsyhvu Es Nsku Type: S20 Turbo Year of construction: 2004 Type of control: CNC Storage location: Halberstadt Country of origin: Germany Workpiece Diameter: 250 mm Max. Grinding length: 340 mm Max. Workpiece Weight: 50 kg Grinding wheel diameter (max.): 150 mm Turning Speeds: 8000 RPM Workpiece holder: SK 50

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, CNC Tool Grinding Machine Walter Helitronic Power FH, Year of manufacture: 2015 Fanuc control system with cylindrical pallet loader, pallets from 4 mm to 25 mm 8-position disc changer, electrostatic mist collector fire extinguishing system, Software: Walter Window Mode and Toolstudio, Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard, with preparation for hydraulic unit (steady rest), The grinding spindle (single spindle) is directly driven and equipped with an oil cooler. The hollow shaft motor for the A-axis operates at a speed of 0-750 rpm. Nkedoyh Dl Nspfx Ag Nsu The C, X, Z, and A axes were overhauled in 2022.

Condition: used, Year of construction: 1988, functionality: fully functional, Gear Grinding Machine VEB ZSTZ 630 C 3 P – 1988, Ready to Operate Description: For sale: gear grinding machine from the German manufacturer VEB Werkzeugmaschinenkombinat, model ZSTZ 630 C 3 P, year of manufacture 1988. The machine is in good technical condition, available immediately, and ready for inspection. Currently connected to power, allowing immediate testing of its operation. Ideal for workshops specializing in precise gear machining and industrial machine repair. Specifications: Manufacturer: VEB Werkzeugmaschinenkombinat Nsdjyfq E Hepfx Ag Neku Model: ZSTZ 630 C 3 P Year of manufacture: 1988 Condition: good technical condition Availability: immediate Ready for inspection, connected to power Contact: Please contact us for inspection arrangements or further information.

Condition: good (used), Magnetic plate, magnetic table, sine table, sine plate, relief grinding device, grinding machine accessories -Design: Cutting tool mold making for conically ground cutting plates or mold inserts Nksdpfeb A Iqdjx Ag Nsu -Angle head for surface grinding machine or measuring machine -Magnetic plate -Angle: adjustable -Wooden box -Total weight with box: 35 kg
