Metal cutting Tooling ROHM - 3538

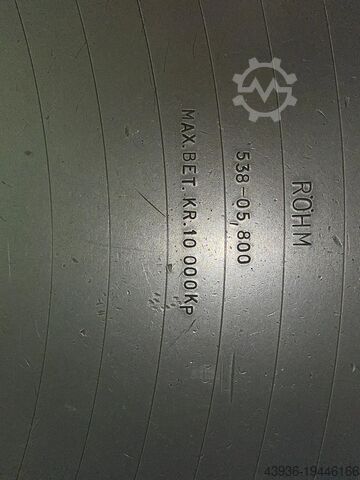

RÖHM 3538

Condition: used, Year of construction: 2006, functionality: fully functional, machine/vehicle number: 0728, X = 5,000 mm Y = 1,025 mm Z = 1,100 mm / Horizontal Z = 1,000 mm / Vertical - Continuously adjustable NC swivel head, +/- 105 degrees, as a CNC axis for horizontal and vertical machining, indexing accuracy +/- 5 seconds - Heidenhain iTNC530 controller, hard disk with approx. 21 gigabytes of free space - HSK100 motor spindle, speed range 20-8,000 rpm, drive power 44 kW, torque 350 Nm - NC rotary table SKH 4/630 Horizontal faceplate Faceplate diameter: 630 mm Standard height: 300 mm Indexing accuracy: +/- 12" Max. load: 900 kg Max. tangential torque at 63 bar: 2400 Nm Includes AC motor with integrated rotational measuring system and hydraulic clamping, as well as an additional CNC axis - NC rotary table SKH-NC 9/1450 Horizontal faceplate Faceplate diameter: 1450 mm Indexing accuracy: +/- 12" Without direct measuring system Max. load: 5,000 kg Max. tangential torque with clamping: 16,000 Nm Includes AC motor with integrated rotational measuring system and hydraulic clamping, as well as an additional CNC axis Special enclosure for rotary table diameter 1450 mm included Swing circle diameter: 1500 mm No turning operation possible! - 60 tool stations - Fully enclosed working area with roof - Bellows with steel lamellae - Direct measuring system for NC rotary table, indexing accuracy +/- 5 degrees - Direct linear measuring system for X, Y, Z axes - Chip conveyor - Rinsing gun - Centralized oil lubrication - Working area lighting, 6-fold - Mounting elements - 3D wireless measuring probe - Tool probing system for measuring and checking cutting tools in the machine, TT140 Ljdpfxsxgnfxj Afashc - Unilok ESM 130 zero-point clamping system 36 units integrated in the machine table 16 units embedded in the rotary table faceplate (diameter 1450 mm) 4 units embedded in the rotary table faceplate (diameter 630 mm)

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: C3300, grinding length: 4,500 mm, grinding width: 300 mm, table length: 4,500 mm, table width: 300 mm, space requirement height: 2,500 mm, space requirement length: 13,700 mm, space requirement width: 2,500 mm, Reform AR45 T9 ZU C3300/86 Year of manufacture: 1986 Sanding length: 4500mm Sanding width: 300mm Workpiece height: 250mm Swivel range table or sanding arm: +-90 degrees Segment head diameter: 560mm Spindle diameter in front bearing: 120mm Swivel range: 2° Max. Torque: 719,5Nm Motor: B280, 55kW Grinding spindle speed range: 0-730 rpm Control system: BBC Baumüller drives Marposs measuring system Hydraul. Clamping Sanding mist extraction system: Hydrocyclone cleaning system Additional sanding unit ZU Feed rate: 2000-35000mm/min Ledpfx Astqtn Defashc Space requirement approx. 13.7x2.5x2.5m

Condition: new, pressure: 600bending length: 6050column width: 5100daylight: 680stroke lenght (max.): 455column throat depth: 450messurements (LxWxH): 7100x3275x3910weight approx.: 50.2004 axes (Y1, Y2, X, R): Ja alle Achsen über die Esa S630 (2D Grafik Steuerung)CNC crowning system by control: ja über die Esa S630 (2D Grafik Steuerung)motor power: 45Standard Equipment:KK Kletzer Europa We have developed a high-quality model specifically for the European market:The CNC press brake by KK Industries, made in Turkey. Model: KK Kletzer EUROPA XL Lhjdpfx Aod Ehh Rjfaoc The powerful EUROPA XL press brake stands out for its high precision, accuracy, and versatile offers a very large open height, resulting in a long cylinder stroke, and an extra-large throat depth to provide maximum flexibility during operations. We focus on delivering quality—reflected also in the control system:As standard, the machine comes equipped with the ESA S640 2D graphic controller. Additionally, the KKI EUROPA XL is equipped with CNC-controlled Y1, Y2, X, and R axes via the wning is also included and fully CNC-controlled through the same ESA S640. When it comes to tooling, we make no machine is fitted with premium top tools and dies from EUROSTAMP Italy. Naturally, a machine is only as good as the service behind t’s why we rely on highly qualified staff with many years of experience in CNC sheet metal processing. Technical Highlights: CNC axes: Y1, Y2, X, and R Controller: ESA S640 (2D graphical interface) Backgauge with double linear guides and ballscrews Motorized CNC-controlled crowning system Heavy-duty height adjustment with handwheel(from 175 tons: on linear guides) Laser safety system on the upper beam CE-compliant safety equipment Various options available Optional Controllers: ESA S640 – 15” 2D Touchscreen: ¤ 4,520.00 ESA 675 W – 21” 3D Touchscreen (Windows-based): ¤ 6,485.00 DELEM DA-66T – 17” 2D Touchscreen (Windows-based): ¤ 10,165.00 DELEM DA-69T – 17” 3D Touchscreen (Windows-based): ¤ 16,350.00

Year of construction: 1979, condition: used, throat: 22/29 mm drive motor: bei 380 V ca. 0,55 kW Lhjdpezif Sjfx Afaoc space needed: 450 x 500 x 560 mm weight: ca. 6,5 kg pressure power: 30 kN

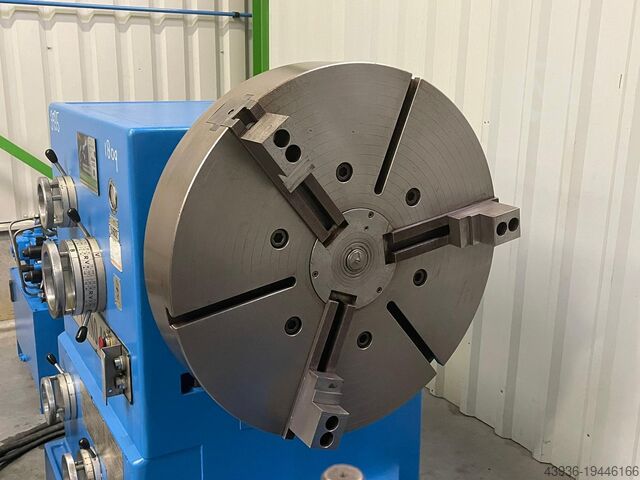

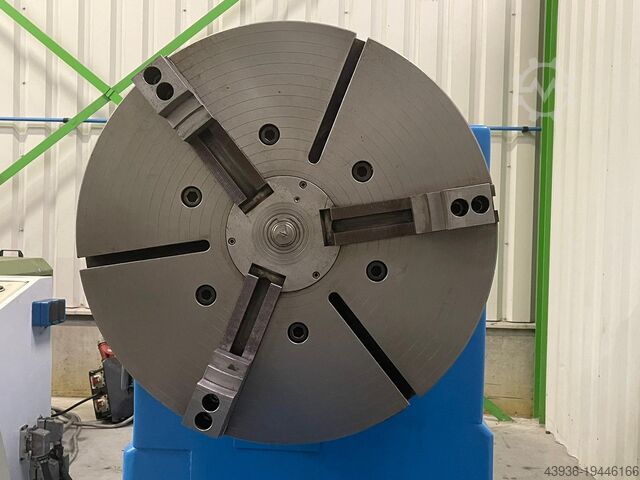

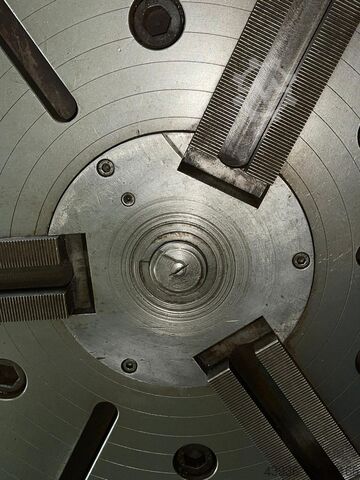

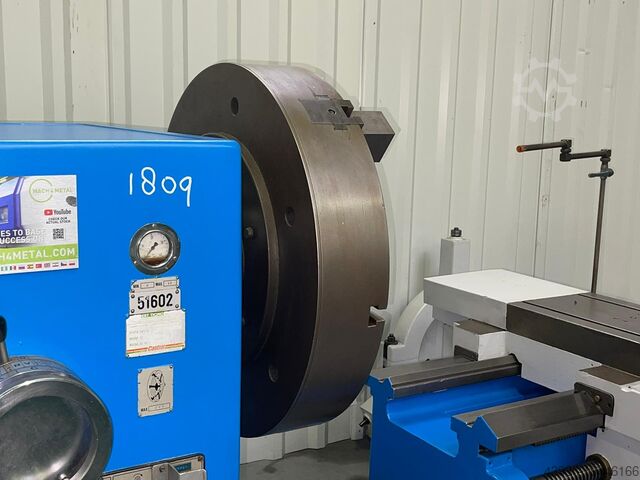

Condition: ready for operation (used), Selfcentering 3-jaw-chuck 800mm Lhsdpfx Afev H T E Ijaec

Year of construction: 1997, condition: ready for operation (used), Travel X/Y/Z: 1300mm/1100mm/1000mm, table dimensions X/Y: 800mm/800mm, number of pallets: 14, max. table load: 2200kg, table indexing: 0.001°. Speed: 7000rpm, spindle power: 50hp, tool magazine: 80, dimensions X/Y/Z: approx. 7000mm/3400mm/3800mm, weight: approx. 24000kg. On-site inspection is possible. Lodpotx Dn Usfx Afashc

Condition: good (used), total length undivided: 3000 mm Lhodohwwfxepfx Afaoc edge heigth: 90 x 90 mm

Condition: used, Year of construction: 2003, operating hours: 4,428 h, Price: On request - Year: 2003 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No Ledpfswnidhjx Afaehc - Operating hours: 4428 - Drive system: CNC - Control system brand: Siemens - Power [kW]: 37.0 - Operating pressure [bar]: 4137 - X-axis travel [mm]: 6500 - Y-axis travel [mm]: 3300 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), travel distance X-axis: 22,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,600 mm, table length: 22,000 mm, table width: 2,000 mm, rotary table diameter: 2,000 mm, Double-column milling machine Lhodpfjwi Iaqex Afaec Technical Data Travel paths per machine • X-axis (bed): 22,000 mm • Y-axis (vertical): 2,600 mm • Z-axis (spindle carrier horizontal): 1,500 (1,200) mm Control • CNC control: Heidenhain TNC 430 Automatic tool changer • Tool robot • 90 magazine positions Universal milling head in orthogonal design • Swivel range toolholder: 360 x 1 degree • Swivel range milling head: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed: 3,200 rpm 2x chip conveyors • Discharge height above floor: 1,250 mm • Feed length: 24,000 mm Table field • Clamping area: 22,000 x 2,000 mm Rotary table • Clamping area: diameter 2,000 mm About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include, among others, spare parts supply, on-site customer service, machine overhauls as well as control system upgrades. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ _____ _____ Used machine - used milling machine - used travelling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used milling machine (alt. spelling) - used CNC milling machine - used drill-milling machine - used metal milling machine - used metal mill - used metal milling machine - used CNC milling machine - CNC milling machines - CNC milling machines - milling machine - large part machining - large part machining (alt. spelling) - large part machining - CNC large part machining - milling - shw - uf6 - uf 6 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 6 - UFZ 6 - UFZ6L - UFZ 6 L - Heidenhain - MBM milling machine - MBM machine - column milling machine

Condition: good (used), Year of construction: 1978, machine/vehicle number: 11.542, Offer 24559 Technical data: - max. working width 1100 mm - max. cutting performance - at 400 N/m² strength 20 mm - cutting angle 1 ° 30 ` - cutting gap adjustment via hand lever - number of hydraulic hold-downs 7 pcs - manual back stop 10 - 1000 mm - front angle stop - front support arms Lodpfxevmmruo Afajhc - stroke rate 13 per/min - drive 400 V / 45 kW - table height 700 mm - space requirement including back stop, without front support arm - approx. W 2100 x H 2250 x D 2250 mm - weight approx. 7500 kg - with: - electric foot switch - cutting line lighting
