Upper Support

unbekannt 265 mm

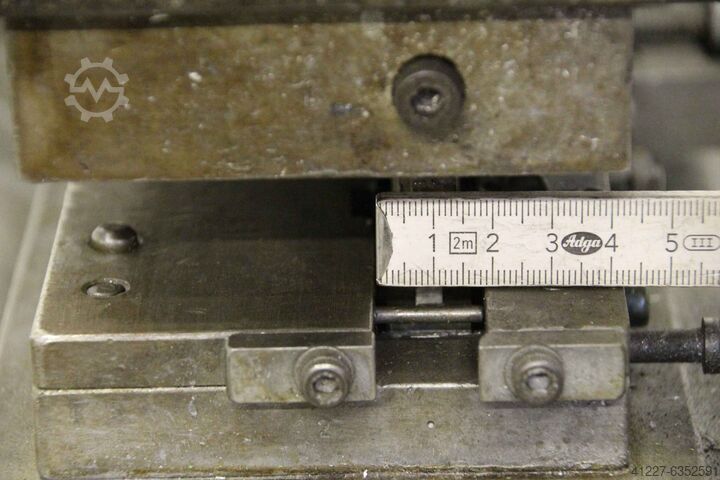

Condition: good (used), 2-column punching tool, separating tool, punching tool, punch, punching die, punching stamp, column frame -Punch tool: 2 columns, with 4-digit code -Mounting: Bolt Ø 38 mm -Die stamp: see photos Nsdpehb N Atofx Adwjcl -Dimensions: 450/265/H305 mm -Weight: 94 kg

Condition: excellent (used), Year of construction: 2015, Roll pressure infinitely adjustable from 240 kN feeds - fine adjustment 0,5-45 mm/min turning speeds 0-80 U/min Swivel angle of the roller heads 11 ° Diameter of the roller spindles 69,85 mm Stroke - Roller screw slide 0-150 mm min. dist. - roller screws 138 mm max. dist. - roller screws 285 mm min. diameter - Rolling tools 230 mm max. diameter - Rolling tools 135 mm min. dia. 2 mm max. diameter 55 mm thread length at plunge operation 200 mm thread length at continiuous operation 2000 mm maximum thread pitch 4 mm total power requirement 14 kW weight of the machine ca. 2,4 t dimensions of the machine ca. 2,0 x 2,5 x 1,9 m Rolling time continuously adjustable from: 0.1s Pause time continuously adjustable from: 0.1s Ncodpfxoxukrqe Adwjl Rolling spindle length: 200mm Machine bed height: 810mm Rolling spindle height above machine bed: 200 mm Height of support bearings: 115 mm Largest pitch for serrated teeth: 2.5 mm (up to 70 kg/mm2 Strength of the material)

Condition: good (used), Dust extraction blower, exhaust gas extraction, welding fume extraction, extraction, fan, pressure blower, vacuum blower, radial fan, ventilation blower, radial blower, blower, fan -Fan: Radial fan blower, without drive -Type: Fan wheel Ø 265 x 35 mm -Drive shaft: V-belt pulley Ø 75 mm, see photos -Inlet connection: Ø 95 mm -Outlet connection: Ø 95 mm -Dimensions: 355/200/H490 mm -Weight: 7 kg Nsdpfsx S Einex Adwocl

Condition: good (used), Marking ruler, planing ruler, test ruler, straightening ruler, straightening beam, clamping plate, marking-spotting plate, measuring plate, measuring table, straightening plate, marking plate, test plate, control plate, precision measuring table -Inking ruler: 145 x 1515 mm -Dimensions: 145/1515/H265 mm -Weight: 99 kg Nedpsw H Nu Dsfx Adwocl

Condition: used, Year of construction: 1982, grinding length:500 mm grinding width:225 mm workpiece height:400 mm total power requirement:5,5 kW weight of the machine ca.:3,4 t Nsdpfscxxtmjx Adwscl NC81 NC-control, table belt drive 100-25000 mm/min., automatic feed, electronic dressing unit 020 NC-K with RPM-compensation, coolant pump, emergency cut-off

Condition: used, 2 column punching tool, separating tool, punching tool, punch, punching die, punching stamp, column frame Ncjdpju I Hptjfx Adwsl -Punching tool: 2 columns, Ø 10/14/10 mm -Punching dimensions: see photo with dimensions -Dimensions: 265/105/H150 mm -Weight: 11.7 kg

Condition: good (used), Bezel, steady rest, lynette -Bezel: with substructure, max. passage Ø 265 mm Ncjdpow S T Idofx Adwol -Centre height: 340 mm -Edition: Brass -technical drawing: in the photos -Dimensions: 660/130/H900 mm -Weight: 122 kg

Condition: used, Year of construction: 1995, turning diameter over bed slide: 500 mm, Universal lathe Make: ZMM Type 500 Year: 1995 Technical Data Manufacturer: ZMM Sliven Model: Universal 500 Year of manufacture: 1995 Centre distance: 1000 mm Swing over bed ø: 500 mm Spindle bore: 73 mm Dimensions (L x W x H): 2.7 x 1.2 x 1.8 m Weight approx.: 3100 kg Equipment • 3-jaw chuck Röhm ZS 350 mm • Quick-change toolpost • Live center • Coolant pump • Machine lamp All information subject to change. A live demonstration under power is possible at any time in our showroom. Nsdpfx Aewudhujdwecl

Condition: used, Dovetail guide wedge bar, linear bearing, linear rail, linear guide, guide rail, linear guide rail, profile rail, slide rail Ncodpfeuzn Idsx Adwjl -Guide rail: Linear guide rail, wedge-shaped for dovetail guide -Rail length: 265 mm -Total width: 21 mm -Rail height: 8/3 mm -Dimensions: 265/21/H8 mm -Weight: 0.2 kg

Condition: used, Machine vise, sturdy vise, drill vise -Jaw width: 260 mm -Back height: 50 mm -Clamping depth: 265 mm Njdpfxjfv Aqbo Adwocl -Dimensions: 580/260/H135 mm -Weight: 56 kg

Condition: new, Isitan Hydraulic 4 Rolls Round Bending Machine 4R HMS 1270 x 130 Upper and lower roll driven Hydraulic side roll infeed 3 digital displays Hydraulic folding bearing Hardened rolls Conical bending device Nodeiffwqepfx Adwecl Separate control panel Useful length : 1270 mm Top roller diameter : 130 mm Side rolls diameter : 130 mm Motors total power : 3,3 KW Working speed : 5m/min. Weight : 2150 kg Dimensions (mm) : 3200 x 1150 x 1110 (L x W x H) Bending power : 5mm Bending capacity : 4mm All bending capacities are calculated on the basis of 250 N/mm2 yield strength Material ( ST 37 - ST 42 mild steel )
