Decoiler- and Straightening Machine

WANZKE BM153 / GM3

Condition: new, Year of construction: 2024, load capacity: 300 kg, Equipment: foot remote control, rotational speed infinitely variable, Protec KT 300 H welding turntable, 170/400 special version Horizontal load 300 kg, tilted 150 kg Kdodevbrqxjpfx Aadsw Power consumption 220 V, 50 Hz Table diameter 450mm Hollow shaft diameter 170mm Table height 500mm Welding current transmission 400 A Quick-action chuck diameter 300mm, surcharge 550.-€ Quick-action chuck diameter 400mm, surcharge 750.-€ Crank gear motor 0 - 90° stepless adjustment Infinitely variable speed 0.01 to approx. 5 rpm. incl. foot remote control Digital display with welding time limiter (if required)

Condition: like new (used), Year of construction: 2023, This machine is tailor-made for businesses seeking a simple and reliable packaging solution. The maximum speed is up to 1,500 bags per hour. Operation is straightforward and requires only two easy steps: filling the bag from above and sealing it. For sale: Autobag bags in the following sizes: 150x250 – 1.5 million bags 200x320 – 2.5 million bags Full Euro pallet pricing: 1 pallet: €0.025 per bag 2 pallets: €0.019 per bag 3 pallets: €0.018 per bag 4 pallets: €0.017 per bag 5 pallets: €0.016 per bag and so on Kedpfxor E Dpzj Aadodw 10 pallets or more: €0.01 per bag 1 million Autobag bags from €0.01 each.

Condition: used, Year of construction: 2018, pressure 800 t Kdjdpew D Hkdofx Aadsw stroke 80 – 360 / 400 mm no. of strokes 3 – 60 /min distance between columns 4200 mm dayligth (stroke and adjustment up) 1400 mm column travel -side 1800 mm table surface area 4000 x 1800 mm hole in the table 3400 x 450 mm table height over floor 950 mm ram surface 4000 x 1700 mm ram adjustment 305 mm material width 800 mm material thickness 0,7 - 6,0 mm material cross-cut 2800 mm² power requirement 475,0 kW Weight 154,00 t dimensions of the machine ca. 6,05 x 3,95 x 7,7 mxmxm total height over floor 6,6 m Servo-Press (Press, Coil Line, Transfer) - Press Schuler, MSD 2-800-4.0x1.8-400 Servo - eccentric drive in transverse-shaft design via 2 torque motors, hydraulic overload protection, motorised ram adjustment, ram counterbalance, main control panel with TFT touch colour display motor-driven retractable change plate, hydraulic slide-in clamping elements - Coil Line Schuler-Automation AC-UEL-M-0800 / AC-SH-9-70/160-0800 R-L / AC-RM-EHP-0800 Transfer Schuler-Automation AT2-M-800-500-405

Condition: good (used), 17 rolls, Ø 54 mm strip width: max. 1.450 mm Kdjdpfx Ajbifryoadew strip thickness: max. 2,5 mm

Condition: excellent (used), ROLLER COATER (REVERSE) Kjdjidqwpopfx Aadsdw Max working width mm 1300 Length of the machine mm 1600 approx Built-in Electric and command cabinet Feeding system by motorized rollers (power KW 0.75) Feeding speed adjustable (from 6 to 24 m / min) Total installed power KW 4.1 No. 2 working heads: * 1st head (with 2 rollers) Chromium plated Dosing roller diam. mm 174 + Rubbered Spreading roller diam. mm 248, with 2 adjustable speed variators (power KW 0.37 + KW 0.75), with also a counter-placed (bottom side) reference rubbered roller * 2nd head (with 2 rollers) Chromium plated Dosing roller diam. mm 174 + Rubbered Spreading roller diam. mm 248, with 2 adjustable speed variators (power KW 0.37 + KW 0.75), with also a counter-placed (bottom side) reference rubbered roller

Condition: good (used), 10,000 pieces Inserted gratings Gratings for pallet racks galvanized Inlay grids in different sizes, mesh sizes, load-bearing bar and weight load available: Negotiation price: from € 15,-- net per m² from stock Larger quantities on request! Insertion grid Mesh width Load bearing bar Load bearing bar direction 100.5 x 98.5 cm 7 x 3.5 cm 35 x 2.5 mm 100.5 cm 120 x 89.5 cm 7 x 3.5 cm 30 x 2.5 mm 120 cm 118 x 109 cm 7 x 4.5 cm 45 x 2.5 mm 118 cm 133 x 99 cm 3 x 3 cm 30 x 2 mm 99,5 cm 134 x 75 cm 7 x 7 cm 25 x 3 mm 75 cm 134 x 76.5 cm 2.5 x 2.5 cm 20 x 2 mm 75 cm Kdodpfxsd Hvvgj Aadew 134 x 92 cm 6.5 x 6.5 cm 30 x 2 mm 92 cm 134.5 x 99.5 cm 7 x 7 cm 30 x 2 mm 99.5 cm 143.5 x 124 cm 7 x 4.5 cm 35 x 2 mm 124 cm Second-hand, very good condition, see pictures. Goods are in stock. Transportation possible on request. Visits possible at any time by appointment. Further information on request. Constantly over 5000 running meters of pallet racking from numerous manufacturers in stock. (Changes and errors in the technical data, information and prices and subject to prior sale! See our AGB, all prices excl. VAT from stock) Purchase / Sale We are constantly looking for and offering numerous articles from various areas clean-swept premises Liquidations quick-

Condition: excellent (used), Year of construction: 2002, We now have two Kardex Shuttle XP 500 units from 2002 in good condition available. These Vertical Lift Modules (VLMs) are a great solution for saving space and improving storage efficiency. Each tray is 2650 mm wide and 864 mm deep, and can hold up to 485 kg. The system helps speed up picking times and boosts productivity by using automated handling and flexible tray setups. This is a reliable model, and we can provide both original servicing and spare parts in the future. Machine specifications: Manufacturer: Kardex Remstar Manufacturing year: 2002 Model: SHUTTLE-XP-500-2650x864 Height: 7,000 mm Width vertical lift module / tray: 2,980 mm / 2,650 mm Kjdpfxewl Inmj Aadedw Depth vertical lift module / tray: 3,074 mm / 864 mm Number of trays: Approx. 21 trays per lift Maximum weight per tray: 485 kg Electronics: 3/N/PE 400V, 3x17A

Condition: ready for operation (used), total height: 3,020 mm, total length: 3,300 mm, total width: 5,100 mm, throat depth: 1,060 mm, zware dubbelkoloms lintzaag voor het zagen van hooggelegeerde staalsoorten automatische invoer van het werkstuk met automatische herpositionering CNC-gestuurde variabele snelheid voor invoer en zagen spaantransportband uitgerust met volledig gemotoriseerde Weisshaupt-rollenbanen: - 10,3 meter invoerrollenbaan (buiten) met 2 hydraulische klemmen voor de contouren van het werkstuk - 9 meter invoerrollenbaan (binnen) met 2 hydraulische klemmen voor de uitlijnen van het werkstuk - Maximale werkstukbreedte: 900 mm - elke rol is gemotoriseerd - de capaciteit van één rollenbaan is 4 ton - 4 meter uitvoerrollenbaan: één rollenbaan is uitgerust met een weegschaal om het werkstuk na het snijden te wegen (Sartorius-systeem) Max height of workpiece: 860 mm Sawspeed: 16 > 80 m/min Length of band saw: 10260 x 80 x 1,60 mm Kdjdpfx Aev Sfp Aeadew Power needed: 32 kW (100 amp) Weight: 9 ton (only machine)

Condition: excellent (used), Year of construction: 2004, loading capacity: max. 1.500 Kg. wire diameter range: 2,0 - 8,0 mm Kdjdpjipv R Tsfx Aadow table diameter: 1.100 mm

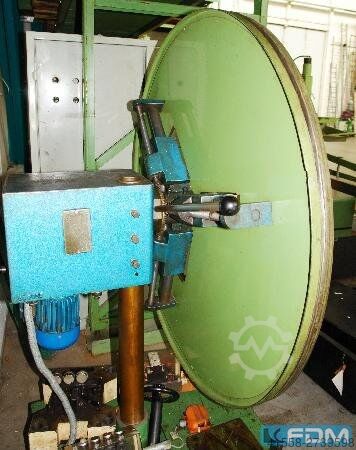

Condition: used, Year of construction: 2007, machine/vehicle number: 001669, Lg 33121 Single side decoiler Kodpshigmbefx Aadjdw ARKU AH 3000/ST-M year of manufacture 1995 belt width max. 600 mm load capacity max. 3.000 kg coil outer diameter max. 1.800 mm Spreading hydraulic Pressing arm hydraulic Decoiler with auxiliary drive and brake coiler chair fixed + reel traversing device with: Lg 33221 High performance belt leveler LORENZ BRM 50/620.9 year of manufacture 2007 Machine no. 001669 passage width max. 620 mm number of straightening rolls 9 Straightening roll diameter 50 mm Material density 0.7 to 6.0 mm Straightening rolls supported several times against deflection All rolls driven by transfer gearboxes and cardan shafts. cardan shafts. Used, in as-is condition from stock, available immediately. On request with overhaul. Delivery time by agreement. Further data shortly or on request.
