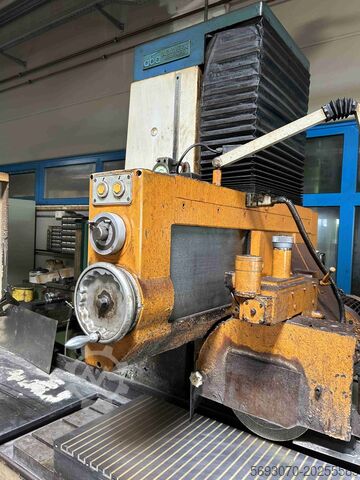

FLAT GRINDING MACHINE

ABA FFU 1250/50

Condition: used, Surface grinding machine BLOHM type HFS 6 make no.: 10493 year of construction 1973 Electro magnetic clamping plate 600 x 300 mm grinding length 600 mm grinding width 400 mm table longitudinal movement max. 650 mm transversal movement 350 mm distance spindle center - table surface max. 600 mm distance spindle center - magnetic plate max. 517 mm Clamping surface table 1020 x 300 mm grinding wheel diameter 300 mm grinding wheel width 50 mm grinding wheel bore 76 mm table longitudinal feed 2-30 m/min infinitely variable table cross feed 2-65 mm stepless electric cross feed 3 m/min vertical feed 0,001 - 0,020 mm per infeed pulse vertical feed 0,250 m/min grinding wheel speed 1400 / 2800 rpm. Motor power hydraulic pump 2,2 kW Iodpfxod Hbafe Adweal Motor power grinding spindle 5 / 6 kW Mains connection 380 Volt, 50 Hz. Total power 11 kW - automatic depth adjustment - hydraulic longitudinal table movement - grinding wheel dresser on the headstock - electromagnetic plate height 83 mm - coolant system adjacent, with magnetic filter in filter housing - grinding spindle circulating lubrication - adjacent control cabinet (800 x 500 mm) - swiveling control panel - operating instructions and spare parts manual space requirement L x W x H 3000 x 2200 x 2100 mm weight surface grinding machine 3000 kg weight switch cabinet 200 kg good condition

Condition: good (used), HURON MU4 milling machine Table surface 1450 x 460 5 x 16 mm T-slots Longitudinal travel 1300 mm Transverse travel 700 mm Vertical travel 500 mm SA40 spindle 27 spindle speeds 30 to 2,066 rpm Iaedpfxju Hifzs Adwel Rapid traverse 2,800 mm/min Weight capacity 1500kg Max. head clearance 530 Spindle motor 8.8 Kw Feed motor 3.5 HP Cooling by electro-pump 1.6 HP Overall dimensions: L x W x H 2,000 x 2,000 Approximate weight 4 Tons

Condition: excellent (used), Grinding length 1000 mm grinding diameter fi 350 mm Iasdpfx Aok Abxxsdwel In very good condition.

Condition: good (used), Year of construction: 1988, voltage 380 V connected load 7,5 kVA dimensions 2725 x 1930 x 1773 mm weight of the machine ca. 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: Iedpfsw Dvkaox Adwjal --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - 5 --> Rapid traverse: 400 mm/min --> Z-axis / transverse movement: --> Automatic transverse feed intermittent: 0.5 - 20 mm --> Automatic transverse feed / rapid traverse continuous: 0.1 - 1.0 m/min --> Distance per handwheel revolution: 5.0 mm --> Scale mark on handwheel: 0.02 mm --> Standard grinding wheel: --> Ø x width: Ø 355x38 (50) mm --> Bore: Ø 127 mm --> Speed: 1500 rpm --> Accessories Various grinding wheels --> Documentation

Condition: good (used), Year of construction: 1963, Vertical lathe Ijdpfovi Hryjx Adwjal JUNGENTHAL Type: DK 1400 built in 1963 with 1 axis digital readout. turning diameter max : 1400 mm face plate : 1250 mm Automatic turret head spindle speed : 3,5-180 rpm feeds : 0,063 - 3,15 mm/rev rapid traverse : 1800 mm/min Further data see data sheet Machine documentation available . Dimensions : Length 4 m Width 2,4 m Height 3 m Weight 16t Good general condition .

Year of construction: 1955, condition: used, Radial drilling machine, drilling machine, boom drilling machine -Outreach: 2055 mm -Max. Distance from machine table to spindle mount: 1700 mm -Cone mount: MK5 -Motor power: 7.5 kW -Speeds: 11.2-1400 rpm -Columns: Ø 450 mm Isdpfx Asd Enr Ijdweal -Spindle stroke: 540 mm -Thread cutting device -automatic feed: 0.037-2.0 mm/rev -Clamping area: 920 x 1600 mm -Dimensions: 2580/1110/H3450 mm -Weight: 6465 kg

Condition: like new (used), Year of construction: 2006, Technical data Manufacturer: KENT Model: VK 1600MC Year : 2.006 Serial number: 2200139 Control unit: FANUC 18 iMD Location: Tabaza (Asturias - Spain) Table Dimensions Working Surface: 1700 x 810 mm. T-Slot ( Size x Number x Center distance): 22 x 5 x 160 mm. Max. Table Load: 2.000 kg. Travel X axis traverse: 1600 mm. Y axis traverse: 815 mm. Z axis traverse: 815 mm. Distance from Spindle nose to table: 220 ~ 1035 mm. Distance from Spindle center to Column: 865 mm. Spindle Taper: BT50 Spindle speed (Gear type): 30 – 6000 rpm. ZF GEAR BOX (2 ranges): Yes Max. Tool Weight: 15 kg. Max. Tool Size (Diameter x Length): 125 x 300 mm. ATC Max. tool Ø x L: Ø125 x L250 Max. tool weight: 15 kg. Number of tools: 32 Feedrates Cutting Feed Rate: 1 – 10.000 mm./min. Rapid Traverse: 18/18/18 mm./min. Motor Spindle Drive Motor (30 Min Rating): 15/18,5 Kw. X,Y,Z Axis Drive Motor: X: 5.5 | Y: 5.5 | Z:5.5 Iajdpfxsqwyzfe Adwjl Coolant Pump CTS: One air & two coolants – 4 bar. + 6 bar / 20 bar Weight and dimensions Machine weight: 16.150 kg Machine dimens: 4.488 x 3.448 x 3.250 mm. Base space: 5.000 x 3.500 mm.

Year of construction: 1984, condition: used, gr. grinding Ø: 40 mm small grinding Ø: 5 mm weight: 0,9 t 2 grinding wheels with flange 8 collets 1 coolant tank mechanical feed with fixed stop The cardan shaft for the workpiece drive is worn out Ijdpfocq Rv Ujx Adwoal

Condition: like new (used), Year of construction: 2021, operating hours: 1,200 h, X 800 mm H 460 mm Z 510 mm Control FANUC Isdpfxov Th E Ae Adwsal Chip Conveyor Including 4-axis Rotary table.

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors Iaodpfx Aevzhf Sedwjl - Clamping devices - Documentation
