Chassis cab

Astra HD9 66.42

= Additional options and accessories =

- Spare wheel
- Sun visor

= Remarks =

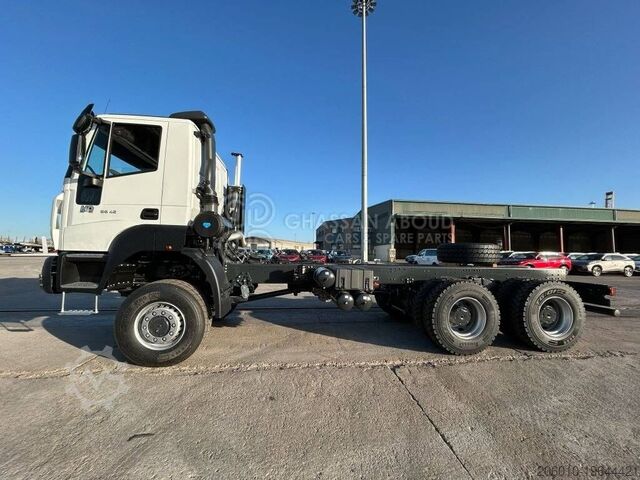

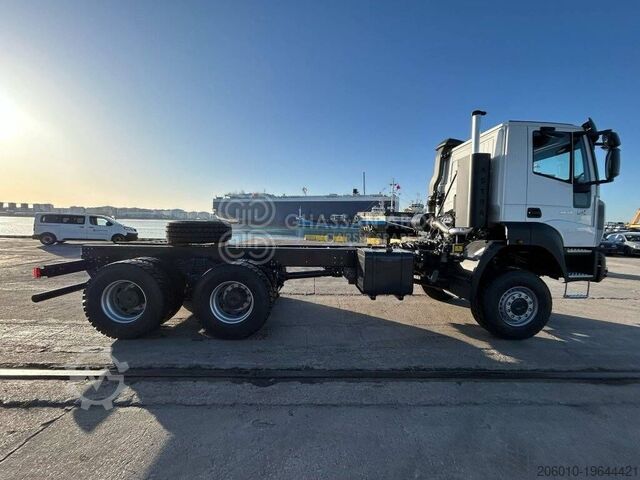

Model description: BARCELONA ASTRA CHASSIS 6×6 (HD9 66.42) MY24 Chassis Cab Code Diesel
Type: HD9 66.42
GCW: 104 Tons
Horse Power: 420HP
Rear Axle Rate: 5009
Shipping Dimension: 8275 x 2550 x 3500 mm
Gear Box Type: Manual Gearbox ZF, 16 forward and 2 reverse gears
Rear Overhang: 1200 mm
Drive Hand: LH Drive
Rear Differential Lock: Available
Reinforced Air Filter double stage
with air intake on the cab roof
Heated Fuel Filter
Standard Parabolic Suspensions (Leaf-Spring type)
with stabilizer bar on the 1st axle
Drum Brakes on all axles with ABS and EBL (Electronic Brake force Limitation) Systems
Standard Batteries Qty2 (180Ah each) with manual cut-off
Standard Alternator 90Ah x 28V (2520 W)
Air Suspended Driver Seat (adjustable) and Standard Passenger Seat (adjustable)
Electric Doors' Windows with tinted glass
Standard Manual Rear View Mirrors CE compliant
Radio pre-arrangement
Front Lights protection grids
Front Manouvering Hook (at center of front bumper)
Cjdpfxew Duago Abcsrh
Standard Tool Kit and Hydraulic Jack
Reverse Gear Buzzer
Anti-Roll Bar On 2Nd Rear Axle
Anti-Roll Bar On 3Rd Rear Axle
Reinforced Rear Suspensions
Front Reinforcing Plate For Front Drive Axle
Auxiliary Air Intakes On Left Side Close To Batteries
Provision For PTO Control
Reinforced Front Parabolic Suspension 9 Tons
Fuel Pre-Filter
Front Mirror
English Plate
Standard Front Hood (Same Color Of Cab With Logo In Black)
Rear Lights Protection Grids
Inflation Kit For Tyres: Hose + Air Gun + Manomenter
Wheel Chocks (Qty 2)

= More information =

Transmission: ZF
GVW: 40.000 kg
Engine type: Cursor 13
