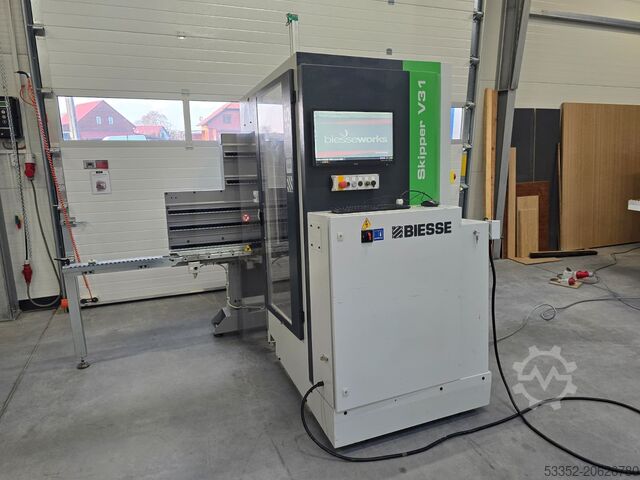

2013 Biesse Skipper V 31

Biesse Skipper V 31

Condition: excellent (used), CNC drilling centre, drilling machine Biesse Skipper V31 Working area: X length: 200 - 3000 mm Y width: 70 - 900 mm Z thickness: 10 - 70 mm Milling spindle power: 4.5 kW Nlsdpfxexztm Re Abyji 10 vertical spindles, 6 horizontal drills (4 drills on X axis, 2 drills on Y axis), Grooving saw on X axis, Machine is in very good condition, drilling unit and axes run quietly, CE marked, Year: 2020, operating hours: 2210 h Weight: 1300 kg, machine dimensions ready for operation: 380 cm x 200 cm h-260 cm, Connection power: 10 kW

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, Brema EKO 2.2 is the new compact and versatile vertical boring machine that supports the processing of different thickness and size formats within a reduced footprint. It is the ideal solution for “just in time” production also for more complex routing processing. Maximum machine customization depending on production requirements Maximum manufacturing efficiency thanks to the elimination of set-up times Wide range of processable panels Brema EKO 2.2 – CNC panel machining centre X working field: 3200 mm Y working field: 1250 mm Workable panels (dimensions min. - max.) Dimension MIN (mm) MAX (mm) Length (X) 200 3200 Height (Y) 35 1250 Thickness (Z) 8 60 Max. workable panel weight: 50 kg (*) Panel Height (Y) / Length (X) ratio ≤ 0.75 for panel up to L = 320 mm (°°) Panel Height (Y) / Length (X) ratio ≤ 1.5 for panel L > 320 mm On minimum panels managed with only one gripper clamping, all types of processing can be realized — except those in the gripper interference zone. In case of processing at gripper height, piece tilting may be necessary. All operations must be verified case by case depending on: panel dimensions (especially minimum values), material type, covering, and machining requirements. Working field of the tools (dimensions min. - max., referring to tool axis) X Axis Operation MIN (mm) MAX (mm) Boring 0 3200 Routing (with electro spindle) 0 3200 (^) Grooving (with saw blade in X) 0 3200 (^) Y Axis Operation MIN (mm) MAX (mm) Boring 0 1250 Routing (with electro spindle) 0 1250 Rf Grooving (with saw blade in X) 25 1250 Z Axis Operation MIN (mm) MAX (mm) Horizontal holes 0 35° Ru (^) With grippers automatic repositioning Nsdpfswnx Ivex Abyeli (°) Max. dimension may be reduced depending on the panel size and gripper positioning

Condition: good (used), Year of construction: 2013, functionality: fully functional, Working area: X-axis 3,200 mm (support extensions available) Y-axis 900 mm Nljdpfxoxxpmze Abyji Workpiece handling via collet chuck Automatic workpiece length measurement Drilling unit: 10 individually selectable vertical drilling spindles 6 individually selectable horizontal drilling spindles Grooving saw unit in X-direction Milling unit with 4.5 kW motor, fitted with ER32 collet chuck (no ISO 30 quick-change system) BIESSE WORKS EDITOR Second BIESSE WORKS dongle for office workstation

Condition: used, machine/vehicle number: 007289, X axis working area: 3200 mm Nledpfewukyqjx Abyoi Y axis working area: 900 mm Main Electrospindle power: 4.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 16

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 25,000 m/min, rapid traverse Y-axis: 25,000 m/min, year of last overhaul: 2025, RepairFIT by Dornhöfer The Difference. Including installation and commissioning! Technical details of the machine: Year of manufacture: 2008 Control: Heidenhain iTNC 530 Travel range: X-axis (mm) 2,500 Y-axis (mm) 1,250 Nljdpfov Rw Uuex Abyoi Z-axis (mm) 1,000 Rotary table size: Length (mm) 1,000 Width (mm) 1,000 Spindle speed range: 15,000 rpm Feed rates: X, Y & Z axes (mm/min): 10 - 10,000 Max. rapid traverse speed X, Y & Z axes (mm/min): 25,000 Milling head: Automatic milling head, vertical Tool holder: HSK 63 A Main spindle drive power: 100% duty cycle KW25 - Chip conveyor - Cooling lubricant system - 3D thermal expansion compensation - Portable electronic handwheel Heidenhain HR 410 with 3m spiral cable - INA RUE 45 linear guideway system on all linear axes with central lubrication - Complete splash guard enclosure RepairFIT is our proven offering for a profitable entry into our product lines. The machines available in this line are procured by us following a rigorous selection process and subjected to a thorough inspection (deep dive check). After intensive cleaning, any obvious defects and faults identified are professionally repaired by our expert service team.

Condition: ready for operation (used), Technical characteristics Power and Motors Voltage: 400 V Pluging: Three-phased Power: 10 Kw Overall dimensions Lenght: 3800 mm Width: 1920 mm Height: 2560 mm Nledpfx Abotqi Uvjyoi Weight: 1300 Kg

Condition: used, machine/vehicle number: 007565, X axis working area: 3200 mm Y axis working area: 900 mm Nljdjwucllspfx Abyji Main Electrospindle power: 4.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 16

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 8044000703A, Siemens 840 D Control Country of manufacture: EU - Poland Voltage: 400V Dimensions: 3082x2260x1775 mm (with chip tray) 4228x2260x1775 mm (with chip conveyor) Machine net weight: 3400 kg TECHNICAL SPECIFICATIONS CTX 310 ecoline V1/V3 New Design Working capacity Max swing over bed: 330 mm Swing over cross-slide (X): 260 mm Max turning diameter: Ø 200 mm Chuck diameter: Ø 210 mm X-axis travel: 182.5 mm Z-axis travel: 455 mm Centre height: 190 mm Centre distance: 581 mm Feed drives Rapid traverse X and Z axes: 30 m/min Nsdpfxew T Sqye Abyoli Control: Siemens Sinumerik 840D Slim Line C axis with Siemens control Speed: 0 – 100 rpm Torque: 112 Nm Accuracy: < 0.04° Spindle Spindle nose: 140 h5 mm Front bearing diameter: 100 mm Spindle bore: Ø 74.3 mm Max bar capacity: 51 mm Main drive with Siemens control Drive power (40% / 100% duty cycle): 16.5 / 11 kW Torque (40% / 100% duty cycle): 166.5 / 112 Nm Max speed: 5,000 rpm Turret Number of tool stations: 12 Tool interface: DIN69880 (VDI 3425) Disc diameter: 30 mm Change time (with locking): 0.95 sec Change time (without locking): 0.4 sec Tool turret with Siemens control Number of driven tools: 12 Drive power (40% duty cycle) at 4000 rpm: 8.4 kW Torque (40%): 20 Nm Max speed: 4,500 rpm Tailstock Automatic travel: 396 mm Quill bore: flange Max quill force: 400 daN Hydraulic unit Tank capacity: 50 L Max pressure: 50 bar Coolant system Tank capacity: 175 L Capacity with conveyor: 200 L Pump power: 0.85 kW Pump flow rate at 5 bar: 30 L/min Electrical connection Max power: 21 kVA Current: 400V Frequency: 50-60Hz Fuses: 33A Pneumatics Compressed air connection: 6 bar Environmental conditions Room temperature: +15 to +35°C Max humidity: 75% All information is provided without obligation and subject to possible errors or omissions.

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, turning diameter over cross slide: 500 mm, turning length: 1,630 mm, turning diameter: 500 mm, spindle bore: 62 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 45 rpm, travel distance X-axis: 430 mm, travel distance Y-axis: 190 mm, travel distance Z-axis: 1,474 mm, spindle motor power: 22,000 W, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 20 m/min, total height: 23,000 mm, total length: 54,050 mm, total width: 28,880 mm, Equipment: documentation/manual, Okuma MacTurn 30 - 1500 OSP U100L CNC-Controller Number of axis - 5 +2 Swing over bed - Ø500mm Swing over carriage - Ø500mm Max dia. turning - Ø500 mm Max turning length - 1474 mm X axis Upper travel - 430 mm X axis Lower travel - 140 mm Z axis Upper travel - 1474 mm Z axis Lower travel - 1305 mm Y axis travel - 190 mm (+95/-95mm) W axis travel - 1305 mm C axis 360° (0.001 increment) Rapid travers Nlsdpfsrdvhhjx Abyji Upper X-axis 20,000 mm/min Lower X-axis 15,000 mm/min Upper Z-axis 25,000 mm/min Lower Z-axis 20,000 mm/min Y -axis 12,000 mm/min C-axis 200 rpm Spindle nose - JIS A2-6 Main spindle speed - 45-4500 rpm Sub spindle speed - 45-4500 rpm Main spindle power - 15 kW Sub spindle power - 15 kW Main spindle diameter - Ø100 mm Sub spindle diameter - Ø100 mm Main spindle boring - Ø62 mm Sub spindle boring - Ø62 mm Rotary tool spindle - 6000rpm Rotary tool spindle - 6,8kW ATC Magazine - BT40 Tool storage capacity - 40 tool Max tool dia. - Ø110 mm Max. tool lenght 300 mm Max. tool mass - 10 kg Chip conveyor type high Wight - 12100kg

Condition: used, Year of construction: 2001, functionality: fully functional, machine/vehicle number: 124, Price upon request Used CNC Vertical Lathe Manufacturer MORI SEIKI Model VL 55 Year of manufacture 2001 With MSC 518 CNC control, 12-tool turret, and chip conveyor Turning length = 653 mm Turning diameter = 550 mm X-axis = 350 mm Z-axis = 660 mm Speed up to = 2000 rpm Spindle power = 30 kW Approx. weight = 12.5 t Price upon request Specifications: Used CNC Vertical Lathe Manufacturer MORI SEIKI Model VL 55 Nsdpfx Ajwl An Ijbyjli YOM 2001 With MSC 518 CNC control, 12-tool turret, and chip conveyor Turning dia. = 550mm Turning length = 653 mm X-Axis = 350mm Z – Axis = 660 mm Speed = 2000 rpm Spindle power = 30 kW Weight approx.. = 12.5 t
