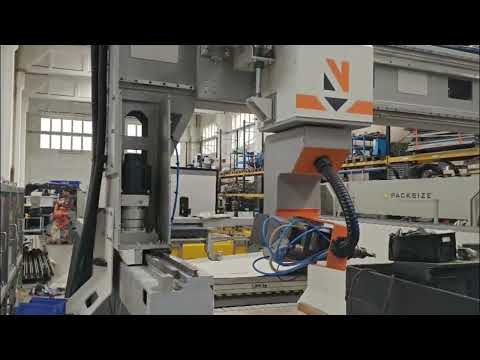

CNC INFOTEC Machining center Model: 2515

CNC INFOTEC Bearbeitungszentrum Modell: 2515

Condition: used, bore capacity in steel (diameter) 23 mm throat 220 mm bore stroke 120 mm Number of revolutions 25 - 3.200 U/min Itedpfx Ahoyfwunonel distance Spindlenose and center of table 275 mm table surface area 300 x 355 mm T-slots 3x T - slots distance 120 mm column diameter 110 mm weight of the machine ca. ca. 120 kg dimensions of the machine ca. 0,8 x 1,0 x 1,9 m Table Drilling Machine IXION - BT 23 ST - incl. base cabinet

Condition: excellent (used), I sell plasma cutter hypertherm powermax 800 d very good condition. /////Price listed for 1 pc ///// Plasma cutter Hypertherm Powermax 800 Plasma cutter description The Powermax800 plasma cutting system uses an inverter power supply to provide a smooth DC output voltage for superior cutting and gouging of mild steel, stainless steel, aluminum and other metals. The Powermax800's power supply provides a constant output current that varies from 20 to 50 amps, providing optimal performance for all metal thicknesses up to 1/2 inch (12 mm). At 50 amps, the Powermax800 can cut metals up to 3/4 inch (20 mm) thick and cut metals up to 1 inch (25 mm) thick. Itodpoulc Ixefx Ahnsl

Condition: as good as new (ex-display), Year of construction: 2025, CASADEI F 25 LL FK - Table milling machine with swiveling milling spindle and table extensions Table milling machine with a swiveling milling spindle from -45° to +45° Stable steel cast iron construction Dynamically balanced milling head anchored to the work table Particularly robust design Smooth operation thanks to precision components and high weight Standard with right/left rotation and electronic locking during direction change 5 speeds from 3000 - 10000 min-1 Itedpfedqzcxex Ahnel Speed change is simple and convenient from the machine side Standard with MK 4 quick-change spindle system Large work table made of cast iron for lasting precision Easy operation thanks to control elements and speed display on the front of the machine Milling fence with fine adjustment and aluminum fence cheeks included as standard Powerful industrial motors Equipment details: Milling fence Milling fence with crank/handwheel adjustment from the front With numerical display Quick-change spindle Quick-change spindle MK 4 standard on all CASADEI F 23 and F 25 models Optional sliding table Optional sliding table for small tenon cutting operations and for slotting Scope of delivery: Manually swiveling milling spindle from +45° to -45° Speed display via LED on the front Aluminum fence cheeks Arc milling guard Right/left rotation of the milling spindle MK 4 quick-change milling spindle Milling fence with crank/handwheel adjustment from the front with numerical display Table extension left and right (2500 mm length) Extendable workpiece support (2500 mm length) Model: CASADEI F 25 LL FK Article no.: 5220728 Technical data Dimensions of work table: 2500 x 810 mm Swiveling range of milling spindle: +45 to -45 degrees Usable length of spindle with Ø 30-35 mm: 140 mm Usable length of spindle with Ø 40-50 mm: 180 mm Milling spindle stroke: 90 mm Max. tool Ø for profiling: 250 mm Max. tenon tool Ø: 350 mm Max. form cutter tool Ø: 160 mm Max. tool Ø, plunge-cutting: 320 x 60 mm Speeds, 5-stage: 3000/4500/6000/8000/10000 min-1 Motor power 400 V / 50 Hz / S6-40%: 7 kW Weight: 480 kg Extraction nozzle Ø on the fence: 1 x 120 mm Extraction nozzle Ø under the table: 2 x 80 mm Location: In stock at 54634 Bitburg - immediately available -

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,100 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, table length: 4,000 mm, table width: 2,000 mm, spindle speed (max.): 22,000 rpm, torque: 128 Nm, spindle nose: 63, CNC Heidenhain iTNC 530 S.P. WORKING AREA Longitudinal X-axis travel: mm 4.000 Transversal Y-axis travel: mm 2.200 Vertical Z-axis travel: mm 1.100 Maximum speed with interpolating axes: m/min 50 WORKTABLE Dimensions: mm 4.000 x 2.000 Height: mm 300 Load capacity: T/m² 15 T-slots for workpiece clamping mm 28 DIN 650 (H12), complete with leveling elements. T-slot direction parallel to X-axis movement. AXIS CHARACTERISTICS Axis feed rate: mm/min 50.000 Acceleration: m/s² 4 WORKING AREA (CLEARANCES) Maximum horizontal clearance: mm 3.200 Maximum vertical clearance under crossbeam: mm 1.926 Height of worktable from floor: mm 330 CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors. B-axis rotation range: ± 185° A-axis rotation range: ± 185° Maximum axis rotation speed: rpm 30 Maximum torque available on A/C axes: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Tool interface: HSK-A63 DIN 69893 The head is supplied complete with a cradle for handling and storage. The cradle is used outside the working area and therefore does not reduce the machine’s actual working capacity. CHAIN TOOL MAGAZINE – 30 POSITIONS (HSK) 30-position automatic chain tool changer located at the rear side of the working area, fully protected from dust and chips. Tool type: HSK-A63 DIN 69893 Max tool diameter (adjacent pockets occupied): mm 90 Max tool length: mm 300 Max tool weight: kg 10 MEASURING SCALE PRESSURIZATION Pneumatic system complete with control unit for pressurizing the measuring scales. Iedpfx Ahjzb Evlsnjtl SPRAY-MIST TOOL LUBRICATION/COOLING Mist lubrication system. The mist is generated by mixing air and oil and is controlled via M-function. The spray-mist improves cutting quality, prevents built-up edge formation, keeps the cutting area clean, and provides cooling. Highly effective for improving surface finish quality. EXTERNAL TOOL COOLING Coolant distribution system controlled by the CNC, with nozzles positioned on the flange around the spindle. Complete with a tank (1,200-liter capacity) for coolant collection and filtration. Flow rate: 30 l/min, pressure: 4 bar. REQUIRED CONNECTIONS Maximum installed power: kW 150 Maximum current required: A 235 MACHINE EQUIPPED WITH: • Heidenhain HR550 remote electronic handwheel • Various tooling included with the machine • Renishaw probe • BLUM laser presetting system • AUTOCAL automatic head calibration system • Visormax subscription for remote monitoring • Electrical cabinet air conditioning unit • Cooling system for all axes and the electrospindle • No. 2 chip conveyors positioned on both sides of the worktable • User and maintenance manual and CE declaration of conformity

Year of construction: 2010, condition: ready for operation (used), Electrode force: 100daN, welding capacity: 255kVA, nominal input: 80kVA, with Cooling System DALEX DRF 5.2. Itodpfx Ajiknv Eehnsl

Year of construction: 2014, condition: ready for operation (used), Clamping force: 1600kN, weight: 9t, operational hours counter: 3638h, with Handling Robot ENGEL viper 20. Itsdpjh Nypfofx Ahnjl

Year of construction: 2022, operating hours: 108 h, condition: refurbished (used), machine/vehicle number: SN2120, EDM312MF30-SLM (second-hand machine) Technical specifications: Travel ranges: 450x300x300mm Workpiece table 820x400mm Tank size 900x520mm Filling level 300mm Distance table/electrode holder 150/450mm Workpiece weight max. 800kg Dielectric fluid max. 700l Dimensions WxDxH 2700x1800x2350mm Machine weight 2500kg Power connection 3/N/PE 400/230 50Hz Power consumption 6.7 kVA Equipment: Color: Newly painted light grey + telegraph grey New control cabinet New control system APC910/2 (win10) User interface MF30 V 2.8 New B&R drives with Endat interface Touchscreen Generator exopuls+ 60A Rev.4 Rotary table, 5-axis Touch protection, operated via buttons Linear scales in all axes X, Y, Z (Fagor) Cartridge filters 2 pcs Cooling unit Termogamma Completely new machine installation New ball screws, bearings, coupling Maintenance unit with digital pressure switch Valve manifold CO2 extinguishing system C-axis Hirschmann 50/min., holding brake, completely overhauled Manual control panel with confirmation button Iedpohtrdyjfx Ahnjtl Lowering tank with automatic follow-up Chucks Erowa IST, Hirschmann, 3R Warranty 12 months Transport Commissioning on-site Training

Condition: new, Year of construction: 2025, operating hours: 24 h, functionality: fully functional, DOLFİN-PYM2 series parts washing machines are industrial purposed parts cleaning devices that are used before and after revision, particularly in repair and maintenance services. While the parts that are placed in the device are rotated on their own axis by means of the washing basket, pressurized detergent hot water is sprayed. With the pressure, temperature and chemical effect, all oil and contamination on the part is cleaned. Ijdpfx Aev Sa I Tohnotl Since Dolfin Parts washing machines operate as closed loop, new water and new detergent are not used every time. While washing is performed for several times with the same tank, all the dirt remains in the washing cell. With this feature, it protects both nature and employees. Due to its high efficiency and performance, saves energy, water and labour. It works automatically in accordance with the temperature and time values that are set during operation. In order to load, particularly the heavy items into the washing basket or to remove them from the basket, the washing basket can be taken on a carrier trolley, in other words, from the device when required. It can be transferred to any point of the workshop with this trolley.

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Itedpfx Asvwbp Aehnsl

Condition: new, Year of construction: 2026, Gannomat Concept 70 Eco Laminate – Body press with rapid traverse Itjdpfjiidm Nox Ahnsl Technical data: Laminate body press from our showroom; Working area: width from 150 – 2,500 mm, height from 150 – 1,400 mm; depth 700 mm; - Laminate press beam at the top with 6 elements, laminate press beams on the side with 5 elements - Laminate press beams with proven tolerance compensation for tight body joints - Counterpressure surfaces are 40 mm thick, coated, continuous support plates - The pressing force of the press beams is continuously adjusted electronically via 2 potentiometers and set via a frequency converter, therefore, the torque transmission is absolutely wear-free. - Pressing force for horizontal press beams min. 500 daN (kg) to continuously max. 2200 daN (kg) - Pressing force for vertical press beams min. 300 daN (kg) to continuously max. 2200 daN (kg) - Including option: Rapid traverse speed for quick positioning of the press beams, controlled via automatic workpiece detection with sensors in the press beams, pressing speed 5/10/25 mm/sec. and rapid traverse speed 50 mm/sec, the sensors can be switched off for pressing special parts. - Tapping mode for precise positioning of the two press beams, e.g. for low pressing forces, drawers and bodies at 45 degrees. Simple operation via 6 separate push buttons, freely adjustable preselection of pressing time with automatic opening, loading height 300 mm The machine is in our showroom and can be delivered immediately. Location: in stock at 54634 Bitburg - immediately available -
