Graule - crosscut and mitre saw

Graule ZS200

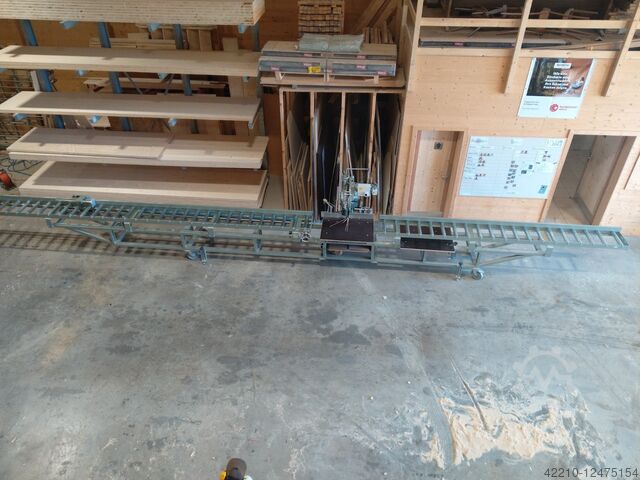

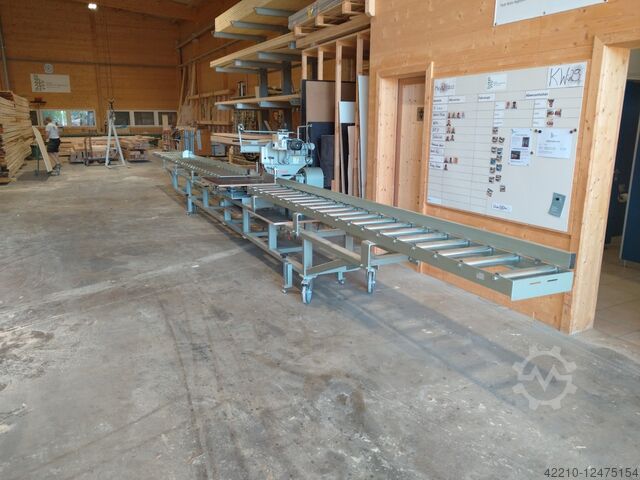

Condition: good (used), Year of construction: 2004, From business closure: Lrsdoxqruxjpfx Aa Iju Graule ZS 200 Year of manufacture: 2004 Roller conveyor left 5000 mm – right 2000 mm Extraction Holzkraft ASA 2001 380 Volt Motor brake (5 seconds to standstill) Cutting height 200 mm Mitre cuts left and right Saw blade diameter 520 mm

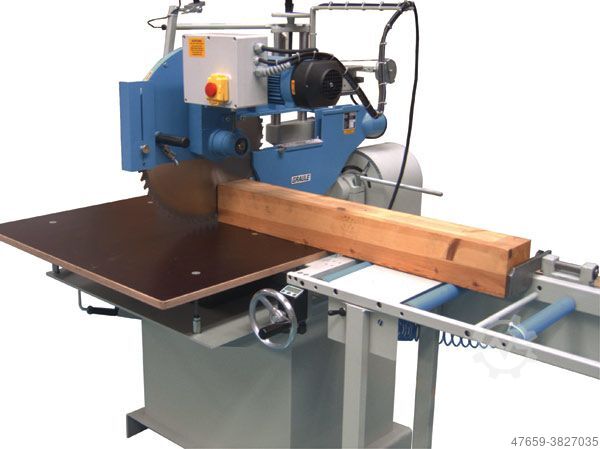

Condition: new, Year of construction: 2025, crosscut and miter saw type: ZS 200 N - 5 KW motor with machine stand, but without saw blade Machine via handwheel and worm gear (rear) Tiltable Saw blade diameter 520 mm, saw blade mounting hole 50 mm Lsdpfx Aasi Dfids Isru Saw blade speed: 2800 rpm 400 volt / 5 KW (S6/40%) motor with brake u. Automat. Star delta motor control cutting width at 90deg: 420 mm cutting width at 45deg: swivelled: 295 mm Cutting height at 90deg: 200 mm Cutting height at 45deg tilted: 140 mm Saw can be tilted on one side up to approx. 25 degrees to acute angles and tilted flat to the left up to 30 degrees Machine stitched: approx. 250 kg Location: ex stock 54634 Bitburg - immediately available -

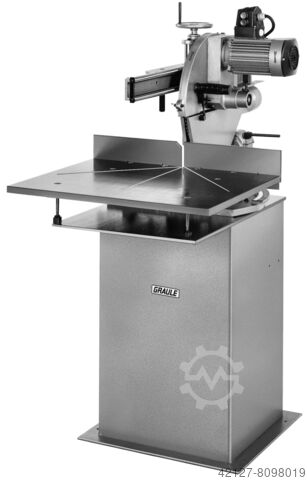

Condition: new, Year of construction: 2024, cutting hight at 90°: 200 mm Ljdpsiuld Sjfx Aa Isru cutting width: 410 mm miter square horizontal: 45° - 90° - 25° miter square vertical: 60° - 90° -30° roller convoyer/ supporting table: no saw blade diameter: 520 mm speed: 2800U/min motor power: 5 kW motor brake: yes suction connection: 100mm machine length: machine width: Gewicht: 300kg

Condition: new, Year of construction: 2025, functionality: fully functional, nominal power: 5 kW (6.80 HP), 5 kW 7.5 HP Cutting height 200 mm Lodedxw U Ispfx Aa Ijru Tiltable up to 60° to the left, up to 30° to the right using a hand crank from the front Cutting height when tilted at 45°: 140 mm Cutting width 420 mm; cutting width when swiveled at 45°: 290 mm Swivable up to 60° to the left, up to 45° to the right Incl. saw blade for wood 6,000 mm heavy-duty crosscut roller conveyor, mounted on the left, stop-slider adjustable from the machine with handwheel, pneumatically lockable, length digitally readable, digital display in 230V version 4,000 mm heavy-duty infeed roller conveyor, mounted on the right Machine tiltable on both sides from the front using hand crank and worm gear Various options available on request, e.g. greater cutting height, material clamping, laser cutting guide

Condition: new, saw blade diameter 520 x Ø 50 mm cutting diameter 200 mm cutting length 420 mm Cutting height at 45° 140 mm dimensions of saw-blade 520x3,6/3,0x50 mm turning speeds 2800 U/min Dust suction hood 100 mm total power requirement 3,0 kW weight of the machine ca. 310 kg. range L-W-H 1400 x 900 x 1650 mm - Crosscut and miter saws for crosscuts Lodpfxjxaaxde Aa Ieru - Miter adjustment on both sides (60°/45°), with fixed stops - Shift cut on both sides (60°/45°), with fixed stops - Stable cast iron construction - Precise ball bearing guidance of the tool slide hardened and welded steel shafts - manual saw feed - Saw blade infinitely adjustable in height - socket for opt. suction Furnishing : - 3.0 kW motor for ALU cuttings - Saw blade can be tilted via handwheel and worm gear (shift cut) - Saw blade diameter 520 mm - Saw blade mounting hole 50 mm - Saw blade speed 2,800 rpm - 400 Volt / 3 kW (S6/40%) motor with brake and automatic. Star-delta motor circuit - Machine weight approx. 250 kg Cutting data : - Cutting length at 90° = 420 mm - Cutting height at 90° = 200 mm - Cutting length at 45° = 295 mm - Cutting height at 45° = 140 mm Special accessories included: - HM saw blade 520x3.6/3.0x50 mm - Hydraulic feed brake, continuously adjustable - Pneumatic material clamping from above best. from : 2 vertical clamping cylinders adjustable with lever valve - pneumaschine saw blade spray device - Machine can be tilted from the front on both sides using a hand crank - Machine stand

Condition: new, A heavy duty German built radial arm crosscut saw with swivel and tilting capability and a large cutting capacity of up to 200mm deep. A unique feature on this model of machine is that when angle cutting is required the saw unit pivots about a central point thus always maintaining the same cutting length. Both optional vertical (tilting) and standard horizontal (swivel) angles can be adjusted manually with either graduated scales or with an optional digital display unit for reading the position. The saw is also available with an optional automatic NC positioning system with 4 memorised pre set positions. The machine is ideally suited for easy and accurate cutting of compound angles for furniture and joinery components. The machine can be specified to cut wood, aluminium, plastics or composite materials. Precision ball bearing movement on hardened steel runners. Sturdy cast iron construction with steel base stand Heavy duty 5 KW motor. Spring return of saw carriage. 1 x 520mm dia TCT x 4.4mm kerf x 50mm bore - 60 teeth WZ saw alternate bevel. 50mm spindle diameter. 22 - 90 - 45 horizontal movement. (Swivel) 30 - 90 - 60 vertical movement. (Tilt - optional N model) Lredpfx Aasdy Hm Ne Isu Adjustable upper protection. 520mm TCT sawblade Z60. Cutting Capacity: 420 wide x 200mm deep at 90 degrees. 295 wide x 200mm deep at 45 degrees. 420 wide x 140mm deep at 45 degrees. (Tilt- optional N model). Dust extraction outlet 100mm. Working height of table 900mm

Condition: new, Year of construction: 2025, Cut-to-length and mitre saw type: ZS 200 N - 5 KW motor with machine stand, Machine via handwheel and worm gear (rear) Tiltable Saw blade diameter 520 mm, saw blade mounting hole 50 mm Saw blade speed: 2800 rpm 400 volt / 5 KW (S6/40%) motor with brake and automat. Star delta motor control Lrjdok H Ic Uspfx Aa Isu Cutting width at 90 degrees: 420 mm Cutting width at 45 degrees: swiveled: 295 mm Cutting height at 90 degrees: 200 mm Cutting height at 45 degrees inclined: 140 mm Saw can be swiveled on one side up to approx. 25 degrees to an acute angle and tilted flat to the left up to 30 degrees Carbide circular saw blade 520x4.0/2.8 x 50 mm 60 WZ neg. for wood RLH-ST60 6.0 mtr. measuring length, mounting side: left Cross-cut fence / roller conveyor, heavy-duty design, Stop slide adjustable from the workstation via handwheel, electronic-digital dimension display, pneumatic clamping of stop slider, stop flap folds backwards, with steel rollers 60 mm diameter, roller spacing 200 mm, 400 mm roller width, with 4 support feet and connection piece: overall length: 6.7 mtr. Surcharge for digital electronic display unit type: FIAMA EP6 for 230 V mains operation, with electric on/off switch and socket. Powerful dark red LED display. Higher accuracy than the battery-powered crystal display RO-ST60 4.0 m long feed roller conveyor Mounting side: Right Heavy-duty design, steel rollers: 60 mm Diameter, roller spacing: 200 mm 400 mm roller width, 3 support feet and connection piece Location: From stock 54634 Bitburg - immediately available - Picture: similar. Machine is still in original packaging

Condition: new, Year of construction: 2025, functionality: fully functional, Technical Data: Cutting height: 200 mm Cutting height at 45° incline: 140 mm Tiltable to the left up to 67° Tiltable to the right up to 45° 5 kW hydraulic feed brake (optional) Cutting length: 420 mm at 90° position Cutting length at 45° swivel: 295 mm Lsdpfx Aaon R A Ewj Ijru Tilt angle: left 60°, right 30° Tilt adjustment from the front via hand crank. 1 wood saw blade, diameter 520 mm 1 heavy-duty cross-cut roller conveyor, length 6,000 mm, mounted on the left. The stop is adjusted from the front via handwheel. Length is digitally readable to the millimeter. The stop is pneumatically locked. 1 digital readout (230 V version) 1 heavy-duty feed roller conveyor, right side, length 4,000 mm Machine length: 11,700 mm Fully mobile Machine packed on wooden planks Images show a customer’s machine. Available upon request also with 215 mm or 240 mm cutting height.

Condition: new, Year of construction: 2025, Crosscut and Mitre Circular Saws Type ZS 200NF Crosscut and mitre circular saw with a maximum cutting height of 200 mm Robust grey cast iron construction Precise ball bushing guidance of the tool carriage on hardened and ground steel shafts Manual saw feed Quick mitre adjustment up to 65° horizontally and 60° vertically Adjustable fixed stops Lower saw blade guard connectable to extraction system Lrsdpjw Hl Aqofx Aa Iju Machine mounted on mobile machine base with 1.5 m long roller conveyors on both sides (left and right) Left side equipped with scale and stop slider Technical Data Motor 400 V / 5.0 kW Speed 2800 rpm Cutting length 420 mm (at 90°) Cutting height 200 mm (at 90°) Mitre range horizontal 45°- 90°- 25° Mitre range vertical 60°- 90°- 30° Saw blade Ø 520 mm (not included as standard) Extraction port 100 mm Weight 490 kg Location: In stock at 54634 Bitburg - Immediately available - On request, we are happy to offer the saw blade as well.

Condition: new, Year of construction: 2024, Product detail Crosscut and mitre circular saws Type ZS 200NF Crosscut and mitre circular saw with maximum cutting height of 200mm solid cast iron construction precise ball-bearing guide of the tool slide on hardened and ground steel shafts manual saw feed fast mitre adjustment up to 65° horizontal and 60° vertical readjustable fixed stops lower saw blade protection connectable to suction unit machine mounted on mobile machine base with 1,5 mtr. long roller conveyors left and right side left side with scale and stop slide technical data Motor 400 V / 5.0 kW Speed 2800 rpm Cutting length 420 mm (at 90°) Cutting height 200 mm (at 90°) Mitre range horizontal Ledpfxjcnz Rvj Aa Ieru 45°- 90°- 25° Mitre range vertical 60°- 90°- 30° Saw blade Ø 520 mm ( not included in standard ) Suction nozzle 100 mm Weight 490 kg Location: Ex stock 54634 Bitburg - Immediately available - On request we can also offer you the saw blade.
