Sanding machine

LÖWER LZ 8

Number of sanding units 8 st.
sanding width 150 mm
Machine can be inspected during production!

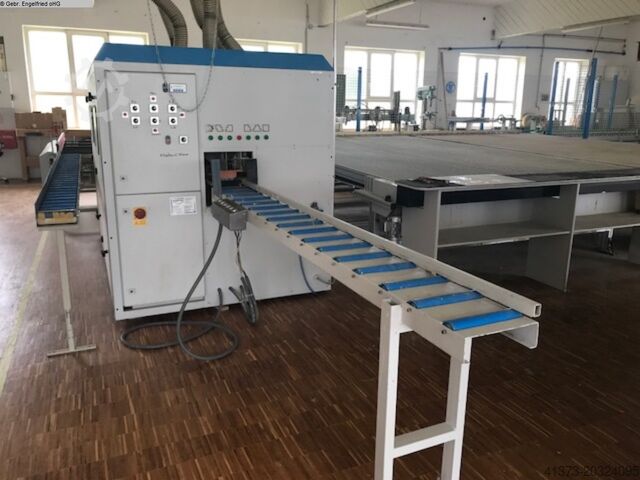

Leistomat - Finisch and intermediate leveling machine Löwer LZ 8
----- -----

for finish sanding (smoothing, defibering and edge breaking)
or intermediate sanding profiled window latch
- Finish and intermediate sanding machine with eight sanding blade aggregates,
2 surface units at the top (synchronism / counter-rotation)
2 surface units below (synchronism / counter-rotation)
4 profile units with angled arrangement top right,
bottom right, top left, bottom left, all mating
- linear guidance of all grinding units over
Linear ball bearing sets on hardened shafts
- Timed immersion of all in the opposite direction
rotating grinding units directly above the incoming
Workpiece edges to avoid looping through the
Primer in the front edge area. By the
It is possible to immerse the aggregates deeper in the
Be able to deliver profiles.
- Timed replacement of the rotating in synchronism
Aggregate
- motor workpiece thickness adjustment of the machine
by means of motorized height adjustment via push button
- Display of workpiece thickness via digital display with
modern magnetic tape system
- Variable grinding disc speed via frequency converter
to adapt the grinding intensity to different
Primers by means of frequency converters 200-1000 rpm
- Workpiece width recognition at the machine infeed with
automatic adjustment of the left grinding units
to the current workpiece width
- Profile preselection via selector switch on the machine inlet side
as well as automatic adjustment of the
Abrasive blade aggregates on the selected profile
- modern PLC control for easy operation of the machine
- Suction connection 5 x 100mm diameter
- Length (body) x width x height (mm): 2600 x 1500 x 1600
Length complete: 3600mm (including roller conveyor with
integrated workpiece width recognition)
- Operating voltage 400V, 50Hz, 3P, air connection 6 bar
- CE version


Technical specifications:

Number of sanding units: 8 pcs.

Surface brush width: max. 150 mm
Working height: max. 100 mm
Surface Brush Motor: 0.75 kW
Side brush motor: 0.37 kW
Brush speed: 1380 rpm
Feed motor: 1.1 kW
Feed rate: 4-20 M / min
Feed stepless

Speed ??controller grinding units
Automatic width detection
Digital magnetic tape gauge

Ibodpfx Aexpi D Usabsc
Extraction nozzle: 5 x 100 mm
Air requirement: 5 x 565 m3 / h
Minimum air velocity at the connection of the machine: 20 m / s

Dimensions:
Length: 2600 mm
Width: 1480 mm
Height: 1700 mm

Weight: 950 kg

WITH inlet roller conveyor
-----
Price of the Löwer amchine on request!

he return conveyor device that can be seen in the pictures is no longer
available and is NOT included in the scope of delivery


(Technical data according to manufacturer - without guarantee!)
