880 liter heatable/coolable pressure vessel made of V4A with magnetic agitator

9629

GENERAL INFORMATION

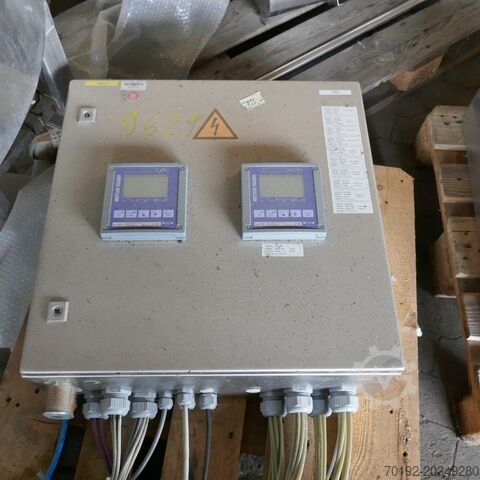

Equipment: Spray head, crane lugs, control cabinet (no guarantee)
Design: vertical
Year of manufacture: 2007
Crodpfx Asxqanajddsk
Speed: 329 rpm
External diameter: 1,060 mm
Internal diameter: 900 mm
Overall height: 2,300 mm
Heating/cooling: available
Insulation: available
Power: 0.55 kW
Max. permissible operating temperature: 150 °C
Max. permissible operating overpressure: 6.0 bar
Max. overpressure: 4.0 bar

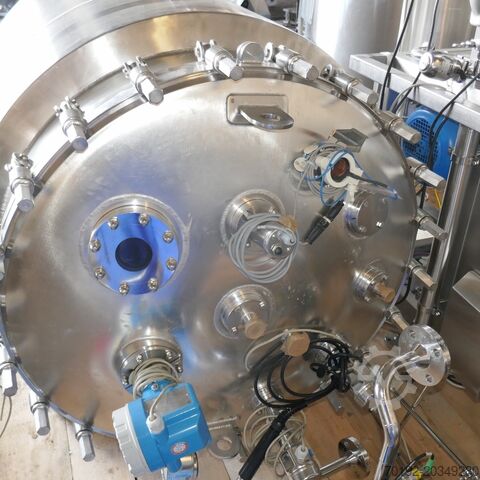

Top cover: removable / hinged
Agitator: magnetic stirrer
Base design: height-adjustable feet
Location: Bremen
Technical documentation: drawing, various documents, CE marking and declaration of conformity
Cylinder temperature control: double jacket
Nameplate:
Vacuum: 1.0 bar
Volume: 880 liters
Double jacket volume: 41.0 liters
Cylinder wall thickness: 10 mm
Double jacket material: V2A 1.4301 (AISI 304)
Product-contact material: V4A 1.4401/04 (AISI 316)
Condition: used
Cylindrical height: 1,150 mm
Previous application: pharmaceuticals

TANK
Max. permissible operating temperature: 150 °C
Number of feet: 3 pcs

HEATING/COOLING JACKET
Max. permissible operating vacuum: 1.0 bar
Bottom temperature control: double jacket

INSULATION
Insulation jacket: hermetically welded
Insulation material: mineral wool
Insulation jacket material: stainless steel

FEATURES
Outlet: DN40 DIN 11851

MATERIAL SPECIFICATION
Foot material: stainless steel

AGITATOR 1
Agitator manufacturer: PRG
Voltage: 230/400 Volt

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 8 mm
Agitator arrangement: underfloor

The listing was translated automatically. Translation errors are possible.
