Used Cnc Lathe With Counter Spindle for sale (21,718)

Condition: used, Year of construction: 2008, Technical details: turning diameter over bed: 400 mm turning dia. over face-slide: 400 mm turning length: 1155 mm max. turning diameter: Ø 350 mm Ksdpfx Aaov Iplajnsfa travel -x axis: 205 mm travel -z axis: 620 mm control: Fanuc OI-TC max. tool weight: 235 (with Tailstock) kg spindle passage: Ø 80 mm revolution per minute: steples U/min rapid traverse X-axis: 20 m/min rapid traverse Z-axis: 24 m/min tool turret - number of stations: 12 tailstock taper ISO: MK 4 mm tailstock quill stroke: 150 mm total power requirement: 45 kVA Weight approx.: 4,0 t dimension machine xH: 2,6 x 1,8 x 2,2 + Transformator m Equipment: -3-jaw chuck Ø 260mm with interchangeable jaws inside/outside -center point in tailstock -disk turret Ø 480mm -Hydraulic unit (40 liter capacity) -Coolant tray (80kg) -LOSMA exhaust air filter -Chip tray (30kg) -Chip conveyor (180kg) Operation via control panel and foot switch Accessories various bar sleeves Ø 78mm (outside) various clamping rods 1x 4-jaw lathe chuck Ø 200mm TOS various clamping jaws various clamping fixtures *

Condition: used, Seriennummer: 0419 Kodpewm Rrdofx Aanefa

Condition: used, Year of construction: 2009, turning length: 1,300 mm, turning diameter: 400 mm, spindle bore: 76 mm, 2-axis CNC lathe DOOSAN PUMA 300LB year of manufacture 2009 Fanuc 21iTB with Manual Guide Chuck 250mm maximum turning diameter 400mm maximum turning length 1300mm Z-axis: 1330mm Axis: 282 (82+200) mm Ksdpfsxxzzqsx Aanofa Turret for 10 tools Spindle bore 76 mm Steady rest Swm Autoblok Chip conveyor Probe Tailstock Documentation

Condition: good (used), Leadscrew and feedscrew lathe type Celtic 12 Centre height: 160 mm Centre distance: 500 mm Spindle speeds: 35 - 1560 rpm Kfodpjx Dy U Tjfx Aanoa Multifix tool holder A Lathe chuck Live centre

Condition: used, Year of construction: 2012, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW Kfjdpfx Aoxnlhgsanja • Guideways: - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: new, Year of construction: 2025, GSD Intern One of the best-selling and most popular conventional precision lathes Impressive thanks to: Sophisticated technology Highest accuracy Durability Proven ergonomics Minimal footprint And extensive accessories. Proven for decades in single-part and small-batch production, in trade and industry, training and continuing education, and tool and fixture construction. Distance between centers 650 mm Center height 160 mm Automatic handwheel disengagement Leadscrew and feed screw covers Main spindle brake Toolmaking precision according to DIN 8605 Pole-changing brake motor Headstock gearbox 16 fixed speed levels Numerical position display (option) LED machine light TECHNICAL DATA: WORKING AREA Center height 160 mm Swing over bed 320 mm Swing over cross slide 190 mm Distance between centers 650 mm Kfodpfxjwhzcps Aanoa TURNING SPINDLE Spindle head DIN 55027/DIN ISO 702-3 Gr. 5 Spindle bore 43 mm Spindle diameter in front bearing 70 mm MAIN DRIVE Drive power 60%/100% duty cycle 2.6 / 3.1 kW Speed range 48 – 2,500 rpm Number of speeds 16 FEED RANGE Number 24 Longitudinal 0.02 – 0.63 mm/rev Cross 0.006 – 0.2 mm/rev THREADING RANGE Metric threads 0.25 – 8* mm TAILSTOCK Quill diameter 40 mm Quill stroke 85 mm Internal taper DIN 228 MK 3 ACCEPTANCE ACCURACY DIN 8605 * Inch threads and metric thread pitches 0.45; 0.75; 4.5 and 5.5 are only available with additional change gears. This machine is located in our showroom in 71334 Waiblingen-Beinstein and is available immediately. Please contact us regarding the available options.

Condition: excellent (used), Year of construction: 2022, operating hours: 11,543 h, functionality: fully functional, machine/vehicle number: 8107000628B, CNC lathe SPRINT 32 - 8, year 2022, with IEMCA bar feeder Kedpfx Aajxfq I Hjnjfa CNC control: Fanuc 32i-B Main spindle: Max spindle bore: 32 mm Max spindle speed: 8,500 rpm Power: 7.5/5.5 kW Sub spindle: Max spindle bore: 32 mm Max speed: 8,500 rpm Power: 3.7/2.2 kW Travel axes: X1 70mm, Y1 405mm, Z1 100mm, X2 300mm, Z2 200mm, Y2 135mm Tool holders: Slide 1: 4 x internal machining, 6 x external machining, 4 x driven tools Slide 2: 4 x internal machining, 4 x driven tools Total power requirement: 16 kVA Dimensions (L x W x H): 2,309 x 1,448 x 2,087 mm Weight: 3,450 kg

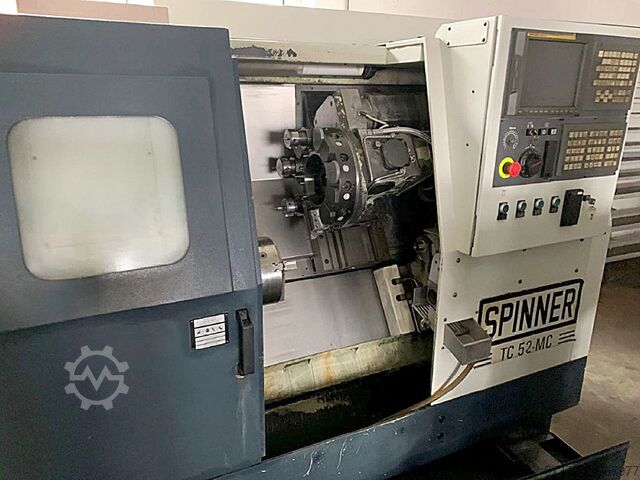

Condition: good (used), Year of construction: 2005, Ref. -No.: 10475 Manufacturer: SPINNER Type: TC52-MC Year of construction: 2005 Type of control: CNC Control: Siemes 810 D ShopTurn Storage location: Halberstadt Country of origin: Germany Machine-No.: AN0XXXX Turning Speeds: 280/400 RPM Tool holder type: Stahlhalter 9 pcs. Turning Diameter: 280/400 mm Turning Length: 550 mm Tool Taper: VDI 30 Spindle Speed Max.: 5.000 RPM Turret places: 12 Pcs Further information: Three-jaw chuck: Schunk brand Driven tool stations Oil mist extraction Coolant system Cabin, extraction Donaldson Tirit DCE Kfodpex A R U Isfx Aanja Machine can be inspected under power by arrangement.

Condition: good (used), Year of construction: 1990, operating hours: 9,200 h, functionality: fully functional, turning diameter over cross slide: 490 mm, turning length: 850 mm, turning diameter: 700 mm, spindle bore: 80 mm, spindle speed (max.): 3,200 rpm, travel distance X-axis: 330 mm, spindle motor power: 30 W, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 20 m/min, total height: 2,620 mm, total length: 3,995 mm, total width: 2,620 mm, Equipment: documentation/manual, Tailstock Ksdpfx Aevga Nyjanofa Chip conveyor Tool Control Okuma 5020L Hydraulic chuck Autoblock 500 mm

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 4209.08, turning diameter: 670 mm, spindle speed (max.): 2,000 rpm, travel distance X-axis: 440 mm, travel distance Z-axis: 2,000 mm, controller model: Heidenhain Manual Plus 4110V2, TECHNICAL DETAILS Maximum turning diameter: 670 mm Travel X-axis: 440 mm Travel Z-axis: 2,000 mm Kfedpfjx Ex A Usx Aansa Rapid traverse Z-axis: 5 m/min Rapid traverse X-axis: 10 m/min Spindle bore: 106 mm Speed range: 1 – 2,000 rpm Spindle power: 33 kW Spindle mount: DIN 55026 – A8 Turret mount: Quick-change toolholder Multifix type C Number of turret stations: 1 Tailstock taper: MT5 MACHINE DETAILS Control system: Heidenhain Manual Plus 4110V2 Dimensions & Weight Machine dimensions (L x W x H): 1.9 m + center distance x 2.1 m x 1.9 m Control cabinet dimensions (L x W x H): 1.2 m x 0.5 m x 1.6 m Weight: 5,100 kg EQUIPMENT Ethernet and USB interface for network connectivity Chip conveyor Fixed and traveling steady rest Self-centering 3-jaw chuck (diameter 400 mm) Independent 4-jaw chuck (diameter 600 mm) Faceplate (diameter: 650 mm) Various clamping jaws and top jaws Fixed and revolving centers Approx. 30 Multifix holders type C Drill chuck with MT5 shank

Condition: used, Year of construction: 2009, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s Kfjdexnki Aopfx Aanea • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW • Guideways: - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, turning diameter over cross slide: 420 mm, turning diameter: 420 mm, spindle bore: 65 mm, total height: 1,700 mm, total length: 4,100 mm, total width: 1,800 mm, overall weight: 5,300 kg, We offer a Gildemeister CTX 400 s2 CNC lathe in very good technical and visual condition. The machine has been regularly serviced and comes with complete technical documentation (DTR). Ksdpsxy Izyjfx Aanofa Technical data: - CNC control: GE FANUC Series 21i-T - Chuck diameter: Ø 200 mm - Spindle bore: 65 mm - Max. turning diameter: 420 mm - Max. turning length: 630 mm - Tool positions: 12 - Dimensions: 4100 × 1800 × 1700 mm - Weight: 5300 kg Highlights: rigid, precise, and reliable lathe, ideal for production requiring repeatability and accuracy.

Condition: used, Year of construction: 1999, turning diameter 270 mm turning length 630 mm control SIN840D swing over bed 400 mm swing diameter over slide rest 220 mm longitudinal slide -travel 745 mm cross slide - travel 200 mm turning speeds 10 - 4.000 U/min power capacity at 100 % load 15,00 kW spindle head DIN 55026 - Size 6 spindle bore 62 mm chucking diameter max. 315 mm feed x-axis 1 - 12.000 mm/min rapid traverse X-axis 12,00 m/min Feed z- axis 1 - 20.000 mm / min. rapid traverse Z-axis 20,00 m/min tailstock quill taper MT 3 quill stroke 112 mm quill pressure 10,00 kN tool taper DIN 69880 Ø 30 mm Tool drive speed max. 4.000 1/min total power requirement 37,00 kW Kedsx Avp Repfx Aanofa weight of the machine ca. 4,00 t dimensions of the machine ca. 4,00 x 2,75 x 2,30 m With SIEMENS SINUMERIK 840D control system, turret with driven tools, C-Axis, tailstock, chip conveyor, various tool holders.

Condition: good (used), Year of construction: 2015, Ref. -No.: 10421 Manufacturer: SCHüTTE Type: SF 26 Ksdjx A R Sgjpfx Aanofa Year of construction: 2015 Storage location: Halberstadt Country of origin: Germany Serial no.: 3 Power consumption: 35 kW Weight Of The Machine Ca.: 6,6 t

Condition: good (used), Year of construction: 2004, turning diameter over cross slide: 480 mm, turning length: 2,200 mm, turning diameter: 380 mm, spindle bore: 118 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, Doosan Puma 400 Long Bed CNC Lathe Year: September 2004 Control: Fanuc 18 i TB Model: 400 LB Swing Over Bed: 700mm Swing Over Saddle: 480mm Max Turn Dia: 380mm Between Centres: 2100mm Spindle Bore: 132mm Spindle Speeds: 20-2000 RPM Machine With: 375mm Power Chuck Fixed Steady Swarf Conveyor Dimensions: 5400 x 1900 x 2300mm High Weight: 11000 Kgs Kodpfx Aex Iv Dusanefa

Condition: excellent (used), Year of construction: 2022, turning length: 1,650 mm, spindle bore: 181 mm, travel distance X-axis: 470 mm, Tool eye SMW 3 chuck 630-165 mm SMW Steady rest 85 - 350 mm LNS Chip conveyor DORMATEC Air Filter 30 m3 Max. turning Ø: 1030mm Kfedpfjx Eivpsx Aanja X-Axis: 470mm Z-Axis: 1650mm Spindle bore: 181mm Speedrange: 1500Rpm Spindle power: 41kW ATC / revolver: 12 Speed live tools:3000Rpm Power live tools:9kW Chip conveyor: yes Tool eye: yes Pinole taper: 6Mk Stroke pinole: 150mm Quill Ø: 160mm Length: 7350mm Width: 3160mm Height: 2800mm Weight: 22000kg

Condition: good (used), Year of construction: 2014, Control FANUC 31i-B Main Spindle Bar Capacity 65mm Main Spindle Speed 5000rpm Main Spindle Motor 24/20kW Main Spindle C axis 0.0001 degree Sub Spindle Bar Capacity 65mm Sub Spindle Speed 5000rpm Sub Spindle Motor 24/20kW Sub Spindle C axis 0.0001 degree Sub Spindle Stroke 700mm Sub Spindle Rapid 50m/minute Turret 1 Stations 10 Milling Speed 6000rpm Milling Motor 6.5kW X Axis Stroke 110mm X Axis Rapid 30m/minute Z Axis Stroke 320mm Z Axis Rapid 60m/minute Kedpfx Aaex H R R Hjnjfa Y Axis Stroke 100mm Y Axis Rapid 15m/minute Turret 2 Stations 10 Milling Speed 6000rpm Milling Motor 6.5kW X Axis Stroke 110mm X Axis Rapid 30m/minute Z Axis Stroke 550mm Z Axis Rapid 60m/minute Y Axis Stroke 100mm Y Axis Rapid 15m/minute Turret 3 Stations 10 Milling Speed 6000rpm Milling Motor 6.5kW X Axis Stroke 180mm X Axis Rapid 30m/minute Installation Footprint 8500 x 1800mm Weight 9000kg Electrics 72 kW, 84 kVA, 122 A, 400 V, 50/60 Hz Accessories Gantry work piece discharge unit, Parts Conveyor, Swarf Conveyor. High Pressure Coolant, Manuals, Tool Monitoring, UNIMAG Interface, Iemca Master 880/33-HF Magazine Barfeed, Hainbuch Collet Chuck fiited to Main Spindle, 3 jaw chuck fitted to Sub Spindle

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm Kjdpox D Uz Isfx Aanjfa swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21.

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 150602, turning length: 1,190 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 230 mm, travel distance Z-axis: 440 mm, TECHNICAL DETAILS Travel X-axis: 230 mm Travel Z-axis: 440 mm Turning diameter: max. 320 mm Turning length: max. 1,190 mm Bar capacity diameter: max. 51 mm Swing diameter: max. 320 mm Spindle nose: A2-6 Draw tube thread: M60 x 2 Main spindle speed: 35–5,000 rpm Driven tool speed: 4,500 rpm Rapid traverse speed: 30.5/33 m/min Kjdpfxox Dmm Ao Aanefa Turret stations: 24 Tool holder / Turret type: VDI MACHINE DETAILS Electrical and Safety Voltage: 400 V Protection class: 1 Connected load: 77.4 kW Footprint & Weight Footprint: 6.5 m² Machine weight: 7,900 kg EQUIPMENT Portal loader GL 100 F

Condition: excellent (used), Year of construction: 2013, CNC lathe DMC Korea model Q6 year of manufacture: 2013 Ksdjxxb Scjpfx Aanofa chuck: 6 inches max turning diameter: 170 mm max turning length: 240 mm spindle bore: 44 mm weight: 2,500 kg dimensions: 2370x1430 mm machine height: 1640 mm

Condition: excellent (used), Year of construction: 2022, MAZAK QUICK TURN 200MY Max. machining diameter: 380 mm Max. machining length: 555 mm Max. milling speed: 5,000 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC CONTROL Mazatrol SmoothG - KITAGAWA three-jaw chuck BB-208, diameter 210 mm - Tool Eye - C-axis - Y-axis Kodpfx Aajx Dr Ulsnofa - Interface for bar loading magazine - automatic part catcher - NC tailstock - reinforced coolant pump - chip conveyor - 8 fixed tool holders - 2 driven tool holders

Year of construction: 2008, condition: used, Manufacturer : OKUMA Model: LB3000EX-MYT Voltage: 380V Phase: 3P (3-Phase) Frequency: 50Hz Average Capacity: 35.5 kVA Full Load: 55 A Max Motor Power Consumption: 215 A Interrupt Capacity: 65 kA Kfodpouiq N Rjfx Aanoa Diagram Number: W5201-139-756 Find more here - Contact us at -

Condition: good (used), Year of construction: 2014, Control FANUC 31i-B Main Spindle Bar Capacity 42mm Main Spindle Speed 7000rpm Main Spindle Motor 29/25kW Main Spindle C axis 0.0001 degree Sub Spindle Bar Capacity 42mm Sub Spindle Speed 7000rpm Sub Spindle Motor 19/16.5kW Sub Spindle C axis 0.0001 degree Sub Spindle Stroke 500mm Sub Spindle Rapid 60m/minute Turret 1 Stations 10 Milling Speed 6000rpm Milling Motor 4.2kW X Axis Stroke 70mm X Axis Rapid 30m/minute Z Axis Stroke 250mm Z Axis Rapid 60m/minute Y Axis Stroke 70mm Y Axis Rapid 15m/minute Turret 2 Stations 10 Milling Speed 6000rpm Milling Motor 4.2kW X Axis Stroke 70mm X Axis Rapid 30m/minute Z Axis Stroke 400mm Z Axis Rapid 60m/minute Y Axis Stroke 70mm Y Axis Rapid 15m/minute Turret 3 Stations 10 Milling Speed 6000rpm Ksdpfex H R Rtox Aanefa Milling Motor 4.2kW X Axis Stroke 125mm X Axis Rapid 30m/minute Installation Footprint 7612 x 1530mm Weight 5500kg Electrics 57 kW, 68 kVA, 97 A, 400 V, 50/60 H Accessories Gantry work piece discharge unit, Parts Conveyor, Swarf Conveyor. High Pressure Coolant, Manuals, Tool Monitoring, UNIMAG Interface, Iemca Boss 552-HD Magazine Barfeed, Hainbuch Collet Chuck fiited to Main Spindle, 3 jaw chuck fitted to Sub Spindle

Condition: used, Year of construction: 2012, turning length: 300 mm, turning diameter: 200 mm, CNC lathe DMC Korea model DL8TM C axis with driven tools Turret for 12 tools on VDI30 Chuck 210mm Spindle bore 51mm Ksdpfx Aexgqrnjanjfa Turning length 300mm Turning diameter 200mm Parts catcher Tailstock Chip conveyor

Condition: excellent (used), Year of construction: 2015, 2-axis Mazak QT200 Smart Year of manufacture: 2015 Z-axis travel: 560 mm Maximum turning diameter: 350 mm Spindle bore: 65 mm Kitagawa BB208 chuck Programmable tailstock Tool probe Parts catcher Bar feeder interface Only 3,500 operating hours With the machine: -documentation Kodpfoxxb T Hjx Aanefa -chip conveyor, coolant tank and pump
