Used Cut To Length Line for sale (50,620)

Condition: used, Year of construction: 1982, Used cut-to-length line FIMI 1250×0.12-0.8mm x16t with two packing stations (A3793) is coil metal processing line to cut metal into sheets with required sizes. Such machine can be good solution for metal coil processing companies. Manufacturer : FIMI – Italy Year of manufacture : 1982 Revamping : 2008 (SEI SISTEMI) and 2019 (SEI SISTEMI) Ce marking : 2019 Material before processing : Max coil width 1250 x 0.12 Г· 0.80 mm. Uncoiler capacity : 16 Tons. Sheets dimensions : min. 300 x 500 mm. – Max 1250 x 2000 mm. Working speed 0-120 m/min. LIST OF MACHINES COMPOSING THE LINE ➢ STOCKING RAMP FOR 2 COILS ➢ COIL LIFT ON UNCOILER ➢ UNCOILER WITH SECTORS DIAM. 400 AND DIAM. 508 MM. ➢ PINCH-ROLL FOR STRIP FEEDING TO LEVELER ➢ 6HI-LEVELLER WITH INTERCHANGEABLE ROLL BENCHES – 1 BENCH FOR THICKNESS 0.12 ÷ 0.50 MM. – 1 BENCH FOR THICKNESS 0.50 ÷ 0.80 ➢ CONNECTION TABLE BETWEEN LEVELER AND PINCH-ROLL ➢ PINCH-ROLL ➢ DESCENT ROLLWAY IN LOOPING PIT ➢ ASCENT ROLLWAY FROM LOOPING PIT ➢ PINCH-ROLL WITH MOTORIZED ROLLS Lrodpottlfkefx Aa Iou ➢ STRIP CENTERING DEVICE WITH VERTICAL ROLLS ➢ THICKNESS MEASURER TYPE ELECTRONIC KEYBOARD ➢ ROTATING SHEAR ➢ SWIVELLING CONVEYOR TO AVOID SCRAPS AND PARTS OF DEFECTIVE STRIP ➢ COLLECTION BOX FOR TRIMMING AND DEFECTIVE PARTS OF THE STRIPS ➢ SWIVELLING CONVEYOR TO AVOID SCRAPS AND PARTS OF DEFECTIVE STRIP IN THE FIRST AND SECOND COLLECTION BOXES AND STACK COMPOSITION ➢ CONNECTION ROLLWAY AND SECTION FOR CONVEYING OF SHEETS IN THE THIRD BOX. ➢ 3 STACK UNLOADING SHUTTLES TO CONVEY STACKS TOWARDS THE ROLLWAY ➢ 1 EVACUATION ROLLWAY FOR THE PACKAGING ➢ HYDRAULIC EQUIPMENT FOR ALL THE LINE ➢ INTRODUCTION STRIP OPERATION PULPIT LOCATED AT LINE ENTRY FOR COILS CUTTING ➢ MAIN PULPIT FOR ALL LINE OPERATIONS ➢ OPERATION PULPIT LOCATED AT LINE EXIT ➢ ELECTRICAL CABINET CONTAINING ALL ELECTRICAL/ELECTRONIC COMPONENTS AND PLC ➢ PHOTOCELLS AND SAFETY/PROTECTION BARRIERS.

Condition: excellent (used), Stainless Steel Cut to Length Line • Coil Weight: 2 tonnes • Coil Width: 100 – 500mm • Cut Length: 150 – 500mm • Thickness: 0.30 – 1.0mm • Max Coil O/D: 500mm Lodpfx Aaswbzbxo Ijru

Condition: used, Cut-to-length line Pro-Eco with Cassette Type Precision Leveler 60 x .187 x 50,000Lbs (A3789) Maker: Pro-Eco Excellent conditions SPECIFICATIONS: MAX WIDTH 60" MAX THICKNESS 187" MANUFACTURER - PRO-ECO YEAR - 1985, REINSTALLED 2002 WIDTH RANGE - 8" to 60" Lredpsthg Diefx Aa Iou GAUGE RANGE - .024" to .187" WEIGHT CAPACITY - 50,000# (25 TON) COIL OD - 36" to 72" COIL ID - 19" to 24" SHEET LENGTH - 24" to 168" SHEET WIDTH - 8" to 62" PACK HEIGHT - 30" (INCLUDING DUNNAGE) PACK WEIGHT - 20,000# LINE DIRECTION - RIGHT to LEFT LINE SPEED - 50 to 300 FPM (VARIABLE) LEVELER TYPE - MECHANICAL WEDGE STYLE w/ TWO CASSETTES LINE COMPONENTS: FOUR ARM ENTRY STORAGE TURNSTILE FLOOR LEVEL COIL LOADING CAR CANTILEVERED MANDREL UNCOILER w/ WATER COOLED BRAKE PIVOTING AND TELESCOPING PEELER BLADE ENTRY PINCH ROLLS ROLLER TYPE SIDE GUIDES ENTRY CROP SHEAR SIDE TRIMMER HYDRAULIC SERVO DRIVE (CURRENTLY NOT OPERATIONAL) MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS ROLLER TYPE STRIP SQUARING TABLE PRECISION ROLL FEEDER W/ 55 HP MOTOR HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART 14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP 14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS 14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS OPERATOR CONTROL STATIONS UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006) UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006) CLOSED LOOP HYDRAULIC SYSTEM CLOSED LOOP WATER COOLING SYSTEM

Condition: used, Cut-to-length line Bronx 2050x8mm x35t (A3781) for coil metal cross cutting into sheets of required sizes with different length and width. Thickness Range: 2 – 8 mm Coil Capacity: 35t Coil OD: 2100mm Coil ID: 508mm , 610mm , 762mm Strip Width: 2000mm – 600mm Sheet Length: 8000mm – 600mm Pack Weight: 10 t Max Line Speed: 60 meters/min Cuts Per Minute: 35 Ljdoq Ulh Hopfx Aa Isru Complete Line With 4 Coil Storage Storage Ramp Coil Loading Car Double Stub Mandrel Uncoiler Sliding Base Hydraulic Expansion Drag Brake Tension Control Peeler / Hold Down Roll 3 Roll Coil Breaker Feed Up Table 7 Roll Backed Up Leveler with Pinch Roll Breaker (9 Rolls Total) Entry Power Pinch Rolls 3 Flights Top & Bottom Back-Up Rolls Entry & Exit Pinch Rolls Marking Unit Measuring Roll Pinch Rolls Bronx Flying Shear AC Die Accelerator Flywheel & Air Clutch and Brake Rack & Pinion Accelerator 35 Cuts per Minute Reject Conveyor Twin Belt Gauging Table Stacker Side Squaring Lift Stacking Tables Photo Cells Drop Type Motorized End Stop Motorized Run Out Conveyor Upgraded AC Motors Upgraded Control Techniques Digital Drives Complete Line

Condition: used, Year of construction: 1990, Manufacturer: SALICO S.P.A. Ledpfx Aeurlakja Ijru Year: 1990 Thicknesses: 3-13.5mm Coil capacity: 25t Coil width:320-1250mm Direction: Left-Right Sizes of line: 17x13m Maximum external diameter: 2000mm Minimum external diameter: 700mm Minimum internal hole of coil:500mm Maximum internal hole of coils: 600mm Knife diameters: Max 460, Min 410mm Absolute number of cuts 15 Number of cuts with maximum thcikness 13.5mm: 3 cuts for hard material, 5 cuts for mild material.

Condition: used, Year of construction: 2005, sheet thickness steel (max.): 4 mm, sheet thickness (max.): 4 mm, product height (max.): 4 mm, coil width: 500 mm, load capacity: 10,500 kg, product width (max.): 500 mm, controller manufacturer: SIEMENS, controller model: S7 300, CONTROLS .. PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES) .. sheet width max.: 500 mm .. sheet thickness max.: 4 mm .. coil weight max.: 10.5 to .. feedstock transport direction: right to left Lodpfx Ajxqw Nnja Isru COIL CHAIR .. coil weight max.: 10.5 to .. stroke: 750 mm DECOILER .. design: single reel .. sheet width max.: 500 mm .. sheet width (min): 150 mm .. coil weight max.: 10.5 to .. max. diameter of coil: 2020 mm .. mandrel expansion range from: 470 mm .. mandrel expansion range up to: 530 mm .. feed velocity max.: 20 m/min LEVELLER UNIT .. sheet width max.: 500 mm .. sheet width (min): 150 mm .. sheet thickness max.: 4 mm .. sheet thickness min.: 2 mm .. number of leveller rolls: 9 .. diameter of leveller rolls: 56 mm .. diameter of feed rolls: 150 mm .. feed velocity min.: 1 m/min .. feed velocity max.: 20 m/min CUT-TO LENGTH SHEAR .. sheet width max.: 530 mm .. sheet thickness max.: 4 mm Cut-To-Length line consisting of: - Coil loading chair HUBTEX - ARKU single-sided decoiler - ARKU VRM 5050/9 feed straightening machine, +- 0.1 mm feeding precision - measuring wheel to verify feed length - Cut-to-length shear Huttenlocher & Schäfer HSK/S year of construction 2017

Condition: used, Hego cut-to-length line Working width 500x2mm Speed 10-12m/min Mechanical decoiler max. 1000kg Ledpfovk D Alsx Aa Isru Coil inner diameter 400/508mm Straightening machine with 9 straightening rollers and 2 feed rollers and film unwinder The offer is aimed exclusively at traders within the meaning of §14 BGB no sale to private customers!

Condition: new, Year of construction: 2023, Cut-to-length line 1250mm x2mm x10 t for cross cutting of coil metal with maximum width 1250mm, maximum metal thickness 2mm and maximum coil weight 10 tons. Line can be equipped with acceptance part with moving support for stainless steel or as standard acceptance table. As an option we can offer used machines for your requirements. Also we produce slitting lines, roll forming lines. tube mills and other sheet metal and coil metal processing machinery Lodpsqlbpgjfx Aa Ieru

Condition: ready for operation (used), Fröhling Stainless Steel Cut to Slitting Line Technical Data: Material: Stainless Cr Ni and Cr steel strips Coil Width: 12 – 500mm Cut Length: Free cutting Thickness: 0.30 – 2.5 mm Tensile strength: Max. 80 kp/mm² Elongation: Max. 50% at 80 kp/mm² Strip thickness: 0.2 – 2.5 mm Raw strip width: Max. 500 mm Lredpfx Ajwbt Iqja Isu Number of cuts: 12 and more, 9 cuts at 2.5 mm thickness 12 and more at 0.2 – 2.0 mm thickness Line speed: 0–75 m/min for strip thickness 0.2 – 2.5 mm 0–150 m/min for strip thickness 0.2 – 1.0 mm Feeding speed: 15 m/min Coil weight: Max. 4500 kp Line direction: From left to right (viewed from operator side) Blade List Size Quantity 5 mm 33 6 mm 32 7 mm 59 7.70 mm 10 8 mm 330

Condition: used, Year of construction: 2023, gebraucht 2023 9676 prompt, Zwischenverkauf v Lrsdowiqrispfx Aa Iju Deutschland 13700 € 1 1250 mm 1.25 mm 1,25 mm bei 1 Messerpaar; 0.37 kW 36 m/min 70 mm 1900 mm 1600 mm 1000 mm 350 kg demo machine / mint condition - fixprice 3 pairs of blades Length measuring by wheel Digital preselection of one position Brake motor Rubber feeding rolls Manual crosscutting equipment in front and behind blade shaft with 1 cutting slide which alternaingly can be used on front and backside User manual in GERMAN Options: Additional pair of blades € 540,- Decoiler € 3.480,-

Condition: excellent (used), Year of construction: 2015, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 1.5x3m, conveyor belt thickness: 3 mm, coil weight: 20,000 kg, conveyor belt width: 1,500 mm, sheet thickness aluminum (max.): 3 mm, sheet thickness steel (max.): 3 mm, blade shaft diameter: 620 mm, load capacity: 20,000 kg, space requirement height: 3,000 mm, The device is in continuous use on the first shift. Manufacturer: China. Additionally, two used straighteners for thick sheet metal were purchased. The line is available for testing at any time. Ledoxf Ucbspfx Aa Ioru

Condition: new, Year of construction: 2025, Compact PLC - controlled sheet metal slitting and cross-cutting system PLC control with touchscreen mounted on the swivel arm - the number of pieces and the cutting length are programmed The system can also be combined with a hole punching unit. Maximum sheet width 1,250 mm Maximum sheet thickness 1.2 mm steel sheet SJ235JR 360 N/mm² Integrated straightening unit with three hardened and ground straightening rollers. Rubber-coated feed rollers - this means that painted sheets can also be processed. Ljdpfxsxdihco Aa Ioru Strip shears with 3 to 5 pairs of knives - Maximum cutting speed 25 m/min Hydraulic slide-guided cross-cutting shears Total drive power 4 kW

Year of construction: 1985, condition: excellent (used), strip width: max. 1.500 mm strip thickness: 0,3 - 2 mm Lsdpfx Aajnfu Ico Ieru coil weight: 6 t mandrel Ø: 508 mm No. of slits: max. 9

Condition: used, OCEVI Combinated cut-to-length and slitting line 2000x10mm x30t (A3794) OCEVI Combinated cut-to-length and slitting line 2000x10mm x30t (A3794) is perfect machine for both tasks: cut-to-length cutting and longotudinal cutting of coil metal into strips with 2000mm coil width, 10mm maximum metal thcikness and 30t coils OCEVI Combinated cut-to-length and slitting line 2000x10mm x30t (A3794) Composition of the line: 1. Stocking ramp Lrsdotvdy Iopfx Aa Iou 2. Loading cradle 30t 3. Double cone uncoiler 4. Hydraulic peeler table 5. Arm with roll-press roller-bridge structure 6. Assembly including pinch-roll and pre-straightener 7. crop shear 8. tilting roller conveyor on pit 9. slitting shear shaft diam. 200mm 10. mobile side guide 11. tensioning rollway 12. side trim rewinder 13. burr crusher 14. recoiler + unloading crandle 30tons. 15. tensioning rollway to leveler 16. unger leveler 17. guillotine flying shear 18. pinch-roll for sheet ejection 19. stacker 20.roller conveyor for stack ejection 12mt. 21 hydraulic control unit 22. electrical equipment 23. tooling

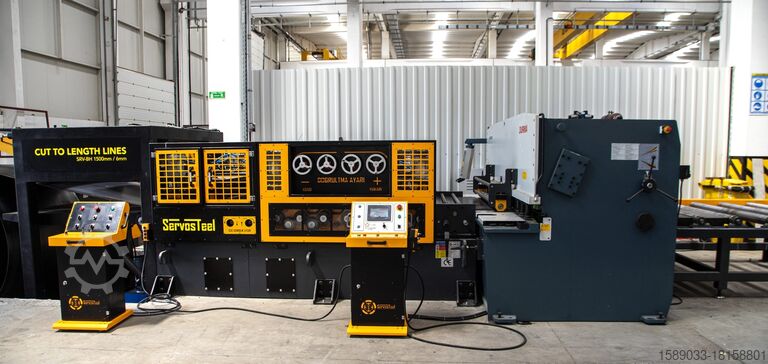

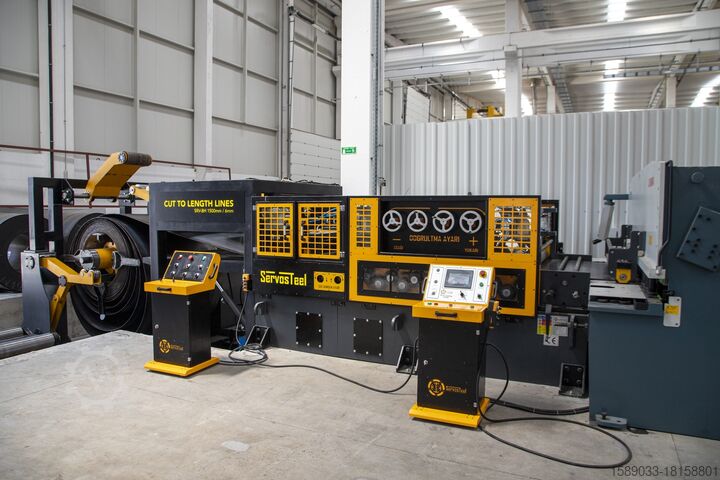

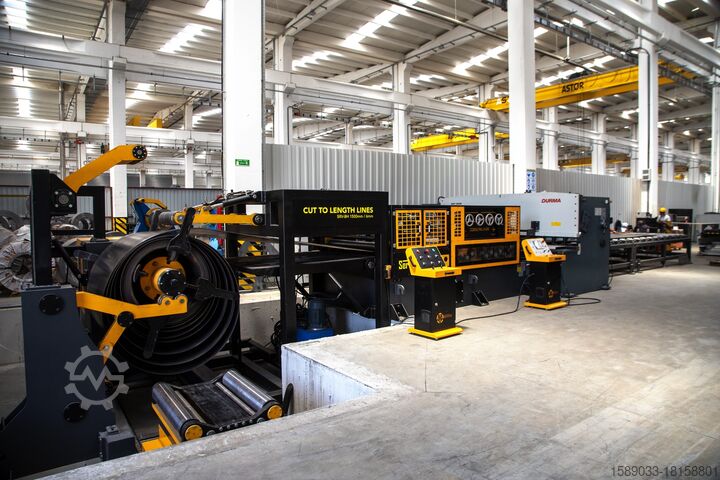

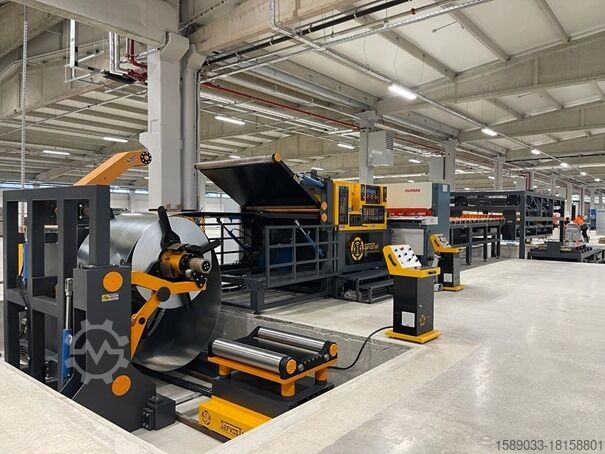

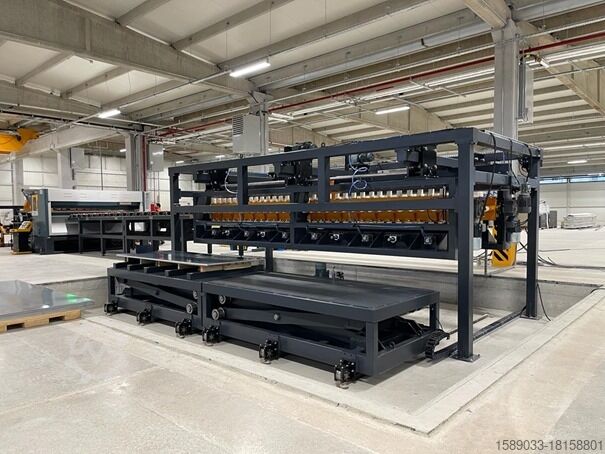

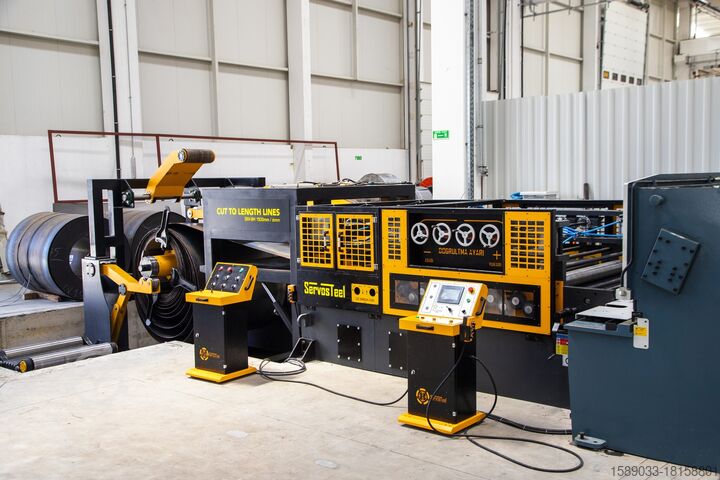

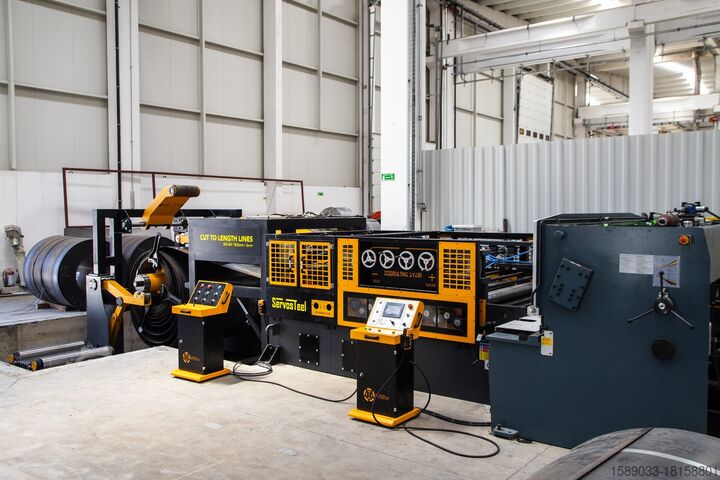

Condition: new, Year of construction: 2024, COIL PROCESSING MANUFACTURER IN TURKIYE. Our cut-to-length line Our roll cutting lines that you need for cut-to-length sheets with a sheet width of 200 mm -2000 mm and a roll weight of 6,000 kg to 30,000 kg. Until recently, the iron and steel enterprises were producing sheet metal, since the coil sheet opening systems were not sufficiently developed. The developments in the coil sheet opening sector in recent years have led iron and steel businesses to produce coiled sheets. As a result of these changes in sheet metal production, the demand for coil sheet slitting and cut-to-length lines has started to increase and businesses have started to prefer the way of plating their own products. This situation also eliminates the cost of plate sheet stocking. At this stage, BOSPORAS offers solutions from A to Z, including cutting-to-length systems, uncoiling, straightening, feeding, guillotine shearing, conveyor and stacking of coiled sheets. The most distinctive feature of our Cut-to-Length Line is the cutting feature with the Rotary or Fly Guillotine shear system. It is a professional straightening thanks to the high quality and powerful Leveler Machine. And Cut to Length Line offers the possibility of automatic stacking of the materials. This is provided by the leveler cassette system.Suitable for all sheet material types from 0.3 mm to 10 mm. General features of the systems; Easy operation and maintenance with high level of automation Easy roll loading thanks to hydraulic uncoiler with loading trolley Maximum surface smoothness thanks to multiple straightening rollers Protecting sensitive surfaces with high quality rollers and carriers Burr-free and high-quality cutting automatic stacking system Compact design that takes up little space compared to its capacity Low cost, high quality, maximum efficiency Lrjdpfx Ajh E Sh Hoa Iou

Condition: new, Year of construction: 2025, functionality: fully functional, coil weight: 15,000 kg, sheet thickness steel (max.): 6 mm, coil width: 1,600 mm, coil outer diameter: 1,600 mm, type of input current: AC, air pressure: 6 bar, Cut to length line is used for cutting the sheet metals from coil to sheet horizontally, straightening the sheets and after cutting to length operation stacking the sheet at the end of the line. Standard CTL line is contained as machinery units on automatic cut to length machine are decoiler, straightening, feeding, shearing unit and stacking unit. All parts of the Cut to Length Line are manufactures in our facility from A to Z. Starting from the Decoiler (Uncoiler), Straightener and Coil Loading Car, up to the Servo Feeder, Guillotine and Stacking Unit can be controlled from one point. The system is controlled by PLC system, set in the customer language. Ljdpfx Asvmghvsa Ioru

Condition: new, Year of construction: 2025, New slitting and cut-to-length with compact size decoiler. Machine modules: ✔ Decoiler up to 6000kg ✔ Side guides ✔ 5 roller straightener ✔ 5 slitter knives ✔ Polyurethane feed rollers ✔ Mechanical guillotine ✔ 7" Touch panel Machine parameters: • Dimensions L/W/H. - 3.3/1.5/1.2 m, weight 1700 kg • Sheet thickness (cut-to-length) : 0.5-1.2 mm • Sheet thickness (slitting): 0.5-0.8 mm • Max. coil weight: 6000kg • Coil width : 500-1275 mm • Inner coil diameter: 460-520 mm • Steel, galvanized steel and coated steel up to 400N/mm2 • Accuracy : 1mm/2000mm • Power : 3.2 kW Optional: Lrsdjlgy Uhjpfx Aa Isu ◦ Additional decoiler ◦ additional slitter knives and guillotine knives ◦ Automaticaly adjustable straightener ◦ Automaticaly adjustable slitter

Condition: like new (used), Year of construction: 1992, conveyor belt thickness: 5 mm, coil weight: 15,000 kg, conveyor belt width: 1,520 mm, sheet thickness steel (max.): 3 mm, coil width: 1,500 mm, 1992 Guida Stainless Steel Cut to Length Line • Coil Weight: 15 tonnes • Coil Width: 500 – 1500mm • Cut Length: 350 – 6000mm • Thickness: 0.40 – 3.0mm • Coil I/D: 508/610mm • Max Coil O/D: 1500mm • Line Speed: Max 40m/min • Length Tolerance: EN9445 • Coating Facility: Yes • Operating System: Siemens S7-300 • Line Comprises: Coil Car; Expanding Mandrel; Decoiler with snubber roll; Pinch Rolls; 23 Roll Leveller (11/12); Flying Shear; Runout Table; Twin Stacking Units. • Electrical Revamp: 2007 Lsdpjwbrv Tjfx Aa Ioru There are 2 sets of spare straightening shafts.

Condition: excellent (used), Year of construction: 1976, strip width: 400 - 2.100 mm strip thickness: 0,5 - 3 mm coil weight: 40 t coil ID: 508/610 mm Lodpfxoqw Aacs Aa Ioru

Year of construction: 1973, condition: ready for operation (used), A complete cut-to-length line (coil line) for sheet metal processing, specifically for coils, is available. Product information: Material: stainless steel strip, max. strength at 2mm thickness: approx. 70kp/mm², max. elongation at 70kp/mm²: 50%, strip width range: 100mm-500mm, strip thickness range: 0.3mm-2.5mm, sheet lengths: 250mm/1000mm/4000mm/10000mm, strip speed range: 7.5m-30m/min, hydraulic operating pressure: approx. 80bar, pneumatic operating pressure: approx. 4bar, clarification sheet length: over 250mm: Feed and shear adjustment, over 1000mm: with mechanical intermittent operation, over 4000mm: with electrical on/off operation. 1) Decoiler, max. outer coil diameter: 1400mm, inner coil diameter: 400mm/500mm/600mm, decoiler drum spreading range: 370mm-620mm, spreading cylinder diameter: 125mm, spreading cylinder stroke: 40mm, spreading segment useful width: 600mm, max. strip weight: approx. 3000kp, max. strip tension: approx. 400kp, decoiler displacement: +/-100mm. 2) Kohler straightening machine, straightening roller diameter: 30mm, bale length: approx. 600mm, number of straightening rollers: 21, feed rate: 7.5m-30m/min, strip width range: 100mm-500mm, strip thickness range: 0.3mm-2.5mm. 3) Flying hydraulic shears, material/strip thickness/speed: to suit the system, number of cuts: 30 cuts/min, sheet length range: 250mm-1000mm, blade width: 600mm. 4) Conveyor belt, belt width: 600mm, center distance: 3500mm. Documentation available. On-site inspection is possible. Ljdpfx Aewgngfea Ioru

Condition: like new (used), Year of construction: 2025, coil weight: 30,000 kg, number of straightening rollers: 9, conveyor belt width: 2,000 mm, sheet thickness aluminum (max.): 20 mm, sheet thickness steel (max.): 10 mm, sheet thickness copper (max.): 20 mm, inner diameter: 508 mm, sheet thickness (max.): 10 mm, sheet thickness brass (max.): 20 mm, product height (max.): 10 mm, outer diameter: 2,000 mm, roller diameter: 156 mm, coil width: 2,000 mm, coil outer diameter: 2,000 mm, cutting length (max.): 6,000 mm, working width: 2,000 mm, stack height: 400 mm, Coil Cut to Length Line with Stacking ( 2 - 10 mm x 2000 mm x 30 Ton) TFS Coils, Tin Plate, Galvanized, Stainless Steel, CR, HR, Brass, and Copper to be Cut to the length Teneke Sac, Aluminyum, Galvanizli Sac, Paslanmaz Çelik, HRP, DKP. Hydraulic Expansion Motorized Decoiler with Transmission Box Hydraulic Coil Car Servo Feeder Ljdpfxswutp Us Aa Ijru Hydraulic Shear Automated Stacker COIL PROCESSING MANUFACTURER IN TURKIYE. Our cut-to-length line Our roll cutting lines that you need for cut-to-length sheets with a sheet width of 200 mm -2000 mm and a roll weight of 6,000 kg to 30,000 kg. Until recently, the iron and steel enterprises were producing sheet metal, since the coil sheet opening systems were not sufficiently developed. The developments in the coil sheet opening sector in recent years have led iron and steel businesses to produce coiled sheets. As a result of these changes in sheet metal production, the demand for coil sheet slitting and cut-to-length lines has started to increase and businesses have started to prefer the way of plating their own products. This situation also eliminates the cost of plate sheet stocking. At this stage, BOSPORAS offers solutions from A to Z, including cutting-to-length systems, uncoiling, straightening, feeding, guillotine shearing, conveyor and stacking of coiled sheets. The most distinctive feature of our Cut-to-Length Line is the cutting feature with the Rotary or Fly Guillotine shear system. It is a professional straightening thanks to the high quality and powerful Leveler Machine. And Cut to Length Line offers the possibility of automatic stacking of the materials. This is provided by the leveler cassette system.Suitable for all sheet material types from 0.3 mm to 10 mm. General features of the systems; Easy operation and maintenance with high level of automation Easy roll loading thanks to hydraulic uncoiler with loading trolley Maximum surface smoothness thanks to multiple straightening rollers Protecting sensitive surfaces with high quality rollers and carriers Burr-free and high-quality cutting automatic stacking system Lec Edpbveh E Sh Hovsac Compact design that takes up little space compared to its capacity Low cost, high quality, maximum efficiency.

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Technical Specifications: • Programmable control cutter, • Automatic straightener, Lrsdpowi Twhofx Aa Iju • Sectional roller shear, • Labeling system, • Outfeed conveyor, • Control panel, • Usable sheet width: 1270 mm, • Straightening rollers: 6 units, • Number of blades: 5 pairs, • Blade type: stainless steel.

Year of construction: 1974, condition: refurbished (used), functionality: fully functional, Cut-to-length line Technical Data Manufacture REDMAN Year of Manufacturing 1972 Strip width Max. 2000 mm Min 600mm (both Mandrels) Min 150mm (single Mandrel) Strip thickness 6-13 mm Coil weight Max. 20 t Coil- Max. 2150 mm Min 1000 mm Speed 10-20 m/min Working Direction right  left The line consists of: • De coiler Double expanding mandrels Coil bore range-Ø 460 – 760 mm Drive / braking D.C. motor – Gearbox /Pneumatic Disc brake Coil lift Hydraulic • Coil opener / pinch roll unit Telescopic table Hydraulic No. of pinch rolls 2 sets Pinch roll-Ø 330 mm • Leveler no. of levelling rolls 9 -1 Exit roll Levelling roll-Ø 140 mm Height adjustment leveling rolls Hydraulic Main drive D.C. Motor Lredovun S Ejpfx Aa Iju Driving power 120Hp • length measuring • cut-to-length shear Start-Stop Type Actuation • stacker: Maximum 12.000 mm Run out table • Hydraulics - Electrics

Condition: excellent (used), Year of construction: 1980, strip width: 1.500 mm strip thickness: 3 mm Lredpfoqw Akmex Aa Ieu coil weight: 10 t

Condition: new, Year of construction: 2024, sheet thickness aluminum (max.): 1 mm, coil weight: 10,000 kg, sheet thickness (max.): 1 mm, sheet thickness steel (max.): 1 mm, sheet thickness copper (max.): 1 mm, sheet thickness brass (max.): 1 mm, product height (max.): 1 mm, type of input current: three-phase, total width: 5,000 mm, total length: 17,000 mm, total height: 2,400 mm, power: 45 kW (61.18 HP), shaft diameter: 140 mm, warranty duration: 12 months, Combination of Coil Slitting and Cut to Length Line (0.3 - 1 mm X 1300 mm x 10 Ton) Galvanized, Statinless Steel, Aluminum Coils to be Slit Hydraulic Expansion Decoiler Coil Car Straightener Slitting Head with Knives and Spacers Hydraulic Shear Tensioner and Separators Hydraulic Expansion Recoiler Exit Coil Car Lredpfxoh Dy S Dj Aa Iou
