Used Homogenizer for sale (216)

Condition: used, Used stainless steel two-stage piston homogenizer manufactured by Tetra Pak (Sweden) model Tetra Alex 20. Capacity up to 5000 l/h at 160 bar pressure. Number of pistons: 3. Piston diameter: 50 mm. Piston material: stainless steel. Main drive: ABB electric motor 30 kW, 400 V, 50 Hz, 1475 rpm, IP55. Hydraulic drive: 0.25 kW, 400 V, 50 Hz, 1410 rpm, IP55. Cooling water requirements: 130 l/h. Stainless steel covers included. Technical documentation included. Specifications: Year Of Manufacture: 2004 Gallons Per Hour: 5000 l/h Pressure: 160 Bar Horsepower: 30 kW Ffsdpfx Agox Ryuvj Rst Material Of Construction: Stainless steel Weight: 1355 kg Dimensions: length 1 400 mm, width 1 400 mm, height 1 700 mm

Year of construction: 2026, condition: new, machine/vehicle number: 1234, Teljesítmény: 300 L/óra, 4 kW Maximum hőmérséklet: 90 °C Feszültség: 400 V Méret: 850 x 1150 x 920 mm Súly: 365 kg FBF 1000 High pressure homogeniser Specification: Capacity: 300 L/h , 4 kW Maximum temperature: 90 °C Two homogenizing phase: 1.: 200 bar, 2.: 50 bar Feeding pressure requested: 2 bar Voltage: 400 V Consumption of water: 60 L/h Consumption of air: 5 bar, 0,3 Nl/minute Gross size: 850 x 1150 x 920 mm Gross weight: 365 kg Compression head and valve: - milled from one block - high pressure resistant pistons - vibration-free Structure: - vibration free pump - power transmission through „V” belts, 1:2 - automatic oil lubrication with oil level indicator Accessories: - wearing part set - tools - oil FBF 1000 Hochdruckhomogenisator - Leistung: 300 L / h 4 kW - Maximale Betriebstemperatur: 90 ° C. - Zweistufige Homogenisierung: 1 .: 200 bar, 2 .: 50 bar - Versorgungsdruck mindestens 2 bar Fsdeiu Hypjpfx Ag Roft - Stromspannung: 400V - Wasserbedarf: 60 L / h - Luftverbrauch: 5 bar, 0,3 Nl / min - Gewicht: 365 kg - Abmessungen: 850 x 1150 x 920 mm Kompressionskopf und Ventil: - Ein Block, der mit einer CNC-gesteuerten Maschine aus einem Block gefräst wurde, mit 5 Jahren Garantie. - Kolben aus speziell gehärtetem Edelstahl. - Energie- und kostengünstige Ventile sorgen aufgrund ihrer hohen Stabilität für einen vibrationsfreien Betrieb. Struktur: - Pumpe aus hochwertigem vibrationsfreiem Gusseisen - Die Übertragung erfolgt auf "Keilriemen" mit Doppelübertragung - 3-phasiger 4-poliger Motor - Ölgeschmiertes Gehäuse mit Ölstandsfenster Zubehör: - Verschleißteilset - Werkzeuge für die Wartung - Schmieröl - Anweisungen

Year of construction: 2009, condition: used, IKA in-line homogenizer model DR2000/30 ATEX Year 2009. Motor 55 kW 1783 rpm. With frequency converter. With mechanical seal. Technical specifications Model: DR2000/30 Year of manufacture: 2009 Fjdpfoxlng Hjx Ag Rjft Motor: 55 kW 1783 rpm. ATEX configuration.

Condition: like new (used), This equipment is ideal for sterilising various types of juices, fresh milk, beverages, wines, and other liquid products. It is also suitable for soya milk and animal feed liquids. When used in combination with a homogeniser, it is capable of processing high-viscosity materials such as sweetened condensed milk, among others. The high-pressure homogeniser is a type of ultra-fine grinding and emulsification equipment. It operates by subjecting the suspension to high pressure, then passing it through a unified decompression zone. Bulging, implosion, shearing, and high-speed impact occur in an adjustable flow-restriction gap. This pulverises particles and oil droplets in the liquid to a very fine size, resulting in an ideal emulsion and a homogeneously dispersed liquid. This process integrates the effects of ultrasonic atomisation, colloid milling, ball milling, and jet milling. Homogenisation enables improvements in product stability, consistency, mixing properties, absorption, nutritional value, shelf life, flavour, colour, and palatability. Fsdpfx Agox S E E Ao Rjft

Condition: used, This listing is for the APV Gaulin T Series Homogenizer The unit is in full working condition and is ready for immediate use APV Gaulin T Series Homogenizer The Gaulin T Series homogenizers, developed by SPX FLOW under the APV brand, are high-pressure, positive displacement reciprocating plunger pumps designed for demanding applications in industries such as dairy, food and beverage, pharmaceuticals, chemicals, and cosmetics. Key Features High Pressure Capability: Models like the Gaulin 132T and 125T can handle pressures up to 600 bar (approximately 8,700 psi), making them suitable for applications requiring intense homogenization. Flow Rate: These homogenizers can process flow rates ranging from 1,000 to 25,000 liters per hour (LPH), accommodating various production scales. Design Options: The Gaulin T Series offers both mono-block and three-piece valve housing designs, allowing for flexibility in maintenance and customization. Hygienic Construction: Constructed with stainless steel or duplex materials, these homogenizers feature 3-A sanitary design, making them suitable for hygienic applications. Maintenance-Friendly: The design includes features like hydraulic valve actuators, easy access to key components, and modular electrical controls, simplifying maintenance and reducing downtime. Applications Gaulin T Series homogenizers are ideal for applications such as: Dairy Processing: Homogenization of milk, cream, and other dairy products. Ffedpfxoxhf Tvo Ag Ret Food and Beverage: Processing of sauces, dressings, and beverages. Pharmaceuticals and Cosmetics: Manufacturing of emulsions, creams, and lotions. Chemical Processing: Production of paints, coatings, and other chemical products

Year of construction: 2005, condition: like new (used), machine/vehicle number: Serienr. 1-04, 252, APV/SPX Homogenizer for milk capacity 25.000 L APV Type: R132Q-85,595 Serienr. 1-04, 252 From 2005 Capacity 25.000 l/h Low press 60 bar Fsdpfsfg Tcaex Ag Roft Good working condition

Condition: excellent (used), functionality: fully functional, APV / RANNIE 30.60 ID.NO. 2802 Ffodoumbwnopfx Ag Ret Apv / Rannie mod 30.60 homogenizer for the production of e.g. Mustard, Sauces, Mayonnaise etc. Capacity approximately 2000 lit / hour, Max pressure 220 bar year mod 1994. Dimensions 130 x 90 cm Height 145 cm.

Year of construction: 2026, condition: new, machine/vehicle number: 12134, Teljesítmény: 1000 L/óra, 7,5 kW Maximum hőmérséklet: 90 °C Feszültség: 400 V Méret: 1300x1600x1500 mm Súly:1000 kg FBF 1000 High pressure homogeniser Ffjdpfxoiu Hyzj Ag Rot Specification: Capacity: 1000 L/h 7,5 kW Maximum temperature: 90 °C Two homogenizing phase: 1.: 200 bar, 2.: 50 bar Feeding pressure requested: 2 bar Voltage: 400 V Consumption of water: 70-90 L/h Consumption of air: 5 bar, 0,3 Nl/minute Gross size: 1300x1600x1500 mm Gross weight:1000 kg Compression head and valve: - milled from one block - high pressure resistant pistons - vibration-free Structure: - vibration free pump - power transmission through „V” belts, 1:2 - automatic oil lubrication with oil level indicator Accessories: - wearing part set - tools - oil FBF 1000 Hochdruckhomogenisator - Leistung: 1000 L / h 7,5 kW - Maximale Betriebstemperatur: 90 ° C. - Zweistufige Homogenisierung: 1 .: 200 bar, 2 .: 50 bar - Versorgungsdruck mindestens 2 bar - Stromspannung: 400V - Wasserbedarf: 70-90 L / h - Luftverbrauch: 5 bar, 0,3 Nl / min Kompressionskopf und Ventil: - Ein Block, der mit einer CNC-gesteuerten Maschine aus einem Block gefräst wurde, mit 5 Jahren Garantie. - Kolben aus speziell gehärtetem Edelstahl. - Energie- und kostengünstige Ventile sorgen aufgrund ihrer hohen Stabilität für einen vibrationsfreien Betrieb. Struktur: - Pumpe aus hochwertigem vibrationsfreiem Gusseisen - Die Übertragung erfolgt auf "Keilriemen" mit Doppelübertragung - 3-phasiger 4-poliger Motor - Ölgeschmiertes Gehäuse mit Ölstandsfenster Zubehör: - Verschleißteilset - Werkzeuge für die Wartung - Schmieröl - Anweisungen

Condition: used, Year of construction: 2013, Additional title: high pressure homogenizing Capacity range: 600 l/h Pressure: 250 bar Cellular particle size: 1 μm cellular particle Length: ca. 2,2 m Width: ca. 2,5 m Height: ca. 1,9 m Ffedpjvcq Edofx Ag Rst Operation / Control: Integrated in a ProLeit process control, the motor was controlled by an external frequency converter. Features: CIP-able, SIP-able

Condition: ready for operation (used), functionality: fully functional, Homogenizer used in ice cream production Fedpfxevtpw He Ag Roft

Condition: used, This listing is for the Avestin EmulsiFlex-C5 for homogenizer with sealed toolings and spares The unit is in full working condition and is ready for immediate use EmulsiFlex-C5 High Pressure Homogenizer The Avestin EmulsiFlex-C5 is a high-pressure, pneumatically powered homogenizer designed for laboratory-scale applications. It is ideal for processing small to medium sample volumes, from 7 mL up to 5 L/h, depending on the pressure applied. How It Works: High Pressure Homogenisation High pressure homogenisation is an efficient and easy-to-use technique for cell disruption and liposome/emulsion processing. The principle involves pumping the sample through a valve with a small aperture. The sample transitions from very high pressure (up to 30,000 psi) on the pump side to atmospheric pressure on the outlet side. This sudden drop in pressure creates intense shear forces, disrupting cell membranes or dramatically reducing liposome/emulsion sizes. For cells, the pressure-induced shear forces rupture the membranes, effectively lysing the cells. Fedpfx Agexhgawo Rsft For liposomes and emulsions, this process reduces their size from micron to nanometer range, often resulting in uniform particles with narrow size distributions. Unique Features of the EmulsiFlex-C5 Dynamic Homogenising Valve The C5 uses a dynamic homogenising valve, which maintains constant pressure during sample processing. This consistency ensures the formation of highly uniform liposomes and micro-emulsions, with tight particle size distributions. Efficient Cell Disruption Most cells (including E. coli) can be lysed in a single pass, minimizing over-processing and reducing the risk of protein denaturation or degradation. Pressure Range: Adjustable from 500 to 30,000 psi Flow Rate: 1–5 L/h depending on pressure Minimum Sample Volume: 7 mL Holdback Volume: Less than 1 mL Temperature Control: Can be used with ice baths, external chillers, or in cold rooms Autoclavable: Easy cleaning and sterilization (SIP-compatible) Compact Size: 430 × 160 × 320 mm, 25 kg Power Source: Requires compressed or bottled air. For most applications (e.g., E. coli disruption or liposome formation), 100 psi air pressure is sufficient. Applications Disruption of bacterial, yeast, algal, insect, or mammalian cells Nano-sized liposome and emulsion formation Particle size reduction in pharmaceuticals, cosmetics, and food products Liposomal drug delivery systems Efficient homogenisation for biochemical and biophysical research

Condition: used, Year of construction: 2018, NETZSCH Vakumix mobile homogenizer LambdaVita 3 mobile Fodjt Er Hwjpfx Ag Rsft - condition: used - location: Bremen Other: - Manufacturer: NETZSCH Vakumix - Type: LambdaVita 3 mobile - Year of construction: 2018 - Drive power: 37 kW - Areas of application: Mixing/homogenizing and pumping around emulsions and pastes - total height: 930 mm - total length: 1.400 mm - total width: 500 mm

Condition: excellent (used), Year of construction: 2015, pressure: 450 bar, 5.000 liter per hour - 450 bar - High Pressure homogenizer High pressure homogenizer. 2 stages with pneumatic pressure control. 3 Ceramic pistons, piston diameter: 55 mm and stroke: 100 mm. Stainless steel cladded with sound reducing material. Connections: 2 x 3" Din. Current motor power: 132 kW and maximum pressure in current configuration with this motor 450 bar. Freestanding control panel with Siemens Simatic ET 200SP controls. Small control box on machine with Siemens Simatic ET 200SP controls. With overpressure valve (set on 540 bar). Manometer on 1st and 2nd stage. Electronic pressure transmitter on in- and outlet. Flowswitch on cooling water. Pulsation damper on inlet. Remote pressure control. With spare pulsation damper and overpressure valve. Documentation: operational manual, electrical diagram, parts list and service report. Dimensions control panel: 80x40x187 (lxwxh) cm. Ffsdpfx Asxnl Exog Rot

Condition: used, Year of construction: 1996, Item: AH-1253-Tetra-ALEX30 homogenizer Tetra Pak Homogenizer for milk capacity 12,000 L Type: TETRA ALEX From 1996 Fsdswa Thhopfx Ag Reft Capacity 12,000 l/h Working pressure: 250 bar Power 110 kW/380-400V 50 Hz 1487 rpm Working condition

Condition: used, Volume: 700L Usable volume: 80-500L Internal diameter: 1100 mm Suitable for vacuum: -1 bar Double jacket: pressure proof + 3 bar Capacity: 18,5 kW with frequency converter Nominal speed: approx. 3000 rpm (with 50Hz) Protection: IP 54 suitable for heating and cooling Stainless steel 316L + Homogeniser Fjdpswqfvrsfx Ag Rjft

Year of construction: 2000, condition: excellent (used), Used high pressure homogenizer NS5160HA made by GEA Niro Soavi with an operating pressure of 700 bar and a throughput of 7.000 l/h. Sanitary version with five ceramic pistons, an operating temperature of 40°C and a maximum viscosity of 12.000 cP. Powered by an electric motor with 160 kW which needs three-phase current at 380 V and 50 Hz. The homogenizer was regularily checked and maintained and is fully functional. Ffsdehzcxrspfx Ag Ret

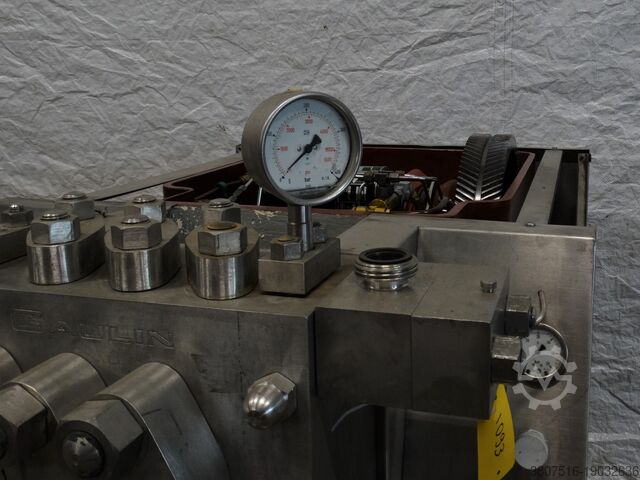

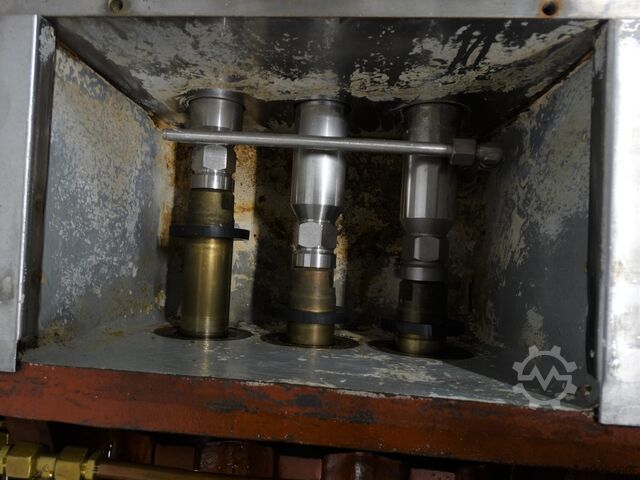

Condition: excellent (used), Gaulin MC7 high pressure homogenizer, single stage. Capacity 4000 l/hr, 200 bar. 30kW electric motor. Piston diameter 43.44mm. Fedpfewf Iv Rox Ag Roft very good condition.

Condition: used, homogenizer - condition: used - location: Bremen Other: - Drive power: 11 kW Ffedpet Etimefx Ag Rjt - Areas of application: Mixing / homogenizing and pumping of emulsions and pastes - total height: 650 mm - total length: 1.200 mm - total width: 460 mm

Condition: excellent (used), A homogenizer is the machine that enables the size reduction of globules and fat particles of food products. In other words, it reduces variations in two heterogeneous substances, makes them uniformly consistent and reduces separation after mixing. Fjdpswny Nzjfx Ag Roft As a result, we obtain particles of micrometer and nanometer size. This size will always depend on the characteristics of the product in question and the results we seek to achieve. Homogenizers stabilize fat emulsions and disperse solids in aqueous solutions. In this way, we avoid that with the difference in density, some parts of the mixture remain on the surface and others precipitate to the bottom. Therefore, we are not only talking about mixing particles, but about a more complex process that can integrate emulsification, homogenization, solubilization, suspension, dispersion and disintegration of solid particles. To carry out this particle size reduction, the product is pumped under pressure by means of valves and pistons in monobloc compression blocks. These valves allow us to define the desired flow rate and pressure.

Condition: excellent (used), pressure: 210 bar, Gaulin, Homogenizer model MC18 3TPSX. stainless steel clad, 2 stage hydraulic valve assembly, 54mm pistons, Tungsten Carbide coated. Ffjdpfx Aowf Itcog Rst aseptic cylinder block, puppet valves.. Remote controlled homogenization pressure adjustment and read-out. Capacity 6000 l/h, 210 bar Maintenance history available. Spare parts available. Excellent working condition

Condition: used, Year of construction: 1998, NETZSCH Vakumix Continuous homogenizer condition: used location: Bremen Other - Continuous homogenizer GR2 DHOLF - Brand: VAKUMIX - for mixing/homogenizing and pumping around emulsions and pastes - Electrical connection: 400 V / 50 Hz; 11kW - various technical documents available - total height: 800 mm Fedpfxst Erpfj Ag Rjft - total length: 1.300 mm - total width: 400 mm

Year of construction: 2018, condition: used, Manufacturer: Netzsch Vakumix Type: LambdaVita 3 mobile DHO 3 Year of manufacture: 2003 / 2018 Drive power: 37 kW Maximum pressure product: 2 bar (overpressure) Maximum temperature product: 133° C Fields of application: Mixing / homogenizing and transferring emulsions and pastes. Documentation available Product data Ffsdpsp S I U Sofx Ag Rjt Volume 8 liters Total height 980 mm Total length 1,350 mm Total width 590 mm

Condition: used, Used Brogtec (CH) model MH-8 stainless steel homogenizing mixer. Mixer has total volume of mixing chamber 10 l and working volume about 8 l. Tank is rising and lowering manually. Has bottom discharge outlet and possibility to discharge by manual tilt. Working pressure range - mixing chamber from vacuum till 29 PSI (2 bar). Heating jacket up to 43 PSI (3 bar). Working temperature range - mixing chamber from 32 - 250 F (-1 to 120 C). Heating jacket - from 89 - 250 F (31 - 120 C). Mixer is equipped with anchor with wall scrappers type agitator, vertical ribbon agitator and hi-speed homogenizing mill. Anchor and ribbon agitators are driven by gearbox and el motor 0.3/0.44 kW, 1660/3260 rpm, 460 V, 60 hz. Working rotation of vertical ribbon agitator is about 124 rpm, working rotation of anchor agitator - up to 62 rpm. Hi-speed homogenizing mill is belt driven by el motor 0.3/0.44 kW, 1660/3260 rpm, 460 V, 60 hz. Working rotations from 2755 up to 5379 rpm. Mixer is equipped with local vaccum pump and heating device by GMK type teco 60. Machine has local control panel. Ffsdpfx Aex Ryqkjg Ret

Condition: used, New: Yes Applicable material: Bitumen Empty weight: 18.000 kg Productivity: 10 tph Polymer Modification Plant Full Automatic TECHNICAL SPECIFICATIONS Grinding and homogenizing Polymer (SBS,APP,KRATON etc.) and bitumen. Feeding : Bitumen and polymer pre-mixture Flow rate : max. 15 t/hour Density : 1.1 g/cm3 Viscosity : max.20000 mPa s (cP) Heat: 190 °C Solid Matter : Machine Entrance :max. 3-6 mm Machine Exit :max. 0.2 mm MOTOR 130 kW Speed 3000 min-1 Voltage 400 V,50 Hz,3 phase Starting methode Y/Δ 2. VERTICAL MIXING TANK a) Frame - Will be manufactured as vertical rectangular profile. - Will be manufactured in dimentions as providing 11 m3 volumes. - Body will be produce 5 mm St37 quality plate. - Bitumen filling pipe will be 3’’ DN80 ,PN16,DIN2633 1 unit, discharge pipe will be 3’’ DN150,PN16,DIN2633 and 3’’ DN80,PN16,DIN 2633 2 units. - Control cover will be dimensions of 500x500 mm. b) Heating - It will be as providing from from out walls with diathermic hot oil heating. - Imperviousness test will not be performed under 6 bar. c) Insulation - 100 mm rapid wire-mesh rock wool will be comply with TSE ( Turkish Standards Institute ) standarts. - The exterior surface will be stainless steel plate and will be manufactured as to container dimentions. d) Mixing System - 2x 7,5 kW 60 d/min rpm mixing motor - Drive will be provided with sprockets - Imperviousness will be obtained at beddings. - Bearings will be SKF or FAG. - The Fixed wings at exteriror walls will be mounted so that dispersion will be increased and a homogeneous structure will be provided. e) Heat displays will be digital and analogue and two outlets will exits. f) Built-in connection paddle, ladders and platform will be presented. 3. BITUMEN PUMPS - Will be 2 ½ XLA type with oil heating. - Pump capacity will be as 25 t/h bitumen pumping - Will be 7,5 kW 400 r/min reducer motor coupled. 4. SBS (POLYMER MODIFIED GRANULE) FEEDING UNIT a) Feed Hopper - Will have 500 x 500 gap width - Will be produced of 4mm plate - In feding helix, it will be mounted with bolt30 m3/h capacity granulate feeding. - Frame will be in 5 mm Wall thickness from 220 mm diameter pipe. - Imperviousness will be provided in beddings. - In bearings SKF or FAG will be used. - Will 5,5 kW 80 rpm gear unit with coupling drive. Ffjdpfx Agox D Df Nj Rjt 5. PIPE NETWORK AND EQUIPMENTS a) Pipes - Will be steel drawn pipes DIN 171175 (DN200,DN150,DN100,DN80,DN65,DN25) - Mill line will be manufactured as 3’’ inner pipe, 4’’ out jacket pipe. - Jacket pipes will be welded connection under TSE standarts. - Jumper pipes will be established from appropriate points of 1’’. b) Compensatories - DN 50,DN 80, PN 16 400°C c) 3 ways and 2 ways valves with heating - Complied to TSE standarts. - Pneumatic control type will be used. - Will provide the conditions of working under high pressure (16 bar) and heat (230 °C) d) Hot Oil Valves - KLINGER or THERMO branded hot oil valve with pistons will be used. - Will be DN 25 PN16, DN65 PN16, DN50 PN16 e) Filter - Will be with 3 mm wire interior reservoir and it will be cleanable often and easy. - Will be with 3’’ flange entrance and exit...

Condition: new, Empty weight: 16.000 kg Capacity: 10 m^2/h Full Automatic Bitumen Emulsion System 1. COLLOID MILL (10 m3/hour) 1 Fjdpfsx D Dd Ssx Ag Reft 2. FOAM TANK (5 m3) 1 3. BITUMEN FEEDING PUMP 1 4. FOAM LYE SYSTEM 1 5. PIPE NETWORK AND EQUIPMENTS 1 6. CONTROL PANEL SYSTEM 1 7. CHASSIS 1 FOAM TANK(1 pieces) a) Frame - Box profile - Capacity : 5 m3 - Tank body will be produced of 3 mm AISI 304 stainless steel plate - The welded connections will be manufactured with appropriate stainless stell TIG welding b) Heating - 2’’ stainless steel pipe - Oil input and output pipes will be 1’’ DN50,PN16,DIN 2633 - Tightness test will be done 6 bar pressure. c) Mixing System - 3 kW 60 d/min rpm mixing motor - Drive will be provided with sprockets - Imperviousness will be obtained at beddings. - Bearings will be SKF or FAG. - The Fixed wings at exteriror walls will be mounted so that dispersion will be increased and a homogeneous structure will be provided. d) Heat displays will be digital and analogue and two outlets will exits. - Bitumen pump capacity will be as max. 8 m3/h bitumen pumping - Will be 7,5 kW 400 r/min reducer motor coupled. - Bitumen counter will be 10 m3/h capacity system. a) Pipes - Will be steel drawn pipes DIN 171175 (DN200,DN150,DN100,DN80,DN65,DN25) - Mill line will be manufactured as 1.5’’ inner pipe, 2’’ out jacket pipe. - Jacket pipes will be welded connection under TSE standarts. - Jumper pipes will be established from appropriate points of 0,5’’. b) Compensatories - DN 50,DN 80, PN 16 200°C c) 3 ways and 2 ways valves with heating - Complied to TSE standarts. - Will provide the conditions of working under high pressure (16 bar) and heat (230 °C) d) Hot Oil Valves - KLINGER or THERMO branded hot oil valve. Heat resistant. - Will be DN 25 PN16, DN65 PN16, DN50 PN16 e) Filter - Will be with 3 mm wire interior reservoir and it will be cleanable often and easy. - The panel will be in type of compiled to IC standarts.
