Used Ibarmia for sale (20)

Condition: good (used), Year of construction: 1993, machine/vehicle number: 1117-C, Offer 25330 Technical data: Rcjdpfx Asxr A Sqsahoh - Drilling capacity in steel ST 60: 50 mm - Drilling ability in steel ST 60: 55 mm - Drill spindle taper: MK 4 - Drill spindle stroke: 230 mm - 9 spindle speeds: 54 - 1032 rpm - 4 feeds: 0.1 - 0.4 mm/rev - Throat depth: 370 mm - Max. distance table – drill spindle: 650 mm - Max. distance machined base plate – drill spindle: 1140 mm - Table with 2 T-slots: 650 x 550 mm - Table height adjustment via rack and pinion with handwheel - Table tiltable to left and right - Drive: 400 V / 3.0 kW - Space requirement approx.: W 700 x H 2400 x D 1000 mm - Weight approx.: 700 kg - Including: reversible operation (right/left), lighting

Condition: used, Year of construction: 2016, x-travel 4.000 mm y-travel 1.000 mm z-travel 1.100 mm Control Heidenhain iTNC-530 HSCI table weight 2.000 Kg table-size 4.500 x 1.050 mm T-slots 1 x 18 H7 T-slot - distance 125 mm spindle taper ISO 50, din 69871 spindle drive 48 kW spindle drive 48/74 kW distance plate for ejector bores 300/452 Nm coolant 400L Tank Aussenk. mit 6 bar Internal cooling system Mit 1.000 L 60 bar handwheel HR- 510 b-axis 90 - 108 ° weight of the machine ca. 31,5 t dimensions of the machine ca. 8.850 x 5.615 x 3.600 m Technical Specifications of the Machine Machine type: ZVH 58/L4000 Extreme s/n: 16961 CNC: Heidenhain TNC 530 Travel Distances X-axis, longitudinal 4,000 mm Y-axis, cross 800 mm Z-axis, vertical 1,100 mm Minimum spindle distance in Z-axis with head in vertical position 0 – 1,100 mm Minimum spindle distance in Z-axis with head in horizontal position 375 – 1,475 mm Worktable Table length 4,500 mm Table width 1,050 mm Number of T-slots 7 Size of central T-slot 1 × 18 H7 mm Size of remaining T-slots 6 × 18 H12 mm Distance between T-slots 125 mm Maximum permissible table load: 12,000 daN Main Spindle Redpfx Aasxmai Ajhsch Tool holder interface ISO 50 DIN 69871 Drawbar standard DS Manufacturer KESSLER Power rating S1 (100%) 60 kW Power rating S6 (40%) 74 kW Torque S1 (100%) 452 Nm Torque S6 (40%) 707 Nm Nominal speed 1,500 rpm Maximum speed: 12,000 rpm Tool clamping force: 120 daN Hirth coupling for turning operations: No OTT rotary union: No Prepared for internal coolant: Yes Internal air coolant during spindle rotation: Yes Dry machining: Yes B-Axis Tilting system Ibarmia TI-C-41 Travel range B-axis ±105° B-axis motor torque ETEL TMB Rotational speed 132 rpm Power rating 26.5 kW Nominal torque 782 Nm Encoder positioning: Heidenhain ERA 4480 C Feed Drives X-/Y-/Z- X-axis QSY 190F EcoDyn Y-axis QSY 190C EcoDyn Z-axis QSY 190C EcoDyn

Condition: used, Brand: Ibarmia-1B-35 Redpfxoxqmvke Aahoch Description: Dividing head bell, 2 stations

Condition: good (used), spindle speed (max.): 9,600 rpm, spindle speed (min.): 200 rpm, – MK3 – 200–9600 rpm – Right- and left-hand rotation Rcedpfx Aaoxq Rwfehsh – Thread cutting function – Throat depth 120 mm – Steplessly adjustable speed – Thread cutting function – Protective cover – Emergency stop switch – 40V

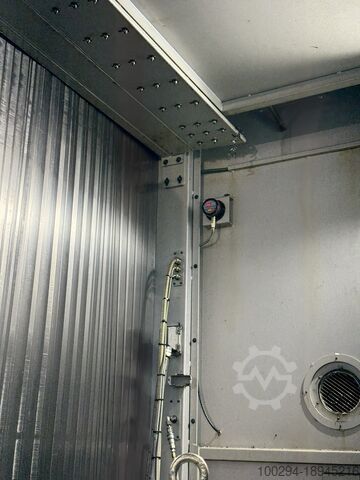

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, USED IBARMIA MODEL ZVH/L8000 TRAVELLING COLUMN, BED TYPE CNC VERTICAL MILLING CENTRE YEAR OF MANUFACTURE 2013 - SERIAL NUMBER 12758 MACHINE CONSTRUCTION & FEATURES  TRAVELLING COLUMN, BED TYPE CNC VERTICAL MILLING CENTRE WITH CONTINUOUS TILTING HEAD & ATC  FANUC 31i-B CONTROL SYSTEM WITH 15” SCREEN  HEAVY-DUTY CAST-IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY.  HIGH PERFORMANCE LINEAR GUIDEWAYS.  35.0 / 48.0 KW, +/-105 DEG, 6000 RPM, OIL COOLED ELECTROSPINDLE MILLING HEAD.  40 STATION AUTOMATIC TOOLCHANGER.  LINEAR GIDEWAYS AND BALLSCREWS  HEIDENHAIN GLASS SCALES ON ALL AXES  FULLY ENCLOSED GUARDING SYSTEM.  MACHINE LEVELLNG ELEMENTS ADDITIONAL INCLUDED ACCESSORIES, OPTIONS & TOOLHOLDERS  22 BAR THROUGH SPINDLE COOLANT  EXTERNAL COOLANT  AIR GUN  SPRAY GUN  PENDULUM WORKING OPTION  6 CONTROLLED AXES  INTERNAL SWARF AUGERS AND CHIP CONVEYOR.  ELECTRONIC HANDWHEEL  CNC ROTARY TABLE AND TAILSTOCK  2 SETS HYDRAULIC STEADIES WITH JAWS  630MM DIAMETER 3 JAW CHUCK  BRANKAMP COLLISSION MONTORING  KOMET KOMTRONIC SYSTEM 22MM CONTOURING HEAD  MARPOSS MIDA WRS WORKPIECE PROBE  AUXILLRY HYDRAULICS GROUP  AIR BLOWING  ADDITIONAL POTENTIOMETER  COLUMN MOUNTED OPERATOR PLATFORM INCORPORATING OPERATOR’S PENDANT.  HORIZONTAL/VERTICAL TOOL EXCHANGE SYSTEM.  RENISHAW RMP60 PART PROBING SYSTEM.  SPINDLE TOOLING PACKAGE TABLE Fixed Table Working Surface 8,600 x 850 MM Tee Slot (Size x Number x Pitch) 18 MM X 6 X 125 MM Maximum Table Load (Uniformly Distributed) 2000 KG/M2 TRAVELS Longitudinal Travel (X-Axis) 8,000 MM Rcodpfewcghaex Aahoh Vertical Travel (Y-Axis) 800 MM Cross Travel (Z-Axis) 1,100 MM MAIN SPINDLE POWER Spindle Motor Power (S1 - 100% at Continuous Rating) 35.0 KW Spindle Motor Power (S6 - 40% at Continuous Rating) 48.0 KW MILLING HEAD Head Model & Type CONTINUOUSLY DRIVEN WITH TORQUE MOTOR Tilting Angle +/-105° Head Spindle Speed - Max BY ELECTROSPINDLE 6,000 RPM Tool Taper ISO50 Pull Stud DIN 69872 Lubrication System WATER COOLED SLIDE FEEDS Number of Feeds STEPLESS ADJUSTABLE Working Feeds (X / Y / Z) 0 ~ 30,000 MM/MIN Rapid Feeds (X / Y / Z) 45,000 MM/MIN AUTOMATIC TOOLCHANGER Tool Storage Capacity 40 TOOLS Maximum Tool Length 400 MM Maximum Tool Diameter - Full Magazine Ø 125 MM Maximum Tool Diameter - Adjacent Pockets Empty Ø 200 MM Maximum Tool Weight 20 KGS Tool Change Time 10 SECS Voltage 380V / 50HZ / 3PH MACHINE Total Length including ancillaries 15,090 MM Width 5,198 MM Height 3,796 MM Weight 42,000 KGS ADDITIONAL PHOTOS NOTE: The information contained herein is provided in good faith based upon the detail currently available to us however due to unforeseen errors or omissions can be subject to change without notice.

Condition: used, Year of construction: 2016, Technical details: x-travel: 4000 mm y-travel: 1000 mm z-travel: 1100 mm table surface area: 4.200 x 1.100 mm control: iTNC 530 HEIDENHAIN turning speeds: 20 - 12.000 1/min taper ISO: SK 50 Rcedpfjxn Su Hjx Aahjh rapid motion - x-axis: 80 m/min rapid motion - y-axis: 60 m/min rapid traverse Z-axis: 60 m/min tool change unit: 60 Pos. spindle drive: 48 / 74 kW total power requirement: 130 kVA weight of the machine ca.: 32 t dimensions of the machine ca.: 7 x 3,4 x 3,2 m 5-axis-simultan universal machining-center, NC-swivelling milling-head (B-axis), rigid table with 2 integrated NC-rotary tables (left and right), dia. 1.050mm (max. table load 1.200kg each), internal cooling device 40 bar, coolant 980l, paperfilter, chip conveyor, mode 4, el. handwheel, infrared touch probe TS 649, prepared for 3D quickset (software), dividing wall, twin table machining, DMG netservice, MPC, flush gun, internal air-blast, oilmist suction, prepared for NC-dividing device HOFMANN RW/NC 300 (left), approx. 34.000 switch on hours, 12.000 spindle hours *

Condition: good (used), Year of construction: 2009, Technical details shown on picture. Machine is in good working condition. 4.axis. Parts shown by hand not come. Rcedpfsw Ut I Asx Aaheh

Condition: used, Year of construction: 2007, bore capacity in steel (diameter) 25.0 / 30.0 mm throat 150 mm bore stroke 120 mm threading M18 / M22 spindle taper 3 MK Rjdpfx Aoxaamzoahsch table: 300 x 270 mm turning speeds 200 - 4.000 U/min column diameter 100 mm total power requirement 0.75 / 1.1 kW weight 170 kg range L-W-H 800 x 500 x 1400 mm from a training workshop (!!) New price approx. 4.700 euros Furnishing: - robust bench drill with V-belt drive - Clamp / relax using a quick release lever - stepless speed adjustment - digital speed display - EMERGENCY OFF push button at the front - stable feed handle - stable quill for tool mounting - Thread cutting device - Right / left running of the work spindle - Pole changing motor - manual spindle feed - Height-adjustable work table, using a hand crank - adjustable drilling depth stop

Condition: good (used), Year of construction: 1992, machine/vehicle number: 145 K, Offer 24018 Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drill spindle holder MK 3 - Drill spindle stroke 150 mm - 9 drill spindle speeds 104 - 1400 rpm - 2 feeds 0.1 / 0.2 mm/rev - throat depth 290 mm - max distance table - drill spindle 780 mm - Table with 2 T-slots 480 x 400 mm Rcedpsu At Thefx Aaheh - Height adjustable via rack and pinion with hand crank - Drive 400 V / 1.1 / 1.3 kW - Space requirement approx. W 600 x H 2100 x D 900 mm - Weight approx. 420 kg - with: - right - left rotation - Coolant device - Quick-action drill chuck 1-13 - lighting

Condition: used, Year of construction: 2004, x-travel 3.000 mm y-travel 1.000 mm z-travel 860 mm Control Heidenhain iTNC-530 table-size 3.600 x 1.050 mm Rcodpfx Ajwqr Nljahoh T-slots 7 x 18 T - slots distance 125 mm distance table - lower edge spindle 25-366 mm table weight 4.200 Kg b-axis +-105 ° c-axis +-360 0 rapid travel x/y/z 30.000 mm/min rotary table Durchm. 1.000 mm max. turning diameter 1.400 mm number of spindle speeds 9.000 U/min/rpm tool taper ISO-50 DIN 69871-AD spindle drive 28,5 kW max. torque on the spindle 240 Nm tool change unit AITEK, 40 fach 20 handwheel Ink. Shuttle operation Inkl Chip coveyor Ink. Internal cooling system 20 bar total power requirement 65 kW weight of the machine ca. 24,8 t dimensions of the machine ca. 8.056 x 5.496 x 3.790 mm

Condition: used, Column Drilling Machine Make: IBARMIA Model: A-35 Year of manufacture: 1980 – workshop-tested Machine No.: 1294-C Speed: See technical data Accessories: - Automatic feed for drilling - Machine lamp - Machined coolant base plate - Coolant system - Operating manual Technical Data: 9 spindle speeds via gear stages 73/103/149/232/325/472/695/976 and 1415 rpm Right/left rotation 4 automatic drilling feeds: 0.1/0.2/0.4 and 0.4 mm Drilling capacity in steel (ST 60): 35 mm Drilling capacity in cast iron (GG 20): 45 mm Thread cutting capacity in steel (ST 60): M 27 Thread cutting capacity in cast iron (GG 20): M 33 Spindle taper MK 4 Spindle stroke: 200 mm Table dimensions: 510 x 510 mm (T-slot: 16 mm) Rotatable table plate Weight approx. 490 kg Rsdpfew Hxbmox Aahjch Used, sold without warranty.

Condition: used, Year of construction: 2003, x-travel 3000 mm y-travel 800 mm Rodsxbtnnjpfx Aahoch z-travel 800 mm weight of the machine ca. 16000 t

Condition: like new (used), Year of construction: 2002, Parts shown by hand not come Rodpfx Aok It Utjahjch

Condition: used, Year of construction: 1983, bore capacity in steel (diameter) 60 mm throat 390 mm bore stroke 250 mm feed 0,1 - 0,6 mm/U speeds: 62 - 1120 U/min tool taper MK 5 Table dimensions ca. 700 x 600 mm total power requirement 4,5 kW Rcodpswypmyofx Aaheh weight of the machine ca. 800 kg dimensions of the machine ca. 1200 x 1000 x 2400 mm with threaded cartridges

Condition: good (used), travel distance X-axis: 2,200 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, table width: 850 mm, table length: 2,600 mm, overall weight: 15,000 kg, spindle speed (max.): 8,000 rpm, power: 0.018 kW (0.02 HP), Equipment: chip conveyor, CHARACTERISTICS Table; 2600 x 850 mm X-axis travel; 2200 mm Y-axis travel; 800 mm Z-axis travel; 800 mm Spindle RPM; 8,000 Control; Fagor 8055 - MC Motor power; 15/18,5 Kw Magazine tool capacity; 40 Tool; BT 40 Fourth spindle (IRTS splitter); 350 ⌀ mm Electronic handwheel Cooling through the tool Chip extractor Air cooling Dimensions with extractor (width x length x height); 4029 x 7050 x 3100 Redpfx Aor I Aumeahsch Weight; 15,000 kg

Condition: excellent (used), Year of construction: 2002, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The used IBARMIA ZV 35 L1600 vertical machining center with moving column is a medium/large sized numerically controlled vertical center with HEIDENHAIN 430 CNC, 1600 x 500 x 500 mm strokes, ISO-40 spindle (DIN 69871) 10,000 rpm, 40-position random tool changer, through-spindle coolant, carpet chip evacuator, optical scales, remote handwheel and bulkhead for pendulum machining. year of construction 2002, CE compliant, in excellent general condition. Rcedswqxnbspfx Aaheh

Condition: used, Drill press, bench drill, column drill, pillar drill Rcsdpfxshaxknj Aahsh -Manufacturer: Ibarmia, column drilling machine type 40 TF / C -Motor: Siemens 1.1 kW -Speeds: 104 - 1450 rpm, right-left rotation -Table size: 360 x 300 mm, travel 600 mm -Spindle mount: MK3 -Spindle stroke: 150 mm -Feed: automatic -Projection: 300 mm -Pillar Ø: 125 mm -Coolant device -Dimensions: 480/680 / H2220 mm -Weight: 358 kg

Condition: good (used), Drill with coordinate table and sliding head Brand: IBARMIA Model: B70P Capacity: Up to 70mm drill Characteristic: - Transmission: By gears. - Coordinate table with 2 X-Y axes. - Automatic advance. - Number of automatic advances: 6 Rsdpfxeh Rydne Aahech - Number of speeds: 24 - Chap. max. drilling capacity in 70Kg steel: 70mm - Chap. max. drilling capacity in 200Hb cast iron: 80mm - Electromagnetic clutch - Automatic tool ejector - Motorized moving head - Bidirectional rotation. - Head travel: 1500mm - ANILAM digital X,Y coordinate display. - Table tours: X570 x 260mm - Table dimensions: 500x1000mm - Manual oiler Cooling system using coolant. It is delivered revised and with the protections for CE compliance.

Condition: used, Year of construction: 1989, Drilling / Milling Machine IBARMIA B 32 F Travel X: 675 mm Travel Y: 350 mm Travel Z: 600 mm Cone SA 30 Spindle exit: 200 mm Rotation: from 75 to 2375 RPM Rcsdpfswcf U Eox Aahsh Table size: 1200 x 360 mm Year of construction: 1989 Maxi distance spindle nose/table: 700 mm Throat depth: 380 mm Swivel head at +/- 45° Table: X - Y manuel movements Motor: 2-speed motor Scale ACU-RITE Auto descent Drilling / Tapping function Watering Voltage: 380 V Width: 1600 mm Depth: 1600 mm Total height: 2500 mm Weight: approx 2 T

Year of construction: 1997, condition: good (used), Ibarmia CNC machining center offered. Type: ZVL 3000 Control unit: Heidenhain TNC 426 CB X-travel: 2200 mm Y-travel: 800 mm Z-travel: 600/800 mm Table: 850 x 2600 mm Weight on table max: 3500 KG Spindle: SK 40 with cooling Speed max: 4000 RPM Toolchanger: 40 pieces Power: 47 KW Included: documentation, parameters, toolholders, chip conveyor and central lubrication system Year: 1997 Rcjdpfxoh Hp Uns Aahoh Dimensions: 625x305x340 cm LxWxH Weight: ca 12000 KG Movie available! For more information call us or send an e-mail.
