Used Multi Spindle Automatic Lathe for sale (37,272)

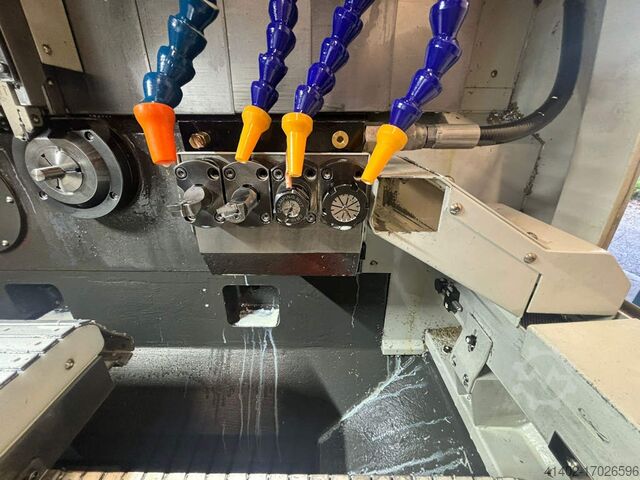

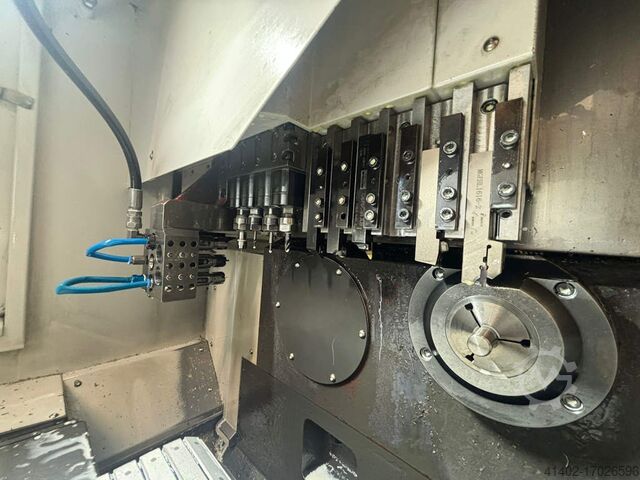

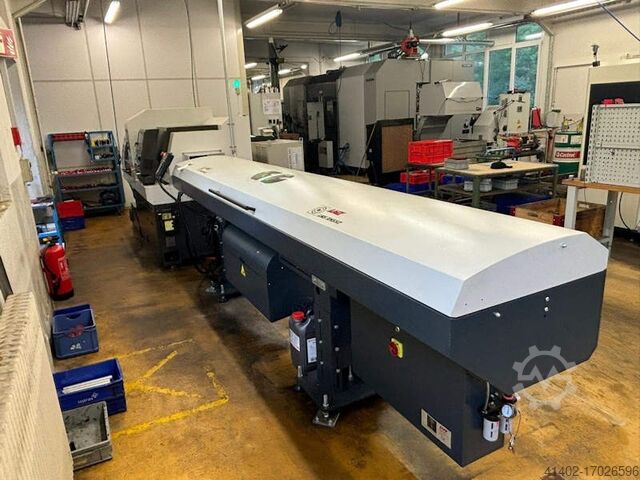

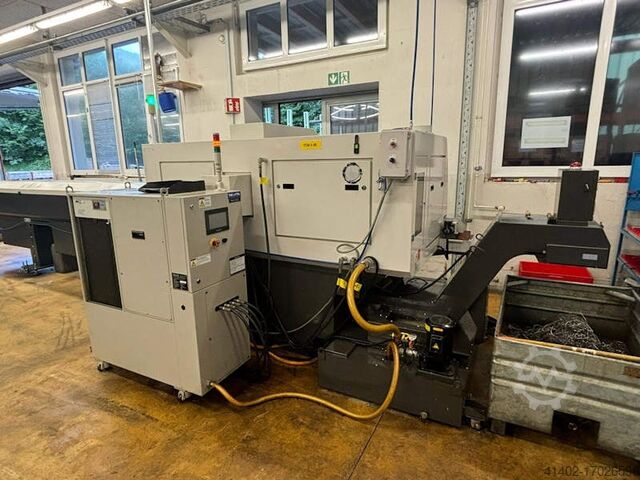

Condition: good (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 123, spindle speed (min.): 200 rpm, spindle speed (max.): 10,000 rpm, total height: 2,200 mm, total length: 9,000 mm, total width: 1,500 mm, overall weight: 5,000 kg, controller manufacturer: FANUC, controller model: SERIES 32i-MODEL B, counter spindle speed (min.): 200 rpm, counter spindle speed (max.): 10,000 rpm, TSUGAMI B0266E-II CNC Automatic Lathe - Operating voltage: 200 V - Frequency: 50 Hz - Rated current: 21.4 A - Max. bar capacity: 26 mm - Max. machining length: 320 mm (synchronously driven guide bushing) - Without guide bushing: 50 mm - Max. drilling diameter: 12 mm - Max. tapping diameter: M10 Hsdpfex Hxz Hjx Adwofb - Deep hole drilling diameter: 10 mm - Max. clamping diameter sub-spindle: 26 mm - Max. drilling diameter sub-spindle: 10 mm - Max. tapping diameter sub-spindle: M10 - Max. drilling diameter tool spindle: 8 mm (front/rear tool holder) - Max. tapping diameter: M6 (front/rear tool holder) - Max. slot milling cutter diameter at tool spindle: 45 mm - Rotating guide bushing: 200 - 10,000 rpm (synchronously driven) - Tool spindle speed: 200 - 6,000 rpm - Total number of tools (standard specification): 31 - Tool size: 16 mm square x 100 mm - Rapid traverse: 32 m/min; rapid traverse in X1 and Y1: 24 m/min, in Y2: 24 m/min - Controllable axes: 6 The machine is equipped with a bar loader from FMB, type: TURBO 3-36, and a chip conveyor. Note: The item must be collected, by firm appointment, between 04 and 12 March 2026 (exact date to be coordinated). FCA D-75181 Pforzheim – loaded onto truck

Condition: good (used), Year of construction: 1987, Multi-spindle head, multi-spindle drilling head, drilling gearbox -Multi-spindle head -Number of drill spindles: 5 (adjustable spacing) -Drill bit diameter: max. 11 mm -Cardan shafts: 5 pieces -Largest drilling pattern; Drill dimensions: 100 x 230 mm -Weight: 27 kg -Multi-spindle heads are: variable tools -for various machining operations such as: drilling, thread cutting, countersinking, reaming, -with which multiple holes can be machined at once -Dimensions: 450/190/H660 mm -Weight: 27 kg Hfedpfeb A Ifkjx Adweb

Condition: excellent (used), Year of construction: 2013, operating hours: 40,000 h, functionality: fully functional, spindle motor power: 6,700 W, turning length: 305 mm, turning diameter over cross slide: 32 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 1 rpm, turning diameter: 32 mm, spindle bore: 32 mm, overall weight: 7,350 kg, type of input current: three-phase, bar passage: 32 mm, feed length X-axis: 140 mm, feed length Y-axis: 65 mm, feed length Z-axis: 305 mm, Equipment: rotational speed infinitely variable, CNC Sliding Headstock Automatic Lathe Manufacturer: Traub Model: TNL 32 T-9 Control System: TX8i-s Year of Manufacture: 2013 Location: Sweden, still in production Availability: From January / February 2026 Operating Hours: approx. 40,000 h Technical Data Spindle through-hole (mm): 32 Max. spindle speed (rpm): 8,000 Power (100% / 25% duty cycle) (kW): 6.7 / 10.7 Torque (100% / 40% duty cycle) (Nm): 21 / 32 C-axis resolution (degrees): 0.001 Z axis travel (mm): 305 / 127 (sliding headstock / fixed headstock) Rapid traverse Z (m/min): 20 Subspindle Spindle through-hole (mm): 30 Max. spindle speed (rpm): 6,400 Power (100% / 25% duty cycle) (kW): 3.7 / 5.5 Hsdsx Rwkuepfx Adwsfb Torque (100% / 40% duty cycle) (Nm): 29.4 / 43.7 C-axis resolution (degrees): 0.001 X travel, rapid traverse (mm / m/min): 140 / 20 Z travel, rapid traverse (mm / m/min): 300 / 20 Tool Carrier 1 Configurable as turret Number of stations: 10 Max. speed (rpm): 12,000 Max. power (kW): 3.4 X travel, rapid traverse (mm / m/min): 140 / 20 Y travel, rapid traverse (mm / m/min): -40/+25 / 20 Z travel, rapid traverse (mm / m/min): 300 / 20 Tool Carrier 2 Configurable as turret Number of stations: 10 Max. speed (rpm): 12,000 Max. power (kW): 3.4 X travel, rapid traverse (mm / m/min): 140 / 20 Y travel, rapid traverse (mm / m/min): -25/+40 / 20 Z travel, rapid traverse (mm / m/min): 320 / 20 Dimensions, Weight, Electrical Connection Weight: 7,350 kg (depending on configuration) Connected load (kW): 28 Additional Equipment - Chip conveyor - External tank with paper band filtration system - Bar feeder: FMB Turbo 3-36, 4.2 m bar length - Guide bushes, collets, magazine liners (?) - Tool holders, driven and static - Documentation - High-pressure coolant system - Fire extinguishing system + Kraft & Bauer fire extinguishing system control The operator panel and hard drive were replaced in spring 2025 (approx. €24,000 incl. service costs). New drive belts for the main spindle and driven tools were recently changed. Service carried out as scheduled. Between 2019 and 2020, several extremely costly refurbishments of spindles and drive units were carried out, including new bearings and a new motor. At 27,000 operating hours. All information has been provided to the best of our knowledge and belief, but we reserve the right to make errors. Subject to prior sale. All prices are net, plus statutory VAT, ex works.

Condition: good (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 22006A, spindle speed (max.): 10,000 rpm, spindle speed (min.): 200 rpm, overall weight: 5,000 kg, total width: 1,500 mm, total length: 9,000 mm, total height: 2,200 mm, controller manufacturer: FANUC, controller model: SERIES 32 i-MODEL B, counter spindle speed (min.): 200 rpm, counter spindle speed (max.): 10,000 rpm, TSUGAMI B0266E-II CNC Automatic Lathe - Operating voltage: 400 V - Rated current: 64 A - Frequency: 50 Hz - Max. bar capacity: 26 mm - Max. machining length: 320 mm (synchronously driven guide bushing) - Without guide bushing: 50 mm - Max. drilling diameter: 12 mm - Max. tapping diameter: M10 - Diameter for deep holes: 10 mm - Max. sub-spindle clamping diameter: 26 mm - Max. sub-spindle drilling diameter: 10 mm - Max. sub-spindle tapping diameter: M10 - Max. tool spindle drilling diameter: 8 mm (front/rear tool holder) - Max. tool spindle tapping diameter: M6 (front/rear tool holder) - Max. slot milling cutter diameter tool spindle: 45 mm - Rotating guide bushing: 200 - 10,000 rpm (synchronously driven) - Tool spindle speed: 200 - 6,000 rpm - Total number of tools (standard specification): 31 - Tool size: 16 mm square x 100 mm - Rapid traverse: 32 m/min, rapid traverse in X1 and Y1: 24 m/min, in Y2: 24 m/min - Controllable axes: 6 The machine is equipped with a bar feeder from FMB, model: TURBO 3-36, as well as a chip conveyor. Note: The item must be collected between March 4th and March 12th, 2026, on a date to be agreed upon. Hodpex Hwn Sjfx Adwofb FCA D-75181 Pforzheim – loaded onto truck

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 Leuco Type 010 Li Hfedpfeb A R Hcox Adwsb -Center: clockwise rotation Outer: counterclockwise rotation -Drill bit spacing: 32 mm -Dimensions: 95/160/H105 mm -Weight: 4 kg

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 505, spindle speed (max.): 10,000 rpm, spindle speed (min.): 200 rpm, total height: 2,400 mm, total length: 8,000 mm, total width: 1,500 mm, overall weight: 6,000 kg, controller manufacturer: FANUC, controller model: SERIES 31 i-MODEL A, counter spindle speed (min.): 200 rpm, counter spindle speed (max.): 10,000 rpm, TSUGAMI HS 207 CNC Automatic Lathe - Operating voltage: 380 V - Frequency: 50 Hz - Rated current: 41 A - Rated power: 14.3 kVA - Bar clamping diameter: from 3 to 20 mm - Max. machining length: 210 mm (synchronously driven guide bushing) - Static guide bushing: 250 mm - Rotating guide bushing: 80 mm - Without guide bushing: 45 mm - Max. drilling diameter: 10 mm - Max. tapping diameter: M10 - Diameter of deep holes: 8 mm - Max. counter spindle clamping diameter: 20 mm - Max. counter spindle drilling diameter: 8 mm - Max. counter spindle tapping diameter: M6 - Max. tool spindle drilling diameter: 6 mm (front/rear tool holder, B-axis tool spindle) - Max. tool spindle tapping diameter: M5 (front/rear tool holder, B-axis tool spindle) - Max. tool spindle slot milling cutter diameter: 30 mm - Tool spindle speed: 200–8000 rpm - Total number of tools (standard specification): 35 - Tool dimensions: 12 x 12 x 100 mm - Rapid traverse: 32 m/min - Rapid traverse in X1 and Y1: 24 m/min, in Y2: 15 m/min - Controllable axes: 7 Hsdox Hwlwopfx Adwofb The machine is equipped with a bar feeder from manufacturer FMB, type: TURBO 3-36, as well as a chip conveyor and coolant system. Note: This item must be picked up definitively between 04 and 12 March 2026 on a date to be mutually agreed. FCA D-75181 Pforzheim – loaded onto truck

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits Hsdpfeb A R E Nex Adwefb -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 75/290/H90 mm -Weight: 4 kg

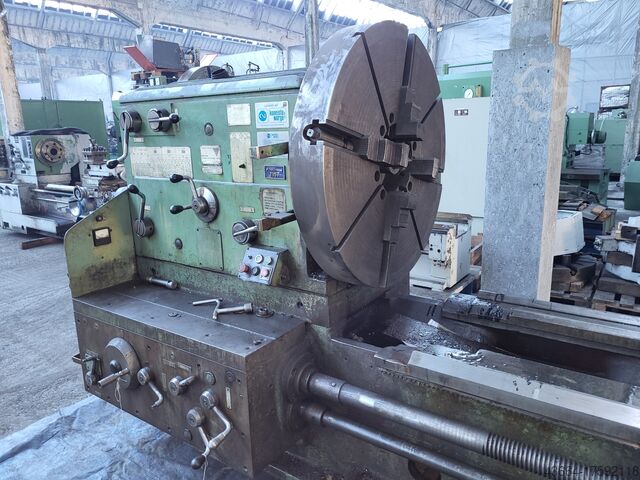

Condition: not inspected (used), Year of construction: 1977, functionality: unexamined, machine/vehicle number: 192.6155-06, spindle bore: 62 mm, turning diameter over bed slide: 270 mm, center width: 1,150 mm, turning length: 1,000 mm, spindle speed (max.): 2,240 rpm, No minimum price – guaranteed sale to the highest bidder! This machine is being auctioned due to a business closure. Placing a bid obligates the buyer to collect the item within the specified pickup window: January 26, 2026 to January 29, 2026. TECHNICAL DETAILS Swing diameter over bed (max.): 485 mm Hfjdpfxsxqg Aks Adwob Turning length (max.): 1,000 mm Swing diameter over cross slide (max.): 270 mm Distance between centers (max.): 1,150 mm Spindle bore diameter: 62 mm Internal taper, metric (max.): 70 mm Maximum tool shank size (W x H): 25 x 25 mm Leadscrew: 6 mm Tailstock quill taper: Morse 5 Manual quill travel (max.): 119 mm Cross-slide travel from center position (max.): 110 mm Spindle speed range: 11.2 – 2,240 rpm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,500 x 1,000 x 1,600 mm Weight: 1,500 kg EQUIPMENT Tailstock Multifix quick-change tool holder 3-jaw chuck, diameter: 250 mm, Manufacturer: FORKARDT Multifix tool holder, type: BD 25140 Multifix tool holder, type: BD 25120 Turning tools Steady rest (diameter approx. 150 mm) 4-jaw face plate, diameter: 450 mm

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits Hodpfx Ajb A R Hfjdwefb -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 195/75/H90 mm -Weight: 3 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 11 drill bits Hfjdpob A R Hdefx Adwsb -1x drill bit: Left-hand rotation, 33 mm spacing -1x drill bit: right-hand rotation, 41 mm spacing -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 380/95/H100 mm -Weight: 5 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 5x drill bits -Recording: M8 -right/left: rotating alternately Hjdpfsb A R Hiox Adwofb -Drill bit spacing: 32 mm -Dimensions: 195/75/H90 mm -Weight: 3 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Hodob A R Hhopfx Adwjfb -Number: max. 2x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 33 mm -Dimensions: 100/80/H130 mm -Weight: 2 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits -Recording: M8 Hedpeb A R Hgsfx Adwofb -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 75/290/H90 mm -Weight: 4 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 18x drill bits -Recording: M8 -right/left: rotating alternately -Spacing between rows of drill bits: 33 mm -Drill bit spacing: 32 mm -Number: 4 drill heads available -Price: per piece -Dimensions: 285/120/H105 mm Hjdpfxeb A R H Sj Adwefb -Weight: 8 kg/piece

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 10 drill heads available -Price: per piece Hsdpfeb A R H Rjx Adwefb -Dimensions: 285/80/H90 mm -Weight: 4 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Hfsdpfxsb A R Ibo Adwob -Number: max. 5x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 7 drill heads available -Price: per piece -Dimensions: 190/75/H90 mm -Weight: 3 kg/piece

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 11 drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 4 drill heads available -Price: per piece Hfjdjb A R Iaepfx Adweb -Dimensions: 350/95/H85 mm -Weight: 6 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits -1x drill bit: Right-hand rotation, 32 mm spacing -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 2x drill heads available -Price: per piece -Dimensions: 300/95/H90 mm -Weight: 6 kg Hsdpfsb A R H Usx Adwofb

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 11 drill bits -1x drill bit: Right-hand rotation, 32 mm spacing -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 4 drill heads available -Price: per piece Hfedpfxeb A R H Te Adwsb -Dimensions: 350/100/H90 mm -Weight: 5 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 19 drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 2x drill heads available -Price: per piece Hfjdpfxob A R Igs Adwob -Dimensions: 635/75/H100 mm -Weight: 10 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits Hfjdpjb A R Ifjfx Adwjb -1x drill bit: Right-hand rotation, 32 mm spacing -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 3x drill heads available -Price: per piece -Dimensions: 300/95/H90 mm -Weight: 6 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Hfjdpfxjb A R Ico Adwob -Number: max. 14x drill bits -Recording: M10 -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 470/60/H130 mm -Weight: 10 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 3x drill bits -Recording: M8 Hfjdpfx Adeb A R Ilowjb -right/left: rotating alternately -Drill bit spacing: 32/58 mm -Dimensions: 170/90/H100 mm -Weight: 4 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 2x drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm Hfsdpfxsb A R Iio Adweb -Quantity: 1 piece available -Dimensions: 90/60/H130 mm -Weight: 2 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 13x drill bits -Recording: M10 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 1x drill heads available Hedpfx Aeb A R Ihedwjfb -Price: per piece -Dimensions: 435/60/H130 mm -Weight: 10 kg
