Used Thread Grinding Machine for sale (84,428)

Condition: used, Year of construction: 2007, CNC cylindrical grinding machine (carousel type) for internal, external, and face grinding. Supplied with extensive accessories, including grinding wheels of various types and sizes. Retrofitted in 2007. Magnetic chuck diameter 1500 mm, swing diameter 1800 mm, maximum grinding diameter 1600 mm, maximum grinding height 880 mm, maximum workpiece weight 5 t. Grinding spindle swivel angle: 90° left, 60° right. Ksdpjx Natpefx Aansfa

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1315/451, Completely overhauled: Kfjdpfx Asw U Ry Njanea Mechanics, geometry, hydraulics, and electrical parts (checked and/or replaced) Wheelhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, bearings replaced, belts replaced, spindle disassembled, seals and O-rings replaced, adjustments made. Newly painted. Workhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, belts replaced. New spindle bearings. Newly painted. Tailstock: Disassembled, inspected, overhauled. Hydraulics: Disassembled, motor checked, hoses replaced, defective and worn parts replaced. Hydraulic block checked. X-axis: Disassembled, all worn parts such as O-rings, seals, segments, etc. replaced, hydraulic piston overhauled, table ground. Z-axis: Disassembled, table ground, worn or defective parts replaced, hydraulic piston overhauled, newly painted. Electrical cabinet: Completely checked, various relays replaced. Paintwork: Colors: White RAL 9003 and Grey RAL 7011 Geometry according to manufacturer's protocol. Various accessories checked and cleaned. Origin: CH Voltage: 380 / 50 / 3 Net weight: approx. 2,200 kg Customs tariff number: 8460.2920 TECHNICAL SPECIFICATIONS Nominal distance between centers: 600 mm Max. distance between centers (with extended headstock): 750 mm Center height, standard: 125 mm Center height with interchangeable pads for heads: 175–250 mm Max. workpiece diameter (125 mm center height): 250 mm Max. workpiece diameter with interchangeable pads: 350–500 mm Swiveling range of table in each direction: 10° Max. grinding length for flat surfaces (max. width = 200 mm): 900 mm Continuously variable hydraulic table speed: up to approx. 6 m/min Table reversal delay: 0–5 sec Grinding wheel for external grinding, diameter - width - bore: 400x50x127 mm Grinding wheel for flat surface grinding: 250x13x76 mm Wheelhead spindle speed: 1,500/1,700/2,200/3,600 rpm Wheelhead swiveling range: 270°, with indexing every 90° Vertical travel of wheelhead, center height: 125–350 mm Transverse travel of wheelhead: 285 mm Hydraulic rapid traverse stroke: 40 mm Intermittent infeed of wheel by table reversal: 0.001–0.03 mm/dia Continuous infeed for plunge grinding: 0–0.9 mm/dia Micrometric infeed stop, by division: 0.001 mm/dia Workhead swiveling range: 360° Workhead spindle speed, stepless: normal/special: 20–400 / 10–400 rpm Internal taper of workhead/tailstock: Morse 5/3 Wheelhead motor: approx. 4 HP All technical specifications are given without obligation and subject to errors or omissions.

Condition: used, 2 Used Thread Rolling Machines WMW UPW25 ---Only 10.000,00 Euro--- Kfsdpfxox Dmnyo Aansa

Year of construction: 2008, condition: ready for operation (used), Main Drive Number of axis 3 This 3-axis EASTAR ESG-1640ASD II surface grinding machine was manufactured in 2008. It features a substantial work plane of 400 x 1000 mm, ideal for various grinding tasks. If you are looking to get high-quality grinding capabilities, consider the EASTAR ESG-1640ASD II machine we have for sale. Contact us for more information. Application Types Kfjdpex D H Erjfx Aansa Grinding

Condition: used, Universal grinding machine Kjdoiwxdhspfx Aanofa for planer blades, drills, etc. Manual feed with 6 jaws chuck + perforated disc

Condition: good (used), Year of construction: 2012, functionality: fully functional, PLC controlled grinding function, Table size 1500 x 700 mm, Table load max. 1400 kg, Max. spindle - table distance 1000 mm (magnetic table 60 mm high), Ksdpfoxywgfox Aansfa Prismatic "V" guildes & flat guides with Turcit-B coating, Spindle power 11kW, Wheel size D405 x 50 x d127 mm, Machine weight 8100 kg, Accessories and features - Electromagnetic table 1500 x 700 mm, - Automatic demagnetizing, - Automatic infeed - Portal electrical handwheel - Coolant system with paperband filtering - Magnetic separator. - New spindle bearing 1,5 years ago. Good working condition. Still in production. Located in Hungary.

Condition: good (used), Dividing head, spiral milling device, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder Kfodpfx Aasxfh N Uenoa -Manufacturer: Stankoimport, holder for tool grinding machine -Type: 36642.M7 -swivelling: up to 105° -Mounting: Ø 35 mm / M16 see photos -Dimensions: 150/140/H85 mm -Weight: 3.9 kg

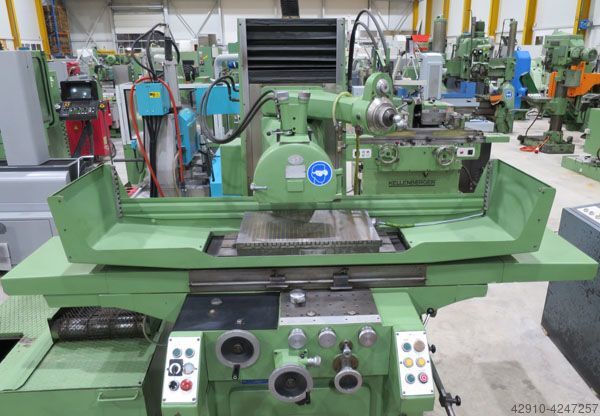

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 6360.16.65, Country of manufacture: Switzerland Voltage: 380/400/50/3 Net weight: 1350 kg Customs tariff number: 8460.1920 Dimensions: 200/120/160 cm Kedpfsw Ucxqox Aanjfa TECHNICAL SPECIFICATIONS Maximum saddle travel: 530 x 220 mm Maximum grinding surface: 520 x 230 mm Table clamping surface: 600 x 200 mm Table speeds Longitudinal, standard operation: 0-25 m/min With slow feed: 5/10 mm - 8 m/min Cross feed: 0-6 m/min Vertical travel by hand: 330 mm Rapid travel by motor: 290 mm Rapid feed rate: 460 mm/min Max. distance between table and spindle axis: 412 mm Vertical feed movement Handwheel, 1 division: 0.01 mm Micrometric device, 1 division: 0.001 mm Automatic: 0.001-0.099 mm With pulse button: 0.001 mm Cross feed movement Handwheel, 1 division: 0.01 mm Micrometric device: 0.001 mm Grinding wheel Diameter x width x bore: 225x25x50/51 mm Standard RPM: 2700 rpm With variable speed drive: 3700-1300 rpm All technical data are provided without guarantee and are subject to possible errors or omissions.

Condition: reconditioned (used), Cutter Grinder Make: harich (Deckel) Model: SSM (S0E) Refurbished with CE certification with warranty Accessories: - Machine stand - Integrated dust extraction - Grinding wheel with flange - Dressing tool - Operating manual incl. new machine electrics according to current safety regulations incl. new circuit diagram incl. CE documentation incl. CE labelling incl. CE Declaration of Conformity Kfsdpox A U Rgjfx Aansa

Year of construction: 2008, condition: ready for operation (used), General Data Machine weight 12000 kg Kjdpfx Aasx D Iwvenefa Movement X-Axis Movement 450 mm Z-Axis Movement 850 mm This STUDER S242 was manufactured in 2008, a cylindrical grinding machine known for its robustness and precision. It features a swing diameter of 180 mm, max workpiece weight of 20 kg, and grinding spindle speeds up to 50 m/s. The machine includes shaft automation, grinding wheels, and is still powered up and fully functional. Annual maintenance by Studer ensures reliability. For more information about this machine, please reach out to us. Application Types Grinding

Condition: used, Year of construction: 1999, 2014 Kfedpfx Aex Edwheanja weight of the machine ca. 9 t

Condition: excellent (used), grinding wheel diameter: 508 mm, grinding length: 3,500 mm, overall weight: 8,000 kg, power of the servo motor: 42,000 W, year of last overhaul: 2010, Equipment: rotational speed infinitely variable, We are selling our own Lidköing 4B centerless grinding machine with circulation station from our subsidiary in Slovakia. The machine is powered and can be inspected. The circulation station is suitable for shafts up to a length of approx. 3,000 mm. This means that shafts with multiple grindings can be continuously finished. The coolant system has a cooling system for tempering the coolant. The Lidköping 4b grinding machine has an adjustable grinding and regulating wheel. The machine is from 1970 and was completely overhauled technically and electrically at Markmetall in 2010. The grinding machine was rebuilt in 2018 with a newly built circulation station from SH attachments/Markmetall. Since then, the machine can be operated as an automatic centerless grinding machine. Extensive documents are available. Kodpovuq Hxofx Aansfa

Condition: good (used), Cup grinding machine, swivel arm grinding machine, carbide chip breaker groove grinding machine, tool grinding machine, grinding machine, angle grinding machine, turning tool grinding machine -Clamping table: 440 x 300 mm -Max. intermediate dimension: 130 mm -Grinding disc diameter: 125 mm -Dimensions: 1200/840/H1680 mm Ksdpfscvnaiox Aanofa -Weight: 380 kg

Condition: excellent (used), machine/vehicle number: 31.207.011, Manufacturing origin Swiss Voltage 380/50/3 Netweight 3150 kg Dimensions 400x185x175cm Custom position 8460 Kedpfx Aoiwtm Ssanofa TECHNICAL DATA Distance between centres 1000 mm Centres height 175 mm Wheelhead Wheel : diameter/width/bore 500 / 80 (100) / 203.0 mm Max width of wheel 80(100) mm Spindle speeds 1220,1360,1530 min-1 Table maximal travel 1100 mm Table, speed (variator, progressively adjustable) 0.02 to 6.0 m/min Workpiece headstock Swivel 360° speed (variator,progressive adjust) 20 min-1 to 400 min-1 Wheelhead motor 6 HP Total power 7 HP Max diameter of workpiece 249 mm Tailstock internal taper Morse 3 errors and omissions excepted-data given without obligation

Year of construction: 2023, operating hours: 4,976 h, condition: ready for operation (used), General Data Measurements width 3250 mm Measurements depth 2100 mm Measurements height 2150 mm Kfjdpfx Ajx D Nfnoanja Control Unit Brand FANUC Model 31i-B Main Drive Number of axis 4 Movement X-Axis Movement 370 mm Z-Axis Movement 800 mm Workpiece Workpiece weight 150 kg Additional Equipment Equipped with: Measuring probe, Kraft & Bauer fire extinguisher installation, LTA oil mist separator, DGS paper filter, motorex/Ritter & bader coolers, grinding wheels, documentation This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2023. It features a distance between centers of 650 mm, center height of 175 mm, and can handle a maximum workpiece weight of 150 kg. Equipped with a Fanuc 31i-B control system, it also includes a measuring probe, fire extinguishing system, oil mist separator, and coolers. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine. Application Types Grinding

Condition: good (used), Year of construction: 1995, Profile edge grinding and milling machine, edge grinding machine, edge grinder, grinding machine -with copier -2x: milling heads -Power: 1.5 kW -Speed: 3000-6000 rpm -1x: grinding head -Power: 1.1 kW -Speed: 500-1500 rpm -Milling and grinding heads in thickness: adjustable Kfjdpfscg Al Sox Aansa -Max. Workpiece thickness: 40 mm -Max. Corner radius: 40 mm -Dimensions: 1200/1600/H1520 mm -Weight: 782 kg

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Kedow T Tb Hjpfx Aanofa Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Condition: ready for operation (used), Year of construction: 2019, Control Unit Brand FANUC Model §==I Main Drive Number of axis 5 Table Number of tslots 7 Inner width 14 mm Table load 800 kg Ksdpfx Aajx D Ny Ssnofa This 5-axis HAUSER KELLENBERGER H55-400 was manufactured in 2019, designed for precision internal grinding. Ideal for complex geometries, it offers advanced control for high accuracy. Consider the opportunity to buy this HAUSER KELLENBERGER H55-400 internal grinding machine. Contact us for more information. Application Types Grinding

Condition: refurbished (used), Year of construction: 2025, operating hours: 50 h, machine/vehicle number: 3018-04, Country of manufacture: Switzerland Voltage: 380/50/3 Net weight: 3100 kg Overall dimensions: 230x155x170 cm Installed power: 13 kVA Customs tariff position: 8460.2920 TECHNICAL SPECIFICATIONS MAIN DIMENSIONS Distance between centers: 650 mm Grinding capacity SpW+bs: -80 Stroke: 700 LONGITUDINAL SLIDE Max stroke: SpW+50 mm Minimum automatic feed: 1.5 mm Speed: 50-5500 mm/min Reversal delay: 0-6 sec Maximum table swivel: 12°/10°/8.5°/6° Pneumatic relief for table and workhead CROSS SLIDE Max stroke: 300 mm Rapid traverse: 60 mm Plunge grinding depth in diameter: 3.4 mm Feed 1: 0.012-6 mm/min Feed 2: 0.012-1.2 mm/min Kjdpfx Aow T Sd Toanofa Feed per pulse: 0.001-0.05 mm GRINDING WHEEL HEADSTOCK Left-side wheel, external grinding: 400x80x127 mm Drive power: 5.5 kW Peripheral speed: 35 m/s RPM: 1670/2110 min-1 Internal grinding device for belt-driven spindles, including drive unit: 1.5 kW WORKHEAD Swivel range: 0-90° Continuously variable RPM: 30-1000 min-1 Internal taper: Morse 5 Collets: W-25 Drive power: 0.55 kW Maximum workpiece weight between centers: 130 kg Grinding load between centers: 100 Nm TAILSTOCK Internal taper: Morse 3 Quill stroke: 35 mm Fine adjustment for cylindricity correction: ± 40 μm TECHNICAL CHARACTERISTICS: GUARANTEED WORKING ACCURACY Straightness of the generator over 630 mm: 0.003 mm Roundness during chuck grinding: 0.0003 mm CONNECTION VALUES Maximum absorbed power: 13 kVA Maximum permitted voltage fluctuation: -15%/+10% Maximum permitted frequency variation: ± 3% Required compressed air pressure: 5 bar Unless otherwise stated or in case of error or omission, these technical details are provided without engagement.

Condition: refurbished (used), Year of construction: 2025, operating hours: 36 h, functionality: fully functional, machine/vehicle number: 1024-54, Country of Manufacture: Switzerland Voltage: 380/50/3 Net weight: approx. 1600 kg Customs tariff: 8460.2920 Dimensions: 235 x 155 x 145 cm TECHNICAL FEATURES: MAIN DIMENSIONS: Centre height: 100 mm Distance between centres: 400 mm LONGITUDINAL SLIDE: Max travel: 420 mm Minimum automatic travel: 1 mm Table feed speed: 100–3500 mm/min Overtravel delay: 0–5 sec. Maximum table swivel (400/650 mm): 30°/15° CROSS SLIDE: Max travel: 170 mm Rapid traverse: 30 mm Plunge depth (diameter): 1.9 mm Feed rate 1: 0.03–1.5 mm/min Feed rate 2: 0.02–0.3 mm/min Plunge feed per impulse: 0.0005–0.025 mm WHEELHEAD: Grinding wheel (diameter x width x bore): 350 x 32 x 127 mm Drive power: 3 kW Peripheral speed: 30 m/s Kjdow T Sc Nspfx Aanofa Spindle speeds: 1600/1975/2200 rpm Manual stroke: 120 mm Swivel to right: 15°/30° Optional wheel guard for wheel set max width: 50 mm WORKHEAD: Swivel range: 0°–90° Spindle speeds: 80/175/380/800 rpm Internal taper: Morse 4 Collet type: W-20 Drive power: 0.5 kW Maximum workpiece weight: 20 kg Load for in-the-air grinding: 12 Nm Optional stepless drive speed range I: 30–300 rpm Optional stepless drive speed range II: 120–1200 rpm TAILSTOCK: Internal taper: Morse 2 Quill travel: 20 mm GUARANTEED WORKING ACCURACY: Generator straightness: Between centres: 400 mm Measured over 400 mm: 0.002 mm Between centres: 650 mm Measured over 650 mm: 0.003 mm Roundness accuracy for in-the-air grinding: 0.0004 mm CONNECTION VALUES: Power consumption: max. 8 kVA Permissible voltage variation: –15% / +10% Permissible frequency variation: ±3% Compressed air: 5 bar All technical specifications are given without obligation and subject to errors or omissions.

Condition: refurbished (used), machine/vehicle number: 2257, Manufacturing origin France Voltage 380/50/3 Netweight 3000 kg Custom position 8460.29 20 Ksdpfofnm Iijx Aanjfa Dimensions 2400x1550 mm TECHNICAL DATA Diameter capacity 80 mm Type 2HA : 120 mm Maximum infeed grinding length 200 mm Maximum throughfeed grinding length (with normal-type guides) 300 mm Grinding wheel : -diameter 400 mm -maximum width 200 mm -bore 203.2 mm Driving wheel : -diameter 254 mm -width 200 mm -bore 127 mm Main drive motor 11-22 kW Driving wheel motor 1,1 kW Driving wheel speed 10 – 200 U/Min Standard accessories : 1 flange with grinding wheel 1 flange with driving wheel 1 workpiece support bridge 1 set of shims for workpiece support -Hydraulic dressing and trueing device for grinding and driving wheels -Variable speed drive of driving wheel -Electrical equipment for 3x380 v, 50 Hz -Main drive motor, 11 kW -Ammeter for main drive motor Starter keys and operating manual errors and omissions excepted data given without obligation.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1845/455, Completely refurbished: Mechanics, geometry, hydraulics, and electrical components Wheelhead Disassembly, cleaning of parts, replacement of worn and defective components, motor overhaul, replacement of bearings, replacement of belts, spindle disassembly, replacement of seals and O-rings, plus adjustment. New paintwork. Workhead Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Tailstock Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Internal grinding attachment Disassembly, cleaning of parts, replacement of worn and defective components, installation of the support and geometry alignment. New paintwork. Hydraulics Disassembly, motor replacement, hose replacement, defective and worn parts replaced. Hydraulic block checked. X-Axis Disassembly, replacement of worn items such as O-rings, seals, rings, etc., overhaul of hydraulic piston, regrinding of tables. Z-Axis Disassembly, regrinding of tables, replacement of worn and defective parts, overhaul of hydraulic piston, scraping of V and flat guides. New paintwork. Measuring system Digital 2-axis display included. Electrical cabinet Replacement of motor contactors and relay controls. New wiring. New variable speed drive (frequency inverter) for the workhead. TECHNICAL SPECIFICATIONS Distance between centers: 1500 mm Distance between centers (workhead to tailstock overhang): 1650 mm Center height, standard: 125 mm Center height with riser blocks: 225/250 mm Maximum grinding diameter: Ø 250 mm Maximum grinding diameter with riser blocks: 450/500 mm Table Usable surface: 2060 x 140 mm Max. length and width for surface grinding: 1750 x 200 mm Longitudinal travel, manual or hydraulic: 1750 mm Manual table movement, 1 handwheel revolution – coarse: 20.006 mm Manual table movement, 1 handwheel revolution – fine: 2.457 mm Table speed, continuously via hydraulics: up to 6 m/min Table swivelling: 6° Stop and return: 0–5 sec. Workspindle Workpiece speeds, continuously variable (electric): 20–400 rpm Swivelling: 360° Workspindle taper (internal): MT5 Tailstock Internal taper, tailstock spindle: MT3 Spindle retraction, manual or hydraulic: 30 mm Diamond dresser taper (internal): MT0 Universal grinding head Cross slide travel for wheel: 285 mm Rapid traverse for wheel slide, front and rear: 40 mm Grinding spindle speeds: 1500 – 1700 – 2200 – 3600 rpm Vertical grinding spindle movement, center heights: 125–330 mm Max. wheel for cylindrical grinding: 400 x 50 x 127 mm Max. wheel for surface grinding: 250 x 20 x 76 mm Head swivelling with locking at every 90°: 270° Wheel feed 1 division of the micrometer drum: 0.005 mm/Ø Automatic wheel feed, max.: 0.9 mm/Ø Motors Grinding spindle motor: 2,900 rpm / 4.0 hp Workspindle motor: 3,000 rpm / 2.0 hp Coolant pump motor: 2,850 rpm / 0.12 hp Kfjdjxt Ilfepfx Aansa Internal grinding attachment Bore: 70 mm Internal grinding spindle speed Ø70 mm: 14,000 rpm Internal grinding spindle speed Ø50 mm: 21,000 rpm Subject to error or omission, the technical information is provided without obligation.

Condition: refurbished (used), functionality: fully functional, machine/vehicle number: 32461/2384, Manufacturing origin Swiss Voltage 380 / 50 / 3 Netweight 4900 lbs Dimensions 121 x 69 inches TECHNICAL DATA Nominal distance between centre 600 mm Max. distance between centres, headstock and tailstock projecting 750 mm Height of centres, standard 125 mm Height of centres by means of raising blocks for work head-and tailstock 175 =ᐳ 250 mm Max. swing diameter with 125 mm height of centres 250 mm Max. swing diameter with raising blocks 350 =ᐳ 500 mm Table swivels each side 10° Max. lenght for surface grinding (width=200 mm) 900 mm Table speed infinitely viable by hydraulic drive, approx. .. 6 m/min Dwell of table reversal 0 - 5 sec. Grinding wheel for cylinrical grinding (diameter x width x hole) 350/400x50x127mm Grinding wheel for surface grinding diameter x width x hole 250 x 13 x 76 Speeds of grinding wheel spindle 1500/1700/2200/3600 Grinding wheel head swivels 270° with indexed stop each 90° Vertical movement of grinding wheel head, height of centres -350 mm Cross movement of grinding wheel head 285 mm Rapid advance and withdrawal of wheelhead 40 mm Intermittent infeed per reversal of table 0,001-0,03 mm/dia Infeed for plunge grinding 0-0,9 mm/dia Micro-corrector of infeed, 1 division of dial 0,001 mm/dia Swivel of work headstock 360° work speeds infinetely viable, normal/special 20-400/10-400 Internal taper of headstock/tailstock 5/3 Morse Grinding wheel motor, approx. 4 HP errors and omissions excepted data given without obligation Inventory Nr.2170089, machine equipped with : 1 Workpiece headstock MT5 1 sinus rule without comparator 1 Wheel headstock with 4 pulleys 1 Tailstock MT3 1 Collet clamping device with drawbar and reduction sleeve B32 1 Internal grinding device with quill Fischer UJ50x250 – pulley Ø 48 for 14000 min-1 Kodpfxsd Amifo Aanefa 1 Pivoting wheel trueing-up device with sole 50 mm 1 Table’s pivoting stop without comparator 1 Cooling device through decantation 1 extractor 1 balancing stake

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 027.0400/067, CNC CYLINDRICAL GRINDER STUDER S-33 CNC Year: 2007 - Fanuc 21i-TB 1 External Grinding Spindle Country of Origin: Switzerland Voltage: 380/50/3 Net machine weight: 4,000 kg TECHNICAL SPECIFICATIONS Distance between centers: 600 mm Center height: 175 mm Maximum workpiece weight: 80 kg Longitudinal Slide Z Max. travel: 800 – 1,150 mm Travel speed: 0.001 to 10,000 mm/min (early 2000’s model: 0.001-5,000 mm/min) Resolution: 0.0001 mm Cross Slide X Max. travel: 285 mm Travel speed: 0.001 to 20,000 mm/min (early 2000’s model: 0.001-10,000 mm/min) Resolution: 0.0001 mm Wheelhead (universal version) Swiveling range: -15° to 225° (early 2000’s model: -15° to 195°) Swivel axis: 2.5 / 1 ° Hirth Drive power: 7.5 or 9 kW or 11 kW Grinding wheel: 500x63 (80/110F5) x203 mm Kfedpfx Aew T Sh Ejansa Workhead Rotational speed: 1 – 1,500 min-1 Mount taper: MT4 or MT5 / ISO 50 Drive power: 1.6 or 3.0 or 4.0 kW Tailstock Mount taper: MT3 or MT4 Quill stroke: 35 / 50 mm (early 2000’s model: 35 mm) Quill diameter: Ø 50 mm Fine adjustment: +/- 40 µm Control system: Fanuc 21i-TB All technical details are provided in good faith but subject to errors or omissions.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 510-1986, CYLINDRICAL GRINDER JOTES SCHAUDT A440X1500 Specifications Maximum longitudinal travel: 1500 mm Grinding diameter: 298 mm External grinding: Yes Internal grinding: Yes Dimensions (L x W x H): 5400 × 2400 × 1600 mm Weight: 4800 kg Operating hours: — Power-on hours: — Condition: Rebuilt Compliant with local standards: — Status: Under power Technical features - Grinding length [mm]: 1500 - Grinding diameter [mm]: 300 - Manual table displacement [mm/rev]: 10 - Table speed range [mm/s]: 0.01–5 - Smallest table stroke [mm]: 3 - Wheelhead swivel [°]: ±90 - Centre sleeve taper [Morse No.]: 4 - Grinding wheel dimensions [mm]: 500 x 63 x 203 - Spindle speed [rpm]: 32–500 - Grinding wheel drive motor power [kW]: 5.5 - Workpiece drive motor power [kW]: 0.75 - Hydraulic pump motor power [kW]: 1.5 - Grinding attachment drive motor power [kW]: 0.75 - Machine dimensions [mm]: L=5400 / W=2400 / H=1580 / Machine weight [kg]: 4800 Kfjdpfew T Ti Dox Aanoa
