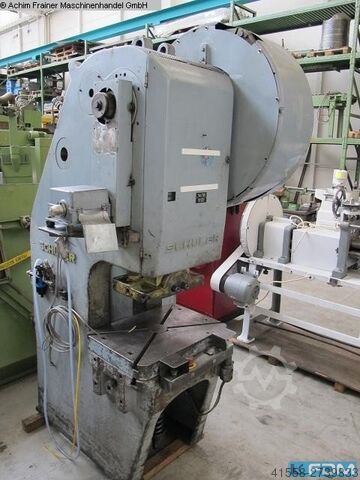

Eccentric Press - Single Column

SCHULER PD 63-250

Year of construction: 1987, condition: used, Kehren rotary table, type RS 7C, used Manufacturer: Kehren, Honneff Item number: 4179 Year of manufacture: 1987 Control system: Siemens 3G PLC: Siemens S5 Hedohgmwgopfx Abhsp Grinding motor: BBC QUB 200 Rotary table diameter: 750 mm Grinding head diameter: 460 mm Operator panel with screen Coolant system Flushing pump Coolant pump Automatic paper band filter system Control cabinet

Condition: new, Year of construction: 2026, Drilling and milling machine Kudu with CNC control and tool changer (3-axis) drilling and milling machine with movable processing unit - the table remains stationary, the drill head moves. The drilling machine can be used both manually and fully automatically. After each drilling process, the processing unit moves to the next drilling position fully automatically in the X and Y axes. Operation is kept very simple. The data can be transferred to the machine control using the file formats DXF./DWG. be carried out via a programming station. Alternatively, the system can also be programmed directly on the machine control. The system is very robust and consists of proven machine components. Hsdsfu Ivzjpfx Abhjp Technical data: • Measuring length: 6,000 mm • Total length: 8,050 mm • Stable machine base • Drilling head speed: up to 2500 rpm (standard version), is supplied with the right speed for your application. • Tool holder: SK 40 • Drive of the X, Y and Z-axes via servomotors • Rapid traverse in the X-axis: 20 m/min • Rapid traverse in the Y-axis: 5 m/min • Distance from upper edge of table to lower edge of tool holder 400 mm • Table width 480 mm • Working height: 1050 mm • Drilling diameter: 3 to 30 mm in St. 50 (depending on the tool) • Tapping: M4 - M30 (with compensating chuck) • Machining path in the Y axis: 300 mm • Tolerance in the X axis: + - 0.1 mm • Tolerance in the Y-axis: 0.06 mm • Tolerance in the Z-axis: 0.06 mm • Drill head drive motor: 5.5 kW • System weight: 2300 kg • System dimensions: 8050 mm x 3000 mm x 2388 mm (see layout plan) • Power connection: 32 A • Air connection: 8 bar • Protection of the system at the front via light barrier • Access protection at the rear, machine fence • Control touch screen panel 21.5", reinforced front glass • Easy programming on the Machine • Milling of long holes and circles • Lubrication takes place using a minimum quantity spray system • without material vices • Remote maintenance possible using Teamviewer (LAN interface) • Tool memory for drilling tools, with dimensions, speed • Simulation of work processes • Digital hand wheel Your advantages • The surface of the workpieces is protected • Clear, graphic surface • Machining directly at the end of the workpiece is not difficult • 50% space saving compared to pushing machining • Chips are collected in the chip tray • Simplest programming & operation • Minimum quantity spray system (standard) • Programming errors are prevented by CAD /CAM excluded

Year of construction: 1965, condition: used, pressure 150 t throat 550 mm stroke 10 - 140 mm table surface area 1180 x 980 mm no. of strokes 40 Hub/min dayligth 500 mm ram surface 1040 x 800 mm ram adjustment 70 - 150 mm tool shank hole (depth x diameter) 435 x 55 mm required power 15 kW weight of the machine ca. 12 t dimensions of the machine ca. 3 x 1,7 x 3 m - with additional brake - slide weight compensation - motorized slide adjustment Hjdscubatjpfx Abhsp - central grease lubrication (manual) - table mounting plate - safe for manual inlay work

Condition: good (used), Year of construction: 2010, functionality: fully functional, operating hours: 15,996 h, input voltage: 400 V, overall weight: 6,750 kg, 1000 KN Max. stroke: 200 Weight: 6750 Noise level: 74 dB Year of manufacture: 07/2010 Voltage: 400 V / 50Hz Rated current: Current operating hours: 15,996 hours with manual angle measurement and correction system with safety laser UVV inspection on a regular basis / maintenance always carried out by Amada on a regular basis Accessories: Tool die: 2 pieces UKB 20.478 V8/12 30° 835mm 3 pieces UKB 20.344 V4/V7 88° 835mm Hsdpetwliwofx Abhjp Tool holder: 4 pieces UKB substructure for double V die 20.287 + 60.919 835mm Bending swords: 5 pieces UKB 10.261 H100 R0.6/90° 2 pieces UKB 11.158 H80 R0.6/30° 2 pieces UKB 11.200 H66 R0.8/90° Other: Light barrier in need of repair (new price approx. €4500) – separately as a replacement as an attachment (has been renewed) The machine can be inspected under power in DE84051 Mettenbach by appointment. Sale only to commercial customers and with exclusion of any warranty!

Year of construction: 1996, condition: good (used), machine/vehicle number: xxxx, High-performance table-mounted threading drill machines with T-slot table Technical specifications: Hodef Tcy Dopfx Abhsp - Threading capacity approx. M3 - M16 - Speed range up to 500 rpm - Working area (swivel radius) 2500 mm - Quick-change tool holder, size 2, diameter 31 - Various inserts for quick-change tool holder - Table surface with 5 T-slots 2050 x 900 mm - Table height 910 mm - Machine vise with jaw width 200 mm - 3-jaw chuck 250 mm - Pneumatic connection with pressure reducer - Mobile base - Space requirement approx. W 2400 x H 2000 x D 1000 mm - Weight approx. 1100 kg

Condition: good (used), Centre bore 2- 50 mm Diameter of workpiece 8 - 125 mm Hjdpfx Aberivluehsp Lenght of workpiece 50 - 1000 mm Grinding wheel speeds 13'000 - 45'000 rpm Misc.accessories MARCELS MASCHINEN AG

Condition: used, Pallet with 18H7 T-slots, suitable for DMG DMC 100 H and DMG DMC 100 U as well as DMC 125H/U Duoblock. Hodpfx Asqx Uh Nsbhsp More than 10 pallets available.

Condition: used, Year of construction: 1970, machine/vehicle number: 120895, pressure:63 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 Hub/min table::715 x 500 mm dayligth:330 mm ram adjustment:63 mm Hjdpfofx Hv Hsx Abhep clamping plate:700 x 480 mm hole in the table:240 mm Hole in clamping plate:110 mm dimension of ram:450 x 280 mm weight of the machine ca.:5,5 t dimensions of the machine ca.:1,2 x 1,7 x 2,7 m hydraulic tilting single column eccentric press, tilting in 4 steps, opening to rear (325 x 500mm) and below (360x160mm) with central lubrication via hand pump, additional clamping plate 700 x 480 x 850 mm, two-hand operation, foot-trip operation possible, operating-mode selector for adjustment of continuous or single stroke, emergency cut-off, piece counter, various accessories

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Hedpewv S Rtjfx Abhjp Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Maximum turning length: 3000 mm Spindle bore: 62 mm Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

Condition: excellent (used), Year of construction: 2004, Engel Victory 80/45 Tech Closing force: 45 tons, without core Screw diameter: 22 mm Hedpfjh Rawbox Abhjp Year of manufacture: 2004 Control unit: 200
