Solid wood sanding machine

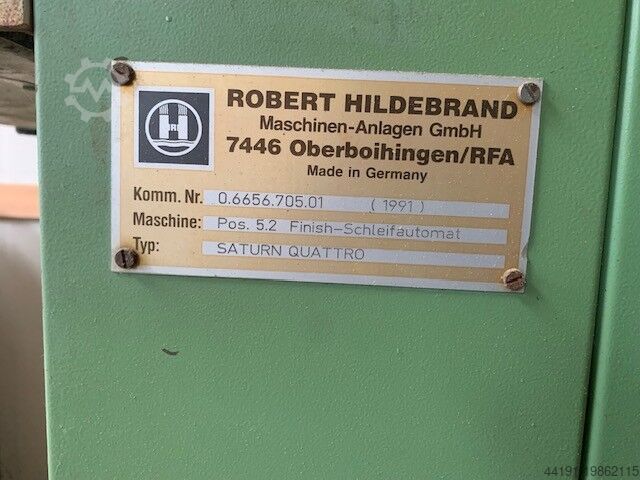

Stähle Saturn Quattro

Condition: used, Number of sanding units 4 St. sanding width 190 mm Sanding height max. 180 mm Control ja weight 3300 kg Dimensions (L/W/H) 2600x920x1890 mm Dust suction hood 2x180, 2x120 mm Löwer DSM 2004 Double-Sided Sanding Machine ----- 4-Belt Sander + Disc Unit (Top/Bottom) Manufacturer's Description: ----- Double-sided, four-belt, single-wood sander for sanding solid wood such as window frames, etc. Highly stable, top-quality design with innovative details. Suitable for high continuous loads, even with high material removal rates. - Sequentially arranged grinding units for roughing, fine grinding, and finishing, each from above and below 1. Belt grinding unit with heavy steel roller 2. Belt grinding unit with rubberized roller and shoe 3. Finishing unit with fiber brush (see optional equipment below) - Direct-drive grinding rollers for slip-free power transmission - Maintenance-free and wear-free CERMET-coated grinding shoes with very good thermal conductivity and absolute dimensional accuracy - External cooling of the grinding zones for cooler grinding and longer belt life - Forced pneumatically controlled grinding belt oscillation - Effective grinding dust extraction directly at the grinding rollers - Airborne dust extraction at the tension rollers - Integrated brushing and finishing unit with large grinding dust extraction - Motorized grinding thickness adjustment via precision threaded spindles and large linear ball bearing sets on hardened and ground precision shafts with dust and Dirt protection - Chip removal adjustment at the bottom via precision threaded spindle with dimension display via scale ring (0.1 mm resolution) - Sanding belt tension via pneumatic cylinder with constant tension pressure - Sanding belt change with pneumatic belt release in seconds - Sanding belt tracking adjustment during belt change - Electropneumatic compressed air monitoring - Infeed protection via contact roller for workpieces that are too thick - Workpiece transport via calibrated, non-slip and adhesive conveyor belts over heavy-duty cast iron tables with a finely planed surface and spring-loaded pressure rollers with fine adjustment - Cardan shaft drive for smooth and consistent workpiece transport - Geared feed motor with infinitely variable speed 4-20 m/min - All motors electrically protected - Ergonomically arranged operating elements - Digital thickness display (0.1 mm resolution) with modern magnetic tape system Technical data: ----- - Sanding belt speed 22 m/s - Sanding belt length 1800 mm - Sanding belt width 200 mm - Working width 190 mm - Sanding thickness 2-180 mm - Four brake motors for drive 5.5 kW - Feed motor 1.5 kW - Feed speed 4-20 m/min - Automatic height adjustment 0.37 kW - Two brush units with fiber brushes D 120 x 200 mm at 0.37 kW each - Extraction ports 2 x 180 mm, 2 x 120 mm - Extraction air velocity 20 m/s - Pneumatic connection 6 bar - Working height 870 mm - Length (with soft disc 2740 mm) 2600 mm Cgedpfxsvu Hgbe Aiasu - Length with control unit (with soft disc 3035 mm) 2985 mm - Width 880 mm - Height 1910 mm - Weight approx. 3300 kg - Operating voltage 400 volts, 50 Hz, 3P - CE compliant Equipped with the following special options: -----...

Condition: repair required (used), Year of construction: 1993, machine/vehicle number: 624/9, pressing force: 10 t, working height: 805 mm, total length: 1,900 mm, Finger joint press Cycle press for finger joint connections Finger jointing press Pressing force 10 t Wood width 80 - 300 mm Wood thickness 18 - 100 mm OPTIONAL Codpfx Aiot Sc T Ijaegu with hydraulic unit

Year of construction: 2010, condition: excellent (used), I sell the window prodution sets of tools suitable for CNC window angular profiling centres: LEUT Wood-Alu 110mm Hole 50mm. Cedpfx Aeg Tumyjiaogu All complete. Very good condition. Available as a set. Possible to buy also separately.

Condition: refurbished (used), pressing force: 10 t, working height: 805 mm, total length: 1,700 mm, year of last overhaul: 2026, Hydraulic finger jointing cycle press (Keilzinkpresse), cycle press for finger joint connections with a pressing force of 10 t. Wood width 80 – 300 mm, wood thickness 18 – 100 mm. OPTIONS: With 300 l hydraulic unit and 5.5 kW motor, manufacturer GOD; with electrical installation. Cgedot Sc Swopfx Aiaou

Year of construction: 2013, condition: used, Kuka industrial robot with 6 articulated axes with point-to-point positioning. Independent control panel Panel alignment table Barcode reader on the robot arm Panel introduction system via: * 1 motorized roller conveyor for panel stack preloading * 1 motorized translating roller conveyor * 1 motorized roller conveyor for panel stack unloading Technical features: * Type: KR210-2 * Number of axles: 6 * Admissible nominal load: 210 Kg * Machine weight: 1267 kg * Sound level: 75dB * Installed power: 25.8 KW * Panel dimensions - Min\max length: 300\3000 mm * Panel dimensions - Min\max width: 180\1500 mm * Panel dimensions - Min\max thickness: 8\60 mm * Max panel weight: 90 kg Cedpjr Am Sqefx Aiajgu

Condition: used, Number of sanding units 4 St sanding width 190 mm Sanding height max. 4-180 mm weight 4200 kg Hess Expert 4-belt single wood sanding machine machine will be checked by our technicians ----- Ø Grinding at the bottom/top Ø With 2 offset grinding units each (bottom and top) Ø Grinding units (bottom and top) connected in series according to the Dressing principle Ø Pre-sanding with coarse grit (calibrate) Ø Regrinding with fine grit (finish) Ø Central motorized height adjustment of the lower grinding units Ø Central motorized and synchronous height adjustment of the entire upper Grinding and brushing units including the upper transport units Ø Oscillating sanding belt utilization (during the sanding process) Ø Absolute power connection thanks to 5.5 KW motors and large dimensions drive drums Ø Oxide ceramic grinding shoe for - exact surface geometry Cgedpfjt Tqy Esx Aiaju - no adjustment work - permanent dimensional accuracy - completely maintenance and wear-free Basic structure: Stable, heavy welded construction made of strong-walled rectangular profiles additional, statically calculated reinforcements for optimal Vibration dampening. Staggered grinding units with large dimensions Belt drive drums for slip-free belt running. Two-point suction for direct and flying dust with sealing brushes and integrated sanding belt blow-off Device to increase the service life of the sanding belts. Grinding units in heavy steel plate construction as the basis for vibration-damped, quiet tape running. Absolutely backlash-free guides as ball linear sets hardened and ground shafts. Height adjustment of the grinding units via hardened and ground special linear guides as well as pre-tensioned ones Guide carriage. Permanent precision thanks to dust and dirt protection Ball linear sets and guide carriages. Large-sized pre-grinding rollers as contact rollers. Contact rollers and Sanding shoes in a balanced ratio to the sanding belt grain load. The large drive drums guarantee full transmission the 5.5 kW drive power of the grinding motors on the sanding belt. Therefore Slip-free, stable running and optimal heat dissipation. This makes it the strongest Chip removal possible. Automatic machine stop activation in the event of a belt break. Visual display on the control panel and via flashing lights on the machine. Sanding shoes for finish completely maintenance-free and wear-free made of oxide ceramic with optimal heat dissipation. Grinding belt tension via appropriately sized compression springs. Sanding belt relaxation for belt changing using a pneumatic device sensitive, distortion-free placement of new tapes. Upper grinding unit and brush device centrally motorized Height adjustable with digital display in the control panel for the motorized Grinding thickness adjustment. Brushing and finishing device, for better surface finish, integrated into the basic machine. Two special brush rollers 150 mm Æ arranged one above the other in synchronous function for advance thrust. Separate height adjustment of the brush rollers on precise Carriage guides for post-correction of wear. Additional transport roller for Removal or further transport of the workpiece from the automatic grinding machine with the conveyor belt. Wooden guide in the inlet area for hard guide and bearings mounted on both sides pressure rollers. Safe transport of profiled workpieces on ca...

Condition: like new (used), - machine in stock - after a technical review - very good condition - ideal for the production of chairs   TECHNICAL PARAMETERS: - 7.5 kW main engine - two dugouts - pneumatic derrick control - pneumatic digging - wheel diameter 850 mm - 40 mm tape width - maximum length of the element 1300 mm - maximum width of the element 800 mm - maximum height 120 mm - two pneumatic side clamps - two pneumatic working distances - continuous feed regulation - hydraulic feed - 1.85 kW pump motor - receiving conveyor 180 mm x 2000 mm - 0.25 kW belt conveyor - central lubrication   Machine dimensions: - length 400 cm - 230 cm wide - height 250 cm - weight ~ 2000 kg Cgjdpfx Aod Dc E Asiaeu

Condition: used, Number of sanding units 2 st. sanding width 190 mm Sanding height max. 4-180 mm HESS - GLORIA 2 BELT SINGLE WOOD SANDING MACHINE ----- Manufacturer's description: ----- Compact design designed according to modern principles. Quiet and vibration-free operation thanks to rigid, stable machine housing and special insulation. Work safety device in accordance with the EC Machinery Directive with the "dust-tested" certificate. Offset grinding units with large-dimensioned tension rollers for good heat dissipation and stable sanding belt guidance. Sanding units with forced sanding belt oscillation. 2-point sanding dust extraction directly on the sanding roller. Airborne dust extraction on the large tension rollers. Integrated sanding belt blower for longer service life of the sanding belts. Integrated brushing and finishing device, adjustable via threaded spindle, with large dust extraction. Motorized grinding thickness adjustment of the entire upper unit via precision threaded spindles and linear ball sets on hardened and ground precision shafts with dust and dirt protection. Electronic digital display for workpiece thickness (resolution 0.1 mm). Contact roller and grinding shoe in a balanced ratio to the grinding belt grain load. Hardened and ground grinding rollers. Maintenance-free and wear-free oxide ceramic grinding shoes (DBGM) with excellent sliding properties, good heat dissipation and high dimensional accuracy. Grinding belt tension via pneumatic cylinder. Grinding belt change via pneumatically controlled belt relaxation. Ability to adjust the grinding belt run when changing the belt. Electro-pneumatic pressure monitoring of the compressed air supply with visual fault display. Automatic machine stop triggered when sanding belt breaks and by run-in protection with integrated wood thickness control. Optical display on the control panel. Feed device and proven, calibrated non-slip and non-adhesive transport belts on precisely ground tables and spring-loaded pressure rollers. Cardan shaft drive for even wood transport. Feed speed continuously adjustable. Chip removal adjustment bottom via precision threaded spindle with dimension display via scale ring (resolution 0.1 mm) Ergonomic arrangement of the operating and setting elements on the machine front: sanding unit and brush device at the top, sanding unit and brush device at the bottom, workpiece transport device, sanding thickness setting, operating display, fault display. Control and operating unit with lockable main switch built into the machine housing. All motors electrically protected against overload. Codpfx Aijv D Rg Djaegu Technical data: ----- Grinding belt speed: 24 m/sec. Grinding width: 190 mm Grinding thickness: 4 - 180 mm Shortest workpiece length: 300 mm Feed speed: Continuously adjustable 5 - 25 m/min. Sanding belt dimensions: 200 mm wide 1600 mm long Electrical connection: 400 V, 3/N PE, 50 HZ Grinding units: 2 x 4 kW Feed: 0.75 kW Height adjustment: 0.18 kW Pneumatic connection: R 3/8", 80 NL, 8 bar Extraction air volume: 2 x 2000 - 2500 m3/h 20 - 25 m/sec. Extraction connection nozzle: 2 x 160 mm diameter at the top of the machine housing External dimensions: Length: 1600 mm Width: 1030 mm Height: 1820 mm Height with extraction nozzle: 1930 mm Working...

Condition: used, Year of construction: 2001, functionality: fully functional, machine/vehicle number: AA0985, input voltage: 400 V, SECOND-HAND TOP AND BOTTOM WIDE BELT SANDER SAC MOD. 4R 300 - CE RULES - Working width mm. 300 - Max. working height mm. 150 - Min. height mm. 5 Cgedpfsx Riccex Aiaou - Min. piece lenght mm. 240 mm. - N. 2 top rollers -. diam. 254 mm. - N. 1 top brush - N. 2 bottom rollers - diam. 254 mm. - N. 1 bottom brush - Feeding speed 4-16 m/min. - N. 4 motors kw 4 each - Volt 400/50 - S/N AA0985 - Year 2001

Condition: new, Number of sanding units 4 St. sanding width 190 mm Sanding height max. 180 mm LÖWER-DoubleSander Solid DSM 2004 ----- Double-sided four-belt single wood sander for Sanding solid wood such as window frames etc. Highly stable top design with innovative details. Suitable for high continuous loads even with higher chip removals. - sanding units arranged one after the other for pre-grinding, Fine sanding and finishing sanding, each from above and below 1. Belt sanding unit with heavy steel roller 2. Belt sanding unit with rubberized roller and shoe 3. Finishing unit with fiber brush - Directly driven grinding rollers for slip-free Power transmission - maintenance and wear-free CERMET-coated grinding wheels shoes with very good thermal conductivity and absolute Dimensional accuracy - External cooling of the grinding zones for cooler grinding and longer sanding belt service life - force-guided pneumatically controlled sanding belt oscillation - effective sanding dust extraction directly on the Grinding rollers - Airborne dust extraction on the tension rollers - Integrated brushing and finishing device with large Grinding dust extraction - motorized grinding thickness adjustment via precision threaded spindles and large-sized linear ball screws bearing sets on hardened and ground precision shafts with dust and dirt protection - Adjustment of the chip removal at the bottom via precision Threaded spindle with dimension display via scale ring (Resolution 0.1mm) - Sanding belt tension via pneumatic cylinder constant clamping pressure - Sanding belt change with pneumatic belt relaxation Within seconds - Adjustment option for the sanding belt run Band change - electro-pneumatic compressed air monitoring - Anti-running protection via contact roller if it is too thick workpieces - Workpiece transport via calibrated non-slip and non-stick fixed conveyor belts over heavy, cast tables Finely planed surface and spring-loaded pressure rollers with fine adjustment - Cardan shaft drive for smooth and consistent Workpiece transport - Feed gear motor with stepless speed 4-20 m/min - all motors electrically protected - ergonomically arranged controls - digital thickness display (resolution 0.1mm) with modern Magnetic tape system Technical data: - Sanding belt speed 22 m/s - Sanding belt length 1800mm - Sanding belt width 200mm - Working width 190mm - Grinding thickness 2-180mm - four brake motors for 5.5 kW drive - Feed motor 1.5 kW - Feed speed 4-20 m/min. - automatic height adjustment 0.37 kW - two brush units with fiber brushes D 120 x 200mm at 0.37 kW - Suction nozzle 2 x 180mm 2 x 120mm - Extraction air speed 20 m/s - Pneumatic connection 6 bar - Working height 870mm Cgedjvnv Tqopfx Aiaju - Length (with soft disc 2740mm) 2600mm - Length with control panel (with soft disc 3035mm) 2985mm - Width 880mm - Height 1910mm - Weight approx. 3300 kg - Operating voltage 400 volts, 50 Hz, 3P - CE version ----- Price of the above machine on request! ----- Special accessories with additional charge: Workpiece blow-off - using nozzles from above and below at the machine outlet arranged, pneumatically controlled 4-belt sanding belt blowout via nozzles directly on the radii of the tension rollers inside the suction arranged, timer controlled on/off 5 seconds each, can be switched on separately Di...
