Metal working machinery & machine tools Metal cutting saws Horizontal band saws - half-automatic - cutting range 0-300mm
Listing
Velen
7,005 km
Bandsaw - Horizontal
BERG & SCHMIDGBS 218 Eco AutoCut
Call
Condition: new, cutting diameter 220 mm
saw band length 2455 mm
table height 850 mm
cutting width 230 mm
cutting speed 25 - 80 m/min
dimensions of saw-band 2455 x 27 x 0,9 mm
90 mm
90 mm
90 x 100 mm
150
Impact energy 150
Air consume per blow 150 x 210
220 mm
stroke back stop 210 mm
cross-slide 230 x 185
total power requirement 1,2 kW
weight of the machine ca. 0,24 t
dimensions of the machine ca. 1,2 x 0,6 x 1,7 m
SPECIAL PRICE!!!
-Miter cuts up to 60° left
- Cutting speed 25 - 80m/min.
- Vice with quick release device
-Carbide saw band guide
Lsdpfxjd Iip Te Aa Isru
-Tape tension control
-Electr. automatic cooling
Auto-Cut-System = 3 step system
-Automatic saw frame lowering via the hydraulic cylinder
-Infinitely adjustable feed
-with limit switch
- rapid lowering of the saw frame from the rest position to the workpiece,
then switch to normal saw feed
-Manual mode
Listing
Ahaus
7,000 km
Band Saw
THOMASS.TRAD 301 SO DIGIT
Call
Condition: used, Year of construction: 2009, cutting diameter 255 mm
saw band length 2750 x 27 x 0.9 mm
capacity 90 degrees: flat 300 x 200 mm
capacity 45 degrees: round 160 mm
capacity 45 degrees: flat 170 x 120 mm
capacity 60 degrees: round 110 mm
capacity 60 degrees: flat 110 x 150 mm
table height 900 mm
Control konv.
cutting speed 36 m/min
clamping range 305 mm
Lrjdpfsxacb Iox Aa Iju
total power requirement 1.5 kW
weight 440 kg
range L-W-H 2000 x 1200 x 1950 mm
Features:
- Electro-hydraulic metal band saw
- With miter adjustment 45° right / 60° left
- Manual saw cut (with manual lowering)
- Hand switch on the saw frame (saw blade on/off)
- Electro-hydraulic material clamping (close/open switch)
* Includes handwheel for vise adjustment
- Handwheel for manual saw blade tensioning
- Coolant system
- Emergency stop button at the front
- Operating instructions (English)
Listing
1 Dunrobin Rd, Airdrie ML6 8LP, UK
7,697 km
Band saw
mega sawH1830
Call
Condition: used, Year of construction: 2002, machine/vehicle number: 021203, Machine Name - Mega saw
Machine Model - H1830 s.n 021203
Specification - Year 2002
3.7kw Main motor
Ledpfjwxmhljx Aa Isru
Semi- automatic
82- 250 FPM
Variable speed control
Max bar cutting size 460mm
In-built coolant tank with pump and screw auger.
Manual vice
Listing
Rödermark
6,869 km
Hydr. horizontal bandsawing machine
BAUERS 260
Call
Year of construction: 1992, condition: good (used), machine/vehicle number: 29-0288, Offer 04612
Technical data:
- Cutting range at 90° round 260 mm
- flat 450 x 240 mm
- Cutting range at 45° round 230 mm
- flat 240 x 200 mm
- Machine is mounted on original turnstile
Lrodpfx Aasgin Nds Iju
- saw band dimension 3660 x 25 x 0,9 mm
- cutting speeds 20 / 35 / 50 / 70 m/min
- Hydr. lifting + lowering of the saw frame
- cutting pressure infinitely variable 0 - 10 m/min
- Total drive power 400 V / 0,8 kW
- Coolant device
- space requirement approx. W 2100 x H 1200 x D 1000 mm
- weight approx. 500 kg
Listing
Lüdenscheid
6,953 km
Band saw horizontal
FLOTTHBS 225 A (NEU ab Werk)
Call
Condition: new, Year of construction: 2025, Standard Features
Lrodpfx Ajfg Eq Rea Isu
Torsion-resistant, robust cast iron saw frame
Powered chip removal brush
Powerful industrial worm gear motor
Automatic shut-off after cutting
Mechanical saw blade tensioning with electrical blade breakage monitoring
Slidable quick-action vise
Hydraulic saw frame lowering with rapid traverse function (infinitely adjustable)
Electric coolant pump
Precision carbide saw blade guides, ground (adjustable)
Large round support table, rotates during miter cuts, miter indicator (scale) on the operator side
Direct switching from manual to lowering mode
Easily removable chip collection tray
500 mm material stop with scale
Including saw blade with 4/6 combi toothing.
Technical Specifications
Motor: Three-phase 400 V, pole-changing, 1.1/1.5 kW
Blade dimensions: 2720 x 27 x 0.9 mm
Flywheels: 300 mm Ø
Cutting speed: 40/80 m/min
Vise clamping width: 275 mm
Working height: 978 mm
Weight: 370 kg
Machine dimensions (W x D x H): 1150 x 1588 x 1477 mm
Cutting area: see data sheet
Please inquire about additional accessories.
DELIVERY: FREE DOOR (within Germany)
NOT THE RIGHT MACHINE?
WE ARE A FLOTT SUPPORT POINT PARTNER AND CAN OFFER YOU ALL PRODUCTS FROM THE FLOTT RANGE!
ASK FOR A QUOTE!
Listing
Wald
6,842 km
Manual band saw for metal
ThomasSuper TRAD 301 DUAL MODE
Call
Condition: ready for operation (used), Thomas Super TRAD 301 DUAL MODE Manual Metal Bandsaw
Year of manufacture: 2012 (machine in mint condition)
Machine weight: 440 kg
Band speed: 33/66 m/min
Blade dimensions: 2750×27×0.9 mm
Working height: 940 mm
Cutting capacity:
Round Square Rectangle
90°: 255mm 250mm 300x200mm
45°R: 190mm 180mm 190x170mm
60°R: 110mm 110mm 110x150mm
45°L: 160mm 140mm 170x120mm
You are welcome to arrange a viewing appointment.
We can also organize affordable shipping for you!
You will receive a proper invoice.
For international customers, a net invoice can be issued (subject to a valid VAT ID number).
Lredpfx Aoxcnyhja Iou
Subject to prior sale.
Visit our shop and check out our other offers as well.
All company names and trademarks are the property of their respective owners and are used for identification and description purposes only.
Technical data may vary and errors in item description are reserved.
Listing
Velen
7,005 km
Bandsaw - Horizontal
BERG & SCHMIDGBS 240 AutoCut
Call
Condition: new, cutting diameter 240 mm
dimensions of saw-band 2730 x 27 x 0,9 mm
table height 920 mm
cutting speed 35 + 70 m/min
240 mm
stroke back stop 230 mm
cross-slide 270x230
210
Impact energy 200
Air consume per blow 200x210
130 mm
130 mm
130x160 mm
total power requirement 1,2 kW
weight of the machine ca. 0,26 t
dimensions of the machine ca. 0,9 x 1,6 x 1,74 m
miter left 60°
Quick-release vise with quick-release device a.
Quick release lever for easy handling
Frame and gear made from one piece, very quiet cut and very low vibration
Electrical monitoring of band tension and band breakage, saw band cover.
Carbide saw band guide
Large machine bed
Machine base (disassembled) with automatic cooling
The AutoCut system consists of:
Hydraulic cylinder, feed control, spring assembly, limit switch
Automatic saw frame lowering via the hydraulic
Cylinder, continuously adjustable feed, with limit switch
at the end of the cut. Rapid lowering of the saw frame
from the rest position to the workpiece, then toggle
Lrsdpfjd Iip Sex Aa Iju
to normal saw feed (e.g. for scribing).
Manual operation: The hydraulic cylinder works as a brake cylinder
(e.g. for notching). Through the brake cylinder
the saw can be positioned in any position during the return stroke.
Listing
Ahaus
7,000 km
Band Saw
MEP - HalbautomatSHARK 282 SXI EVO / MDE
Call
Condition: new, cutting diameter 250 mm
capacity 90 degrees: flat 280 x 220 mm
capacity 90 degrees: square 220 x 220 mm
capacity 45 degrees: flat 220 x 200 mm
capacity 45 degrees: round 230 mm
capacity 45 degrees: square 200 x 200 mm
capacity 60 degrees: flat 140 x 100 mm
capacity 60 degrees: square 100 x 100 mm
capacity 60 degrees: round 150 mm
vice 285 mm
turning speed range: 36/72 m/min
dimensions of saw-band 2950 x 27 x 0,9 mm
total power requirement 1,5 / 1,8 kW
weight of the machine ca. 460 kg
dimensions of the machine ca. 1150 x 1970 mm
Equipment:
- robust electro-hydraulic semi-automatic band saw (INDUSTRY)
- with miter cuts from 45° right to 60° left
* Miter adjustment via large turntable
- MEP microprocessor control EVO to control all functions
* front right, rotatable
- optional manual or automatic lowering of the saw bow
* stepless adjustment of the saw bow lowering
- saw band guide made of hard metal plates
- hydraulic saw band tension - including digital value display
- 2x saw band speeds
- 1x BI-metal saw band
- 1x angle stop
- chip removal brush
- machine base frame with forklift pockets
- operating instructions in German
Functioning of semi-automatic operation:
- electro-hydraulic clamping of the vice
- electro-hydraulic lowering of the saw bow
- electro-hydraulic raising of the saw bow
- electro-hydraulic opening of the vice
Lrsdpfexaa S Rsx Aa Ieu
SPECIAL ACCESSORIES INCLUDED:
- MEP LubeCut micro dosing device
Listing
Łęczyca
6,333 km
Band saw
BOMARERGONOMIC 320.250 DG
Call
Condition: excellent (used), Year of construction: 2018, operating hours: 400 h, functionality: fully functional, machine/vehicle number: ERGONOMIC 320.250 DG, saw band length: 2,910 mm, saw band width: 1 mm, total height: 27 mm, overall weight: 345 kg, table width: 900 mm, table length: 1,650 mm, working height: 1,250 mm, empty load weight: 345 kg, Slightly used bandsaw, fully functional. Available for testing by appointment.
Lsdpfow T U Afjx Aa Ieru
Listing
Salzgitter
6,774 km
Band saw
KlaegerHBS 325 G
Call
Condition: used, functionality: fully functional, Hello dear interested parties,
The machine is being sold including the roller conveyor.
Klaeger HBS 325 G
Pickup only.
No shipping.
Lrjdpfx Ajxbb Hxja Ieu
Listing
Nordrhein-Westfalen, Deutschland
6,955 km
Band saw
FLOTTHBS 230 ANC (NEU ab Werk)
Call
Condition: new, Year of construction: 2025, Compact, fully automatic band saw (also miter cuts up to 45°)
Torsion-resistant, robust cast iron saw frame
Driven chip removal brush
Powerful industrial worm gear motor
Automatic shut-off after cutting and subsequent raising of the saw frame to the continuously adjustable, preset starting position
Mechanical saw blade tensioning with electrical blade breakage monitoring
Minimum remaining piece length 180 mm, smallest possible diameter 5 mm
Feed accuracy of 0.2 mm
Electric coolant pump
Precision carbide saw blade guides,
ground (adjustable)
Easily removable chip collection tray
Including saw blade with combi-toothing 4/6
Machine color: - Saw frame RAL 7035 - Machine body RAL 7005
12-month warranty for single-shift operation
Motor: Three-phase, 400 V, pole-changing (kW) 1.1/1.5
Saw blade dimensions (mm) 2720 x 27 x 0.9
Lrjdpfx Aetpg Sasa Iju
Flywheel diameter (mm) 300
Cutting speed (m/min) 40 – 80
Clamping width (mm) 275
Working height (mm) 768
2220 x 1650 x 1730 mm
Weight (kg) 495
DELIVERY: FREE (within Germany)
NOT THE RIGHT MACHINE?
WE ARE A FLOTT SUPPORT POINT PARTNER AND CAN OFFER YOU ALL PRODUCTS FROM THE FLOTT RANGE!
ASK FOR A QUOTE!
Listing
Miechucino
6,298 km

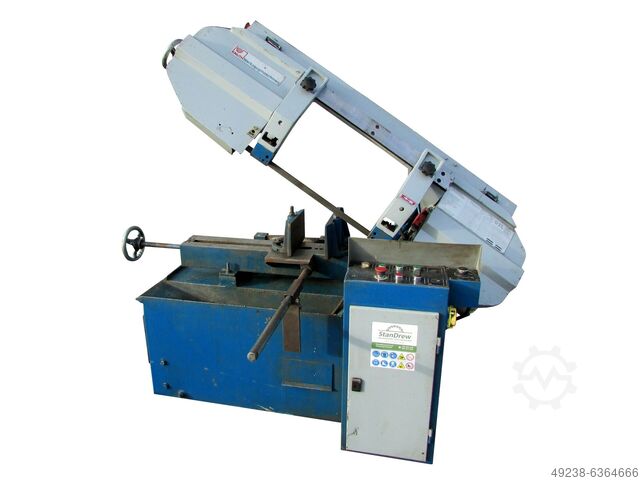

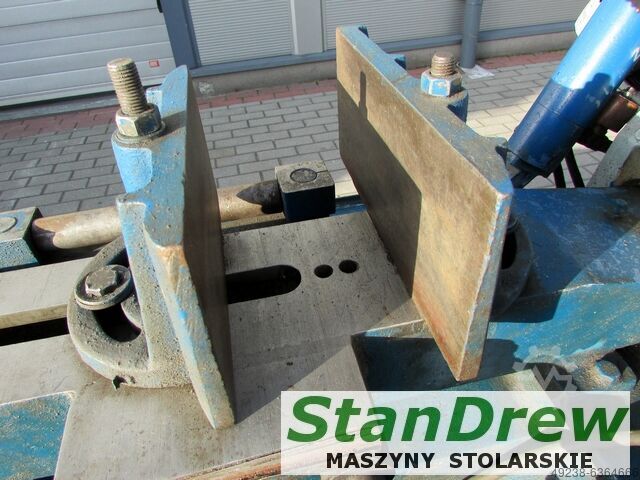

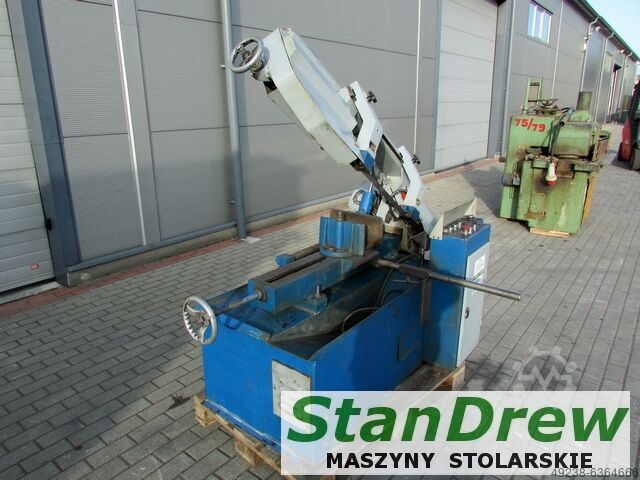

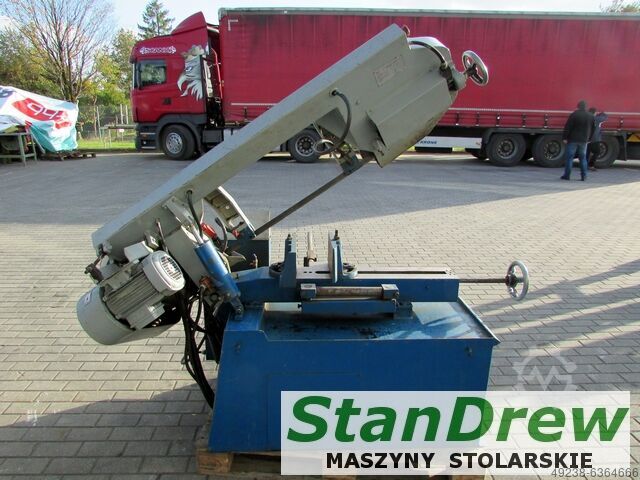

Metal saw KNUTH HBE 280
KNUTHHBE 280
Call
Condition: good (used), Year of construction: 1996, Metal saw KNUTH HBE 280
- machine in stock
- German production
- year of production 1996
TECHNICAL SPECIFICATIONS:

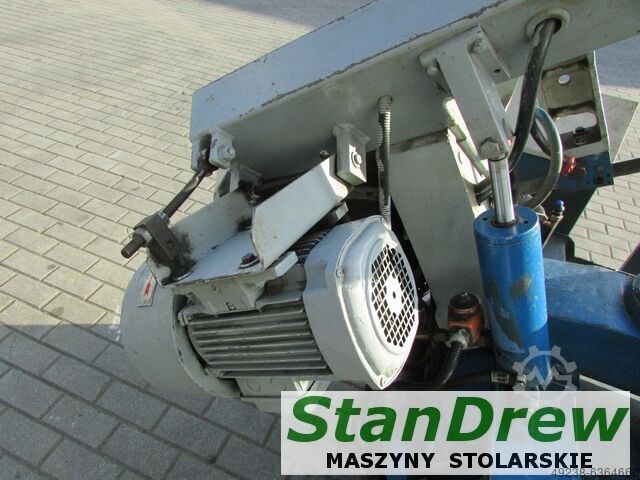

- engine power 1.2 kW

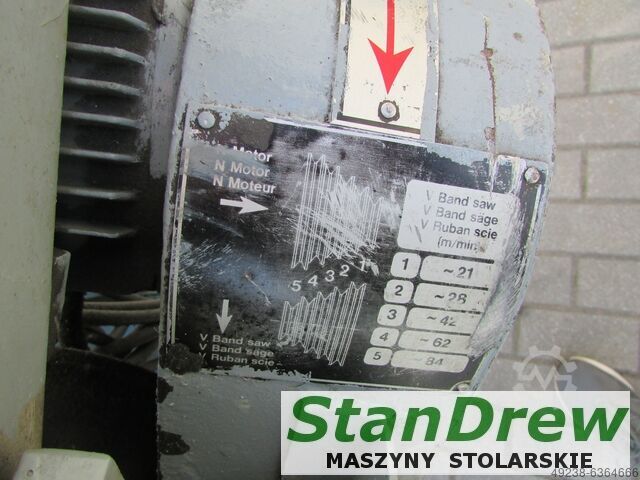

- belt speed 21/28/42/62/84 m / min
- two tape guides
- cutting angle adjustment
- cutting capacity 0 ° - round 280 mm
- cutting capacity 45 ° - round 240 mm
- cutting speed - without steps 20 - 100 m / min
- belt cooling
- the stepless movement of the hydraulic saw ensures optimal cutting results and minimizes tool wear
Machine dimensions:
- length 200 cm
- width 100 cm
- height 130 cm
Lrodpfx Aohcit Iea Iou
- weight ~ 500 kg
Listing
Velen
7,005 km
Bandsaw - Horizontal
MEPSHARK 332-1 SXI EVO
Call
Condition: new, cutting diameter 300 mm
capacity 90 degrees: flat 330 x 260 mm
capacity 90 degrees: square 260 x 260 mm
capacity 45 degrees: flat 270 x 200 mm
capacity 45 degrees: round 260 mm
capacity 45 degrees: square 250 x 250 mm
capacity 60 degrees: flat 170 x 170 mm
capacity 60 degrees: square 170 x 170 mm
capacity 60 degrees: round 180 mm
turning speed range: 40 / 80 m/min
dimensions of saw-band 3320 x 27 x 0,9 mm
engine output 1,5 / 1,8 kW
weight 670 kg
Electro-hydraulic semi-automatic band saw SHARK 332 SXI EVO with
semi-automatic-dynamic, manual function, has a MEP-28 control
for miter cuts from 45° right to 60° left.
Some features:
New centralized switch console on an articulated arm.
Low voltage control panel:
Polyester membrane keyboard with thermoformed highlighted
Lrjdpfx Aajfg E H Uo Iou
Push buttons and actuation control signal.
Display to show:
* Diagnostics (messages in the user language)
* Alarms (description of alarm causes)
* State of inputs and outputs
* Counting cuts
* Time taken for the cut made
* Current consumption of the saw blade motor
* Saw blade tension
* Blade speed
* Numerical display of head position.
Switch handle IP55 of manual 24V cycle.
Complete program of all special cutting cycles.
Identification of other possible special cutting cycles for special ones
Applications
New, latest generation hydraulic control unit, extremely powerful
and with low energy consumption.
Turntable (on roller bearings of 420 mm with preloaded thrust bearings
assembled).
Double belt speed (40/80 m/min.) with control
Intended to accommodate an electronic inverter for the
Continuous regulation of the belt speed from 20 to 90 m/min.
Stroke of the saw bow can be programmed directly from the control panel
Adaptation to the cutting material.
Clamping device can be moved laterally to the left and right
Quick release vice.
Manually operated strap tension control with display on the screen
electronic converter.
Base designed to completely contain the coolant,
even with maximum angle cuts.
The coolant pan (provided with an electric pump for lubrication and
Cooling of the saw band) and the chip drawer (can be replaced by a
Chip conveyor to be replaced - see special accessories) are in the base
frame
built-in.
Preparation for installing the minimum blade lubrication kit
(Optional, in addition to the conventional standard lubrication with
emulsion oil.
Chip clearing brush.
The machine is intended for pallet truck transport.
Adjustable length stop for cuts of the same length
Material support arm with roller for attaching the loading platform
Bimetal saw band for solid and profile material.
Tools and instructions for use in the respective user language.
Listing
Ahaus
7,000 km
Band Saw
HUVEMA - HalbautomatHU 230 DGH
Call
Condition: used, Year of construction: 2015, cutting diameter 230 mm
capacity 90 degrees: flat 320 x 130 mm
capacity 90 degrees: square 230 x 230 mm
capacity 45 degrees: flat 230 x 140 mm
capacity 45 degrees: round 220 mm
capacity 45 degrees: square 190 x 190 mm
capacity 60 degrees: flat 120 x 105 mm
capacity 60 degrees: square 105 x 105 mm
capacity 60 degrees: round 120 mm
turning speed range: 35 - 70 m/min
dimensions of saw-band 2720 x 27 x 0.9 mm
height of material-table 950 mm
total power requirement 1.0 / 1.5 kW
Lrjdpfx Ajxaa Raea Isu
weight of the machine ca. 410 kg
dimensions of the machine ca. 800 x 1550 x 1450 mm
New price ~ 6.500 euros
Furnishing:
- semi-automatic miter band saw, for cuts -45 / +60 degrees continuously
- Infinitely variable saw feed via precision throttle
- Infinitely adjustable cutting speed
- Cooling device
- Horizontal vise electrically-mechanically acting
- Saw band
- rotating - front control panel
- User manual in German
Listing
Turkey
5,223 km

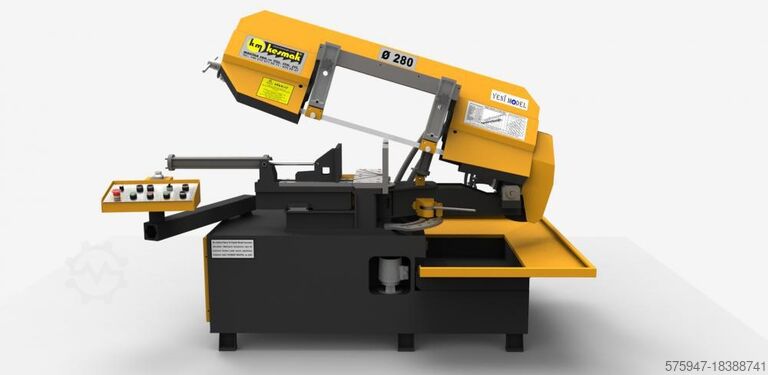

KESMAK KMY 2DG 280 ANGLED BAND SAW
KESMAKKMY 2DG 280
Call
Condition: new, Year of construction: 2025, cutting width (max.): 350 mm, cutting height (max.): 280 mm, warranty duration: 12 months, - Swarf Brush
- Hydraulic Vice
- Hydraulic Blade Tension
- Blade Breakage Detection - Stop System / Blade Breakage Switch - Stop System
- 2 Pieces 60 cm Roller Table
- Movable Control Panel
- Lighting Lamp / Led Lighting
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS KMY 2DG 280
Capacity +90° (mm) Capacity +90° (mm) Round Round Ø 280
Square Square 280 X 280
Rectangle Rectangle 280 X 350
Capacity +60° (mm) Capacity +60° (mm)
Capacity -60° (mm) Capacity -60° (mm) Round Round Ø 280
Square Square 270X270
Rectangle Rectangle 180 X 330
Capacity +45° (mm) Capacity +45° (mm) Round Round Ø 240
Square Square 210 X 210
Rectangle Rectangle 170 X 240
Capacity -45° (mm) Capacity -45° (mm) Round Round Ø 200
Square Square 160 X 160
Rectangle Rectangle 160 X 260
Capacity +30° (mm) Capacity -60° (mm)
Round Round Ø 140
Square Square 120 X 120
Rectangle Rectangle 60 X 160
Capacity -30° (mm) Capacity -90° (mm)
Round Round -
Square Square -
Rectangle Rectangle -
Main Motor 1.5 kW /300 Nm
Hydraulic Motor Hydraulic Motor 0.18 kW
Coolant Motor Coolant Motor 0.12 kW
Band Saw Blade Size 3660 X 27 X 0.9 mm
Material Feeding Height 790 mm
Vice Maximum Opening Vice Maximum Opening 350 mm
Lodpfxjvvg Egj Aa Isru
Vice Maximum Closing Vice Maximum Closing Zero Zero
Vice Height Vice Height 160 mm
Table Width Rolled Table Width 370 mm
Height-Width-Length Height-Width-Length 1400 X 1350 X 2300 mm
Weight Weight 900 kg
Listing
Lüdenscheid
6,956 km
Band saw horizontal
FLOTTHBS 250 HA (NEU ab Werk)
Call
Condition: new, Year of construction: 2025, Fully hydraulic lowering and raising function of the saw frame
Hydraulic opening and closing of the vice
Shutdown after cutting, return of the saw arm to its starting position
Torsion-resistant saw frame made of cast steel (multi-ribbed)
Hydraulic short-stroke cylinder for the vice
Precision-ground carbide saw blade guides, adjustable
Electric coolant pump
Manual blade tension with display, including electric saw blade and cutting pressure monitoring
Lodpfx Aocl Tc Aea Ieru
Hydraulic vice (opening and closing)
Revolving chip removal brush
Large, solid round support table, rotating for miter cuts with a predefined cutting channel, manual miter adjustment, readout via scale
500 mm material stop with scale
Including combi-toothed saw blade 4/6
Machine color:
- Saw frame RAL 7035
- Machine body RAL 7005
Motor: 400 V three-phase, frequency-controlled, 1.5 kW
Saw blade dimensions: 2910 x 27 x 0.9 mm
Flywheel diameter: 325 mm
Cutting speed: 20-120 m/min.
Vice clamping width: 320 mm
Working height: 760 mm
Sawing range:
at 0° = round diameter 250 mm, square 240 x 240 mm, rectangle 320 x 190 mm
Machine dimensions (W x D x H) 1480 x 1700 x 2000 mm
Weight: 420 kg
Please inquire about additional accessories.
DELIVERY: FREE (within Germany)
NOT THE RIGHT MACHINE?
WE ARE A FLOTT SUPPORT POINT PARTNER AND CAN OFFER YOU ALL PRODUCTS FROM THE FLOTT RANGE!
ASK FOR A QUOTE!
Listing
Velen-Ramsdorf
7,007 km
Bandsaw - Horizontal
MEPSHARK 332-1 CCS
Call
Condition: new, cutting diameter 300 mm
saw band length 3320 x 27 x 0,9 mm
table height mm
band speed 40/80 m/min
total power requirement 1,5/1,8 kW
weight of the machine ca. 670 kg
dimensions of the machine ca. m
How it works in the CCS version: After the material has been advanced and
Once the vices have closed, the cutting process begins.
The lowering is done by its own weight and is controlled by a spring
balanced and a hydraulic brake cylinder regulates when the cut
is carried out, the saw arm is moved by hand to the necessary position for
the feed of the material is pushed up.
Electrical panel (marked cable connection, indicator light for
Ready for operation, safety main switch provided with padlock,
Switch or speed switch, emergency stop, thermal magnetic protection,
Low voltage system 24 volts)
Electronic tape tension converter with on-screen display.
Manual vice with quick lock
Base frame with coolant tray and chip drawer, which has a
Motorized chip conveyor (accessory) can be replaced.
Electric coolant pump for cooling and lubricating the saw blade.
Chip clearing brush
Adjustable precision stops to make cuts of the same length.
Machine is intended for pallet truck transport.
Ledpfx Ajfg E H Tsa Ieru
Bimetal saw band for solid and profile material
Tools and instructions for use
Listing
Ahaus
7,000 km
Band Saw
MEP - HalbautomatSHARK 282 SXI EVO
Call
Condition: new, cutting diameter 250 mm
capacity 90 degrees: flat 280 x 220 mm
capacity 90 degrees: square 220 x 220 mm
capacity 45 degrees: flat 220 x 200 mm
capacity 45 degrees: round 230 mm
capacity 45 degrees: square 200 x 200 mm
capacity 60 degrees: flat 140 x 100 mm
capacity 60 degrees: square 100 x 100 mm
capacity 60 degrees: round 150 mm
vice 285 mm
turning speed range: 36/72 m/min
dimensions of saw-band 2950x27x0,9 mm
total power requirement 1,5 / 1,8 kW
weight of the machine ca. 460 kg
dimensions of the machine ca. 1150 x 1970 mm
Equipment:
- robust electro-hydraulic semi-automatic band saw machine (INDUSTRY)
- with miter cuts from 45° right to 60° left
* Miter adjustment via large turntable
- MEP microprocessor control EVO to control all functions
* front right, rotatable
- optional manual or automatic lowering of the saw bow
* stepless adjustment of the saw bow lowering
- saw band guide made of hard metal plates
- hydraulic saw band tension - including digital value display
- 2x saw band speeds
- 1x BI-metal saw band
- coolant device
- 1x angle stop
- chip removal brush
- machine base frame with forklift pockets
- operating instructions in German
Functioning of semi-automatic operation:
Lodpexaatbjfx Aa Ioru
- electro-hydraulic clamping of the vice
- electro-hydraulic lowering of the saw bow
- electro-hydraulic raising of the saw bow
- electro-hydraulic opening of the vice
Listing
Velen
7,007 km
Band Saw
METORAHMB 330
Call
Condition: used, Year of construction: 1990, cutting diameter 320 mm
saw band length 4600 x 32 x 1,1 mm
500 x 320 mm
cutting speed 16 - 96 m/min
Lredowu Hihjpfx Aa Isu
total power requirement 2,1 kW
weight of the machine ca. 0,85 t
dimensions of the machine ca. 2,2 x 1,4 x 1,8 m
Semi-automatic band saw
- Miter max. 45°
- Micro-spray device
Listing
Ahaus
7,000 km
Band Saw
MEP - HalbautomatSHARK 281 SXI EVO
Call
Condition: new, cutting diameter 250 mm
capacity 90 degrees: flat 280 x 200 mm
capacity 90 degrees: square 230 x 230 mm
capacity 45 degrees: round 190 mm
capacity 45 degrees: flat 180 x 180 mm
capacity 45 degrees: square 180 x 180 mm
capacity 60 degrees: round 120 mm
capacity 60 degrees: square 110 x 110 mm
capacity 60 degrees: flat 110 x 110 mm
vice 285 mm
turning speed range: 36 + 72 m/min
dimensions of saw-band 2950 x 27 x 0.9 mm
Control MEP NC
coolant tank 95.0 l
total power requirement 1.5 / 1.8 kW
weight of the machine ca. 435 kg
dimensions of the machine ca. 1000 x 2000 mm
Features:
- Robust electro-hydraulic semi-automatic band saw (INDUSTRY)
- With miter cuts up to 60°
- MEP EVO microprocessor control for controlling all functions
* Front right, rotatable
- Optional manual or automatic saw bow lowering
* Continuously adjustable saw bow lowering
- Saw blade guide made of carbide plates
- Hydraulic saw blade tensioning - including digital value display
- 2 saw blade speeds
- 1 bi-metal saw blade
- Coolant system
- 1 angle stop
- Chip removal brush
- Machine base with forklift pockets
- Operating instructions in German
Functioning of semi-automatic operation:
Ljdpfx Aajw U U Uwe Isru
- Electro-hydraulic clamping of the vise
- Electro-hydraulic lowering of the saw bow
- Electro-hydraulic raising of the saw bow
- Electro-hydraulic opening of the vise
Listing
Velen
7,007 km
Bandsaw - Horizontal
MEPSHARK 282 SXI - Evo
Call
Condition: new, cutting diameter 250 mm
capacity 90 degrees: flat 280 x 220 mm
capacity 90 degrees: square 220 x 220 mm
vice 285 mm
turning speed range: 36/72 m/min
dimensions of saw-band 2950x27x0,9 mm
total power requirement 1,5 / 1,8 kW
weight of the machine ca. 485 kg
dimensions of the machine ca. 1700 x 1000 x 1800 mm
Electro-hydraulic semi-automatic band saw SHARK 282 SXI EVO
with semi-automatic-dynamic, manual function, has a MEP-28 control
for miter cuts from 45° right to 60° left.
Semi-automatic function:
At the start of the cycle: - Vice closes and motor starts
Saw head lowers for the cut Motor switches off Saw head rises
Vise opens.
Semi-automatic dynamic system (manual lowering of the saw band bow up to
to the desired position and cycle start via the manual button.)
Some features:
New centralized control console on an articulated arm to allow the operator
can be easily switched from any working position.
Low voltage control panel:
Polyester membrane keyboard with thermoformed highlighted
Push buttons and actuation control signal.
Display to show:
* Diagnostics (messages in the user language)
* Alarms (description of alarm causes)
* State of inputs and outputs
* Counting cuts
* Time taken for the cut made
* Current consumption of the saw blade motor
* Saw blade tension
* Blade speed
* Numerical display of head position.
Switch handle IP55 of manual 24V cycle.
Complete program of all special cutting cycles.
Identification of other possible special cutting cycles for special ones
Applications
New, latest generation hydraulic control unit, extremely powerful
and with low energy consumption.
Lodpfxofg E H So Aa Ioru
Large work surface with turntable on roller bearings, measuring 265 mm
preloaded thrust bearing, mounted.
Double belt speed (36/72 m/min.) with control
Intended to accommodate an electronic inverter for the
Continuous regulation of the belt speed from 20 to 90 m/min.
Stroke of the saw bow can be programmed directly from the control panel
Adaptation to the cutting material.
Clamping device can be moved laterally to the left and right
Quick release vice.
Manually operated strap tension control with display on the screen
electronic converter.
Base frame with pull-out coolant tray.
Electric coolant pump for cooling and lubricating the saw band.
Preparation for installing the minimum blade lubrication kit
(Optional), in addition to the conventional standard lubrication
Emulsion oil.
Chip clearing brush.
The machine is intended for pallet truck transport.
Length stop for cuts of the same length
Material support arm with roller for attaching the loading platform
Bimetal saw band for solid and profile material.
Tools and instructions for use in the respective user language.
Trust Seal
Dealers certified through Machineseeker

Listing
Velen
7,007 km
Bandsaw - Horizontal
BERG & SCHMIDGBS 230 S HA MPS
Call
Condition: used, Year of construction: 2005, cutting diameter 230 mm
saw band length 2770 mm
table height 940 mm
capacity 90 degrees: round 230 mm
capacity 90 degrees: flat 280 x 150 mm
capacity 90 degrees: square 230 x 230 mm
capacity 45 degrees: round R 180 mm
capacity 45 degrees: round L 200 mm
Ljdpow Tdyasfx Aa Isru
capacity 45 degrees: square R 155 x 155 mm
capacity 45 degrees: flat R 180 x 90 mm
capacity 45 degrees: square L 180 x 180 mm
capacity 45 degrees: flat L 200 x 100 mm
capacity 60 degrees: round 135 mm
capacity 60 degrees: square 95 x 95 mm
capacity 60 degrees: flat 130 x 90 mm
clamping head: 280 mm
cutting speed 40 / 80 m/min
total power requirement 1,5 / 1,8 kW
weight of the machine ca. 0,4 t
dimensions of the machine ca. 0,9 x 1,3 x 1,8 m
Semi-automatic miter band saw
- Double miter
- Micro spray device
Listing
Germany
6,760 km
Bandsaw - Horizontal
BERG & SCHMIDGBS 242 DG HA-I
Call
Condition: new, capacity 90 degrees: round 250 mm
capacity 90 degrees: square 210 mm
290 x 210 mm
Ledpfx Aaexfwcds Ijru
saw band length 2.965 x 27 x 0,9 mm mm
table height 940 mm
band speed 25 - 90 m/min
total power requirement 1,1/1,3 kW
weight of the machine ca. 0,35 t
dimensions of the machine ca. 1,3 x 0,8 x 1,5 m
EXHIBITION MACHINE at a special price!!!
Double miter metal band saw hydraulic semi-automatic with:
- Hydraulic vice
- Material height button
- Cut monitoring by ammeter
- Cutting pressure feed regulator
- Belt speed 25 - 90 m/min
- Miter cuts up to 60° left and 45° right
- Patented, ball-bearing turntable for easy miter adjustment
- Adjustable quick-release vise
- Quick release lever
- Automatic cooling
Listing
Germany
6,760 km
Bandsaw - Horizontal
BERG & SCHMIDGBS 250 Super AutoCut
Call
Condition: new, Year of construction: 2010, capacity 90 degrees: round 255 mm
capacity 90 degrees: square 240 mm
Ledpfjxfwb Hox Aa Ijru
300 x 180
saw band length 2.765 x 27 x 0,9 mm mm
table height 950 mm
band speed 35 + 70 m/min
total power requirement 1,5/1,8 kW
weight of the machine ca. 0,42 t
dimensions of the machine ca. 1,23 x 1,7 x 1,75 m
Double miter metal band saw, GBS 250 Super AutoCut (20413)
- Miter cuts up to 60° left and 45° right
- Ball bearing rotary table
Quick clamping device
Solid, large material support
Automatic cooling
Listing
Germany
6,760 km
Bandsaw - Horizontal
MEPSHARK 282 CCS
Call
Condition: used, Year of construction: 2007, cutting diameter 250 mm
saw band length 2950 x 27 x 0,9 mm
band speed 36/72 m/min
total power requirement 1,8 kW
Lredpfxexfwbys Aa Iju
weight of the machine ca. 320 kg
Dimensions (LxWxH) 1,5 x 0,9 x 1,4 0
We make the search easier for you
You will receive new offers immediately and free of charge via e-mail
You can easily terminate the search request at any time
Used Horizontal band saws - half-automatic - cutting range 0-300mm (118)
Search Machineseeker now with more than 2,00,000 used machines:Browse through the most popular machine descriptions:
- Automatic Band Saw
- Automatic Vertical Panel Saw
- Band Saw
- Band Saw Automatic
- Band Saw Horizontal
- Band Saw Manual
- Band Saw Vertical
- Band Sawmill In Vietnam
- Bandsaw Automatic
This may be of interest to you
