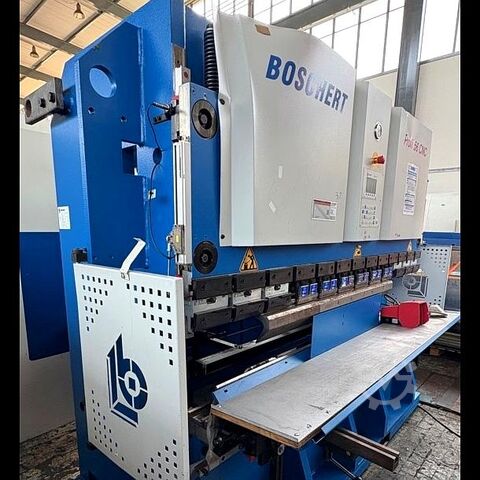

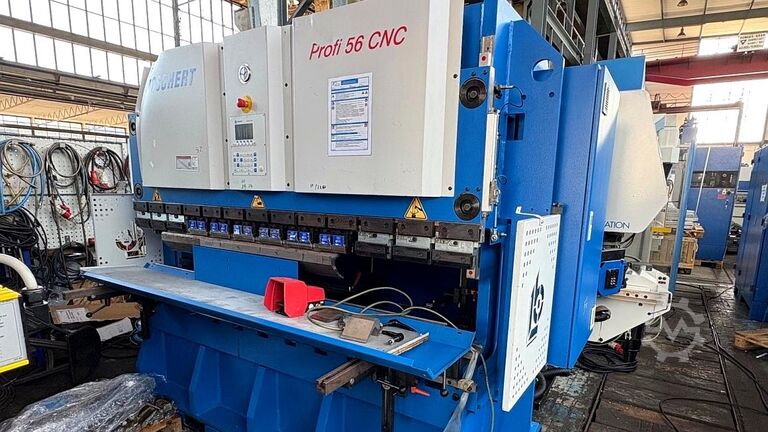

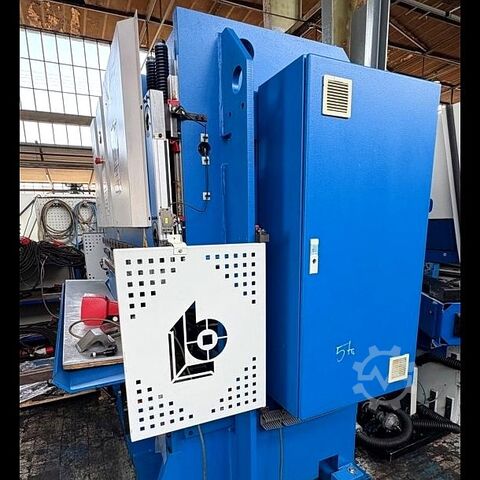

Hydraulic press brake

Boschert Profi 56 / 2200 CNC

Condition: ready for operation (used), Sertom brand calender, hydraulic, length 25000 mm with invitation, 2 lower rollers 300 mm, upper roller 318 mm, thickness 14 mm. 22 Kw rotation, 5.5 kw movements, 2.5 kw bunk. Overall dimensions: 600x190x210(h)cm Weight: 15,500 kg Dedponr Npyjfx Ag Rscb

Condition: new, prebending: 13,0sheet length: 3100sheet thickness: 16,0total power requirements: 17,5weight approx.: 11,6messurements (LxWxH): 5,31x1,66x1,59 Dcjdped Auacsfx Ag Rob

Year of construction: 2011, condition: reconditioned (used), Boschert tool grinding machine EASY SHARP Equipped for Trumpf tooling system (Amada system optional) Machine for punching tool maintenance with cooling system and especially powerful motor, therefore also suitable for use with diamond grinding wheels. Used machine is currently being overhauled Equipment for Trumpf tooling system up to size III Accessories: Tool holder for punch flat and whisper Die holders for size I, II and III New corundum grinding wheel Dressing diamond Cooling system and machine base revised Technical data: Grinding wheel diameter 175 mm height adjustment 150 mm Dcjdpfx Agsid I T Ij Rsb working area 400 x 150 mm motor power 2,2 kW Motor speed 2825 rpm Optional adapter for Amada system available Pictures similar

Condition: good (used), Year of construction: 1986, machine/vehicle number: 8618030, Offer 25182 Technical Data: - Max. working width: 2040 mm - Max. material thickness: 4 mm - Roller diameter each: 140 mm - Stroke: 70 mm - Rear roller and bottom roller adjustable for conical bending - Upper and lower rollers driven by motor - Working speed right + left: 6 m/min - Drive: 380 V / 6.2 kW - Space requirement approx.: W 3560 x H 1100 x D 870 mm Dcsdpfx Agowq It Te Reb - Weight approx.: 1700 kg - With: - asymmetrical roller arrangement - crown-turned naturally hardened rollers - manual adjustment of rear rollers - pre-bending - pivotable top roller - electric foot switch for right and left rotation

Condition: new, SAHINLER HKM 65 hydraulic punch-cutter Exerted power : Ton 65. Engine power : Kw 5.5 Dimensions (mm) : mm 1.700 x 900 x 1.670 ( L x W x H ). Weight: 1.600 Kg: 1.600 Kg PUNCHING : Punching capacity : mm Ø 2 x Thickness 20 mm. Recess depth: mm 305. Punching stroke : mm 55. Working height : mm 1.030. SHEARING : Plates : mm 300 x 20. mm 375 x 15. Length of blades : mm 380. Round bars : mm Ø 45. Square bars : Dodpfxeggbuhj Ag Rscb mm 45. 90° corner profiles : 120 x 120 x 12 mm. 45° corner profiles: mm 70 x 70 x 10 SKIRTING : Max thickness : mm 10. Width : mm 45. Depth : mm 90. Working height : mm 900.

Condition: new, Bernardo manual metal circular saw CS 315 H Technical specifications Saw blade diameter of 315 x 40 mm Speed 19 / 38 U/min Vice opened Max 150 mm Working height 920 mm S1 motor power output 100% 0,75 / 1,5 kW Motor power S6 40% 1.0 / 2,1 kW Voltage 400 V Machine dimensions (W x D x H) 530 x 1000 x 1740 mm Dedpfx Asd Id Ugog Rocb Weight 235 kg Round solid material 90°: 80 mm 45°: 70 mm Round tube 90°: 80 mm 45°: 70 mm Square shaped tube 90°: 80 x 80 mm 45: 70 x 70 mm Solid material square 90°: 80 x 80 mm 45: 70 x 70 mm Square tube rectangular 90°: 90 x 80 mm 45: 80 x 70 mm Rectangular solid material 90°: 90 x 80 mm 45: 80 x 70 mm Properties Gear head for slot working left and right 90 ° swiveling Removable coolant tank in the robust base integriergt Gearbox with hardened and ground Auger and bronze worm wheel Security guard opens automatically when the cutting Precise, 4 guided, self-centering double clamping vise Ergonomically shaped handle with push button for fatigue-free cutting Low speed of the saw blade (19 / 38 RPM) optimal for cutting of full materials Reduction gear low noise running in an oil bath Scope of delivery Coolant system with filter Self centering Vice Base

Condition: good (used), Year of construction: 2017, Sahinler 4R HSS 20-280 Hydraulic 4-roll plate bending machine – Year 2017. Bending length 2050 mm Max. bending capacity - mild steel 20. Dcsdpfx Agoxau D Is Rob Upper roll diameter 280 mm Lower roll diameter 280 mm Lateral roll diameter 220 mm Bending speed 1,5 / 5 m/min. Motor power 16 kW

Condition: good (used), functionality: fully functional, machine/vehicle number: 804, roller length: 2,550 mm, working width: 2,500 mm, sheet thickness (max.): 16 mm, sheet thickness steel (max.): 16 mm, overall weight: 12,500 kg, 3-roll hydraulic plate bending machine 2500 x 16 mm Manufacturer: KUMLA Type: PV 7 H Dedpfxevxbm Rs Ag Rscb Serial no.: 804, overhauled in 1987 The machine is of a very robust design and has only been used in single-shift operation. Max. bending length: 2500 mm Max. sheet thickness: 16 mm Cone bending device Top roll diameter: 324 mm Bottom roll diameter: 305 mm Hydraulic roll adjustment Dimensions: L x W x H = 5000 x 1600 x H 1900 mm Working height: 1000 mm Additionally, a staircase platform around the machine can be purchased.

Condition: used, functionality: fully functional, Year of construction: 2007, punching force: 80 t, Hydraulic Punching Machine GEKA Brand: GEKA Model: HYD 80 S Serial No.: 14981 Year: 2007 Punching force: 80 tons Number of stations/positions: 5 workstations (the machine allows for 2 simultaneous work positions in the Hydracrop series). Throat depth (S version): 300mm Punching capacity (typical examples): up to Ø 40x14mm Dcsdpexgdf Ujfx Ag Rob Flat bar shearing: e.g. 450 × 15mm Profile cutting (L angles): typical values around 130×130×13mm Round: 45mm Square: 45mm *Delivered with 10 sets of punches and dies No.6 from 4 to 28mm of your choice

Year of construction: 2001, condition: ready for operation (used), Max. cutting force: 220kN, laser power: 3200W, nitrogen connection: 30bar, oxygen connection: 20bar, connected load: 76kVA, operating hours at the beginning of 2025: 67,766h, with Trumpf TLF 3200 laser and RIEDEL L 15/21 TR3/19.00 cooler, refrigerant: R134a, filling weight: 11.5kg, high pressure: 20.2bar. Tools additionally available. An on-site inspection is possible. Dcsdpfx Agsw Uk A Rs Rjb
