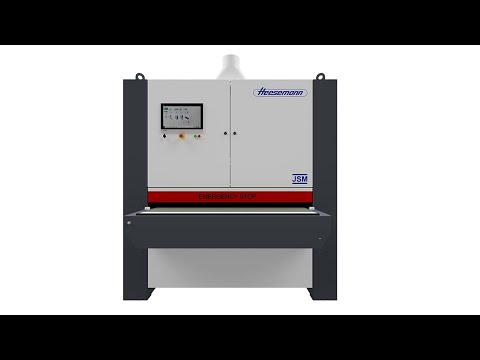

JSM RC Advanced wide belt sanding machine

HEESEMANN

Condition: used, Year of construction: 2000, total width: 2,200 mm, total height: 2,200 mm, total length: 3,000 mm, working width: 1,350 mm, grinding width: 1,350 mm, overall weight: 3,500 kg, grinding height: 170 mm, power: 46 kW (62.54 HP), No. 3271 Wide belt sander HEESEMANN MFA 6 Used, year of construction 2000 Multi-purpose surface sander / 2-belt cross-belt sander Sanding width 1350 mm Maximum sanding height 170 mm 1 cross belt with electronic pressure shoe 1 longitudinal belt with electronic pressure shoe and roller 1 brushing unit Total electrical power 46 kW For sanding veneer, lacquer, and film, and for calibrating and fine-sanding solid wood Processing of longitudinally and cross-veneered parts possible Sanding of warped and differently laminated parts possible A wide variety of workpiece shapes possible (e.g., round, oval, rectangular, asymmetrical) CSD pressure bar system 32 mm fine scanning Tolerance of 2 mm Cross-grinding method Constant working height of the transport table Vacuum table Installation dimensions approx. 3000 x 2200 x 2200 mm LWH Weight approx. 3500 kg Sale on behalf of customer, ex location near 71063 Sindelfingen, without dismantling, without transport and assembly Dismantling, loading, and transport by us optionally available Subject to errors in the description and price To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Photos and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or shipping Pedey Eq R Rjpfx Akfegk Terms of delivery: Ex location

Condition: used, Year of construction: 2013, 3D-Venjakob Perfect Air Jet painting line: - Manufacturer: Venjakob - Year of construction: 2013 - Working width: 1.300mm - Max. part length 6.500mm - In U-shape with angle transfer Consisting of: 1. loading belt, length 3,050mm 2. free space für Sanding machine (only optional, not included in the price) 3. spraying machine VEN SPRAY PERFECT, length 5.510mm 4. flash-off dryer OIR, length 6,000mm 5. nozzle dryer VEN DRY AIR JET, length 4,160mm 6. angle transfer 180 degrees, with nozzle dryer 7. nozzle dryer VEN DRY AIR JET, length 5,160mm 4pcs. IR tubes 8. nozzle dryer VEN DRY AIR JET, length 5,160mm 4pcs. IR tubes 9. nozzle dryer VEN DRY AIR JET, length 5.160mm Pgodeu Afu Ropfx Akfok 4 pcs, IR tubes 10. 3D UV dryer, VEN DRY UV, GA + HG 11. removal area, belt of the UV dryer Further information: On request

Condition: good (used), Year of construction: 2000, Special-purpose machine, not a through-feed machine but a support machine, approximately 150 cm long where the workpiece is clamped. 4 units positioned transversely to the feed direction. It was used for intermediate sanding of polyester lacquer to achieve high-gloss finishes on dashboard panels for luxury cars. The total machine length is 12 m. Pgodpfx Asxivbmjkfok

Condition: used, Year of construction: 2017, functionality: fully functional, We are offering this used HEESEMANN UKP 20 edge sanding machine, year of manufacture 2017. Manufacturer: HEESEMANN Model: UKP 20 Year: 2017 Condition: used Pgodpfsy A D Ecex Akfsk If you have any further questions or require more information, please do not hesitate to send us a message or give us a call. If needed, the order confirmation with all technical details can be sent. 1 workpiece transport system – total length 5,015 mm – driven by a 1.5 kW three-phase motor, with double chain for workpiece transport Feed speed adjustable from 5 to 25 m/min, frequency-controlled, working height constant at 880 mm, including integrated control cabinets; Including adjustable stop ruler with digital readout and including counter fence with central width adjustment with central height-adjustable and laterally adjustable top pressure bar with digital display, which presses plate-shaped workpieces with ball-bearing rubber rollers (roller pitch 38 mm), including support rollers to extend the support for large workpieces, extendable sideways by approx. 1,500 mm. 4 side guide rollers between the sanding units for secure transport of strips 1 Industrial PC 3.0/4" LCD-TFT color display, 800 x 600 pixel resolution CF card 1GB Operating system: Windows Embedded Standard Touch-screen version with display for production and downtime periods. Ethernet connection available. 2 belt sanding units "M 4" – positions 1 and 2 for sanding straight edges, with intermittent belt blow-off device, belt break detector, tool holder with quick-change device, base plate for sanding tool, prepared for electronic path control for automatic engagement and disengagement of the sanding tool, operating in both climb and counter rotation. Belt dimensions: 2,300 x 80 mm Belt speed: 0/7–12 m/s Motor rating: 3.0 kW with electronic frequency control for stepless adjustment of the belt speed. Electronic sanding pressure control from the terminal. 2 oscillation devices (positions 1 + 2) For optimal belt utilization 2 belt sanding units "K 4" – positions 3 and 4 incl. stand, for sanding small profile sections, also suitable for edge rounding; can be swiveled 90° upwards and 45° downwards, belt break detector, tool holder with quick-change device, base plate for sanding tool, intermittent belt blow-off device, prepared for electronic path control for automatic engagement and disengagement of the pressure tool, including climb and counter rotation, designed for manual adjustment and digital indicators for the adjustment axes. Belt dimensions: 2,000 x 50 mm Belt speed: 0.5–8 m/s Motor rating: 1.1 kW with electronic frequency control for stepless adjustment of the belt speed. Electronic sanding pressure control from the terminal. 4 electronic path controls for fully automatic, timed engagement and disengagement of the sanding tool depending on the set feed speed, sanding pressure, and angle position of the units. 2 steel tools for straight edges, equipped for air cushion sanding, incl. base plate, for 1 "M4" unit, item no. 9000191310 2 steel profile tools equipped for air cushion sanding, incl. base plate, for 1 "K4" unit, item no. 20000025684

Condition: used, Panel Saw Martin T 60 German quality product Heavy-duty precision panel saw 5.7" touchscreen axis positioning control Swiveling control panel above the table Saw blade tiltable 0 - 46° Motorized blade tilt and height adjustment Automatic scoring unit Motor 5.5 kW Saw blade diameter up to 400 mm Rip fence table length 3000 mm Cutting width with parallel fence 1250 mm Pedpjyuvqgofx Akfegk Parallelogram cross table, tiltable to both sides up to 46°, LCD displays, 0.01° fine adjustment for cutting angle Width fence adjustment from the front using handwheel on precision guides Width fence reading via touchscreen CE certified Machine is WORKSHOP TESTED and in TOP CONDITION Available ex-stock Lieboch

Condition: used, Working width 1.350 mm Number of sanding units 2 st. Workpiece thickness max. 150 mm Multi-purpose surface sanding machine Heesemann type MFA 6 Impression Q2 - LF for precise surface, veneer, lacquer and intermediate sanding in woodworking. The machine is suitable for solid wood, coated workpieces and sensitive surfaces in furniture and interior finishing. The infinitely variable feed rate and vacuum clamping ensure a clean and even sanding pattern. Pgjdpfeyyc Drex Akfjk Available from week 33/2026

Condition: used, Year of construction: 2001, Abrasive belt length, 1st unit: 2150 mm Max. working width: 1300 mm Number of belts: 3-belt Pedpfx Akoxzi S Nofsgk 1st unit: Cross belt design 1st unit: Cross belt sanding shoe 1st unit: Electronic segmented shoe Abrasive belt width, 1st unit: 150 x 4800 mm Drive, 1st unit: kW 2nd unit: Longitudinal roller design 2nd unit: Steel calibrating roller Abrasive belt length, 2nd unit: 2150 mm Abrasive belt width, 2nd unit: 1350 mm Abrasive belt speed, 2nd unit: 18 m/sec 3rd unit: Shoe unit design 3rd roller: Electronic segmented pressure beam SDS Sy Sanding shoe, 3rd unit: Electronic individual segments, 32 mm width Abrasive belt length, 3rd unit: 2150 mm Abrasive belt width, 3rd unit: 1350 mm Suitable for lacquer sanding: Yes Belt blow-off: Yes Vacuum conveyor belt: Yes Feed speed, fixed: stepless 5-15 m/min Control: Touchscreen control Electr./pneum. belt oscillation: electric Infeed height: variable (lower table runs) Table stroke: electro-motor Digital table display Working height or feed table height: 880 mm Location: Nattheim

Year of construction: 2013, condition: ready for operation (used), Connected load: 4kW, weight: 1t. Pgodpfx Akohlp Efsfek

Condition: ready for operation (used), Year of construction: 1994, Wide Belt Sander HEESEMANN KSM 8 CSD incl. EA2 Year of manufacture: 1994 Condition: Used - ready for operation Pgedpfx Aex N A Aajkfjk Description Wide Belt Sander Condition: Function tested – Working width: 1300 mm – Cross sanding unit with belt blowing device – Longitudinal sanding unit with infinitely variable speed and belt blowing device – Calibration roller, can be engaged via the control system – Vacuum conveyor belt – feed speed infinitely variable – Satin finishing roller – Brush roller – Machine settings and pressure control system CNC controlled - EA dedusting machine, high-pressure blow-off unit with rotating nozzles and ionization for statically charged dust Location: ex stock 54634 Bitburg - Immediately available - Free loaded

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 1 Belt sanding machine with combination unit with electronic segmented pressure beam for sanding soft and hard veneers Calibrating and fine sanding of solid wood Calibrating workpiece carrier boards Sanding defective veneers and lacquers Intermediate sanding of PU, hydro, UV, nitro, and polyester coatings Sanding barrier films with graphical control terminal Pedpfeyulfmjx Akfogk NC-controlled thickness adjustment from 3 to 150 mm Calibrating roller can be activated via terminal with patented CSD segmented pressure beam for compensation of workpiece tolerances up to 2 mm Sanding width: 1100 mm Abrasive belt length: 2150 mm Abrasive belt speed, frequency-controlled: approx. 2–18 m/sec Sanding unit drive: 15 kW Feed speed: 5/10 m/min Compressed air: 6 bar Compressed air requirement: 15 NL/min Belt blasting: 490 l/min Extraction connection: 180 mm Air requirement for sanding unit: 1800 m³/h Required air velocity: 20 m/sec Total power connection: approx. 17 kW Weight: approx. 2000 kg Dimensions (W x D x H): 1840 x 1670 x 2200 mm Availability: short-term Location: Röllbach

Condition: used, Painting system consisting of: Pos.1 Venjakob belt conveyor - Manufacturer: Venjakob - Working width: 1,300 mm - Length: 3,000 mm - Feed adjustable via handwheel ~ 2.5 – 7.5 m/min - Volt, Hz: 400 / 50 - Colour RAL 7035 Pos.2 Cefla dust extraction machine - Manufacturer: Sorbini - Type: VS/32-E - Year of manufacture: 1998 - Working width: 1,300 mm - Working height: 900 mm + - 20 mm - Operating side: right - Roller conveyor Pgodpfx Aev I Akvokfek - Air blowing channel, above 2 pcs. - Air blowing channel, below 1 pc. - Dust remover brush - With ionisation bar from above - With ionisation bar from below - With own drive - With own control - Length ~ 910 mm - Width ~ 2,600 mm - Weight 1,260 kg - Extraction nozzle D 180 + 120 mm - Total connection 7.6 kW - Volt, Hz 400/ 50 Pos.3 Venjakob VEN SRAY Perfect automatic spraying machine - Manufacturer Venjakob - Type. VEN SPRAY PERFECT - Year of construction 2013 - Working width 1,300 mm - Working height 940 + - 20 mm - Operating side left - IR preheating, number of radiators 2 pcs. - Duo-design spray gun drive - Dry suction - Diameter of suction nozzle 600 mm - Exhaust air capacity 10,000 m³/h - Belt transport system - feed speed infinitely variable ~ 4-10 m/min - conveyor belt cleaning system - paint recovery via V-belt system - gun control, EPS-CNC CNC 7000 - colour management system for number of pumps 3+1 pcs. - number of installed airless spray guns 4 pcs. - Quick-change system for spray guns - Remote maintenance system - Dust cover on the outlet side of the machine - Exhaust air recirculation system - Exhaust air control of the suction ventilator - Machine suitable for water-based paints - Machine suitable for solvent-based paints - Length 5,509 mm - Width 4,500 mm + 2,400 mm - Height 3,380 mm + 510 mm - Total connection ~ 20 - 26 kW - Volt, Hz 400/50 - Colour RAL 7035 - Kremlin AVX AirMix spray guns - Small parts container - gun support arm system for quick removal of 4 AirMix spray guns from the spray booth, including quick couplings for pneumatics and material hoses. Pos.4 Venjakob belt conveyor - manufactured by Venjakob - working width 1,300 mm - length 2,000 mm - feed adjustable via handwheel ~ 2.5 – 7.5 m/min - Volt, Hz 400 / 50 - Colour RAL 7035 Pos.5 Cefla high-level dryer - Manufacturer Cefla - Type VN 2000/5500/190.5/30 - Year of construction 2003 - Working width 1,300 mm - Number of pallets 30 pcs. - Pallet length 5,600 mm - Usable pallet length 5,300 mm - Load capacity per pallet 300 kg - Max. part height ~ 110 mm - Clearance between pallets 120 mm - Dimension: centre of pallet to centre of pallet 3,658 mm - Max. part length ~ 5,200 mm - Number of controllable temperature zones 2 pcs. - Supply air flow rate 6,000 m³/h - Exhaust air flow rate 6,000 m³/h - Heat output max. 175 kW - Max. drying temperature ~ 55 - 60 degrees - With heat exchanger, hot water - Without hot water control valves - U-shaped flow direction - Inlet side on the right - Feed speed via frequency converter control ~ 2-20 m/min - Suitable for water-based paints - Suitable for solvent-based paints - Length 7,820 mm mm - Width 6,130 mm - Height 3,905 mm - Total connection ~ 23 kW - Volt, Hz 400 / 50 - Voltage fluctuations max. +/- 5 % - Without control valves and water pumps Pos.6 Cefla belt conveyor - Manufacturer Cefla - working width 1.300 mm - length 2.000 mm - feed adjustable via handwheel ~ 2.5 – 7.5 m/min - volts, Hz 400 / 50 - colour RAL 7035

Condition: good (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 2020.12.171, total width: 3,590 mm, total height: 2,910 mm, total length: 2,210 mm, grinding width: 2,600 mm, grinding belt speed: 2,400 mm/s, grinding belt length: 3,250 mm, workpiece height (max.): 80 mm, grinding belt width: 2,650 mm, air demand: 192 m³/h, Heesemann KSA 8 Wide Belt Sander 2600mm Width The sander consists of: 1. Frame Structure For mounting the transport bed, with attachment points for 1 sanding unit and 1 brushing unit. 2. Transport Bed Individual conveyor belts with feed speed adjustable from 5 to 25 m/min, controlled by frequency converter, constant working height of 920 mm. Adjustment to workpiece thickness (3 to 80 mm) by height adjustment of the entire machine top, including monitoring of the toothed belt for the lifting gear at a lifting speed of 3 mm/s, and integrated control cabinets. 3. Industrial PC 21.5" Capacitive multitouch color display, 1,920 x 1,020 pixel resolution, CF card, Windows Embedded Standard operating system, with production data acquisition (display of production and downtime). Ethernet connection available. Program memory for 1,000 programs. Motor speed values are stored and automatically set after program selection. 4. Profinet interface for higher-level control 5. Longitudinal sanding unit with contact roller for calibration (steel) Balancing quality Q 1 (finely balanced) according to VDI 2060, driven by poly-V belt, maintenance-free bearings. Diameter: 350 mm Abrasive belt dimensions: 3,250 x 2,650 mm Belt speeds: 1-24 m/s Drive power: 37 kW via frequency inverter Stepless adjustment of sanding belt speeds, wear-free brake device, intermittent belt blow-off device, automatic infrared belt control, sanding belt operates against feed direction, manual grit compensation Infeed: segmented, pneumatically controlled pressure bar Outfeed: continuous, pneumatically controlled pressure bar 6. Brush roller unit Central height adjustment, includes extraction hood and pressure roller. Brush material: horsehair Diameter: 250 mm Drive power: 5.5 kW Podpfxoywuqrs Akfogk 7. Workpiece vacuum clamping system For safe transport of workpieces shorter than 750 mm in feed direction, with integrated fan. Operating voltage: 400V, 50 Hz Machine paintwork: Internal: light grey, RAL 7035 External: light grey, RAL 7035 Doors: anthracite, RAL 7016 Brush insertion side: left Terminal: front left 8. Ionizing bar, from above For dissipation of static charge, including high-voltage transformer 9. Workpiece blow-off device with rotating compressed air nozzles, at machine outfeed, including extraction hood General specifications of the sander: Sanding width: 2,600 mm Working height: 920 mm Maximum workpiece thickness: 3 to 80 mm Dust extraction: Required air speed, minimum 20 m/s Much higher extraction speeds may result in functional disadvantages. Machine underpressure approx. 1000 Pa Air requirements for: - 1 longitudinal sanding unit, roller diameter 350 (socket 1 x diameter 330) 103.0 m³/min - 1 brushing unit, diameter 250 (socket 1 x diameter 206) 38.0 m³/min - Workpiece blow-off (2 sockets x diameter 120) 28.0 m³/min - Conveyor belt blow-off (socket 1 x diameter 160) 24.5 m³/min - Exhaust air from fan for workpiece vacuum clamping system (socket 1 x diameter 180) 30.5 m³/min Total air requirement: 224.0 m³/min

Condition: used, functionality: fully functional, Complete UV roller painting and finishing line for flat panels with: - maximum working width mm 1300 - maximum thickness mm 80 Podpfx Aeywgmfokfogk - minimum length mm 350 - feeding speed (m/min) 10 (from 5 to 20) - working height mm 900 - working side right - UV finishing types transparent, matt and semi-gloss In attachment you’ll find a drawing and the line component and details for each equipment The line can be visited at 545600 Tarnaveni, Judetul Mures, Romania

Condition: used, Year of construction: 2017, machine/vehicle number: A1711012, Pos.1 VEN CLEAN Smart dedusting systemCompressed air dedusting for cleaning the workpieces to be painted from dust on profiled workpiece surfaces. Five rotating blowing stars are installed. These remove the dust from the surface. The loosened dust is extracted on both sides by suction shafts. on both sides. An external extraction system is required on site. Technical data: Roller transport length: 2,060 mm Roller pitch: 85 mm Working width: 1,300 mm Total width: 1,800 mm Drive power: 0.25 kW Exhaust air volume: 4,000 m³/h To be provided by the customer Compressed air consumption: 980 Nl/min. Ionisation as nozzle bar, not EX) with compressed air nozzles, Compressed air consumption 840LN/min. Pos. 2 Automatic spray gun VEN SPRAY Comfort- Manufacturer Venjakob - Type. VEN SPRAY Comfort CNC 7000 - Year of construction 2017 Pgedpfx Akou U Ryyofok - Working height approx. 930mm+-20mm - Working width 1300 mm - Operating side left - Price for overhauled machine - Actual condition, machine not overhauled - Gun drive in duo version - Dry extraction system - Extraction nozzle diameter 500 mm - Exhaust air capacity 10.000 m³/h - Belt conveyor system - Infinitely variable feed speed ~ 2-6 m/min - With belt cleaning system with doctor blade in tungsten carbide design - With option to install a second beltcleaning system. Software and electric parts inside. - Gun control, touch screen CNC7000 - Installed colour circles 1 pc. (optionally more possible) - Supply air filter cover - Suitable for water-based paints - Suitable for solvent-based paints - Control cabinet, free-standing - Length: 4.350 mm + (2,060 mm) - Width: 3.540 mm - Height: 2.600 + 440 mm - Volt, Hz 400 / 50 - El. Power 23,33kW / 63A - Colour RAL 7035 - Location, in stock Voltage fluctuations max. +/- 5 % _____ Optionally, we can also provide you with a quotation for the assembly and start-up of the system, as well as training for your employees. We also offer regular maintenance and servicing of the machine on request. For further information, get in touch with us!

Year of construction: 2001, condition: ready for operation (used), This HEESEMANN BÜRKLE wood production line was manufactured in 2001. It features a comprehensive oil application line, including RBO vacuum feeding Tornado SC 1300, HEESEMANN MFA 8 with cross-lengthwise brushes, and BÜRKLE SLC 1400 roller application machines. Enhanced with a new Siemens control system in 2024, consider the opportunity to buy this HEESEMANN BÜRKLE wood production line. Contact us for more information. Podpex D Rh Rofx Akfjgk Application Types Complete Production
