Used Collating System for sale (135)

Condition: used, Year of construction: 2000, offer consists of: - Horizon SW-12 SW-12 = criss cross delivery unit - only with A4 reversible box suitable for: Horizon HAC-15a / HAC-15b Horizon AC-8000 / AC-8000s Horizon TAC-8a / TAC-8b Horizon AC-1200a / AC-1200b Horizon MC-8a / MC-8c Horizon MAC-8a / MAC-8c Horizon MC-80a / MC-80c Horizon VAC-100a / VAC-100c Horizon VAC-60a / VAC-60c Ljdpfsu Sr Suox Aa Ioru Horizon VAC-1000a / VAC-1000c Horizon VAC-600a / VAC-600c weight: 49kg We can also organize the following for you: packaging, loading, transport ( by ship or plane) including customs

Condition: excellent (used), Format: A5 to A3 Equipment / Additional information: 1x Horizon tower MC-80a (8 stations) M.No . 040043 1xHorizon MC-80 Air Pump M.No .: 040043 -Optional STACKING LOWER TABLE HORIZON ST-20 (Ref. No. 32022.22) S.No.: 033001 // Age: 2001 Lrjdpfx Aoh Nyb Dsa Iju

Condition: excellent (used), Year of construction: 2006, Collating machine with a sewing, folding and trimming module manufactured by the renowned C.P. Bourg company. Year of production 2006 in the following configuration: Collating Tower BST D+ The collator is a very versatile device for collating many types of paper in a wide range of formats. The sheets are fed by suction belts rather than rollers, which eliminates the possibility of leaving marks on the paper. The suction and blowing force is adjustable without the need to interrupt the operation of the device. The machine is controlled from a touch panel. Specifications: Format range: min. 115 x 200 mm; max. 350 x 520 mm Speed range: 9,000 cycles/hour (10 x 80 g/m² A4 sheets fed per shaker) 5,500 cycles/hour - pick-up per stacker Paper weight: 50 – 250 g/m² Pile height: up to 5 cm Machine dimensions - main tower: 93 x 73 x 200 cm (length x width x height) Weight: 360 kg The SBM 4 unit has a modular design and consists of the following parts: AGR T stitching machine • two Hohner sewing heads • quick adjustment of the position of the heads • block or saddle stitching • Regular staples • Wheels for quick sliding • Work in line or as a separate unit Specifications: Format range: min. 117 x 200 mm, max. 320 x 450 mm (block sewing) max. 320 x 500 mm (saddle stitching) Paper weight: 60 - 250 g/m² Maximum thickness of the stitched fold: 6,35 mm Capacity: 3,000 trains per hour Dimensions: 55 cm x 60 cm x 110 cm Weight: 114 kg PA T Folding Machine • Automatic synchronization with collating tower and stitching machine speeds • In-line or off-line operation in combination with an AGR T stitcher Specifications: Format range: min. 117 x 200 mm, max. 320 x 500 mm Maximum quantity of folded material: 22 sheets 80 g/m² Lrsdsrq Havjpfx Aa Iou Capacity: 3,000 products per hour Dimensions: 60 cm x 60 cm x 73 cm Weight: 134 kg TR T Knife Automatic synchronization with colalting tower speeds, stitchers and folding machines, waste container. Specifications: Cropped brochure size range: min. 117 x 100 mm, max. 320 x 250 mm Paper weight: 60 - 250 g/m² Maximum trimmed quantity: 44 sheets 80 g/m² Capacity: 3,000 trains per hour Dimensions: 150 cm x 60 cm x 82 cm Weight: 170 kg SBM Equipment Counter of ready-made sets. A function that throws assemblies with an error without interrupting the operation. Two-knife cutting system with exceptional durability. Reinforced 4-roller folding system. Make adjustments to settings without interrupting your working.

Condition: used, Zusammentragmaschine / Collator Machine TMF N10 Lsdpsv Anqkefx Aa Ieru Serial-No. 01450 10 Stationen Zusammentragmaschine A3 - 5 Stationen Zusammentragmaschine A2 10 Stations Collating Machine Size A3 - 5 Stations Collating Machine Size A2 Mit einem angebundenen Rüttler zig/zag / Delivery Jogger with an online zig/zag unit Panel Operation and Controls, Stau / Jamming Doppelbogen- und Fehlbogenkontrolle / double-sheet and no-sheet control Pre-set counter - Full receiving Tray Handbücher / Manuals Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test

Condition: used, stations 16 Lrjdpfx Aov E R H Tja Iju max. speed sets 3500 /h max. paper size 32 x 47 cm stiching folding unit SPF-10 Trimmer FC 20

Condition: used, Collator TMF N10 • Model: TMF N10 • Paper format: from 105 x 148 mm to 500 x 700 mm Lsdpfx Aajw Stqfe Ioru • Capacity: 10 stations • Includes vibrating table, compressor • Condition: Fully functional • Special features: Front rollers are new

Condition: excellent (used), COLLATING MACHINE BOURG: 2xTOWERS BST10 & BDF Counter: number sets: 2092702 // sheets: 2102565 // stapling: 1807398 // folds: 2022952 // cuts: 1763900 Equipment: 2xTOWER BST10 / BST 10 (each 10 stations) M.No.: 02 01 4 1834 M.No.: 02 11 4 1769 BDF Lredpfx Aasir U Rto Ieu M.No.: 40 12 4 1046 Two spare wire stitching heads included

Condition: used, Zusammentragmaschine / Collator Machine Horizon VAC 100a Year 2008 - Serial-No. 412063 10 Stationen Zusammentragmaschine 10 Stations Collating Machine Format / Size min. 120 x 148mm - max. 350 x 500mm Papiergrammatur / Paper weight 40-250g/sqm Ladekapazität / Loading capacity 55mm each Station Panel Operation and Controls Stau / Jamming Ledpsv Hruusfx Aa Isru Doppelbogen- und Fehlbogenkontrolle / double-sheet and no-sheet control Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test

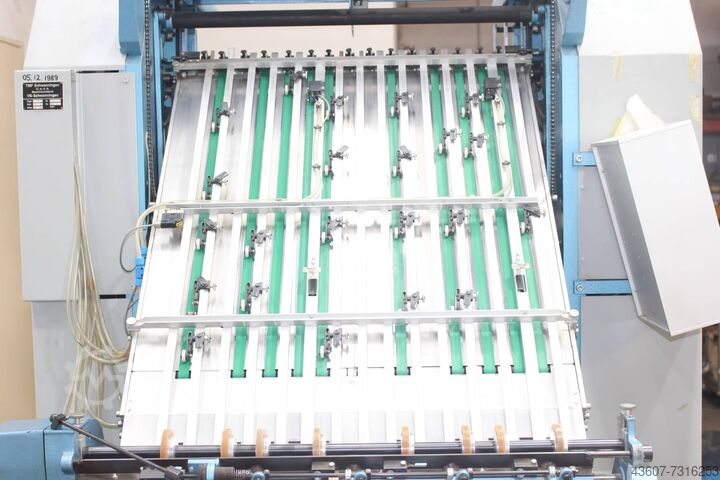

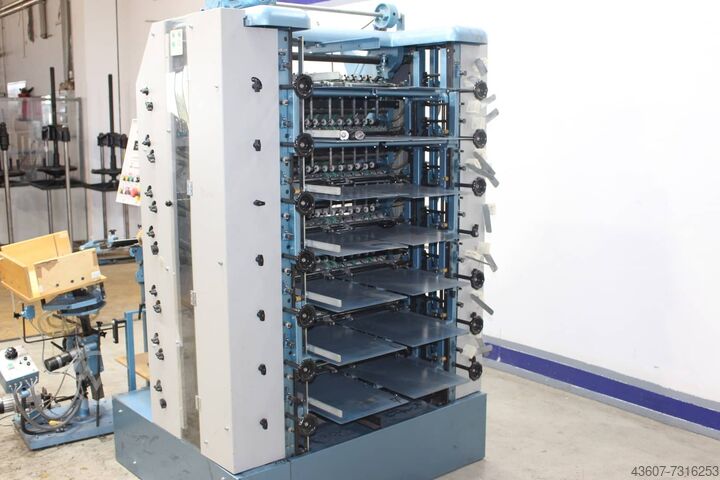

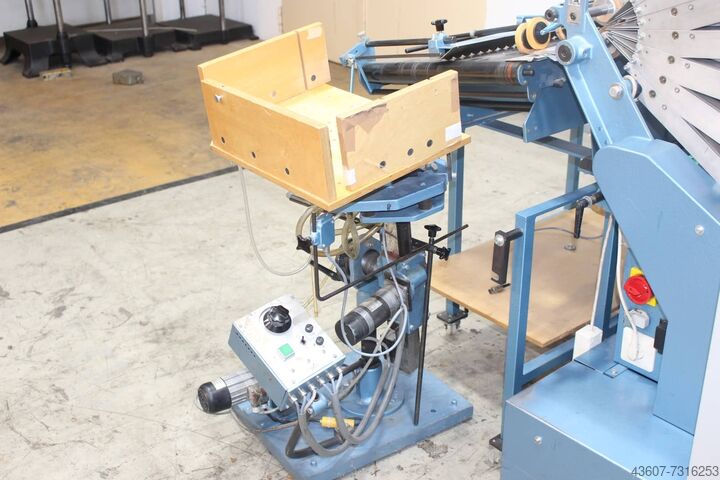

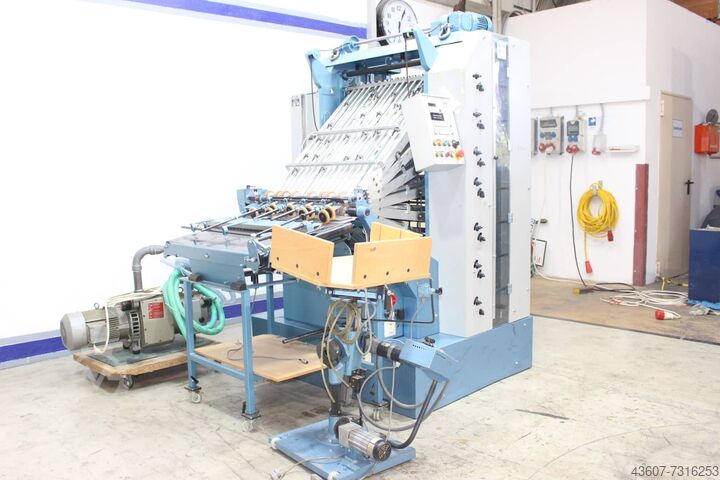

Condition: used, Year of construction: 1989, Zusammentragmaschine / Collating Machine TMF N1414 Stationen Zusammentragmaschine A3 - 7 Stationen Zusammentragmaschine A2 14 Stations Collating Machine Size A3 - 7 Stations Collating Machine Size A2 Mit einem angebundenen Rüttler zig/zag / Delivery Jogger with an online zig/zag unit Lrodpeh Uk E Sjfx Aa Iju Panel Operation and Controls, Stau / Jamming Doppelbogen- und Fehlbogenkontrolle / double-sheet and no-sheet control Pre-set counter - Full receiving Tray Handnbücher / Manuals Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, machine/vehicle number: 19138, Zusammentragmaschine / Collating Machine PLOCKMATIC 310Baujahr / Year 1998 - Serial-No. 310034919 10 Staionen Zusammentragmaschine / 10 Stations Collating Machine Mit einem angebundenen Rüttler zig/zag / Delivery Jogger with an online zig/zag unit Panel Operation and Controls, Stau / Jamming Doppelbogen- und Fehlbogenkontrolle / double-sheet and no-sheet control Pre-set counter - Full receiving Tray Handnbücher / ManualsElektrischer Anschlusswert / Electrics 230 V - 2 ph Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Lredpfoh Axwzsx Aa Ieu Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Year of construction: 1993, condition: good (used), machine/vehicle number: 01024, 1 x AC 8000-S: 1 Collator (8 Stations) Stitching and Folding Unit SPF-10 Front Trimmer FC-10 Lrjdpfxjfx Sqvs Aa Iju

Condition: used, Year of construction: 2005, Horizon brochure production line consisting of: VAC-100 vacuum collating tower (2 units) SPF-20A stapling and folding module FC-20A front trimmer Technical data: Horizon VAC-100 – vacuum collating tower Function: Collating printed sheets Number of stations per tower: 10 (20 in total with 2 towers) Paper format: min. 120 × 148 mm, max. 350 × 500 mm Ljdpfoxpv Adsx Aa Ioru Paper weight: 52–208 g/m² (up to 300 g/m² in some cases) Stack height per compartment: 55 mm Production speed: up to 9,900 sets/hour Control: touchscreen control panel Horizon SPF-20A – Stapling and folding module Function: Stapling and folding brochures Stapling heads: 2 × Hohner 48/5 Paper size: 120 × 180 mm to 350 × 500 mm Final format: 90 × 120 mm to 250 × 350 mm Stapling thickness: max. 4 mm (stapling only), max. 2 mm (stapling + folding) Stapling distance: 73–160 mm Wire diameter: 0.5 mm Production speed: up to 4,050 brochures/hour (A5), approx. 3,200 brochures/hour (A4) Power consumption: approx. 450 W Dimensions: 271 × 81 × 110 cm Weight: approx. 490 kg Horizon FC-20A – Front trimmer Function: Front edge trimming of brochures Brochure size: max. 250 × 20 mm; min. 85 mm Trim size: max. 20 mm Processing: min. 4 pages / max. 88 pages (at 80 g/m²) Production speed: up to 3,400 cycles/h Power supply: 230 V / 50 Hz, 0.2 kW Dimensions: 610 × 810 × 1,070 mm Weight: approx. 240 kg

Condition: refurbished (used), AC Horn Single Lane Collator, Model# ACHPC005, Serial# 20227A Lredst Ty E Rspfx Aa Iou We have six units in stock.

Condition: ready for operation (used), Year of construction: 2003, 7-station Theisen & Bonitz gatherer tb sprint B307 VP, equipped with: – 7 stations collator / gatherer – stack height up to 30 cm Ljdpjxnb Hfjfx Aa Ieru – height control – double sheet control – missing sheet control – including jogging table for solo-gathering / collating Theisen & Bonitz tb sprint 303 QSM stitch- fold- and trimming unit QSM quick set semi automatic size setting version Equipped with 2 Hohner 43/6 stitching heads and delivery belt Technical details Min. open format 6,5 x 15,5 cm Max. open format 35 x 50 cm Max. format booklet 25 x 35 cm Max. format booklet 6,5 x 6,5 Paper weight 18 – 1.000 gsm Max. stitching heads 6 Max. speed 3.300/h for solo gathering – 3.100/h inline with 303 (depending on paper and format)

Condition: good (used), Horizon Stitchliner 5500 Booklet Maker This machine is in excellent condition, manufactured in 2010. Low mileage. Ledpfx Ajxgbc Roa Ioru Description: This machine boasts a robust, compact, and professionally built design. It is characterized by high efficiency and binding quality. Maximum throughput is 5,500 cycles per hour, and with die-cutting, 11,000 cycles per hour can be achieved. The StitchLiner is set up fully automatically using a touch panel. Machine equipment: – Two Horizon VAC-100 a and m collating towers – Horizon SPF-30S saddle stitcher – Horizon ACF-30 folding module – ST-40 stacker – Horizon HTS-30S three-knife trimmer – Two additional EAB-100 compressors – TB-30 delivery, scrap extraction system, wire feeders for large spools, Hohner heads, cutting module, compressors, additional components, accessories, documentation Technical data: Maximum format: 350 x 500 mm Minimum format: 140 x 120 mm Paper weight: 53 to 210 g Maximum booklet thickness: 5 mm plano Staple spacing: 60 to 150 mm Cutting thickness range on the three-knife trimmer: 2 to 25 mm Capacity: up to 5500 booklets/h wire thickness: 0.5-0.7 mm

Year of construction: 2018, condition: used, The Horizon AC-470L conveyor is a reliable delivery belt designed for finishing processes in the graphic arts industry. Lodpfxoxmgt Us Aa Ioru It is ideally suited for transporting and collecting finished products behind collators, bookletmakers, or other Horizon postpress systems. The unit features a sturdy build and is designed for continuous operation. Key benefits include variable belt speed and easy integration into existing production lines.

Condition: used, Year of construction: 1992, The Kolbus KM 470 is a robust perfect binder designed for professional bookbinding operations. This machine integrates a comprehensive gathering system, specifically a ZU gathering machine with 18 stations and a hand feeding station, allowing for efficient collation of book blocks. The KM 470 perfect binder itself features 25 clamps, ensuring secure handling of book blocks during the binding process. It is equipped with a milling station for precise spine preparation, followed by hotmelt spine and side gluing stations for strong, durable binding. The Stream Cover Feeder automates cover application, while the nipping and pressing station guarantees a tight, professional finish. The machine also includes a lay down device for smooth transfer of book blocks, though it does not have drying conveyors. Finally, the Kolbus OMG stacker organizes the finished products for easy handling. Manufactured in 1992, this system is currently operational in a printshop in Germany and is capable of processing book blocks up to 310 x 390 x 60 mm in size. Format: 310 x 390 x 60 mm Equipment: Gathering Machine Type: ZU Gathering stations: 18x Year: 1991 Hand feeding station Perfect Binder Type: KM 470 Year: 1991 Number of clamps: 25x Clamps Milling station Ljdpfx Aaew R A Ece Ioru Hotmelt spine gluing Hotmelt side gluing Cover feeder: Stream Cover Feeder Nipping and Pressing station lay down device Drying Conveyor Length of the drying conveyor: no drying conveyors Stacker Type: Kolbus OMG Year: 1992 Machine no. 42

Year of construction: 2007, condition: used, Year: 2007 Condition: functional Configuration: - gathering - 10 statitions - stitching unit - front cuting Lodsipmpaopfx Aa Ijru - stream delivery Specification: - max. signature size: 350x500 mm - min. signature size: 105x148 mm - stock weight: 40 to 1000 g/m2, even carton, foils and signatures - collating speed: max. 4.200 sheets/h.

Condition: used, Year of construction: 2011, Sewing machine with inline end sheet tipper Lrodpfxsu Utzyj Aa Isu Meccanotecnica Universe Year: 2011 For high quality digital print finishing. The UNIVERSE SEWING performs 3 operations in standard mode: Sheet feeding, creasing, folding and collating and stitching. The UNIVERSE performs 2 operations: Nipping and end sheet gluing. Configuration: • flat sheet feeder • pc Siemens with touchscreen • GigaLynx sheet control • folding and collating station • thread sewing machine • belt delivery • transfer to the end sheet feeder • nipping press • end sheet feeder with Hotmelt nozzle gluing and ROBATECH premelter • belt delivery (counter approx. 9.700.000 mio. stitches) Technical specifications: speed plano sheet feeder: up to 300 plano sheet(A4)/min mechanical stitching speed: up to 50 folded sheets/min size range plano sheet max.: 420 x 640 mm size range plano sheet min.: 150 x 200 mm size range folded sheet max.: 420 x 320 mm size range folded sheet min.: 150 x 100 mm number of stitches max.: 10

Condition: used, 2x Hohner Loop Stitching Heads 43/6S, used Powerful and precise stitching heads for professional booklet production, specifically designed for ring eyelet stitching. Ring eyelet stitching is a special form of binding where the staples form a small eyelet or loop on the outside of the spine. Key Features: - Narrow version ("S") for minimal staple distances - Compatible with various collating systems (e.g., Horizon, Duplo, Bourg) - Quick tool-free switching between normal and ring eyelet stitching - High productivity with up to 14,000 stitches per hour Technical Specifications: - Minimum staple distance: 48-54 mm (depending on current stitching thickness) Lrodpfx Asw Ew Ayoa Iju - Maximum stitching thickness: 3 mm (for 6 mm ring eyelets) - Inner diameter of the ring eyelet: 6 mm - Stitching wire: Round wire No. 24-26 (0.60-0.50 mm diameter) - Length of staple back: 12 mm All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Double Sheet Control for Horizon VAC-100/VAC-60 Collator, pack of 10 sensor Optimize the precision of your Horizon VAC-100 or VAC-60 collating machine with our high-quality replacement double sheet control Compatible with Horizon VAC-100 and VAC-60 models Sensor for reliable double sheet control Ensures precise error detection and smooth operation Easy replacement for minimal downtime This sensor is an important component for quality assurance in your Horizon collator. It ensures that your machine continues to operate efficiently and precisely by reliably detecting double sheets and preventing faulty production. Lrjdow Ewz Nspfx Aa Iju Invest in the accuracy and reliability of your print finishing. Order now and keep your Horizon VAC-100 or VAC-60 in top shape!

Condition: used, 1x Hohner Loop Stitching Head 43/6 Lrsdpfx Aew Ew Aasa Isu The Hohner Loop Stitching Head 43/6 is a high-quality stitching head specifically designed for professional loop stitching of brochures and other printed products. This stitching head offers reliable performance and precise loop stitching. - Key Features: - Specifically designed for loop stitching - Minimum distance between stitch centers: 48-54 mm - Compatible with various collating systems (e.g., Horizon, Duplo, Bourg) - Suitable for wire gauges No. 24-26 (0.6-0.5 mm) or No. 26-28 (0.5-0.4 mm) - Available loop sizes: 6 mm or 8 mm inner diameter - Maximum stitching thickness: 3 mm (6 mm loop) or 2 mm (8 mm loop) - Easy operation and tool-free adjustment - Compact design for easy integration into existing systems Technical Specifications: - Net weight: Approx. 1.5 kg - Crown width: 12 mm - Compatible with round wire

Condition: used, Transfer Bridge, Horizon SPF-CV, Used The Horizon SPF-CV is a small but essential connecting component specifically designed to link collators from the VAC series (e.g. VAC-100a or VAC-600) with bookletmakers from the SPF series (e.g. SPF-20 or SPF-20A). It enables seamless transfer of paper stacks between machines, ensuring a smooth production flow. Key Features: Lrjdpfx Aow Ewpyea Ieu - Efficient transfer: Connects the collator and bookletmaker for continuous production - Compact design: Space-saving for easy integration into existing production lines - Robust construction: Durable and reliable for long-term use - Compatibility: Developed for use with Horizon VAC collators and SPF bookletmakers Technical Specifications: - Compatible models: VAC series (e.g. VAC-100a, VAC-600), SPF series (e.g. SPF-20, SPF-20A) All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Year of construction: 1998, Air suction collator HORIZON VAC-100a, 10 Stations, used Key Features - Efficient and Reliable: The Horizon VAC-100a is designed for demanding environments. It ensures your collating jobs are completed quickly and efficiently - Touch & Work: Thanks to 'Touch & Work' technology, the VAC-100a is easy and intuitive to operate - Memory: The machine has 9 programmable memory slots for repeat jobs, saving you time and effort - Accuracy and Precision: Say goodbye to miss-feed, double-feed, and jam problems. The VAC-100a offers error prevention controls to ensure each set is perfectly collated Specifications - Format: max. 500x350mm; min. 148x120mm - Paper weight: 40-250g/sqm - Performance: up to 9,500 sets/h - Loading capacity: 55mm/station - Power: 230V; 50Hz - 1.86kW - Dimensions: 842x652x1,961mm - Weight: 310kg Lrsdpfsw Evh Uex Aa Iju All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Year of construction: 2010, Air suction collator HORIZON VAC-100a, 10 Stations, used Key Features - Efficient and Reliable: The Horizon VAC-100a is designed for demanding environments. It ensures your collating jobs are completed quickly and efficiently - Touch & Work: Thanks to 'Touch & Work' technology, the VAC-100a is easy and intuitive to operate - Memory: The machine has 9 programmable memory slots for repeat jobs, saving you time and effort - Accuracy and Precision: Say goodbye to miss-feed, double-feed, and jam problems. The VAC-100a offers error prevention controls to ensure each set is perfectly collated Lrjdpfx Asw Evifea Iou Specifications - Format: max. 500x350mm; min. 148x120mm - Paper weight: 40-250g/sqm - Performance: up to 9,500 sets/h - Loading capacity: 55mm/station - Power: 230V; 50Hz - 1.86kW - Dimensions: 842x652x1,961mm - Weight: 310kg All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
