Used Electrical Drawing for sale (31,208)

Condition: reconditioned (used), Year of construction: 2007, operating hours: 16,730 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 275 mm, total width: 300 mm, total length: 300 mm, table width: 750 mm, Charmilles FO550S. 16-position rotary tool changer. Erowa ITS50 chuck. Machine currently being serviced at our premises in Semsales, Switzerland. Inspection possible upon request. Further information available on request. Kedpfx Aaexmidpebenc

Condition: used, Double-column hydraulic press NEFF Type RHS 125 Z Hydraulic drawing press Machine No. 3973 Year of manufacture 1983 Pressing force: 125 tons Column gap: 1050 mm Lateral column clearance: 550 mm Table size: 1000 x 800 mm Ram size: 1000 x 800 mm Ram stroke: 350 mm Installation height max.: 750 mm Table height above floor: 960 mm Blankholder force: approx. 12 tons at 105 bar Blankholder stroke: 100 mm Through-hole in table: Ø 202 mm Rapid advance speed downwards: approx. 360 mm/sec Rapid advance speed upwards: approx. 360 mm/sec Working speed: approx. 36 mm/sec Oil tank capacity: approx. 1000 liters Main pump motor power: 22 kW Control pump motor power: 4 kW Control pump motor power: 2.2 kW Electrical connection: 400 Volt, 50 Hz - Hydraulic blankholder cushion underneath the table with a through-bore in the table top Ø 202 mm Knedpfjguvtlox Aabsc - Precise 4-column guide on the ram corners - Infinitely variable pressing force adjustment - Electrically adjustable fixed stop via hydraulic motor - Cutting shock damping - Two-hand control panel for stroke release on the press - Free-standing control cabinet (1600 x 500 mm) - Documentation such as operating instructions, electrical wiring diagram, and PLC program printout available Required space L x W x H: 2600 x 2400 x 4270 mm Weight: approx. 14 tons Good condition

Condition: ready for operation (used), Year of construction: 2018, General Data Measurements width 1560 mm Measurements depth 5980 mm Measurements height 2190 mm Machine weight 8900 kg Injection Unit Screw diameter 45 mm Clamping Unit Clamping force 1900 kN Additional Equipment Air valves: 2 General Data Measurements width 1560 mm Measurements depth 5980 mm Measurements height 2190 mm Machine weight 8900 kg Injection Unit Knedpfewnuqtox Aabec Screw diameter 45 mm Clamping Unit Clamping force 1900 kN Additional Equipment Air valves: 2 This HAITIAN ZHAFIR ZERES ZE1900 was manufactured in 2018. It is an electrical injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this HAITIAN ZHAFIR ZERES ZE1900 electrical injection moulding machine. Contact us for more information. Application Types Injection Moulding

Condition: new, Year of construction: 2019, machine/vehicle number: DF0303, pressure:160 t distance between columns:700 mm stroke:400 mm Return Capacity:16 t Engine Output:15 kW Travel:400 mm :600 mm Ram plate:700 x 600 mm table height over floor:850 mm Table size:700 x 600 mm speed of forward flow:10 mm/sec Kjdpfxefxyh Rj Aabenc Pressing speed:10 mm/sec :10 mm/sec Oil cooling (electric):1,5 kW (max) Oil Tank Capacity:300 l weight of the machine ca.:4,2 t dimensions:950 x 2440 x 2400 m ejector:30 x 30 mm ejector stroke:150 mm pressure of ejector:15 t ejector speed:25 mm/sec no. of ejector pins:1 Stück heating plates :550 x 500 mm :6800 ? :2400 ? :1200 ? :1200 ?

Condition: new, Year of construction: 2025, Walec mechaniczny W11G 1,2x1530 Napęd mechaniczny, wbudowany w 3 cylindryczne, specjalne opcje do obróbki cienkich blach. Dane techniczne: Model `` W11G 1,2x1530 Marka ACL firmy ANFAN Moc silnika, kw, 1.5 Maksymalna grubość blachy (mm), mm, 1,2 ilość walców, szt,, 3 Długość, mm, 2700 Kodpfx Aaefwxunebjnc Szerokość, mm, 600 Wysokość, mm, 900 Waga, kg, 500

Condition: used, Thrust: 600 TON. Barbed points: no. 2 Model: AF 600 MB 30-60 Year of construction: 1994 Table size: 3,000 X 1,600 mm. Slide size: 3,000 X 1,600 mm. Front passage: 3,000 mm. Side passage: 1,200 mm. Slide registration: 150 mm. Strokes per min: 20- c/min. Stroke : 500 mm. Kedpfxjq N Ettj Aabsnc Mold clearance at PMI: 1,118 mm. Main motor power: 30 kw Hydraulic Safety: present Weight: 110 ton.

Condition: refurbished (used), Year of construction: 1998, operating hours: 20,800 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, Machine currently undergoing revision at our facility in Semsales, Switzerland. Erowa ITS50 chuck. 16-position rotary tool changer, double gripper. Flat LCD screen. Retractable work tray. Inspection possible upon request. More details available on request. Kodpfxjxlhuds Aabsnc

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, operating hours: 2,400 h, 40 tons press brake with 4 CNC axes back gauge Excellent condition with only approx. 2,400 hours (93,000 strokes) Incl. extensive set of tools !!! Manufacturer: DURMA Model: AD-ES 1240 silent Year of construction: 2019 (commissioning: 2020) Maschinennummer:73071915309 Operating hours, approx.: 2,400 h (93,000 strokes) Status: 12/2023 Control system: Cybelec CNC ModEva 19T TECHNICAL DATA: Folding length: 1,275 mm Free stand passage: 1,300 mm Press force: 400 kN Controlled 4-axis backgauge: X, R, Z1, Z2 Stroke length: 200 mm Installation height: 440 mm Table width: 104 mm Table height: 1,000 mm Column projection: 410 mm X-axis travel range: 650 mm Traversing speed X-axis: 500 mm/s Infeed speed (Y): 180 mm/s Bending speed (Y): 20 - 40 mm/s Working speed (R): 350 mm/s Travel range R - axis 250 mm Motor power: 7.5 kW Weight: approx. 4,500 kg BASIC EQUIPMENT: Control system: Cybelec ModEva 19T CNC controlled crowning Backgauge: AC servo motors with ball screw INCLUDED OPTIONS: Fiesseler safety system AKAS II M FPSC-B-C Control system: Delem DA 69 T CNC controlled back gauge X, R, Z1, Z2 Hydraulic upper tool clamping Durma (type Wila) Hydraulic lower tool clamping Durma (type Wila) Hydraulic power pack for clamping Knedpsu Rtifofx Aaboc The machine can be inspected under production conditions. Subject to prior sale. Sale under exclusion of any guarantees and within the scope of our general terms and conditions. All information without guarantee.

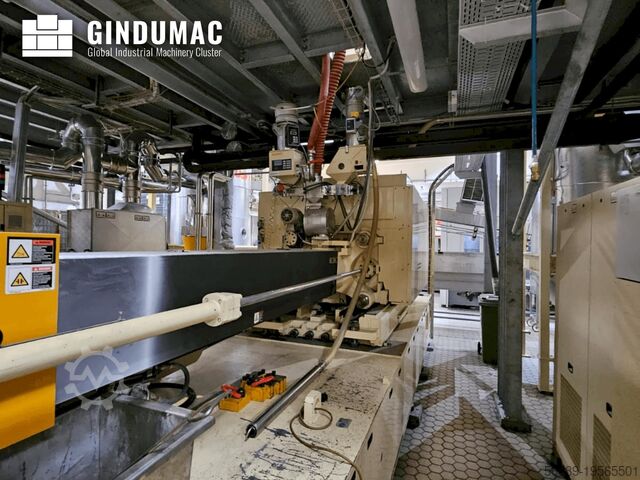

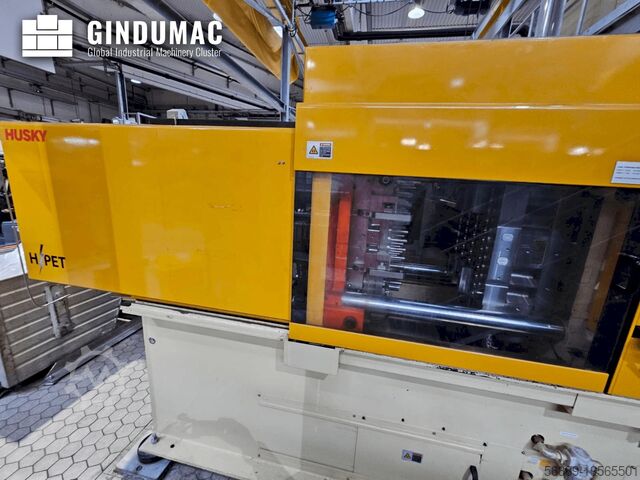

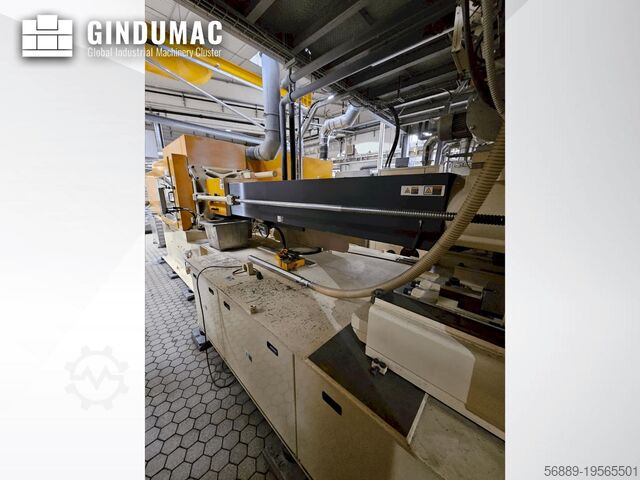

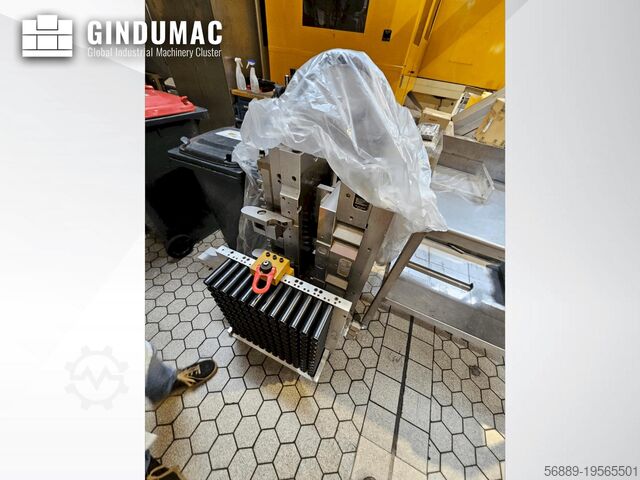

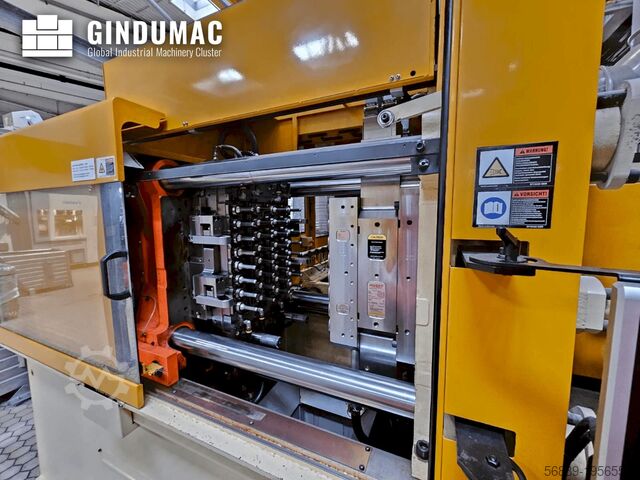

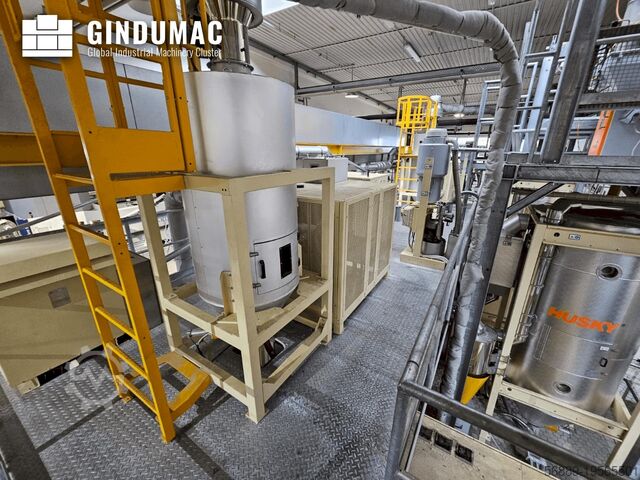

Year of construction: 2015, condition: ready for operation (used), Injection Unit Shot weight 2424 g PET Media Power consumption 492 Wh/kg PET Additional Equipment Mold Dehumidifier: Incl. hood, spare parts package, piping Conveyor Belt: Two-sided preform filling system for cartons/grid boxes Ksdpfx Aowzc S Sjabsnc Injection Unit Shot weight 2424 g PET Media Power consumption 492 Wh/kg PET Additional Equipment Mold Dehumidifier: Incl. hood, spare parts package, piping Conveyor Belt: Two-sided preform filling system for cartons/grid boxes This Husky HPETL230E-RSE95D-95 was manufactured in 2015. It is an all-electric injection molding system with a maximum throughput of 390 kg/h PET and a max shot weight of 2424 g PET. The clamping unit is fully electric with a toggle drive, and it features an integrated control system for additional equipment. Consider the opportunity to buy this Husky HPETL230E-RSE95D-95 electrical injection moulding machine. Contact us for more information about this machine. Application Types Injection Moulding

Condition: used, Year of construction: 1991, pressure 200 t distance between columns 1100 mm stroke 600 mm distance table/ram, max. stroke up, adjustment up 1100 mm table surface area 1000 x 1000 mm Knjdpfx Aevzxqroabec pressure of drawing cushion in table 63 t stroke of drawing cushion in table 250 mm die cushion area 800 x 750 mm table height over floor 800 mm ram surface 1000 x 1000 mm Speed down 400 mm/s speed up 250 mm/s working speed 22 - 56 mm/s power requirement 45,0 kW weight 24,0 t dimensions (WxDxH) 2,4 x 1,5 x 5,9 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic drawing cushion in table, ram interlocking, two-hand operation as is where is, WITHOUT putting into operation Price for commissioning (in given condition respectively with new electric control) on request

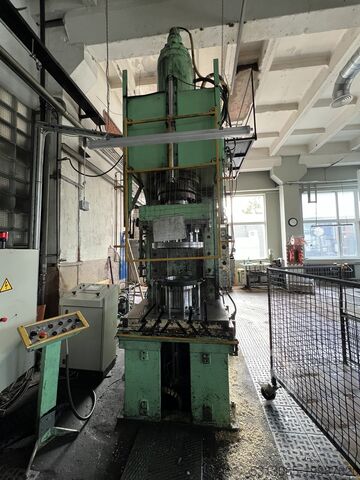

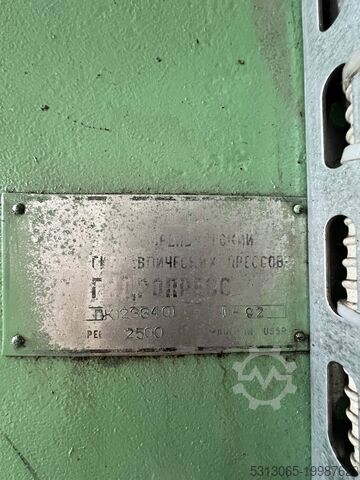

Condition: used, Year of construction: 1991, functionality: fully functional, pressing force: 250 t, Pressure: 250t Lower table dimensions: 750x1040 mm Upper table dimensions: 650x630 mm Cylinder stroke: approx. 700 mm Weight: approx. 15t Knsdpfxsxb Ugfo Aaboc The press can currently be inspected in operation. The press hydraulics and cylinder require repair.

Condition: new, weight max. in kg 1600 kg fork length 1150 mm stroke height 4500 mm high 2020 mm Knsdpfxovn Uwho Aabec weight of the machine ca. 0,92 t dimensions 1,72 x 0,8 x 2,02 m Pallet truck with - Triplex mast - Lithium-ion battery - quick lifting and lowering - low overall height

Year of construction: 2012, condition: ready for operation (used), General Data Kodow S N Rbepfx Aabonc Measurements width 1200 Measurements depth 3580 Machine weight 3140 This Zhafir VE 400/80 electrical injection moulding machine was manufactured in 2012. It features dimensions of 3580x1200 mm and a weight of 3140 kg. If you are looking to get high-quality injection moulding capabilities, consider the Zhafir VE 400/80 machine we have for sale. Contact us for more information. Application Types Injection Moulding

Condition: used, Year of construction: 1993, pressure 315 t distance between columns 1660 mm Knsdpfx Aaovuuhmsbsc stroke 400 mm Distance table/ram, stroke up 600 mm Table surface area 1600 x 1000 mm table height over floor 960 mm Die cushion pressure in table 80 t Die cushion stroke in table 200 mm Die cushion area in table 950 x 650 mm Side window 720 mm Ram surface 1600 x 1000 mm Oil volume 1400 l Power capacity 57,0 kW Weight 30,0 t Dimensions (WxDxH) 3,0 x 2,9 x 4,4 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Condition: new, weight max. in kg 1600 kg fork length 1150 mm stroke height 5000 mm high 2185 mm weight of the machine ca. 0,98 t Kedevn Uxrepfx Aabonc dimensions 1,72 x 0,8 x 2,2 m Pallet truck with - Triplex mast - Lithium-ion battery - quick lifting and lowering - low overall height

Condition: used, Year of construction: 1993, pressure 315 t distance between columns 2350 mm Ksdpfevuugvox Aabjnc distance table/ram, max. stroke up, adjustment up 1200 mm distance between cutting impact cushioning 1600 mm Distance table/ram, stroke up 1200 mm stroke 800 mm table surface area 2060 x 1260 mm table height over floor 750 mm Die cushion pressure in table 100 t Die cushion stroke in table 400 mm die cushion area 1250 x 1000 mm side window 780 mm ram surface 2200 x 1500 mm Capacity of ejector in ram 63 t speed down 500 mm/s speed up 310 / 410 mm/s working speed 20 - 73 mm/s quantity of oil 3900 l power requirement 80,0 + 45,0 kW weight 55,0 t Dimensions (WxDxH) 4,6 x 2,7 x 7,2 m Height above floor 6,0 m Height below floor 1,2 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic ejector in ram, hydraulic cutting impact cushioning, hydraulic ram interlocking can be offered without putting into operation (partly dismantled, in need of overhaul) or alternatively with overhaul and new control Siemens S 7-1500 F

Condition: new, weight max. in kg 1200 kg fork length 1150 mm stroke height 3000 mm high 2150 mm weight of the machine ca. 0,625 t dimensions 1,71 x 0,8 x 2,15 m Ksdoifw Utepfx Aabsnc The ESL122 is a 24V/80Ah lithium-ion powered electric forklift. It is equipped with a high-strength chassis and a high-rigidity mast that ensure high operational stability. Offering comfortable maneuverability and efficient and effective vertical stacking, this model is ideal for operations in tight spaces.

Condition: used, Year of construction: 1993, pressure 315 t distance between columns 2060 mm stroke 700 mm Distance table/ram, stroke up 1100 mm Table surface area 2000 x 1000 mm Die cushion pressure in table 125 t Die cushion stroke in table 200 mm die cushion area 1200 x 600 mm Table height above floor 750 mm table height over floor (if standing without pit) 1100 mm Side window 720 mm Ram surface 2000 x 1000 mm Oil volume 1800 l Power capacity 90,0 kW Weight 35,0 t Dimensions (WxDxH) 3,6 x 2,75 x 5,65 m permitted for manual loading according to the German Safety Regulations (UVV) Knjdpfxsvuudzo Aabsc with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning (with motoric depth adjustment) No foundation pit necessary can be offered without putting into operation (without operator’s console / screen) or alternatively with new control Siemens S 7-1500 F, with new operator’s console / screen and new user interface

Condition: new, weight max. in kg 1200 kg fork length 1150 mm stroke height 3600 mm high 2450 mm weight of the machine ca. 0,645 t dimensions 1,71 x 0,8 x 2,45 m The ESL122 is a 24V/80Ah lithium-ion powered electric forklift. Kjdoifw Uwepfx Aabsnc It is equipped with a high-strength chassis and a high-rigidity mast that ensure high operational stability. Offering comfortable maneuverability and efficient and effective vertical stacking, this model is ideal for operations in tight spaces.

Condition: used, Year of construction: 1980, pressure 250 t distance between columns 2000 mm stroke 600 mm Distance table/ram, stroke up 1000 mm table surface area 1700 x 1300 mm table height over floor 800 mm die cushion pressure in table 100 t die cushion stroke in table 180 mm Knedpfxsvut Tno Aabsc Die cushion area in table 1650 x 700 mm side window 1000 mm ram surface 1700 x 1400 mm weight 31,1 t dimensions (WxDxH) 3,3 x 1,9 x 4,85 m Height above floor 4,55 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic cutting impact No foundation pit necessary can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

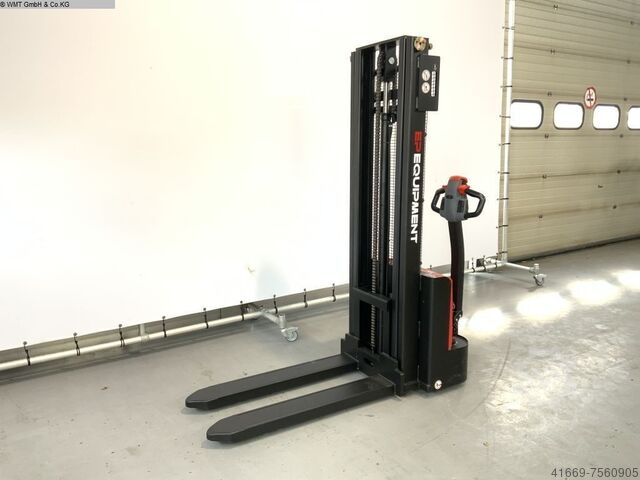

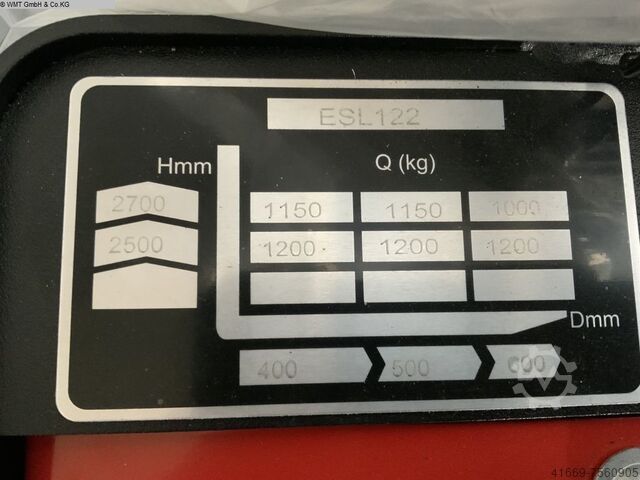

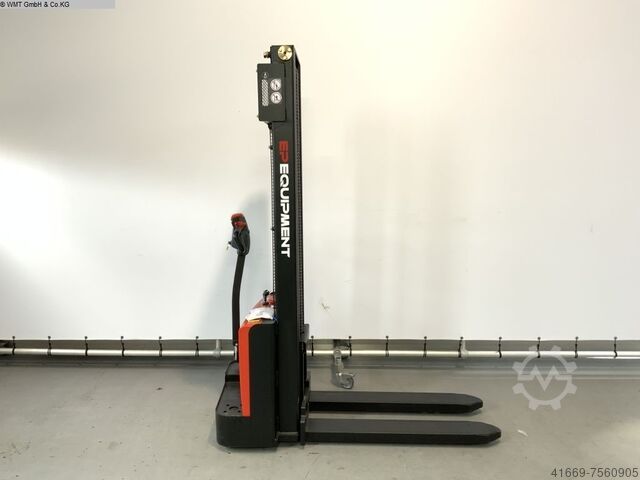

Condition: new, weight max. in kg 1200 kg fork length 1150 mm stroke height 2700 mm high 1990 mm weight of the machine ca. 0,595 t dimensions 1,71 x 0,8 x 1,96 m Kodpfsidabgox Aabonc The ESL122 is a 24V/80Ah lithium-ion powered electric forklift. It is equipped with a high-strength chassis and a high-rigidity mast that ensure high operational stability. Offering comfortable maneuverability and efficient and effective vertical stacking, this model is ideal for operations in tight spaces.

Condition: used, Year of construction: 1979, pressure 160 t distance between columns 1620 mm Knsdovut Ryjpfx Aaboc stroke 600 mm Distance table/ram, stroke up 800 mm table surface area 1600 x 1100 mm table height over floor 750 mm die cushion pressure in table 63 t die cushion stroke in table 180 mm Die cushion area in table 1300 x 750 mm side window 600 mm ram surface 1600 x 1100 mm oil volume 1160 l power requirement 30,0 + 16,0 kW weight 23,6 t dimensions (WxDxH) 2,9 x 2,3 x 4,65 m Height above floor 4,26 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table No foundation pit necessary can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F Video at seller's site before dismantling available

Condition: new, weight max. in kg 1200 kg fork length 1150 mm stroke height 3300 mm high 2256 mm Knsdpfx Aaoih D Alsbjc weight of the machine ca. 0,625 t dimensions 1,71 x 0,8 x 1,96 m The ESL122 is a 24V/80Ah lithium-ion powered electric forklift. It is equipped with a high-strength chassis and a high-rigidity mast that ensure high operational stability. Offering comfortable maneuverability and efficient and effective vertical stacking, this model is ideal for operations in tight spaces.

Condition: used, Year of construction: 2014, weight max. in kg 1600 kg fork length 1450 mm stroke height 200 mm Knjdpjv Ehd Ajfx Aaboc high 1150 mm weight of the machine ca. 0,68 t dimensions of the machine ca. 2,05 x 0,72 x 1,15 m incl. charger

Condition: new, Year of construction: 1992, weight max. in kg 1250/2000 kg fork length 1150 mm stroke height 3200 mm Kjdpfx Aovl Tq Uoabsnc high 1985 mm weight of the machine ca. 0,95 t dimensions 2,0 x 0,8 x 1,85 m Pallet truck - incl. charger - ready for use - see pictures
