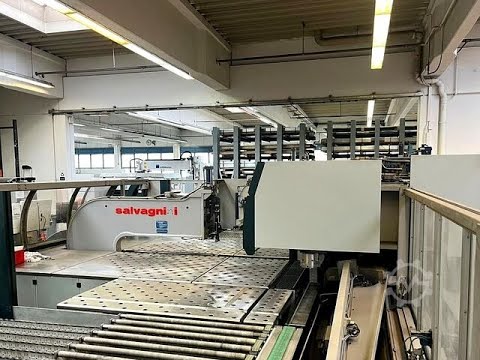

CNC sheet bending center

Salvagnini P4-2516-ALA

Condition: ready for operation (used), Year of construction: 2004, operating hours: 40,000 h, functionality: fully functional, sheet thickness steel (max.): 2 mm, sheet thickness aluminum (max.): 3 mm, working width: 2,780 mm, working height: 1,090 mm, TECHNICAL DETAILS Max. sheet length: 2,780 mm Max. sheet width: 1,500 mm Max. bending length: 2,550 mm Sheet thickness (stainless steel): 2.5 mm Max. flange height: 185 mm Sheet thickness (aluminium): 3.0 mm Max. bending angle: ± 135° Working height: 1,090 mm MACHINE DETAILS Nsdpfx Ajxhfbtofdjcw Dimensions & Weight Dimensions: 12,500 x 7,400 x 2,600 mm Approximate machine weight: 19,000 kg Total power requirement: 43 kW Operating hours: 40,000 h EQUIPMENT Automatic/manual loading via PCD Automatic loading system with lift table Automatic bending center P4-2516 Automatic tool setup ALA, symmetrical CLA Semi-automatic unloading of finished parts via SAP

Year of construction: 2017, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE FOR TUBES WITH LOADING/UNLOADING SYSTEM MIN CIRCULAR SECTION: ø 25 mm MAX CIRCULAR SECTION: ø 355 mm MAX SQUARE SECTION: 260 X 260 mm Njdpfx Ajx E Eihjfdjcw MAX RECTANGULAR SECTION: 300 X 200 mm MAX ADMITTED LOAD: 100 Kg/m SOURCE: IPG YLS-4000 ; 4000 W CONTROL UNIT: SIEMENS 840D WEIGHT: 12500 Kg NOTE: AUTOMATIC LOADING 3-12.5 mt; AUTOMATIC UNLOADING 12.5 mt; 3D CUTTING HEAD; CAPACITIVE SENSOR; AUTOMATIC ADJUSTMENT

Condition: used, Year of construction: 1999, functionality: limited functionality, CNC Cylindrical Grinding Machine for Sale – STUDER S40 (1999) We offer for sale a STUDER S40 cylindrical grinding machine, year of manufacture 1999. The machine is in working condition. It is equipped with one grinding spindle and a turret wheelhead suitable for both external and internal grinding operations, making it a versatile solution for precision machining. Control system: FANUC 16 Key Features: External and internal grinding capability Turret wheelhead Reliable FANUC 16 control system Solid and proven STUDER build quality Operator manual. Njdpfxsy Elz Do Afdjcw Delivery Terms: EXW (Ex Works) The machine is available for inspection upon request. For more information, photos, or pricing, please get in touch.

Condition: like new (used), Generally overhauled Price: 5.500EUR Spiral dough mixer Capacity: 100 kg of flour 160/180 kg of dough Diosna Container volume: 260 liters Electrical power: 380V / 50Hz / 3N/PE Two timers Njdpfx Aex N Ed Tefdjcw Two speeds Rewind option Half cover with safety switch Wheels with brakes

Year of construction: 2019, operating hours: 4,525 h, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 12, BAR PEELING MACHINE AND BAR STRAIGHTENING MACHINE IN SET The equipment is in perfect working condition and can be inspected under power. Fully retrofitted in 2019 (completely new mechanics and electronics) Working range: Ø 20 – Ø 80 mm Bars length: 2.5 – 6.0 m Processing tolerance: ISO h9 (possible h8) Peeling depth: up to 3.5 mm, depends on the steel type Steel types: carbon steel, bearing steel, spring steel, etc. Feeding speed: digitally adjustable 0.5 – 12 m/min Cutting head revolutions: up to 1700 RPM Ncodjwqb Scopfx Afdow Cutting tools: two sets of 4 knives each with automatic digital positioning (triangular and long knifes) Automotive loading table with bar counter Feeding roller with motorized height adjustment Infeed pressure rolls – 4 vertical rolls with inverted DC motor Peeling machine, consists of: - Front guiding system - Peeling head with 4 knifes - Rear guiding system Bar extraction carriage Main motor and transmission Output pressing rolls - tween Unloading table with motorized height adjustment Collector with counter and automatic collection of finished bars Hydraulic unit – completely new Electric cabinet – new of two modules.

Condition: used, Year of construction: 1994, cutting diameter 520 mm saw band length 7239 mm cutting width 1,3 mm Control POSIMOD cutting range - square - 520 x 520 mm feed length 500 mm feed length: multiple 4500 mm min. cut-off length 6 mm length of rest piece min/max 10 / 100 mm cutting speed 20 - 130 m/min dimensions of saw-band 7239 x 50 x 1,3 mm sawing motor 5,5 kW total power requirement 10,0 kW weight of the machine ca. 3,8 t dimensions of machine L x W x H 3,42 x 2,30 x 2,40 m - 2 column guided - Ncjdewm Rm Iepfx Afdsw Accessories: roller track 2500 mm length, chip conveyor, coolant

Condition: used, Year of construction: 1997, The bending press was manufactured in 1997 in England by EDWARDS PEARSON. The folding press is in good condition, sold with tools. Always serviced and maintained on time. The machine tools are connected and can be tested and inspected. Specification: Ncodperfx Utjfx Afdsw Model: EDWARDS PEARSON 100/3100 PR6 Year: 1997 Working length: 3 100 mm Bending capacity: 100 T Travel: 172 mm Distance between table and frame: 450 mm Working speed: 100 mm/s Return speed: 110 mm/s Axes: auto X1, X2, Y1, Y2, Z1 , Z2 , R Tools: Available Weight: 7 T Other: New screen recently replaced, keyboard attached for ease of use. If you have more questions, we will be happy to answer.

Year of construction: 2012, condition: excellent (used), Alfa Laval Centrifugal pump Type LKH 85/240, 25,0 kW , Stainless Steel. Used! Good condition! Inlet: 6" - Outlet: 6" Nedpfshck S Esx Afdscw

Condition: used, Year of construction: 1983, grinding length 8400 mm grinding width 1450 mm workpiece height 1250 mm surface area 8000 x 1250 mm table height over floor 920 mm distance between columns 1470 mm workpiece weight max. 59700 kg weight of the machine ca. 59,7 t dimensions of the machine ca. 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Ncjdpfx Asvr Hgvefdsw Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW

Condition: refurbished (used), Year of construction: 2011, Used automatic hydraulic bandsaw for metal MEP SHARK 332 NC EVO Blade dimensions: 3320x27x0.9mm Mitre angle: from 45° to +60° Operating modes: manual, semi-automatic dynamic, semi-automatic, automatic Cutting speed: 15-100m/min (inverter) Cutting capacity: at 0° - round 300mm - square 260mm - rectangle 330x260mm Dimensions: 2600x2320x2000mm Year of manufacture: 2011 Weight: 1050kg Nodpfxjul Svle Afdecw The machine is fully refurbished and tested.
