Window production centre

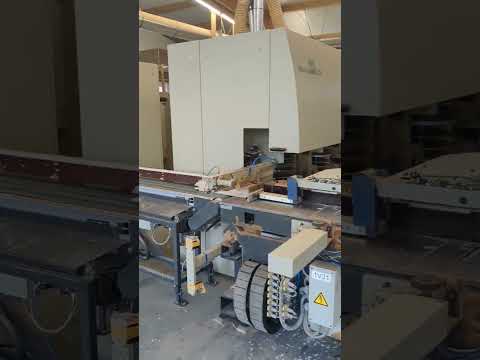

WEINIG Unicontrol 12

Year of construction: 2005, condition: ready for operation (used), Additional Equipment Slotting Spindle: Ø 400 mm Cross-Cutting Saw Beveling Unit Circulating Conveyor Belt with Transfer Unit Longitudinal Processing with Profile Spindles Horizontal Spindle // Fitting Spindle // Grooving Spindle Mullion Supports Lateral Clamping Profile Spindles: Ø 50 mm, Max. Ø 200 mm // Profile Spindles: Ø 50 mm, Max. Ø 200 mm Pitched Window This WEINIG UNICONTROL 12 was manufactured in 2005. It is a comprehensive window manufacturing machine featuring a slotting spindle Ø 400 mm, cross-cutting saw, beveling unit, and a circulating conveyor belt with transfer unit. It supports longitudinal processing and includes a Siemens Panel PC for control. Ideal for producing pitched windows and double-part packages. For more information about this machine, please reach out to us. Application Types Cjdjxf N Irspfx Abcerh Other Woodworking Machinery

Condition: used, Tenoning spindle 2 St. Number of milling agregates 7 St. Spindle diameter 50 mm control Weinig, PC-Nexus Weinig Unicontrol 12 with radial and axial CNC spindles as well as VARIO table and milling carriage ..... Machine dismantled professionally and in our warehouse in 73447 Oberkochen. Video and pictures were taken before dismantling. Technical data summary (please inquire about any additional accessories included) ..... crosscut saw ..... > Electronic crosscut saw, horizontally infinitely adjustable > Number of tools: 1 piece. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Tool diameter max.: 400 mm > Motor power: 3.7 kW > Laser directional light to detect the saw section > Axial adjustment path 150 mm NC axis, electronically infinitely variable > Radial pneumatic adjustment path 8 positions for e.g. edge rounding from above Rounding aggregate ..... > Position: horizontally below > Motor power: 1.5 kW > Spindle diameter: 20 mm > Tool clamping length: 25 mm > Spindle speed: 9,000 rpm > Tool diameter: max. 130 mm > Axial adjustment path mechanically coupled with crosscut saw. > Radial adjustment pneumatically controlled on/off electronic length stop ..... > Length 4500 mm 1. Tap and slot spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment path: 580 mm NC axis, continuously variable > Spindle speed: 2,800 rpm > Tool diameter: max. 400 mm > Overtravel counter, complete clamping length is countered 2. Tap and slot spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment path: 580 mm NC axis, continuously variable > Spindle speed: 2,800rpm > Tool diameter: max. 400 mm > Overtravel counter, complete clamping length is countered Transfer tape ..... Included for transferring the parts to longitudinal machining Separation of double parts before the start of longitudinal processing. 1. Profiling spindle (synchronous and counter-rotation) ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment path 350 mm NC axis, infinitely variable > Radial adjustment path 80 mm NC axis, infinitely variable > Spindle speed: 6000 rpm > Tool flight circle min.: 140 mm > Tool flight circle max.: 232 mm > 2 feed rollers axially pneumatically controlled opposite the spindle, 8 positions > Table top pneumatically controlled to the tool diameter 2. Profiling spindle ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment path 350 mm NC axis, infinitely variable Credpfsvu Hdysx Abceh > Radial adjustment path 80 mm NC axis, infinitely variable > Spindle speed: 6000 rpm > Tool fli...

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Unicontrol 12 Consisting of: Cut-off unit (item A), Tenon and slotted spindle (item C), Transfer belt (Pos. I), profiling spindle (Pos L), profiling spindle (Pos. N), Profile shaving unit vertical right (Pos. P) For the production of individual parts and elements in frame-by-frame or serial production. Consisting of a cross processing unit and a longitudinal processing unit connected to a transfer belt. Working width 40-140mm (See pressure ruler left 40 - 140 mm) Working height 40-120mm Workpiece length min. approx. 275 mm + 1 x end profile length Long machining: approx. 220 mm + 2 x end profile length Workpiece length max. 3500 mm The part dimensions depend on the machine equipment, production type and tool assignment. A final definition of the part dimensions is only possible after receipt, inspection and approval of the complete and final layout drawings. Cross machining: Table feed Motor power 0.3 kW (0.4 HP) Pre-set feed speed for cutting, profiling and return 3-25 m/min Vario table with (studio window production possible) The clamping length of all tenoning and slotting spindles can be used without a tool blank. Workpiece clamping by means of a clamping bridge. Operated by a clamping cylinder installed under the table. NC-controlled long fence mounted on the slotting table. Studio window device Swivel angle max. +/- 75° The minimum workpiece length for slanted windows depends on the angle and the width of the wood. Crodpoumci Sofx Abcjh Possible part dimensions for slanted window production Angle Max. Min. Working width Workpiece length +/-75° 80 mm 800 mm +/-70° 120 mm 490 mm +/-60° 240 mm 360 mm +/-90° 350 mm 185 mm For angles greater than 60° only counter processing Commission not documented 1)NC automatic angle adjustment for machining angled parts Splinter protection by means of overtravel counter Over the entire spindle length of the tenoning and slotting spindle for 90° machining Manually trackable counter-rail for angled part machining 2) Additional counter-rails

Condition: excellent (used), Year of construction: 2006, Fully working UniControl 12 year 2006 Cross section UniTec 12: - saw unit - edge round cutter from bottom - Hubspindel no.1 - Hubspindel no.2 - Hubspindel no.3 Long , profile section UniVar 12: - Profil cutter - Profil cutter - Profil cutter horizontal - Profil cutter - Profil cutter - Profil cutter Total el power 114 kw 400 V AC Need for suction 270 m3/min Need of compressed air 1000 L/ minMachine was in use until 15.08.2023 Payment: Prior to loading Delivery: ex. factory Rendalen - Norway Machine is located in Norway ( near to Trondheim) Cedpfx Aemgc I Nsbcjrh The machine is now disconnected, stored in dry and warm wearhouse, and are ready to be shipped. Rekman Maskin & Service - service of woodworking machines since 1986.

Condition: used, Tenoning spindle 2 St. Number of milling agregates 7 St. Spindle diameter 50 mm control CNC, Weinig PC-Nexus Weinig Uncontrol 12 with radial and axial CNC spindles and VARIO table ..... The machine has already been professionally dismantled and stored in 73447 Oberkochen Specifications summary (please inquire about any additional accessories included) ..... crosscut saw ..... > Crosscut saw electronically, horizontally infinitely adjustable > Number of tools: 1 pc. > Spindle speed: 3000-6000 rpm > Spindle diameter: 40 mm > Tool diameter max.: 400 mm > Motor power: 3.7 kW > Laser guide light for detecting the sawing section > Axial adjustment path 150 mm NC axis, electronically stepless > Adjustment path, radial, pneumatic, 8 positions, e.g. for edge rounding from above rounding aggregate ..... > Position: horizontally below > Axial adjustment path together with the crosscut saw. electronic length stop ..... > Length 4500mm 1. Tap and Slot Spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment range: 580 mm NC axis, stepless > Spindle speed: 2,800-4,000 rpm > Tool diameter: 380-400mm > Overrun counter, complete clamping length is countered 2. Tap and Slot Spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment range: 580 mm NC axis, stepless > Spindle speed: 2,800-4,000 rpm > Tool diameter: 380-400mm > Overrun counter, complete clamping length is countered transfer tape ..... Included for transferring the parts to longitudinal processing Separation of double parts before entering longitudinal processing. 1. Profiling spindle (synchronous and counter-rotating) ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment range 350 mm NC axis, stepless > Radial adjustment range 80 mm NC axis, stepless > Spindle speed: 6000 rpm > Minimum tool flight circle: 140 mm > Tool flight circle max.: 232 mm 2. Profiling spindle Codpfx Aswmgfyjbcjrh ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment range 350 mm NC axis, stepless > Radial adjustment range 80 mm NC axis, stepless > Spindle speed: 6000 rpm > Minimum tool flight circle: 140 mm > Tool flight circle max.: 232 mm 3. Profile milling unit (grooving device from above) ..... > Position: horizontally above > Motor power: 3.0 kW > Spindle diameter: 40 mm > Tool clamping length: 40 mm > Axial adjustment range 30 mm NC axis, stepless > Radial adjustment range 125 mm NC axis, stepless > Spindle speed: 9000 rpm > Tool flight circle max.: 130 m...
