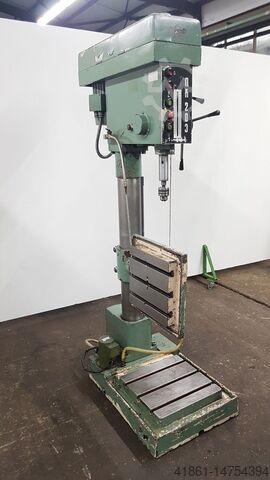

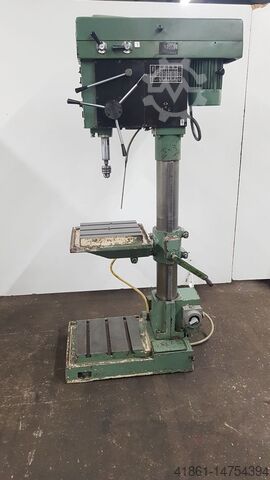

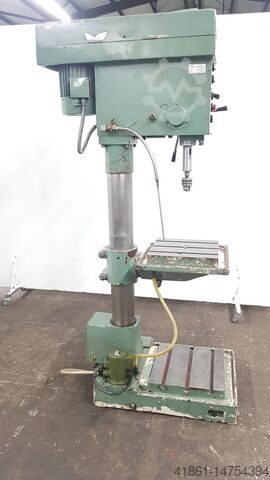

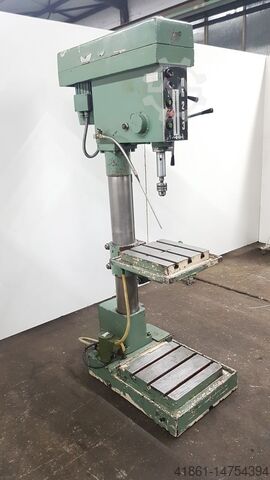

Column drilling machine

ZMM METALIK NK 203

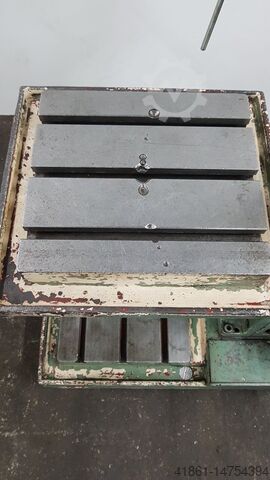

Condition: good (used), Year of construction: 1986, Offer 23389 Nodporckv Hjfx Afajcn Technical data: - Drilling capacity in steel ST 60 30 mm - Drill spindle holder MK 3 - 4 feeds 0.1 - 0.16 - 0.25 - 0.4 mm/rev - Drill spindle speeds in gear stages 95 - 2000 rpm - Drill spindle stroke 160 mm - throat depth 350 mm - Table with 3 T-slots height-adjustable 340 x 320 mm - Table can be tilted left + right - max. distance table - drill spindle 500 mm - max . Distance machined base plate - drill spindle 1050 mm - Column diameter 160 mm - Coolant device - Lighting system - Drive 400 V / 2.4 kW - Space requirement approx. W 600 x H 1950 x D 800 mm - Weight approx. 350 kg
