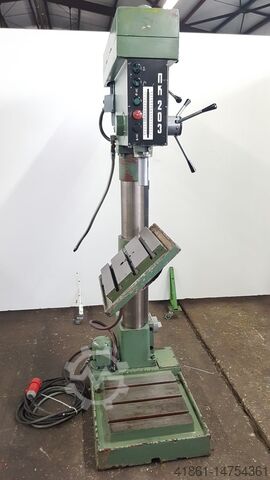

Column drilling machine

ZMM-METALIK NK 203

Condition: good (used), Year of construction: 1986, machine/vehicle number: 23036, Offer 23380 Nsderckw Iopfx Afascn Technical data: - Drilling capacity in steel ST 60 30 mm - Drill spindle holder MK 3 - 4 feeds 0.1 - 0.16 - 0.25 - 0.4 mm/rev - Drill spindle speeds in gear stages 95 - 2000 rpm - Drill spindle stroke 160 mm - throat depth 350 mm - Table with 3 T-slots height-adjustable 340 x 320 mm - Table can be tilted left + right - max. distance table - drill spindle 500 mm - max. distance machined base plate - drilling spindle 1050 mm - Column diameter 160 mm - Lighting system - Drive 400 V / 2.4 kW - Space requirement approx. W 600 x H 1950 x D 800 mm - Weight approx. 350 kg

Condition: new, Year of construction: 2022, Power: 1,1kW Nsdpjgulr Hefx Afajcn Drilling capacity steel / continuous drilling capacity: 30mm / 25mm diameter Speed range: 120 - 1810 rpm Speed steps: 9 Spindle mounting: MK-4 Drilling stroke: 120 mm spindle throat: 254 mm table size: 475 mm x 425mm Drilling table lateral tilting / rotating: 45° left / 360°. column diameter: 80 mm Quick chuck: 1 - 16 mm Weight: 132 kg

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, Swing dia over bed 400 mm Swing dia over crosss slide 220 mm Between centers 1500 mm Spindle hole 50 mm Spindle speed 12,5 – 3150 rpm Spindle power 5,5 kW Power required 16 kVA Dimensions L x W x H = 2900 x 1000 x 2200 mm Nodpfx Aoxiymtefascn Weight cca 1600 kgs Accessories, features - 3 jaws chuck, D200 mm chuck - 4-fold tool holder - Tailstock - Display motor load - Rapid speed - Driwing system by clutch - Spindle break - Splash wall - Hardened and ground linear guides are in perfect condition - Steady rest - Coolant unit - Manual The machine is in great and original technical condition. It was barely used. No DRO system on it.

Condition: new, Year of construction: 2025, functionality: fully functional, Table size 800 x 240 mm Table area 730 x 210 mm “T” slot size on table 14 (M12) Speed ​​range 75 – 3200 rpm Drilling capacity in cast iron 45 mm Drilling capacity in steel 32 mm Longitudinal movement range (X) 560 mm Transverse movement range (Y) 190 mm Vertical travel range (Z) 350 mm Tool holders ISO40/Morze 4 Spindle - column distance 460 mm Distance between spindle nose and table surface 445 mm Spindle stroke 120 mm Total machine height in Z upper position 1450 mm Spindle can be tilted +/-90 degrees Spindle power 1.1/1.5 / 400V Machine weight 480 kgs Dimensions 1280 x 960 x 2100 mm Accessories - Thread cutting function - 3-way path measuring system Ncodpfxsxz D Npe Afajn - Y+Z axis covers - ISO40 drill chuck adapter - Built-in digital depth gauge - Automatic X-axis stepless feed and rapid traverse - Motorized gear lifting and lowering - Machine lamp - Cast iron machine base The machine is in brand new condition. Never used in production.

Condition: good (used), Year of construction: 1979, Model making milling machine, universal model milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine, model making milling machine Njdpfxenzpx Rs Afaocn -Manufacturer: Zimmermann, universal milling machine type FZ 1 with extensive accessories -rotating cross table: 490 x 400 mm -Travel: X/Y/Z 320/385/430 mm -Spindle holder: SK30 -Drive: 1.1 kW -Speed: 560 to 14000 rpm, 8-stage -Accessories: incl. see photos -Dimensions: 1000/680/H1970 mm -Weight: 477 kg

Condition: used, Year of construction: 1975, Technical details: turning diameter over bed: 400 mm turning diameter over support: 220 mm turning length: 1100 mm centre height: 180 mm spindle passage: Ø 45 mm range of revolution per miute: 31,5 - 1.400 / 12 step U/min range of feed in x - axis: längs: 0,08 - 1,10 m/min range of feed in y - axis: quer: 0,028 - 0,40 m/min tailstock quill taper MT: MK4 tailstock quill adjustment: 200 mm Ncodpfx Afeu Ix E Hsasn total power requirement: 4,0 kW weight of the machine ca.: 1,7 t dimension machine xH: 2,5 x 1,1 x 1,4 m Equipment: -Three-jaw chuck Ø 250mm manufacturer Forkardt with interchangeable jaws -Multifix steel holder -Cooling water device with pump -chuck guard -chip collecting tray -chip guard Accessories: -chuck spanner -tool holder -2 pieces gears *

Condition: excellent (used), Knuth UFM 2 universal milling machine Technical data X-axis travel (manual) 800 mm X-axis traverse path 750 mm Traverse path Y-axis 300 mm travel Z-axis 400 mm table size 1320x320 mm T-slots 5x14x63 mm Feeds Y-axis travel (8) 20 - 360 mm/min Z-axis travel 600 mm/min Spindle speed (12) 58 - 1800 min-1 Vertical spindle taper SK 40 Distance between spindle tip and table 0 - 400 mm Head rotation 45 Cone of horizontal spindle SK 50 Drive Main motor power 4 kW motor power in Z axis 0,75 kW feed motor power 0,55 kW cooling pump motor power 0,09 kW Coolant pump capacity 25 l/min Dimensions and weight dimensions 1900x1720x1750 mm weight 2100 kg Financing through our bank is also possible. Ncedpjnfu Rijfx Afajn komplett-konzept.leasingo.de Further articles - new and used - you will find in our store! International shipping costs on request!

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Nodpfeir Igwsx Afaocn Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: good (used), Year of construction: 2011, functionality: fully functional, turning diameter over cross slide: 700 mm, turning length: 6,000 mm, spindle motor power: 30 W, The lathe is in good technical condition, connected and ready for testing. It features digital readout, faceplate, and steadies. Specifications: Swing diameter over bed: 1,090 mm Distance between centers: 6,000 mm Swing diameter over cross slide: 700 mm Ncjdpfx Afsx A S Sbjaen Main drive motor power: 30 kW Dimensions (L x W x H): 8,200 x 1,800 x 1,855 mm Machine weight: 11,000 kg

Condition: used, functionality: fully functional, power: 78.5 kW (106.73 HP), fuel type: diesel, operation weight: 16,000 kg, chain condition: 85 %, emission class: euro5, Year of construction: 2021, operating hours: 1,977 h, machine/vehicle number: SY015DCB25968, Equipment: additional headlights, air conditioning, cabin, gripper hydraulics, hydraulics, steel tracks, Steelwrist X20 DF/CW30 - XControl Ditch box 1600mm Backhoe bucket 800mm Nodpfxjv Uxgmj Afascn Banana container 600mm Kit iDig Touch 2D Sorting grab Vematec VSSG903-CW30
