Used Engine test stands for sale (3)

Condition: used, Static frequency inverter Manufacturer: GARBE LAHMEYER & Co. AG Type SU3760.2aFZ231 Year of manufacture: 1989 Make No.: A2K 60229 0001 Rated power 500 kVA Type of current D Mains voltage 380 Volt Input frequency 50 Hz Input current 760 Amp. Type power input 760 Amp. Output voltage 380 Volt Output frequency 50 Hz Output current 760 Amp. Type power output 760 Amp. - Control unit GARBE LAHMEYER type AEB 60 G0U8Kxv Cabinet dimensions (W x H x D) 2250 x 800/900 x 2550 mm Transport dimension (W x H x D) 2430 x 1100 x 2700 mm Weight 1660 kg

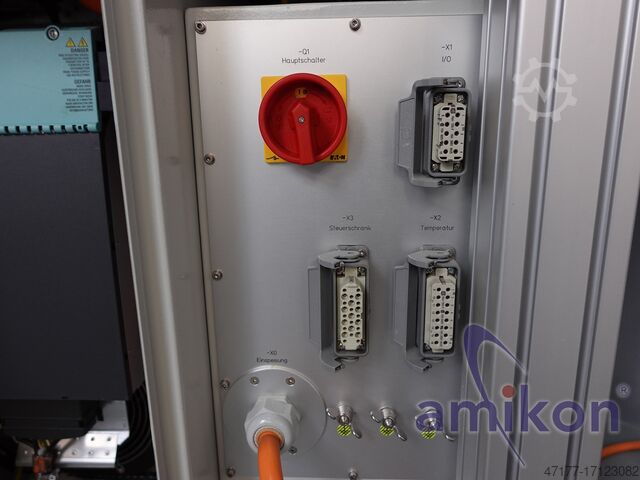

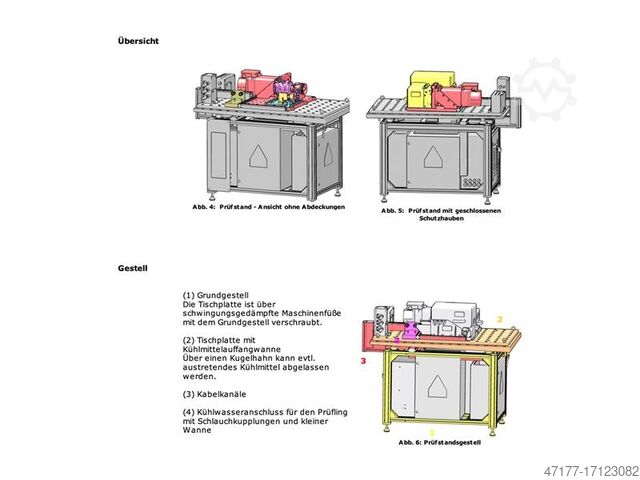

Condition: excellent (used), Kübrich Kübrich test systems 48V belt starter generator - component test bench Details of the test stand: (see Fig. 13) Frame with (1) Mounting device for a belt starter generator (2) Load machine (3) Belt (4) MP1: Switch cabinet (5) MP3: Control cabinet for the control system, transfer plate with main switch, I/O (6) MP2: Switch cabinet with Simotion (7) MP4: Switch cabinet with DC-DC converter (8) H3: Measurement technology box (9) H4: Transfer box Intended use: The test stand is used to carry out tests on belt starter generators during development. Technical data: Electrical connection data Power supply: 400 V / 32 A Battery simulation: 0 - 60 V Hu3Owik Current: 0 - 250 A (continuous) Current intensity: 330 A (short term, less than 1 s) Control voltage 24 V Mechanical performance data according to the data sheet of the load machine A transmission ratio of 1:2 to the test specimen shaft must be observed. Speeds: Load machine: Set-up mode: 0 - 50 1/min Automatic mode: 0 - 10 000 1/min Test specimen motor: Set-up mode: 0 - 100 1/min Automatic mode: 0 - 20 000 1/min Dimensions and weight Width: 850 mm Height: 1386 mm Length: 1687 mm Weight: approx. 1.2 t Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: used, Year of construction: 2018, Nominal power in kilowatts 7,7 MW Maximum power 8,47 MW Nominal turning speed 1150 1/min Maximum turning speed 2200 1/min Nominal torque 63940 Nm Maximum torque 70330 Nm E27Lri0K 8 MW test bench for gears, closed loop
