Roll forming line

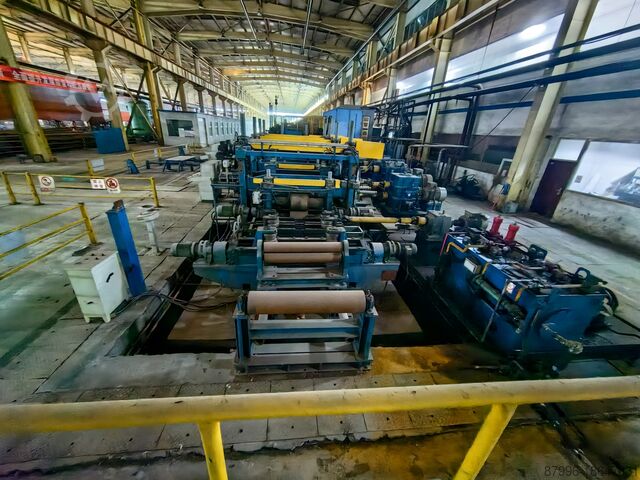

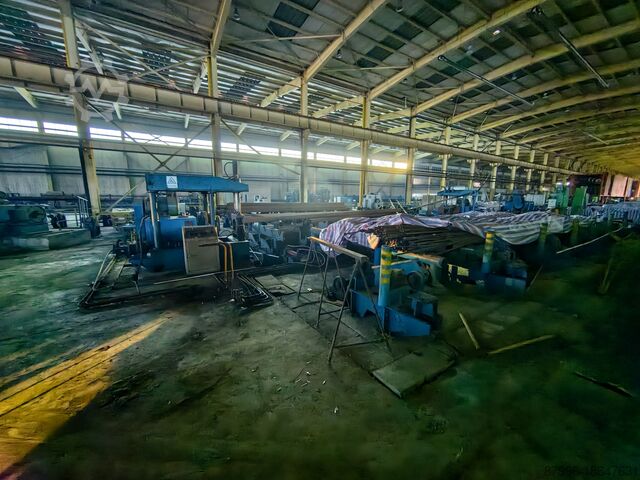

API tube mill 355x15mm (A3801) API tube mill 355x15mm (A3801)

Condition: used, Year of construction: 1990, turning diameter 2400 mm faceplate diameter 2200 mm turning height 2100 mm control SIEMENS Sinumerik 850T workpiece weight 17 t Tol measurements 32 Werkzeuge Crossbeam travel: 700mm Crossbeam support Travel from centre of rotation to the right: 700mm Crodpfsygx D Hsx Ai Soh Crossbeam support Travel from centre of rotation to the left: 700mm Machine table drive Main drive power: 80kW Number of gearboxes: 2 Step change: 3.84 Speed range of the 1st gear stage: 2-32-139 rpm Speed range of the 2nd gear stage: 9-125-500 rpm Max. Machine table load: 6 tonnes Feed drive Cross beam support Horizontal feed speed: 0.1 - 8 m/min Cross beam support Vertical feed speed: 0.1 - 8 m/min Cross beam support Rapid traverse speed horizontal/vertical: 8 m/min Cross beam adjustment speed: 425 mm/min Tool system Tool system: 180.1 Cutting force on the turning tool: 30 kN

Condition: used, Technical details: spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets Crjdpfx Aioxt El As Seh coolant attachment *

Condition: used, Technical details: grinding diameter: 260 mm grinding length: 1000 mm centre height: 130 mm clamping length: 1000 mm feed:: per Hand headstock adjustment: 280 manuell mm total power requirement: ca. 6,0 kW weight of the machine ca.: 1,5 t dimension machine xH: 2580 x 1750 x 1630 mm Non-circular grinding machine - (crankshaft grinding machine) Used for grinding crankshafts, camshafts, etc. Machine table: - rotatable right/left: 6° each - clamping surface workpiece 1240 x156mm Crsdpfx Aiou Ng Dte Ssh Grinding headstock: - headstock adjustment 150mm to workpiece axis - rotatable right/left 90° in two planes - feed by hand manual 280mm - grinding wheel/grinding wheel = 350x32x127mm internal grinding spindle type Fortuna SJ 60 x 250L Workpiece headstock: - speed 25 - 65 - 155 - 400 rpm - rotatable by hand adjustment, +/- 90°. - center height 130mm Equipment: Tailstock equipped with dressing device, quill quick clamp with center point. Machine is available for demonstration. *

Condition: used, Lasko hammer KGK 063 Impact force 630 mkp Stroke max. 630 mm Crodsu Eb Niepfx Ai Ssh Bear weight 630kp Top pressure - filling pressure 5 bar

Year of construction: 1992, condition: good (used), machine/vehicle number: 03.323.36002, Item No. 22621 Technical Data: - Max. working length 3500 mm - Distance between columns 3050 mm - Max. pressing force 2000 kN - Distance table / ram max. 480 mm - Column overhang 260 mm - Ram stroke approx. 300 mm - Stroke speeds - Downward speed, no load max. 100 mm/sec - Upward speed 80 mm/sec - Downward pressing speed max. 10 mm/sec - Total drive power 25 kW - Space requirement approx. W 4500 x H 3150 x D 2100 mm - Weight approx. 16000 kg Codpfoip Nikex Ai Serh - including: - CNC control CYBELEC, renewed in 2008 - Controlled crowning device - Controlled rear backstop with height adjustment 5 - 1000 mm - Hydraulic tool clamping - Upper tool + universal die set - Material supports - Two-hand control panel

Condition: used, Year of construction: 1996, Technical details: grinding diameter: 1,5 - 75 mm grinding wheel diameter: 400 mm grinding wheel width: 160 mm work stroke: 0 - 1 mm working feed: stufenlos/ continous mm/min grinding wheel speeds: 1300 U/min control for program: Num 1020 GC total power requirement: 14 kW weight of the machine ca.: 3,8 t dimensions of machine: 3,0x2,2x2,2 m dimensions electric cabinet LxWxH: 1,5x0,4x2,0 m CIRCULAR GRINDING MACHINE - alloyed round steels as well as (grooving process) throughfeed process. - In the plunge process, the plunge-cut length is max. 160mm. - Workpiece removal automatically via rail (its function or operation is not known to WMW AG) - grinding wheel with reshaping device, speed = 1300 rpm. - regulating grinding wheel with reshaping device, infeed angle right 0-6° and left 0-2°; wheel size 280x160mm - automatic grinding wheel balancing system accessories: various grinding and regulating wheels on request The machine is operating in manual mode! The control is in the Catalan language and none of our employees can control the machine or understand the language. Crsdpsu Ngyzefx Ai Ssh *

Condition: good (used), Year of construction: 1998, control type: NC control, number of rollers: 4, roller (bottom) diameter: 540 mm, roller (top) diameter: 560 mm, side roll diameter: 420 mm, roller diameter: 440 mm, roller length: 3,100 mm, sheet thickness (max.): 60 mm, overall weight: 45,000 kg, total length: 8,700 mm, total width: 2,900 mm, total height: 3,075 mm, power: 81 kW (110.13 HP), Equipment: cone bending device, documentation/manual, 4 roll plate bender HAEUSLER - VRM-hy MACH-ID 9638 Make: HAEUSLER Type: VRM-hy Year: 1998 Smallest bending diameter 640 mm Pressing force against upper roll 5800 kN Conical bending attachment Central lubrication Csdpfx Aijzbqqus Sorh Equipped for change rolls 570 / 500 / 430 mm Rolling width: 3100mm Rolling thickness 3x toproll Ø:50mm Rolling thickness 5x toproll Ø:60mm Rolling thickness prebending: 40mm Top Roll Ø: 560+440mm Bottom Roll Ø: 540mm Side roll Ø: 420mm Number of rolls: 4 Rolling speed: 0-6 Adjustiment lower roll: 0 - 200mm/min. Adjustment side rolls: 0 - 500mm/min. Number of driven rolls: 2 Power: 81kW Length: 8700mm Width: 2900mm Height: 3075mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 1997, condition: ready for operation (used), Travel X/Y/Z: 1300mm/1100mm/1000mm, table dimensions X/Y: 800mm/800mm, number of pallets: 14, max. table load: 2200kg, table indexing: 0.001°. Speed: 7000rpm, spindle power: 50hp, tool magazine: 80, dimensions X/Y/Z: approx. 7000mm/3400mm/3800mm, weight: approx. 24000kg. On-site inspection is possible. Codpfotx Dn Uox Ai Ssrh

Year of construction: 1985, condition: reconditioned (used), Technical Details : Crodjh In Thopfx Ai Soh Wire Dimeter range- 4-12mm Gscxckebw Run out table - 4m Speed -80' m/min. Reconstruction- 2022

Condition: reconditioned (used), Year of construction: 2004, warranty duration: 6 months, Automatic bun divider Mini Rex 4000 - used - year of manufacture 2004 - weight range 30-135 g - maximum output 4,000 pieces/hour - electronic control - power supply 3 x 400 V Crodpfx Aszgr I Doi Seh - recently refurbished - 6-month warranty - pick-up from warehouse / shipping option available - price on request
