Edgebander

BRANDT KDF 890 2CU

Condition: used, machine/vehicle number: 007734, X axis working area: 3050 mm Y axis working area: 850 mm Main Electrospindle power: 5 KW Total number of drilling spindles: 19 Tsdpfx Asw Idb Hjc Nof

Condition: new, Bernardo frame saw Topcut 3200 ER Technical Specification Table dimension 1100 x 735 mm Format table 3200 x 400 mm Trimming length 3200 mm Max saw blade diameter 400 x 30 mm Max cutting height 90° / 45°125 / 88 mm Cutting width at the parallel stop 1300 mm Table height 890 mm Table extension 600 x 615 mm Table widening 825 x 750 mm Boom table with roll 1240 x 860 mm Speed Main saw blade 3000 / 4000 / 5000 rpm Speed scoring saw blade 8000 rpm Scribble saw blade 120 x 20 mm Suction connection of 100 mm Engine power S1 100% 5.5 kW (7.5 hp) Engine recording power S6 40% 7.5 KW (10.0 hp) Scoring motor power 0.75 kW Voltage 400 V Machine dimensions (W x D x H) 3420 x 3600 x 1610 mm Weight approx. 850 kg Delivery • Electric saw blade height adjustment • Digital cutting height display • Saw blade cover with inlet roller • Miter stop • Eccentric tensioner • Table widening • Extendable telescopic stop • Longitudinal stop flaps • Boom table with roller • Sliding stick • Scoring unit with independent motor • Operating tool Properties • High-torque drive motor (5.5 kW) powerful drive motor, designed for optimum cutting performance • Smooth-running double roller trolley with center and end position locking for precise cuttings • Maximum saw blade diameter 400 mm for cutting heights up to 125 mm • Boom table with roller for simplified handling of larger workpieces • Foldable parallel stop with mik Tedpsd N S T Dsfx Ac Njf

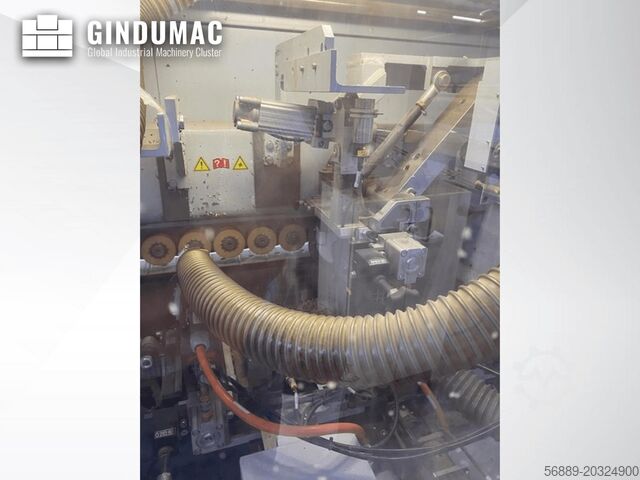

Condition: used, BRANDT highflex 1440 edge bander well equipped, Initial milling cutters glue application pneumatic preliminary guillotine pressure rollers finished cutting saws Tedpjv H D S Sjfx Ac Nof top-bottom milling unit 2 x finishing unit profile scraper flat scraper polisher the machine has nc milling cutter control and a pneumatic package max. element height 60mm max. veneer thickness in a roll 3mm max. feed 14m/min the machine is functional, can be tested before purchase

Condition: ready for operation (used), Year of construction: 2008, This BRANDT Optimat KDF 550 was manufactured in 2008. It features a machine length of 5860 mm, power requirement of 11.5 kW, and a weight of 2600 kg. Capable of handling workpiece thickness from 8 to 60 mm and edge thickness from 0.4 to 8 mm, it's ideal for precise edgebanding tasks. Consider the opportunity to buy this BRANDT Optimat KDF 550 edgebander. Contact us for more information. Tjdpfswug Uwex Ac Nof Application Types Edge Banding

Condition: used, machine/vehicle number: 008021, Max. panel width: 4300 mm Max. panel length: 2200 mm Main saw blade projection: 125 mm Todpfx Acjw Uz Spj Njf No of Grippers: 11 Panel Rotation Station: yes Thin sheet loading: yes Vacuum sheet loading: yes

Condition: new, COLUMN DRILLING MACHINE IBERDRILL BC-50 VE TECHNICAL DATA - STANDARD max. drilling capacity for steel (St 60) at continuous power S1 Ø 50 mm max. drilling capacity for grey cast iron (GG 20) at continuous power S1 Ø 60 mm Max. tapping capacity for steel (St 60) at continuous output S1 M 42 Tsdpfxjgy Hals Ac Njf max. tapping capacity for grey cast iron (GG 20) at continuous output S1 M 50 tool holder in spindle MK 4 max. spindle stroke (drilling depth) 200 mm motor power spindle 4 kW Drive 3-speed gearbox and V-belt Speed adjustment infinitely variable via potentiometer Speed range for 50 Hz motor, n = 1.500 rpm 30 - 300; 90 - 900; 190 - 1.900 rpm Feed automatic or manual Number of automatic feeds 4 gears range of automatic feeds 0,1 - 0,2 - 0,3- 0,4 mm/rev Table dimensions (width x depth) 550 mm x 550 mm column diameter 175 mm distance spindle center / column 360 mm Machine weight net/gross 760 kg / 850 kg Dimension transport v. (length x width x height) 2,4 m x 0,7 m x 1,3 m STANDARD EQUIPMENT / BASIC MACHINE Gearbox with quality gears and automatic oil pump lubrication and V-belt 3 gear speeds preselectable via 1 front lever 3 speed ranges with infinitely variable speed adjustment by means of frequency converter digital speed display integrated in front panel 4 automatic feeds electromagnetic clutch ergonomic 4-fold handle cross with integrated feed buttons handwheel for fine manual feed scale with adjustable drilling depth

Condition: new, bore capacity in steel (diameter) 50 mm bore capacity in cast iron (diameter) 60 mm threading cutting capacity: M42 throat 360 mm bore stroke 200 mm spindle taper MK 4 feed range - spindle 0,1-0,2-0,3-0,4 mm/U spindle turning speed range 190 - 1900 U/min column diameter 175 mm table surface area 550 x 550 mm total power requirement 4 kW weight of the machine ca. 0,85 t dimensions of the machine ca. 2,2 x 0,7 x 1,3 m Tjdpfon Ea Twox Ac Njf - large stepless speed range in 3 stages - mechanical speed adjustment with hand lever (model V) - electronic speed adjustment with frequency converter (model VE) - Front digital speed display - Gear lubrication by automatic oil pump “VE” - Machine base plate with integrated coolant device - Machine light - MGI rotating and tilting table - Advance and automatic retraction with electromagnetic clutch - Front hand wheel for fine adjustment of the manual feed - Scale with adjustable drilling depth - Automatic feed reversal when threading - automatic tool ejector - Electric controls integrated in the drill head - EMERGENCY STOP button - Switch for forward/reverse rotation - Height-adjustable chip protection disc with micro switch - CE marking
