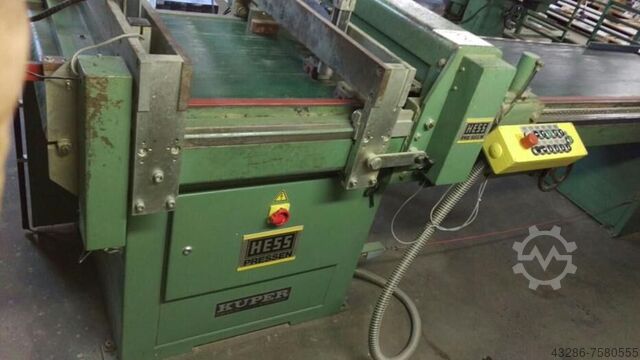

Frame press

Hess

Condition: used, Year of construction: 2000, table width: 2,700 mm, table length: 3,300 mm, total length: 3,800 mm, total width: 1,000 mm, total height: 2,700 mm, overall weight: 2,000 kg, No. 04544 Perforated plate press Hess JULIA Used, year of construction 2000 Dimensions of the perforated plate 3300 x 2700 mm LW 4 manual hydraulic cylinders (2 in need of repair) 12 pneumatic cylinders (2 magnetic and with angle adjustment) Transport dimensions approx. 3800 x 1000 x 2700 mm LWH Weight approx. 2000 kg Tsdpfey E N Izex Abteb To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Payment terms: Prices plus VAT, payment before collection or shipment Delivery terms: ex warehouse

Condition: reconditioned (used), Working width 3500 mm Working height 2550 mm Number of cylinders 6 St. loading dimensions L x W x H 4500x950x2900 mm Hess Speedy frame press ----- will be checked Insertion dimension / pressing length max. 3,500 mm Insertion dimension / pressing height max. 2,550 mm Sliding carriage for width adjustment locking in 50 mm Double hole grid system Electric height adjustment of the long-stroke cylinders (hydraulic) Insertion height of the abutment plates can be preselected in 4 positions 3 vertical printing cylinders stroke 1000 mm Pressure force per cylinder 2000 kN / 20000 N 3 horizontal printing cylinders stroke 80 mm Pressure force per cylinder 1250 kN / 12500 N Printing plate depth 100 mm width 140 mm Grid for cylinder fixation/rear bearing 50 mm Medium pressure beam with shut-off valve Final pressure switch-off and pressure control Control and pressing process in touch button operation Todpfjxnqw Tsx Abtsb Adjustable pressing pressure min. 25 – max. 160 bar Electrical connection 2.2 kW / 400V 3 pendulum pressure plates for studio windows 1 pendulum pressure plate for pointed windows 1 extension for pendulum pressure plate 1 small parts allowance Image and video not original, show identical model ----- (technical data according to the manufacturer - no guarantee!)

Condition: not inspected (used), Number of sanding units 4 St sanding width 190 mm Sanding height max. 4-180 mm weight 4200 kg Hess Expert 4-belt single wood sanding machine machine will be checked by our technicians ----- Ø Grinding at the bottom/top Ø With 2 offset grinding units each (bottom and top) Ø Grinding units (bottom and top) connected in series according to the Dressing principle Ø Pre-sanding with coarse grit (calibrate) Ø Regrinding with fine grit (finish) Ø Central motorized height adjustment of the lower grinding units Ø Central motorized and synchronous height adjustment of the entire upper Grinding and brushing units including the upper transport units Ø Oscillating sanding belt utilization (during the sanding process) Ø Absolute power connection thanks to 5.5 KW motors and large dimensions drive drums Ø Oxide ceramic grinding shoe for - exact surface geometry - no adjustment work - permanent dimensional accuracy - completely maintenance and wear-free Basic structure: Stable, heavy welded construction made of strong-walled rectangular profiles additional, statically calculated reinforcements for optimal Vibration dampening. Staggered grinding units with large dimensions Belt drive drums for slip-free belt running. Two-point suction for direct and flying dust with sealing brushes and integrated sanding belt blow-off Device to increase the service life of the sanding belts. Grinding units in heavy steel plate construction as the basis for vibration-damped, quiet tape running. Absolutely backlash-free guides as ball linear sets hardened and ground shafts. Height adjustment of the grinding units via hardened and ground special linear guides as well as pre-tensioned ones Guide carriage. Permanent precision thanks to dust and dirt protection Ball linear sets and guide carriages. Large-sized pre-grinding rollers as contact rollers. Contact rollers and Sanding shoes in a balanced ratio to the sanding belt grain load. The large drive drums guarantee full transmission the 5.5 kW drive power of the grinding motors on the sanding belt. Therefore Slip-free, stable running and optimal heat dissipation. This makes it the strongest Chip removal possible. Automatic machine stop activation in the event of a belt break. Visual display on the control panel and via flashing lights on the machine. Sanding shoes for finish completely maintenance-free and wear-free made of oxide ceramic with optimal heat dissipation. Grinding belt tension via appropriately sized compression springs. Sanding belt relaxation for belt changing using a pneumatic device sensitive, distortion-free placement of new tapes. Upper grinding unit and brush device centrally motorized Height adjustable with digital display in the control panel for the motorized Grinding thickness adjustment. Brushing and finishing device, for better surface finish, integrated into the basic machine. Two special brush rollers 150 mm Æ arranged one above the other in synchronous function for advance thrust. Separate height adjustment of the brush rollers on precise Carriage guides for post-correction of wear. Additional transport roller for Removal or further transport of the workpiece from the automatic grinding Tsdpfxot Tqy Ej Abtjb machine with the conveyor belt. Wooden guide in the inlet area for hard guide and bearings mounted on both sides pressure rollers. Safe transport of profiled workpieces on ca...

Condition: ready for operation (used), Working width 3450 mm Working height 2000 mm Number of cylinders 5 St. loading dimensions L x W x H 3600 x 1200 x 2720 mm Hess "Multipress" Perforated Plate Press For all sloped, segmental, and round-arch windows and doors. Also for interior work or frame construction. For gluing staircase block joints and much more. Largest working area approx. 3450 x 2000 mm External dimensions approx. 3600 x 1200 x 2720 mm The vertical perforated plate press is constructed of heavy-duty, torsion-free steel. Thanks to its simple, robust, and economical design, it has a long service life. The perforated plate is made of 10 mm sheet steel with a 50 mm hole pattern. The pressure cylinders and abutments are self-locking. 5 plug-in hand hydraulic cylinders Tjdpfx Aswqr R Ajbteb on a perforated plate with a built-in pump, 2000 kp pressure relief valve, 140 mm pressure plate width, 80 mm pressure plate depth, 60 mm cylinder stroke 4 fixed individual abutments (Technical specifications according to the manufacturer - no guarantee!)

Condition: excellent (used), Surface Planer / Jointer, used Working width: 520 mm Total table length: 3000 mm Infeed table length: 1780 mm Outfeed table length: 1180 mm Adjustable fence with angle, size 1500 x 175 mm Motor power: 4.0 kW, 400 V, 50 Hz Cutterhead speed: 5000 rpm 4-knife cutterhead, diameter 120 mm Max. cutting depth: 8 mm Extraction connection: Ø 120 mm Table height: 860 mm Hydraulic table height adjustment with foot pedal Numerical cutting depth display Noise reduction combs on the cutterhead Star-delta starter Emergency stop button CE marked Tsdjy Emf Rjpfx Abtob Including all documentation Knife setting gauge NEW drive belts NEW cutterhead bearings NEW planer knives Dimensions (L x W x H): 3000 x 950 x 1100 mm Weight approx. 900 kg Note on used machines: • Errors in technical data and prior sale reserved. • Quoted prices are ex-location, loaded free on truck. • The machine has been cleaned and function-tested. • All machines are sold as inspected, without any guarantee or warranty. Buyers are welcome to inspect the machine at its location. • Special agreements are only valid in written form. (We will only respond to inquiries with your address and telephone number!)

Condition: good (used), Year of construction: 1992, Single-piece sanding machine sanding from top and bottom electric height adjustment with digital display continuously variable feed speed star/delta starter pneumatic belt tensioning main switch sanding belt oscillation finishing brush unit top and bottom, manual height adjustment Working width: 190 mm Working height: 4 - 150 mm Tjdswyda Uopfx Abtjb Min. workpiece length: approx. 280 mm Abrasive belt dimensions (L x W): 1850 x 200 mm Feed speed: 5 - 25 m/min Installed power: approx. 14 kW Extraction port diameter: 2 x 180 mm Dimensions (L x W x H): 2000 x 1000 x 2050 mm Weight: approx. 1800 kg Incl. infeed and outfeed roller conveyor (L = 1600 mm, non-driven) Note on used machines: • Technical data subject to errors and prior sale. • Quoted prices are ex-works – loaded free of charge! • The machines have been cleaned and function-tested. • All machines are sold as inspected, with no claims to warranty. Buyers are welcome to inspect machines at the location. • Special agreements are only valid in written form. (We answer inquiries only when your address and telephone number are provided!)

Condition: excellent (used), Hess Corpus Press Type: Export, Pneumatic Manufacturer: Hess Type: Export Maximum workpiece size: 2,500 x 1,500 mm Press force: 1,400 kp pressing capacity per pressure unit at 15 bar Vertical cylinders: 2 + 2 pressure cylinders Horizontal cylinders: 2 + 2 pressure cylinders Dimensions: 3,900 mm x 2,500 mm x 600 mm Weight: 1,060 kg Hess Corpus Press Export, pneumatic 2 vertical pressure assemblies, each with 2 pressure cylinders, 80 mm cylinder diameter, 110 mm stroke, 1,400 kp pressing force per pressure unit at 15 bar Tsdpfx Aexgvwpsbtob 2 horizontal pressure assemblies, each with 2 pressure cylinders, 80 mm cylinder diameter, 110 mm stroke, 1,400 kp pressing force per pressure unit at 15 bar; the upper unit is easily adjustable thanks to weight compensation Pressing operation is controlled via 2 rotary slide valves with positions Press – Stop – Release Maintenance unit consisting of pressure regulator (0–15 bar), pressure gauge, and oil mist lubricator Anodized measuring scales, detachable feet Location: Ex works customer site - Immediately available -

Condition: used, Year of construction: 2003, Working height: 2300 mm, Working width: 3500 mm, Motor: 1.5 kW, 3 pressure cylinders from above, 2 from the side, Pressure per cylinder: 3000 kg, Cylinder stroke: up to 200 mm, Hydraulics: 10-150 bar, Space required: 3950 x 900 x 2550 mm, Weight: 670 kg Todpfjvvkmbex Abtob Storage location: Nattheim

Condition: excellent (used), 0.75 kW motor Working height: 205 cm Working length: 300 cm Working width: 8 cm 4 upper clamping jaws 2 lateral clamping jaws Tedpfozu Ndrex Abtjb

Year of construction: 2026, operating hours: 1 h, condition: new, machine/vehicle number: H10TM, Universal testing machine H10TM Force: 10 kN Crosshead travel: 700 mm Installation space: 400 mm Overall height: 1230 mm Weight: approx. 84 kg Stroke resolution: 0.01 mm Testing speed: 1-500 mm/min Return speed: 700 mm/min Force sensor: 10 kN Including evaluation electronics and basic software. Tedpfszuma Rex Abtjb Our testing machines can be operated in stand-alone mode using a numeric keypad, allowing for a “quick test” even without a PC. For tests that require data storage and recording of the curve profile, we offer you the option to control and evaluate the test using the basic software. This allows you to generate various test sequences and create a test report. Furthermore, you have the option to process the raw data in your own programs. Optional: - Delivery & commissioning - DAkkS or factory calibration according to DIN EN ISO 7500-1 Load cells: 5N-10N-20N-50N-100N-200N-500N-1kN-2kN-3kN-5kN-10kN - Grips: Compression platens, bending fixtures, shear fixtures, wedge grips, scissor grips, screw grips, pneumatic grips, and hydraulic grips.

Condition: new, Year of construction: 2025, functionality: fully functional, ACTION M frame press Press for any kind of window system: windows, slatted shutters, shutters and solid wood doors. Max working dimensions L x H 3500x2500 mm Tedewh T Dlspfx Abteb Min working dimensions L x H 250x375 mm Max vertical/horizontal thrust 7,4/2 ton Working height 480/1050 mm Hydraulic pump power 2.1 kW MACHINE COMPOSITION: ACTION M ACTION M FRAME PRESS num 1 109831 Normative CE per SM 1 R00494 action m 35-25 1 930731 Volt 400 EU 1 931201 Frequency 50 Hz 1 530074 PVC-coated beams working surfaces 1 530075 Intermediate manual crossbeam complete of piston and counter-stop 1 530076 Hydraulic system for low pressure working 1 530077 Equipment for trapezoidal products with oscillating head to adapt to the different corners of the windows system 1

Condition: ready for operation (used), Year of construction: 1998, A stationary Hess concrete block step tilting mold machine is available. Production area X/Y: 750mm/1500mm, production height: 300mm, board dimensions X/Y/Z: 1700mm/550mm/300mm, board material: aluminum, number of boards: 290, vibration stations: 2, vibration station type: HFZ 2500, vibration force: 89.5kN, available mold types: block step chamfer/block step Ortenau/deep curb, control system: Siemens PLC. Including transport conveyor with 180° turning device and two lifting devices, lifting ladder, transfer car, lowering ladder, board discharge, board cleaning and board buffer. The compact external vibrators were converted to load vibrators. This is a complete system with peripheral and conveyor units. Documentation vorhanden. An on-site inspection is possible. Tsdpfx Ajy Rtg Ssbtsb

Condition: excellent (used), Year of construction: 1995, Rotary / carousel wood gluing press HESS, 6 meters Year of manufacture: 1995 The press is operational and in good technical condition. Tsdpfjy Rzk Sex Abteb Press infeed • Glue application machine with 2 rollers Technical data of the HESS gluing rotor • 4 working areas, each 6,200 x 1,000 x 150 mm • 4 pressing sections • 8 sliding pressure beams • 2 pneumatic pressure cylinders per each pressure beam • 21 hydraulic rams from above • Pressure force per cylinder: 35,000 N / 3,500 kg • Maximum total pressure at 120 bar: max. 73.5 tons per pressing surface Machine dimensions • Total length: rotor 11,100 mm • Depth: 3,050 mm • Height: 3,350 mm • Weight: 13,500 kg

Condition: ready for operation (used), Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 40/50 mm Weinig Unicontrol 6 ----- Machine will be checked in our factory before delivery! Technical Data Summary (Please inquire about any additional accessories included) Item 1: Cut-off saw ----- > Number of tools: 1 pc. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Maximum tool diameter: 400 mm > Motor power: 3.0 kW > Laser guide light for identifying the saw cut CNC-controlled length stop ----- > Length: 3,600 mm > Electronic length stop including positioned cut-off saw Item 2: Tenoning spindle ----- > Number of tools: 3 (stroke 2 x 100 mm) or 4 (Stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 3000 rpm > Maximum tool swing diameter: 320 mm > Spindle diameter: 50 mm > Maximum tool diameter: 360 mm > Motor power: 11 kW Item 3: 1. Profiling spindle (co-rotation and conventional) ----- > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 7.5 kW Item 4: 2. Profiling spindle ----- > Position: Vertical right > Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 11 kW 2 axially indexed feed rollers opposite the profiling spindle, for the production of narrow, short parts (e.g., glass-dividing muntins) Munch guide consisting of: Munch support strip from above in the area of ??the vertical right-han d profile milling unit and profiling spindle. Tjdpoxtvgkefx Abteb Item 5: Horizontal top profile milling unit ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Spindle speed: 5,850 rpm > Maximum tool swing diameter: 130 mm > Axial travel: 52 mm, indexed in 2 positions > Radial travel: 125 mm, indexed in 2 positions Item 6: 3rd profiling spindle (fitting spindle) ----- > Position: Vertical right > Tool clamping length: 160 mm > Axial travel: 90 mm, indexed in 3 positions > Radial travel: 100 mm, indexed in 2 positions > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Maximum tool swing diameter: 210 mm > Motor power: 3.0 kW Further features ----- > Electric feed height adjustment including mechanical digital display and manual feed bar clamping > Rebating device for tear-out-free rebating > Double part package > Return conveyor for 1-person operation: swivel conveyor > Screen control > Angled window device > Electronic angle display for angled windows > Industrial PC with Windows PC control/NEXUS Extraction nozzle diameter: ----- Crosscut saw 80 mm Tenoning spindle 140 mm Profile spindle 1 140 mm Profile spindle 2 140 mm Grooving device from above 80 mm Hardware spindle 120 mm -----...

Condition: refurbished (used), Year of construction: 2015, operating hours: 180 h, functionality: fully functional, machine/vehicle number: H5KS, Universal testing machine, type H5kS Extended version by 254 mm With 5KN 500N load cells, screw-type clamping device up to 5kN, and Windows 10-11 software For tensile, compressive, bending, and shear testing, etc., in accordance with EN ISO 7500-1, ASTM E4. The H5kS is a universal testing machine designed according to the latest standards. The machine operates in accordance with the relevant EU radiation protection and safety guidelines (EN 50081-1, 72/23/EEC, EN 61010-1). The maximum voltage within the machine is 48 volts. Special features: • Large, easy-to-read liquid crystal display with backlight • Graphical or numerical display mode • Alphanumeric file input • Speed range 0.001 to 1000 mm/min (2.5kN) • Speed range 0.001 to 500 mm/min (5kN) • High return speed 0.001 to 1500 mm/min • Precise crosshead positioning • Robust load frame • Output of test results with mean value and standard deviation via printer Tsdpozt S Hmefx Abtob • Wide selection of testing software under Windows for various standards • RS232 interface for use with computer systems • Accuracy of the force display of the load cell: 0.5% across the entire range • Accuracy of the displacement display: 0.001 mm • Equipped with a force and displacement alarm system • 32-bit motor controller • 20% digital weight adjustment during calibration of the load cell capacity • Automatic motor alarm for over- or undervoltage and overheating Specifications: • Force measurement accuracy: +/- 0.5% of the displayed force in the range of 2% to 100% • Accuracy of position measurement: +/- 0.01% or 0.001 mm • Accuracy of speed: +/- 0.005% of the selected speed • Operating temperature: 0 to 38°C • Humidity range: 10% to 90% Technical data: • Single-column table model • Maximum load: 5kN in tension and compression • Maximum travel: 1004 mm without clamping device • For further details, please refer to the brochure. Dimensions: Height: 1394 mm Width: 490 mm Depth: 450 mm Weight: 102 kg Connection: Machine: 50-60 Hz - 2000 W Power supply: 220/240VAC
