Coordinate measuring machine

Mahr MS222

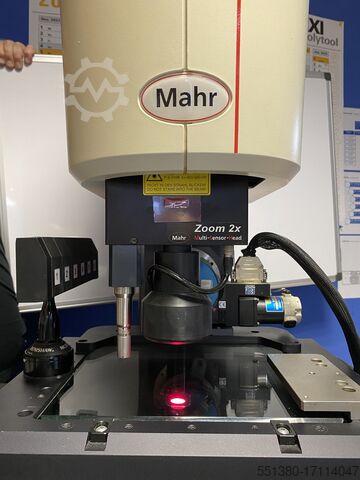

Condition: refurbished (used), Year of construction: 2025, operating hours: 12 h, functionality: fully functional, measuring range X-axis: 200 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 15 kg, warranty duration: 12 months, total height: 1,700 mm, type of input current: AC, total width: 750 mm, total length: 900 mm, overall weight: 300 kg, input voltage: 230 V, table load: 15 kg, year of last overhaul: 2025, ambient temperature (max.): 30 °C, ambient temperature (min.): 12 °C, maximum load weight: 20 kg, Equipment: documentation/manual, lighting, type plate available, Fully factory-refurbished and modernized multisensor coordinate measuring machine Mahr MS222 with a modern 64-bit CNC controller and Windows 11, including 12 months warranty and full support from the specialized service company. The measuring device has been completely factory overhauled and reconditioned, equipped with a modern new controller and the latest version of our measurement software. The measuring system will be delivered and set up at the customer’s site for the above-mentioned price. Additional optional services: Isdpewcxb Sjfx Ac Aoik On-site commissioning / calibration Training Custom measurement programming for immediate start of part inspections Complete package includes: Measuring machine 64-bit CNC controller Industrial PC with Windows 11 Perpetual software license OptiCheck3D 2025 (full license of the measurement software with no subscription or maintenance contract) Multisensor head with high-resolution industrial camera Renishaw TP20 touch probe system (alternatively TP200 system available) including one standard force module Calibration artifact Acceptance certificate / calibration certificate (pre-shipment condition) Free delivery within Germany (EU and international shipping available on request) Specifications: Measuring range: 200 x 200 x 200 mm Load capacity: 10 kg on glass plate Scale resolution: 0.1 µm Max. travel speed: 150 mm/s Dimensions: 900 x 750 x 950 mm Machine weight: 170 kg Control cabinet weight: 90 kg Accuracy according to VDI/VDE 2617 Sheet 6, ISO 10360-2: U1 = 1.9 + L/200, U2 = 2.2 + L/150, U3 = 2.9 + L/100

Condition: excellent (used), Sub-spindle, C-axis FANUC 18i-TB control Turning diameter max 300mm Turning length -366mm Spindle speeds main spindle 30-5000 rpm Spindle speeds sub spindle 30-6000 Turret head: 12 driven positions C-axis Dividing 0.001 degrees Misc. accessories Iedpswufdqefx Ac Ajik MARCELS MASCHINEN CH

Condition: reconditioned (used), Year of construction: 2025, operating hours: 10 h, functionality: fully functional, measuring range X-axis: 200 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, warranty duration: 12 months, travel distance X-axis: 200 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 200 mm, input voltage: 230 V, feed length X-axis: 200 mm, feed length Y-axis: 200 mm, feed length Z-axis: 200 mm, Equipment: documentation/manual, lighting, type plate available, Refurbished Multisensor Measuring Device Mahr MS 222 - LIKE NEW Including certification of acceptance prior to delivery Factory-refurbished premium multisensor measurement center with warranty and guarantee, rebuilt in 2024. INCLUDES the latest software update, 18 months of free software update service, free lifetime software hotline, and user support. Iodpfx Acjglp Nqe Ajik Delivery Options: Factory service or worldwide shipping via freight forwarder. Demonstrations: Online or on-site demos available with customer-specific parts. Application consulting provided by accredited Profitech measurement laboratories during project planning. Comprehensive Service Package: – Delivery, setup, commissioning, accuracy verification according to standards, certification, and extensive acceptance documentation. – Tailored training programs available, including online courses. Flexible Payment Options: Rental, lease-purchase, or financing directly through Profitech—no financial institution required. The measuring device can be configured to meet individual customer needs. Specifications: Measurement Range: 200 x 200 x 200 mm Load Capacity: Glass plate 10 kg Scale Resolution: 0.1 μm Maximum Traverse Speed: 150 mm/s Dimensions: 900 x 750 x 950 mm Machine Weight: 170 kg Control Cabinet Weight: 90 kg Length Measurement Accuracy: According to VDI/VDE 2617-6 E2 (X,Y) = (3.2 + L/125) μm Probing System with Optional Probe Package: Renishaw TP20 probing system installed Retrofit: Updated in 2025 Includes PC and Software Illustrative Image by the Manufacturer

Condition: refurbished (used), Year of construction: 2025, operating hours: 16 h, functionality: fully functional, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 200 mm, warranty duration: 12 months, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 200 mm, input voltage: 230 V, feed length X-axis: 400 mm, feed length Y-axis: 400 mm, feed length Z-axis: 200 mm, year of last overhaul: 2025, ambient temperature (min.): 16 °C, Equipment: documentation/manual, lighting, type plate available, Mahr Multiscope 442 multi-sensor measuring device equipped with camera, laser and Renishaw probe system. Factory overhauled premium multisensor measuring center with guarantee and warranty rebuilt 2025. Incl. latest SW update, 18 months free SW update service, free lifetime SW hotline and user support. Delivery with factory service or forwarding agency, worldwide. Online, optionally on-site demos with customer parts, application technology advice from accredited Profitech measurement laboratories during project planning. Complete service: – Delivery, construction, commissioning, accuracy acceptance according to standard, certification and extensive acceptance documentation. Individual education and training programs can also be booked as online courses. Rent-hire-purchase or financing possible directly via Profitech and without a financial institution. Measuring device individually configurable to customer needs Iiedpfsdy Uvmox Ac Ask Measuring range of all sensors: 400x400x200mm Dimensions: 800x1000x2000mm Weight: about 800kg max. loading weight: glass plate 30kg Accuracy: U1=1.9 + L/200; U2=2.4 + L/150; U3=2.9 + L/100 (L= measuring length in mm) max. travel speed: 250mm/s including camera including lasers including LED ring light incl. new frame grabber (Eagle) including 2-monitor operation incl. CNC control and PC including new Optichek 3D 5.0 evaluation software

Condition: used, Year of construction: 2008, functionality: fully functional, measuring range X-axis: 400 mm, measuring range Y-axis: 500 mm, measuring range Z-axis: 300 mm, Visio 500 optical/tactile 3D measuring machine. Travel range: 453 (400 X, 500 Y, 300 Z). Measuring software: PC-DMIS CAD Version 2015. Probe change rack with 6 positions, equipped with 2 TESASTAR MP modules in total. Silent PC Big Tower with Windows 7 (fully installed and operational). Camera with 200x optical zoom featuring ring light/coaxial light and transmitted light (diascopic). All functions fully operational. Y-axis has minor scratches, which have been polished. This does not affect functionality or accuracy. Iiodsiyymrspfx Ac Ajk

Condition: new, We have different electronic parts for DMG machines, BOSCH,Siemens .... On Your request I will send detailed photos of all parts. Iiodpfx Acoddxv Us Aok

Condition: used, Deckel Maho DMU 70 eVolution Iedpfx Acow Rtd Aj Asik

Condition: good (used), Year of construction: 2002, travel distance X-axis: 1,050 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, 3-Axis Machining Center Manufacturer: Bridgeport Model: VMC-1000 XP Year of manufacture: 10-2002 Control type: Heidenhain iTNC-530 Operating hours: n/a S/N: 82XXXX Technical Data: ----- - Travel X-Y-Z: 1,050 x 610 x 600 mm - Spindle: max. 8,000 rpm - Tool holder: SK40 - Tool magazine: 22 positions - Coolant system - Through-spindle coolant (IKZ) - Glass scales on all axes X-Y-Z - Central lubrication - Weight: approx. 4.2 t - Dimensions LxWxH: 3,000 x 2,350 x 2,400 mm Accessories: ----- - Manuals - Tool holder package Special features: ----- - Through-spindle coolant (IKZ) deactivated due to defective flow tube in spindle Iedpfx Acow Nyfdo Aoik - Spindle replaced in 2023, few hours of operation, precise concentricity

Condition: excellent (used), Year of construction: 2023, Mobile 3D coordinate measuring machine Camera, hand probe with display Max. Measuring length 10000/3500/3500 mm Certified measuring range 3000/1500/1500 mm Triple camera Integrated measuring probe camera Iiodpfx Acju S Rnls Aek Measuring accuracy ±(28 + 5 L/1000) μm* Repeatability ±10 μm* Accessories

Year of construction: 2001, condition: excellent (used), machine/vehicle number: 00287, Technical data Manufacturer: brown & sharpe Type: DEA Scirocco 101509 Year of manufacture: 2001 Serial number: 00287 Software: PC-DMIS 2019R1 Measuring range X = 1000 mm Y = 1500 mm Z = 900 mm Measuring table Length = 2280 mm Iedji Dpggepfx Ac Aeik Width = 1145 mm The machine can be modernized with new accessories according to the customer's requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, specifications and prices and prices as well as subject to prior sale).
