Multi-blade tracked circular saw

RAIMANN KS 230 250

Condition: new, Panel saw HOLZ-HER 1255 SECTOR pro - Exhibition machine - Cutting height 2,200 mm Cutting length 5,300 mm Vertical perfection from HOLZ-HER The vertical panel saws from HOLZ-HER combine proven technology from over 50 years of experience and a rock-solid design that offers you a unique price-performance ratio. offer you a unique price-performance ratio. Your advantages: - Fully welded frame Extremely high rigidity - Precise cutting quality - Finished cut for immediate edge banding - Powerful saw motor with 4 kW output - Space-saving panel layout with a installation area from 4 m² - Smooth and ergonomic operation TRK extraction system (optional in all CE countries): Workstations must meet the highest requirements when it comes to health and safety. HOLZ-HER saws are among the cleanest and safest in the safest in the world. Accessories Itsdpfx Aeu R Syijgtop The extensive range of accessories extends from convenient digital dimension displays through to our our patented Super Cut plus scoring system. TECHNICAL DATA Vertical panel saw for cutting panel-shaped wood materials wood-based materials such as chipboard, MDF, veneer panels, multiplex, etc, veneer panels, multiplex etc. Basic machine: Completely welded frame with extremely high rigidity. Precise guidance of the saw beam / saw unit saw unit for an accurate cut. Manual feed feed for vertical and horizontal cutting. Cutting depth: max. 60 mm Saw beam: Sturdy saw beam guided on precision guides. Pneumatic locking of the saw beam at the top and bottom. Electrically monitored in vertical cut Saw unit: Smooth and ergonomic operation for plunging and and removal of the saw unit. Immersion lever can be lever can be folded down in the upper position for precise immersion of the saw unit. Generously dimensioned lever for easy pivoting. Housing cover opens the complete opens the complete saw unit for easy tool change change incl. ProLock quick-action chuck. Light cut-out: Riving knife can be retracted. Control panel: Efficient operation of the machine. Ergonomically positioned at eye level. Lower workpiece support: Sturdy, wear-free stainless steel support. Support up to the cutting line: Narrow workpieces cannot tip or fall through Extraction: Effective extraction with two connections: Saw unit Ø 120 mm, frame end Ø 100 mm (with TRK variant) Lifting roller transport system: Manually liftable and lowerable rollers for easy and and gentle panel transport. Measuring tape: For displaying dimensions for horizontal cutting with three manual dimension displays: Absolute dimension from the lower workpiece support Absolute dimension from the middle workpiece support Serial cuts from the top edge of the panel This offer is an equipment package. The following items and options are already included in the price: - Sliding grid - Manual longitudinal stop for vertical cutting - Digital dimension display for horizontal cut - 3 adjustable stop points in the saw beam - TRK SH 2.200 suction device - Strip stop for recurring horizontal cuts - new exhibition machine -

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, DROZDOWSKI PRP 58 FRAME SAW complete with accessories: - Chain cross conveyor - Chain longitudinal conveyor - Hydraulic system - Roller outfeed table - Saw blade sharpener - Set saw set tool Machine underwent a complete overhaul at the manufacturer's facility – perfect condition. Technical Specifications: Horizontal frame clearance: 580 mm Vertical clearance between rollers: 350 mm Saw frame stroke: 300 mm Main shaft speed: 330 rpm Feed rate: 0.5 - 2.5 m/min Blade dimensions (L x W x thickness): 815 x 70 x 1.6 mm Maximum number of blades: 12 pcs Main motor: 15.0 kW / 400 V Itjdpfjxawddjx Agtop Feed motor: 0.75 kW / 400 V Hydraulic pump motor: 0.75 kW / 400 V Lubrication pump motor: 0.18 kW Minimum length of log to be sawn: 1.8 m Minimum board thickness (standard): 13 mm (9 mm with single blade setup) Log cutting height above ground: 880 mm Track height above ground: 600 mm Roller pressure: hydraulic Overall dimensions of saw: 1.20 x 1.70 x 2.10 m (H) Total length of line with track: 10.00 m Weight with standard equipment: 3500 kg

Year of construction: 2022, operating hours: 500 h, condition: like new (used), functionality: fully functional, Vertical frame saw PRP-58W PRP-58W saws logs of any length and diameter up to 430 mm. The horizontal frame clearance of 580 mm allows you to cut even very thick logs in the case of previous, single or double-sided cutting on a band saw. The saw uses many technical innovations, including: dynamic tensioning of the blades, a special openwork design of the saws, a device for inserting short logs (meters), and a set for their quick feeding. The design of the feeder trolleys has also been completely changed compared to traditional ones. They can be used with minimal changeover for both long and short wood. In addition to the function of a traditional sawmill, the PRP-58W successfully perform the role of a multi-rip saw, a circular sawmill for a "pallet saw", and in all applications it is characterized by a very small kerf. Technical data of PRP-58 W Horizontal clearance of the saw frame 580 mm Vertical clearance between rollers 430 mm Itsdpjw H Nyysfx Agtep Saw frame stroke 300 mm Main shaft speed 330 rpm Working feed 0.5 - 2.5 m/min Blade dimensions 915 x 70 x 2,0 mm Maximum number of saws 10 pcs. Main motor 18,5 kW/400 V Feed motor 0,75kW/400V Hydraulic Pump Motor 0,75kW/400V Minimum length of the sawn logs 1,8m Minimum wiping length with special equipment 1.2 m Minimum thickness of the sawing (board) 13 mm Log sawing height over ground 880 mm Track height above ground 600 mm Overall dimensions of the saw 1.20 x 1.70 x H 2.20 m Total length of the assembly with the track 10.00 m Weight with standard equipment 3600 kg Including full equipment, both wagons for round timber and roller conveyors for blocks. Grinder many carbide tipped sawblades 12 m infeed and 12 m outfeed. (Possible to easily be shortened) Located in Southern Sweden. Please call directly to Fredrik Andersson +46707175853

Condition: used, Year of construction: 2004, PLC control Panel height mm 10-60 Solid mm 15 Pvc / Abs mm 3 Feed speed up to mt/min 12-18 Working height adjustable by PLC Adjustable panel support guide Side roller conveyor with idle wheels for panel support Rightening unit Roll holder plate Gluing unit for EVA glue with pre-melter Edge pressure unit End trimming unit Trimming unit with overlapping motors Tiltable chamfering unit Rounding unit with 4 motors Edge scraper unit Glue scraper unit Itedpfx Ageu Tyx Aetsp Oscillating brush unit

Condition: ready for operation (used), Technical characteristics Cutting dimensions: 3800 x 3800 mm Max. blade projection from work surface (cutting height): 80 mm Main blade max. diameter 320 mm, motor 7.5 kW Scoring blade max. diameter 200 mm, motor 2.2 kW Blade carriage speed adjustable from 5 to 60 m/min Pusher feed up to 40 m/min Automatic lateral alignment device Ijdpfjucithsx Agtetp 4 air-cushion unloading tables, dimensions 2000 x 650 mm with rounded profile 6 pneumatic grippers (positioned at 50-360-990-1740-2490-3240 mm) Windows PC-based control 3800 mm pusher stroke Remote Start cycle pusher, including emergency pusher Kit for automatic blade protrusion and controlled presser opening QUICK CHANGE device (quick blade release) DIGISET function Power and Motors Voltage: 380 V Pluging: Three-phased Overall dimensions Weight: 3950 Kg

Year of construction: 2007, condition: used, workpiece length 1400 mm Iedpjxukp Nofx Agtotp workpiece height max. 1000 mm workpiece width - max. 1400 mm total power requirement 70 KVA weight of the machine ca. 2,5 t dimensions of the machine ca. 2,5 x 2,75 x 2,6 m

Condition: used, machine/vehicle number: 007811, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB Position 2: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Position 3: Panel Turning Device BIESSE - RBO-STREAM SB Position 4: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Position 5: Automatic Drilling Machine BIESSE - RBO-STREAM SB Position 6: Automatic Drilling Machine BIESSE - RBO-STREAM SB Iedpfx Agsv Dyxcotstp Position 7: Panel Turning Device BIESSE - RBO-STREAM SB Position 8: Panel Stacking and Offloading BIESSE - RBO-STREAM SB

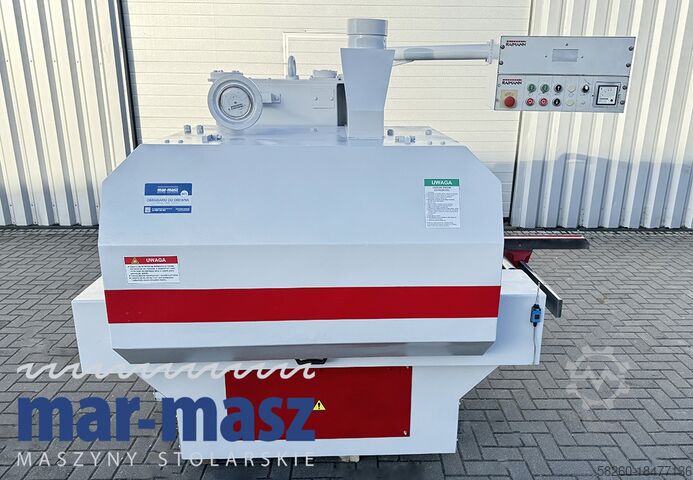

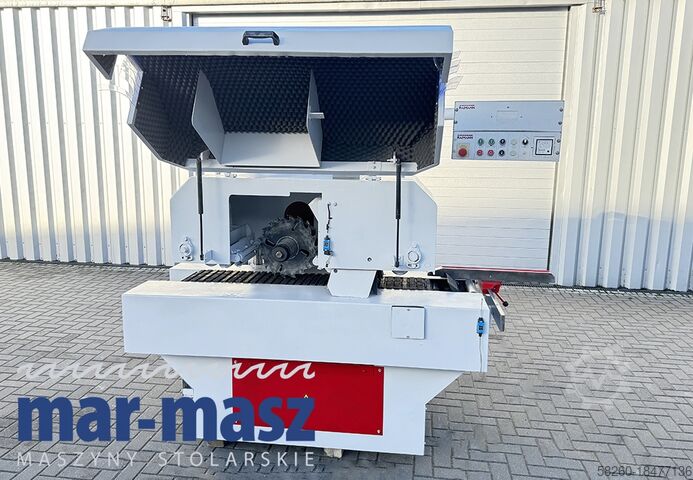

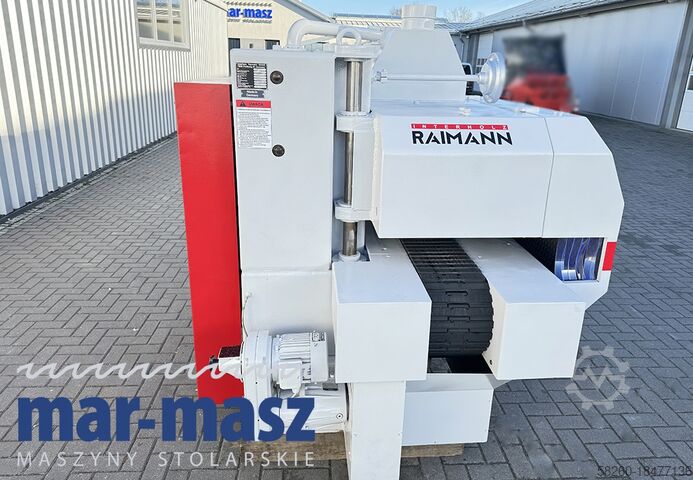

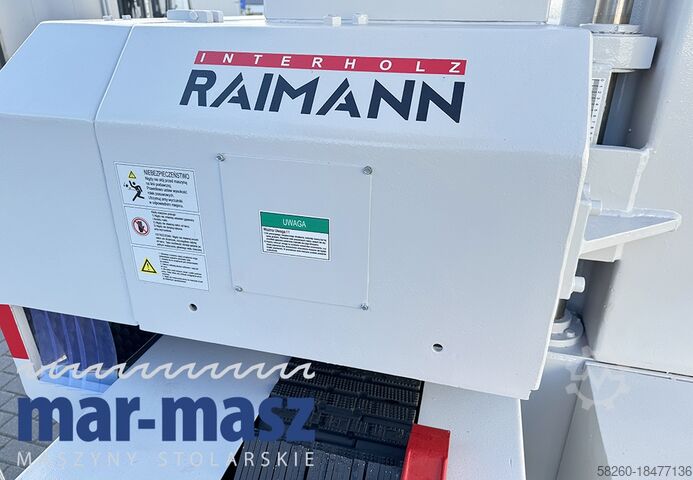

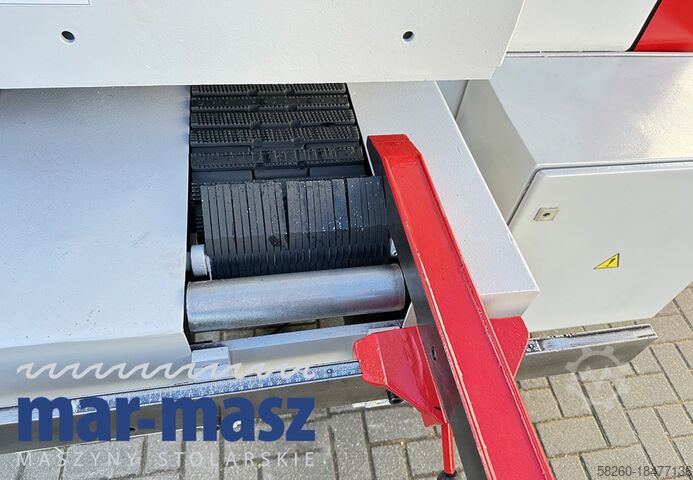

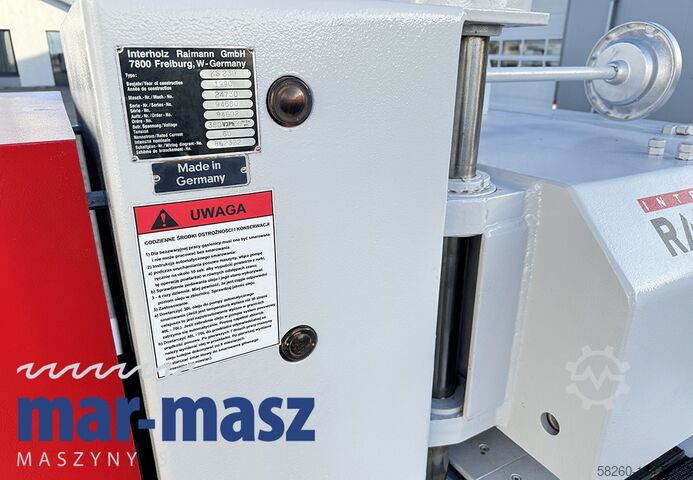

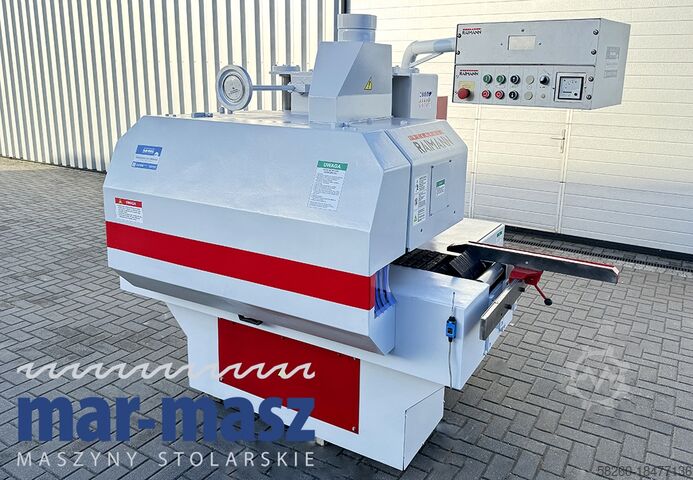

Condition: excellent (used), CATALOG NUMBER 7212 TECHNICAL DATA - Track width: 250mm - Shaft width: 400mm - Shaft diameter: 80mm - Maximum blade diameter: 400mm - Blade bore diameter: 80mm - Maximum cutting height: 140mm - Table width with clearance: 730mm - Table length: 2130mm From the top: - Pawls - Pressure shaft, slip type - Pawls - Pressure shaft, smooth - Saw shaft - Smooth pressure shaft, 4 pcs From the bottom: - Smooth slip shaft - Pawls - Track Infeed table + guide rail: - Roller width: 460mm Itedpfeqzhiqex Agtop - Feeder dimensions (L/W): 1660x630mm - Overall dimensions (L/W/H): 2010x630x900mm Outfeed table: - Feed rollers: 8 pcs - Roller width: 800mm - Overall dimensions (L/W/H): 4400x980x880mm - Centralized lubrication - Electric body raising/lowering: 0.55kW - Electric adjustment of saw shaft: 0.55kW - Stepless feed speed adjustment: 1–39m/min - Feed motor: 1.1kW - Main motor: 30kW - Extraction port diameter: 210mm - Overall dimensions of multirip saw (L/W/H): 2520x1870x2000mm + control panel - Total weight: approx. 2500kg ADVANTAGES – German-made – High cutting height – Infeed and outfeed tables – Used multirip saw, very good condition Net price: 89,900 PLN Net price: 21,400 EUR Net price calculated at the exchange rate of 4.2 PLN/EUR (Price may change in case of significant exchange rate fluctuations)
