Pipe-Bending Machine

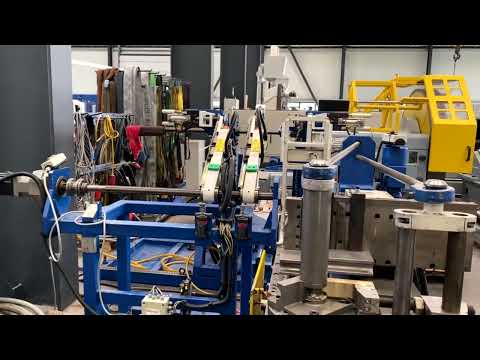

Schwarze-Robitec CNC 60 TB MR

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 34,797 h, machine/vehicle number: 2011-0250, pipe diameter (max.): 600 mm, pipe length (max.): 1,500 mm, bending angle (max.): 180 °, bending radius (max.): 200 mm, wall thickness: 3 mm, Original machine year: 1996. In 2011, fully overhauled by the manufacturer for approx. EUR 250,000: electrical and mechanical components extensively renewed. TECHNICAL DETAILS Tube diameter: 16 – 60 mm Wall thickness: max. 3.0 mm Bending radius: 20 – 200 mm Tube feed length: 1,500 mm Bending angle: max. 180° + spring-back Tube length: 400 – 1,500 mm Tube outside diameter: 28 mm – 60 mm Material specifications Tensile strength stainless steel: max. 750 N/mm² Tensile strength mild steel: max. 450 N/mm² Capacity (steel): Ø 60 x 3 mm Capacity (stainless steel): Ø 57 x 2 mm Axes/Movements Bending direction: left Bending speed (forward): max. 22.0 rpm (infinitely variable) Bending speed (return): constant 22.0 rpm Rotational positioning: max. 360° Rotational speed: 50 rpm Multi-radius height adjustment: lowest tube center 55 mm Height travel: suitable for 3-groove bending tools MACHINE DETAILS Overrun time: 125 ms Machine weight: approx. 8.0 t Machine dimensions (L × W × H): 6,300 × 3,300 × 1,900 mm Control cabinet (L × W × H): 2,700 × 700 × 2,000 mm Control console (L × W × H): 900 × 600 × 1,850 mm Tube magazine (L × W × H): 1,800 × 2,400 × 1,750 mm Operating hours: approx. 34,797 h Performance data Total power requirement: 55 kW Hydraulic oil volume: 340 l Control Dkjdpfx Aex Srkljg Rsg Bending planes: up to 6 (CNC programmable) Positioning device: NTB configuration Control unit: Schwarze-Robitec operation and control console FEATURES - Automatic cold tube bending machine - Tube positioning device - Gripper - Schwarze-Robitec tube magazine - Hydraulic operation for bending table, tool clamping, sliding rail, mandrel retraction, reinforced sliding rail feed and retraction - Various bending tools for Ø 60 mm tubes - Various accessories - Control cabinet cooling unit - Dual foot switch - Schwarze-Robitec control console - Rittal control cabinet cooling unit, type SK 3361100 Note: Machine could only be tested in setup mode due to lack of operating know-how. No faults are known. The machine is currently disassembled.

Condition: repair required (used), functionality: not functional, Year of construction: 2004, CNC Tube Bending Machine Manufacturer: Schwarze-Robitec Model: CNC 80 E-MR Year of manufacture: 2004/2006 Condition: Needs repair CNC Control: PC-based Beckhoff CNC control Technical Data: - Maximum tube diameter x wall thickness: 60 mm x 3 mm - Minimum tube outside diameter: 16 mm - Minimum bending radius (to tube center): 25 mm - Maximum bending radius (to tube center): 240 + 50 mm - Maximum bending angle: 180° - Maximum tube feed length: 1000 mm - Bending direction: right - Machine weight: 7,000 kg - Total connected load: 39 kW - Voltage: 400 V / 50 Hz - Current: 100 A - Machine dimensions (L x W x H): 6.2 x 3.2 x 2 m Equipment / Accessories: - Hydraulic pressure and feed on slide rails - Automatic tube turning and repositioning unit - Electric mandrel bending device - Pneumatic mandrel rod safety system - PC control Beckhoff - Automatic central block lubrication - Laser scanner, safety fencing Machine condition – repair needed: The planetary gearbox of the transport carriage is defective and must be replaced. Spare parts costs according to quotation: planetary gearbox €1,674 + gearbox flange €1,850 + pinion €850 + VAT – installation not included. Dkjdpfxexzubvj Ag Rjg Cheaper price – sale in as-is condition Immediate availability, including loading onto truck free of charge.

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 34,797 h, machine/vehicle number: 2011-0250, pipe diameter (max.): 600 mm, pipe length (max.): 1,500 mm, bending angle (max.): 180 °, bending radius (max.): 200 mm, wall thickness: 3 mm, The machine was originally built in 1996. Originally overhauled by the manufacturer in 2011 for approximately €250,000: electrical and mechanical components completely renewed. TECHNICAL DETAILS Pipe diameter: 16 - 60 mm Wall thickness: max. 3.0 mm Bending radius: 20 - 200 mm Pipe length: 1,500 mm Bending angle: max. 180° + springback Pipe length: 400 - 1,500 mm Pipe outer diameter: 28 mm - 60 mm Material parameters Tensile strength of stainless steel: max. 750 N/mm² Tensile strength of mild steel: max. 450 N/mm² Performance limit (steel): Ø 60 x 3 mm Performance limit (stainless steel): Ø 57 x 2 mm Travel movements Bending direction: left Bending speed (forward travel): max. 22.0 rpm (infinitely adjustable) Bending speed (reverse travel): constant 22.0 1/min Twisting angle: max. 360° Twisting speed: 50 rpm Height adjustment for multiple radii: lowest tube center 55 mm Height travel: suitable for 3-groove bending tools MACHINE DETAILS Stop time: 125 ms Machine weight: approx. 8.0 t Machine dimensions (L × W × H): 6,300 × 3,300 × 1,900 mm Control cabinet (L × W × H): 2,700 × 700 × 2,000 mm Control panel (L × W × H): 900 × 600 × 1,850 mm Tube magazine (L × W × H): 1,800 × 2,400 × 1,750 mm Operating hours: approx. 34,797 h Performance data Total power requirement: 55 kW Hydraulic filling volume: 340 l Control system Dkedpfewlpt Dox Ag Rog Bending levels: up to 6 (CNC-programmable) Positioning device: NTB version Control unit: Schwarze-Robitec operating and control panel EQUIPMENT - Automatic cold pipe bending machine - Pipe positioning device - Gripper - Schwarze-Robitec pipe magazine - Hydraulic operation for bending table, tool clamping, slide rail, mandrel retraction, reinforced slide rail feed and retraction - Various bending tools for Ø 60 mm pipe - Various auxiliary tools - Cooling unit for control cabinet - Foot control (2-way) - Schwarze-Robitec control panel - Cooling unit for control cabinet Rittal type SK 3361100 Note: Due to a lack of operating knowledge, the machine could only be tested in setup mode. No errors are known.
