Universal machining center
TOS KUŘIM FUE 125 W/4

Name: TOS KUŘIM FUE 125 W/4
Brand: TOS KUŘIM
Availability: InStock

Year of construction

2011

Condition

Used (fully functional)

Location

Czech Republic

Universal machining center TOS KUŘIM FUE 125 W/4

Basic data

Machine type:: Universal machining center

Manufacturer:: TOS KUŘIM

Model:: FUE 125 W/4

Year of construction:: 2011

Condition:: refurbished (used)

Functionality:: fully functional

Price & Location

Location:: Nám. 1.května 63/20, 664 34 Kuřim, Česká republika

Call

Technical details

Dimensions and weight

Overall weight:

87,000 kg

Total length:

11,550 mm

Total width:

10,750 mm

Total height:

5,560 mm

Table length:

3,000 mm

Table height:

800 mm

Table width:

3,000 mm

Power details

Type of input current:

three-phase

Equipment

Chip conveyor

Documentation and certification

Documentation/manual

Processable material / products

Workpiece weight (max.):

60,000 kg

Workpiece diameter (max.):

3,000 mm

Axis specifications

Travel distance X-axis:

4,000 mm

Travel distance Y-axis:

1,250 mm

Travel distance Z-axis:

2,500 mm

Feed rate X-axis:

20 m/min

Feed rate Y-axis:

10 m/min

Feed rate Z-axis:

10 m/min

Further details

Controller manufacturer:

HEIDENHAIN TNC 530

Torque:

1,200 Nm

Rotary table diameter:

3,000 mm

Rotational speed (max.):

2,500 rpm

Rotational speed (min.):

10 rpm

Table load:

60,000 kg

Rotational speed infinitely variable

Details about the offer

Listing ID:: A20348925

Update:: 22.10.2025

Description

We offer a used FUE 125 W/4 milling and boring machine, manufactured in 2011, equipped with the HEIDENHAIN iTNC 530 HSCI control system and HR410 handwheel, HEIDENHAIN digital drives, standard design, metric version, AC 3PE˜50Hz, 400V connection.

Travel ranges:
• X-axis (longitudinal): 4,000 mm
• Y-axis (cross): 1,250 mm
• W-axis (spindle extension): 800 mm, spindle diameter 130 mm
• Z-axis (vertical): 2,500 mm
• Rapid traverse X1: 20,000 mm/min
• Rapid traverse Y, Z1: 10,000 mm/min

Machine specifications:
• Metric version: Yes
• Spindle head design: Extendable working spindle (W axis) + 3 automatically exchangeable accessory heads
• Tool clamping: ISO 50
• Power: 28 kW
• Spindle taper: ISO 50, DIN 69 871 clamping
• Automatic accessory head IPS with automatic spindle positioning for H/V orientation, 2,500 rpm / 1,200 Nm
• Automatic accessory head IZN1 for turning, CAPTO 6 clamping
• Automatic accessory head IZN2 for turning, CAPTO 6 clamping

Control and accessories:
• HEIDENHAIN iTNC 530 HSCI
• HEIDENHAIN HR 410 wired handwheel
• Cooling unit for spindle head thermal stabilization
• High-pressure through-spindle cooling: 20 bar / 30 l/min / 180 l
• External low-pressure cooling: 5 bar / 60 l/min / 1,200 l

Clamping area in front of the machine: Optional

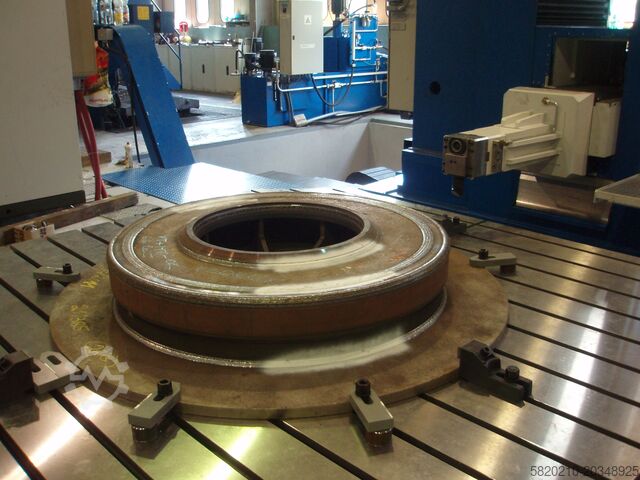

Currently equipped with a rotary traversing table (KES) with carousel function (option: configurable as plate or table)
• Dimensions: 3,000 x 3,000 mm, V (Y) axis = 1,500 mm
• Load capacity: 60,000 kg (hydrostatic)
• Speed range: 1 - 80 rpm
• T-slot dimension (base clamping plate): 28 H11, central 28 H8
• T-slot pitch and count: 200 mm, 15 slots
• Centering hole: 100 H7
• Rotational axis drives: MASTER-SLAVE, 2x SIEMENS motor
• Additional carousel plate, diameter 3,000 mm, 8-way star-shaped slot configuration

Hsdjxp U U Sjpfx Akrsnu
For further options and accessories or to arrange an inspection, please contact us.

The listing was translated automatically. Translation errors are possible.
