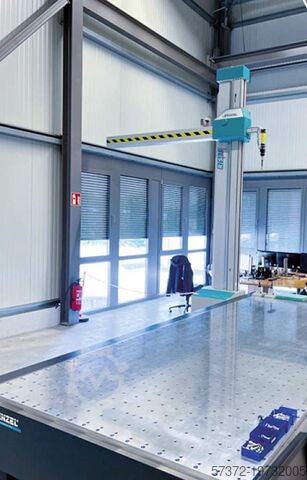

CNC Coordinate Measuring Machine

Wenzel RSplus 1825

Condition: refurbished (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 150 583, total height: 3,975 mm, ram adjustment: 125 mm, installation height: 410 mm, table height: 1,220 mm, total width: 2,725 mm, total length: 3,510 mm, table length: 1,500 mm, table width: 1,200 mm, pressing force: 200 t, control cabinet height: 2,200 mm, control cabinet length: 340 mm, control cabinet width: 600 mm, type of input current: three-phase, clearance between the columns: 900 mm, distance between side stands: 900 mm, distance between stands: 1,520 mm, overall weight: 3,700 kg, year of last overhaul: 2025, ATTENTION: The machine sustained transport damage. The machine is currently disassembled. Components can be inspected. Gbjdow H Arvspfx Ap Dsu The machine will be completely mechanically and electrically overhauled/repaired before delivery in 2026/2027. Pressing force: 2000 kN Adjustable stroke: 20 - 160 mm Ram adjustment: 125 mm Stroke rate: 30 - 180/min Center height: 410 mm Table dimensions: 1500 x 1200 mm (The press will be delivered with a new table top; T-slot design can be freely selected) Ram size: 1500 x 1000 mm Control system: SIEMENS S7 1500 series, PC 477E, year of manufacture 2020.

Year of construction: 2004, condition: excellent (used), 3D coordinate measuring machine in a stand-alone design *Floor-mounted installation on steel feet *Height from floor to measuring plate: 600 mm Measuring range *X 3,200, Y 1,600, Z 1,800 [mm] Measurement uncertainty *30 + L/40, max. 60 [µm] at L = 3,000 mm Dynamics *3D traversing speed: 220 mm/sec *3D acceleration: 1000 mm/sec² Probing system *Renishaw PHS / alternatively PH10M *Renishaw TP20+2 modules Control system *Pantec Eagle Pro Wireless control unit *Handheld control unit HT400 Software POLYWORKS Inspector Optional technologies Probe changer MCR20 Probe changer ACR3 Optical scanner KREON or NIKON Supplier’s services Transport, commissioning, calibration, final acceptance Gbodpfx Apohlqkns Deu Warranty 12 months, from the date of acceptance

Condition: used, Year of construction: 1973, machine/vehicle number: 104530, pression: 100 t throat: 350 mm table size: 690 x 840 mm clearance hole in the die: 160 mm Ø tappet area: 450 x 600 mm Gjdpfx Apoddhw Ss Djbu tappet adjustment: 80 mm stroke adjustment: 8 - 100 mm number of strokes: 60 /min engine: 380 V, 5,5 kW space needed: 1850 x 1850 x 2650 mm weight: 6800 kg

Year of construction: 2002, condition: excellent (used), 3D coordinate measuring machine in a stand-alone design *Floor installation on steel legs *Height from floor to measuring plate: 650 mm Measuring range X 2,100, Y 1,600, Z 2,100 [mm] Measuring uncertainty 25 + L/70, max. 50 [µm] at L = 3,000 mm Dynamics 3D traversing speed 220 mm/sec 3D acceleration 1000 mm/sec² Probing system Renishaw PH10M Renishaw TP20 + 2 modules Control system Pantec Eagle Pro / WPC2040 Gbjdpfehlqapjx Ap Deu Joystick HT400 Software POLYWORKS Inspector (alternative available) Optional technologies Probe changing rack MCR20 Supplier's services Transport, commissioning, calibration, final acceptance Warranty 12 months, from the date of acceptance

Condition: like new (used), Year of construction: 2019, Technical Data: Cross-cutting line with punching unit Strip running direction from the operator's side: right to left Coil changing side in strip running direction: left Operator's side, straightening machine in strip running direction: left Raw material: • cold-rolled strip: S320GD; S350GD; S380GD (strip-galvanized structural steels) • plastic-coated steel strip • aluminum • basically dry surface or commercially oiled • laminated strip • stainless steel Uncoiler: Type: Power Coil M-BS 1600 2 coil loading stations The coil storage track is designed so that a distance of 900 mm remains between 2 coils with an outer diameter of 1600 mm Loading semi-automatic Strip width 200 – 1600 mm Max. coil weight: 16 tons Coil diameter inside uncoiler: 508 - 610 mm Coil diameter outside uncoiler: 900 - 1600 mm Spreading range 470 – 625 mm Machine frame movable on linear guides Spreading hydraulically Strip withdrawal from the coil automatically Coil side guidance automatically, 4-point coil side guidance Press roller, rubberized, centrally positioned on the strip, hydraulically Electrical locking of lifting and traversing movement Control system: Control concept LBF – Control Concept LSV SCHULER Cross-cutting shear: Type: SCHULER HSU-1600 Shear gap adjustment is carried out by motor The shear is used to cut the strip end at a right angle before processing the first part of a production sequence. Godpfx Ajzzrutop Dsbu Bridging roller bed: Arrangement of the bridging roller bed upstream of the straightening machine Type: VOMA C1600 N Passage, max. strip width 1600 mm Length of bridging roller bed 1050 mm Material running height in the straightening machine 1600 mm Straightening machine: Type: SCHULER SVH 12-53-70-96 / 160-1600 Straightening speed max. 60 m/min. Straightening speed min. 5 m/min. Number of straightening rollers 12 pcs. Diameter of infeed rollers 160 mm Diameter of straightening rollers 3 x 53 mm, 3 x 70 mm, 6 x 96 mm Loop radius 1600 mm Material running height in the straightening machine 1600 mm Strip side guidance automatically Support rollers to prevent roller deflection All-roller drive Looping unit: Threading process in the direction of roller feed via looping bridge, remote-controlled Automatic loop control for continuous straightening process Loop depth below floor approx. 2,500 mm 4-point guidance through 2 sequentially arranged strip side guides To increase feed accuracy, the feed length is recorded by means of a measuring wheel (arranged in front of the feed rollers) Roller feed: Type: SCHULER AC-RP-160-1600 Feed rollers, diameter 160 mm Loop radius 1600 mm Material running height above floor 1200 mm Drive, upper and lower roller, servo drive via a common distributor gear Special coating of the feed rollers Max. acceleration 15 m/s² Brake rollers: Brake rollers generate the strip pull during the rewinding of the strip material from the system onto the coil, in a generator-like manner Adjustment system hydraulically Punching unit with NC tool holder: Type: SCHULER HSU-1600 Design: Double C-frame Punching unit designed as 2 C-frame units, which can be traversed transversely to the strip direction by means of 2 servomotors, for accommodating the punching tools Number of punching tools per side max. 6 pcs. Punching tool, servomotor-driven, 90° rotatable 1 punching cylinder per punching tool Punching force min. 580 kN Max. hole diameter ∅ 90 mm for material thickness 4 mm Manufacturer of punching tools: WILSON TOOL Elevating table: Type: LAWE

Condition: excellent (used), Year of construction: 2001, strip width: 100 - 800 mm strip thickness steel (aluminium): 0,8 - 4 (7) mm reference material (tensile strength): 600 N/mm² coil weight: max. 13 t coil OD: max. 2.000 mm Godpfx Ajrnq T Nep Djbu year: 2001

Condition: used, Year of construction: 1974, machine/vehicle number: 00-0438-01, sheet width:100 - 500 mm coil weight:ca, 6 t coil internal dia.:400 - 500 mm coil external diameter:1500 mm sheet thickness - max.:0,8 - 3,5 mm feed length:max. 10 m Feed speed:max. 75 m/min. diameter of the mandrel:360 - 420, 460 - 520 mm stroke height:550 mm :7500 kp weight of the machine ca.:ukb, t dimensions of the machine ca.:ca, 3,4 x 1,7 x 2,5 m HHS Automatic Decoiler, Model - BA 1.3-050/20 Decoiler for extra wide metal sheet (500 mm width, sheet thickness from 0.8 to 3.5 mm), with hydraulic loading / supporting table, Hydraulic operated expandable Coil Mandrel with pnematic cooling ventilation. Seperate Power cabinet with Electrial Wire Diagrams and Instruction manuals avilable. Gbjdpfx Aeh Ra Spop Dsu

Condition: excellent (used), Year of construction: 2001, strip width: 100 - 800 mm Gedpfx Aernq Ufep Debu strip thickness steel (aluminium): 0,8 - 4 (7) mm reference material (tensile strength): 600 N/mm² coil weight: max. 13 t coil OD: max. 2.000 mm year: 2001

Condition: used, Year of construction: 2003, Manufacturer: Haulick + Roos GmbH Type: RVD 3000-2500 Machine Type: High-performance stamping press Year of manufacture: 2003 Condition: used Rated pressing force: 3,000 kN Pressing force: 300 t Stroke frequency: 20–180 strokes/min Drive power: 80 kW Ram stroke: 20–160 mm Ram adjustment: 150 mm Tool installation height: max. 450 mm Maximum tool length: 2,500 mm Maximum tool width: 1,000 mm Table area: 2,450 × 1,000 mm Ram area: 2,500 × 950 mm Clamp plate opening: 2,250 × 350 mm Machine weight: approx. 46,000 kg Strip feed direction: right to left Power supply: 400 V Frequency: 50 Hz Maximum connected load: 80 kVA Maximum fuse rating: 250 A Draw cushion: not available Components of the system: Haulick + Roos high-performance stamping press RVD 3000-2500 DIMECO coil unwinder, type 23S1/D/VV Year of manufacture: 2003 Weight: 1,450 kg Maximum load capacity: 4,000 kg DIMECO roller feed, type 1681/17/BVV Godezrz Dxspfx Ap Debu Year of manufacture: 2003 Weight: 540 kg ARKU straightening machine Technical data for roller feed: Strip width: 5–420 mm Strip thickness: 0.1–5 mm Maximum strip cross-section: 1,000 mm² Strip speed: up to 125 m/min Feed length: 0.1–999.9 mm Feed accuracy: ±0.1 mm Roller diameter: 100 mm Strip height adjustment: 100 mm, manual mechanical Note: The ram guide should be replaced. The system is currently still in operation and functional. A quote from the manufacturer for complete disassembly and installation of new guides is available for approximately €200,000. We will gladly provide videos of the system in operation upon request.

Condition: new, Year of construction: 2026, functionality: fully functional, The Impuls Packaging Cobot is an intelligent automation system designed to move and position products efficiently and precisely. It handles the automatic picking, placement, and arrangement of products on pallets or within packaging units, ensuring a smooth and continuous production flow. Thanks to the integrated automation technology, various packing patterns and workflows can be stored directly in the system and recalled as needed. This enables the Cobot to be flexibly adapted to changing products and production requirements without any setup downtime. Gbedoyv H T Nepfx Ap Dou A range of gripper options is available for the Cobot, including vacuum grippers (either pneumatically operated or with an integrated vacuum motor) as well as specialized gripping systems for different applications. Together with our German partner in the Frankfurt region, we develop the optimal solution for your product to ensure precise, safe, and efficient handling. The system is operated via a user-friendly interface, allowing for easy setup and control without the need for programming skills. The Cobot’s compact design makes it easy to integrate into existing production lines while requiring very little floor space. Using our Cobot increases process reliability and reduces dependence on personnel bottlenecks due to illness or unfilled shifts, ensuring reliable and efficient production even with fluctuating staff availability. Typically, the Cobot pays for itself within the first year. System Features 1. 6-axis cobot robot for moving and placing products 2. Compact, space-saving design 3. Suitable for various pallet sizes 4. Multiple packing patterns can be stored and transferred to other systems 5. Easy operation with a graphical user interface, suitable for unskilled staff 6. Low energy consumption, minimal operating costs 7. Available with a variety of gripper options Technical Parameters 1. Maximum product dimensions: L1200mm, W1200mm, H500mm 2. Maximum product weight: approx. 20kg (depending on gripper weight) 3. Packaging speed: 6–10 palletizing cycles/minute (depending on product and pallet size; up to 32 packs/minute possible with multi-pick) 4. Maximum stacking height: 2000mm (600mm additional lift), arm reach up to 1680mm 5. Pneumatic connection required for operation 6. Connection voltage: 3Ph. 380V 50Hz, DC 24V connection 7. Overall power: approx. 3 kW 8. Machine weight: approx. 600 kg 9. Machine dimensions: approx. 3450x1500x3500mm 10. Noise level: > 60 dB We offer different safety concepts for the Cobot: Safety fence: Physically separates the working area so entry into the operation zone is prevented during operation. Safety sensors: Sensors monitor the working area and automatically stop the Cobot as soon as a person or object enters the danger zone. We are happy to advise you on which concept is best suited to your production. When ordering, you can select one of the systems; the other can be supplied for an extra charge.
