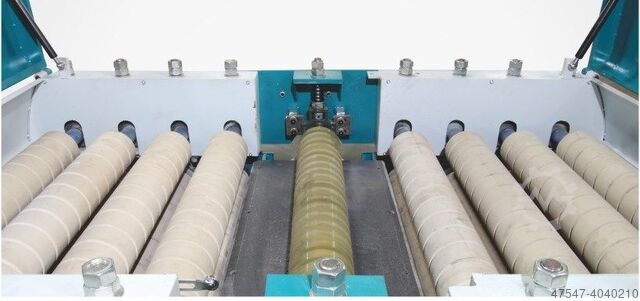

20-20-556 Multi rip saw for panels

WOODLAND MACHINERY MJ1600-XD4

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Electronic Programmer EasyLing Safety and sound-proof enclosure No. 3+3 Vertical columns to support the working units Min. useful working width (mm) 240 Max. useful working width (mm) 3100 Min. useful working tickness (mm) 3 Max. useful working tickness (mm) 150 Distance between center-axes of the disappearing dogs (mm) 800 Adjustable (min/max) feeding speed (m/min) 4 - 24 Total installed power No. 4 Working groups (for each machine's side): Scoring Unit Jumping Scoring Unit 1 x Kw 3 (RPM 6000) Hogging Unit 1 x Kw 6 (RPM 6000) 0-10° Nwsdpswhmdfsfx Ag Noc Jumping Milling Unit 1 x Kw 6 (RPM 6000) 0°-90° Milling-Shaping unit 1 x Kw 6 (RPM 6000) 0°-90°

Condition: new, Year of construction: 2025, functionality: fully functional, power: 55.4 kW (75.32 HP), overall weight: 2,050 kg, fuel type: diesel, color: original, axle configuration: 1 axle, operation weight: 2,050 kg, empty load weight: 2,050 kg, fuel: diesel, Technical data: Logs up to 24 cm Infeed width 300 mm Basic weight approx. 2050 kg Year of construction: 2022 4 cylinder Hatz turbo diesel engine With common rail technology and diesel particulate filter Meets the EURO 5 emissions standard. On single-axle chassis for 80 km/h, Power Control System Water-cooled 4-cylinder Hatz turbo diesel engine 55 kW (74.8 hp) with common rail technology and DPF Fully galvanized single-axle chassis (80 km/h) Towing device with overrun brake Front support wheel Rear parking support Lighting in accordance with StVZO (impact-protected) Heavy-duty tires 205/65 R17.5 (EX) Hydraulic adjustment of the feed speed and thus the chip size Chipper knives can be resharpened several times for a long service life (approx. 10x) PowerGrip feed roller, 300 mm wide, with hydraulic feed Particularly grippy, aggressive and even feed, due to which there is one oil motor per roller Outlet pipe with adjustable spreading flap, pivoting Discharge pipe on ball bearing slewing ring Relevant machine parts with noise insulation Features: Engine and chassis: Water-cooled, Stage V 4-cylinder Hatz common-rail turbo diesel engine with DPF, delivers 55.4 kW (75.3 hp). Automatically acting industrial overrunning clutch between engine and chipper disk to protect engine, bearings and shaft. Fully galvanized, corrosion-resistant single-axle chassis for speeds of up to 80 km/h with TÜV approval. Robust, fixed sheet steel mudguards. Device for support wheel at the front and parking support at the rear. Height-adjustable towing device with overrun brake and soft-dock ball coupling or DIN towing eye. Lighting in accordance with StVZO with impact-protected components. Heavy-duty tires 205/65 R17.5. Fuel level indicator for easy monitoring. EU homologation. Housing/hopper/blow-off pipe: Rotatable chipper housing with adjustable input angle of 270°. Folding feed hopper with a minimum feed depth of 1,500 mm. Fully galvanized hopper flap for durability. Hopper dimensions (inside): Width = 1,160 mm, height = 1,040 mm. Pivoting discharge pipe with adjustable spreading flap. Discharge pipe on ball bearing slewing ring for flexible alignment. Noise insulation on relevant machine parts such as the chipper hood and discharge pipe. Emergency stop button on top of the hopper and on the side of the hopper flap. Chipping unit: Safety circuit in accordance with EN 13525. Chopping disk with a diameter of Ø 800 mm and a thickness of 40 mm. Closed blade system for quick and safe blade changes. Infinitely adjustable chipper knives, resharpenable several times for a long service life. Horizontal counter blade 4-fold and vertical counter blade 2-fold usable for long service life. Winding protection on the main bearing of the chipper disk. Hydraulic feed: Feed control with its own hydraulic circuit. PowerGrip feed roller (300 mm wide) with hydraulic feed for non-slip and even material transport. Nedpov Evx Ujfx Ag Njwc Parallel guidance of the top roller for even feeding without tilting. Hydraulically adjustable feed speed to control the size of the wood chips. Fill level indicator for the hydraulic oil tank.

Condition: new, with planing spindle Type R-R-RP1300 Working width 1300 mm Min. working length 538 mm Working thickness 3-110 mm Feeding speed 6-30 m/min Total motor power 77,12 kW Motor for first unit 22 kW Motor for second unit 30 kW Motor for third unit 18,5 kW Abrasive belt size 1330x2200 mm Working air pressure 0,55mpa Volume of dust collection device 12000 m3/h Transport dimensions 3090x2020x2260 mm Nwodpfxed H Sc Ej Ag Nsc Weight 4700 kg

Condition: excellent (used), UNLOADER (SINGLE-CAGE) - Vacuum system with its pump - Top holding bar deplacement (pivoting) of 180° - Horizontal-longitudinal bars (rocker arms) for the vacuum cups supporting - In-side lifting table, surface with motorized-rollers - Front-side sliding door (or metal grid) to out-feed the stack of the panels - Separated electric and command panel - Out-side rollers way (on ground) to out-feed pile of panels from the Unloader - Out-side motorized rollers table (which brings panels to the Unloader), with also cross motorized conveyor belts (at 90°) Njdpfx Agscggy Ss Njwc - Working capacity (cycles/min): 12-15 - Min/Max panels thickness mm 10 - 40 - Min dimensions of the panels mm 250 x 320 (estimated) - Max dimensions of the panels mm 1200 x 3000 - Total installed motor power KW 10

Condition: new, Year of construction: 2022, functionality: fully functional, Brand New Friulmac EQ 004 2.5 with feeding belt and a feeding hopper Touch-Screen Operation and automatic adjustment Working length - min 190mm - max 2500mm width - min 30mm - max 250mm thickness - min 12mm - max 35mm Speed - 6 - 25m/min 2 x 2 Nsdpfxovupm Dj Ag Njwc Hoger - 3kW - 720 rpm Main Profiling Head - 4kW - 7200 rpm For more information I can send you the original documentation

Year of construction: 2025, condition: new, Nominal capacity 3000kg/h (depending on fruits & operating condition, up to 6000kg/h) Yield up to 75% Belt width/length: 1000mm/approx. 7000mm Working width/high: 900mm/0-50mm continuously Belt speed continuously variable 1,0-5,2m/min Electrical supply: Drive motor 2,2 kW 400V Washing motor: 0,25 kW 400V Waterconsumption for belt cleaning: Approx. 3 l/operating minute Weight approx. 2300kg Dimensions: (lxwxh) 2750x1890x1690mm Nwjdpjygmwjfx Ag Nec without high-pressure cleaner and without compressor

Condition: as good as new (ex-display), Year of construction: 2022, Press design double column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 4000 kN Free ripping force max. 400 kN Pressure build-up time Closed die steel to steel Max. 4 sec. Dimensions 3,800 mm long and 4,475 mm wide Max. Opening width 800 mm Stroke 800 mm Table height above floor 1100 mm Height above floor (headroom) approx. 4300 mm Hall height min. 5500 mm parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of press without operating materials and table plate approx. 28 t Press table Table size 1500x1500 mm Speeds Fast closing with 100 mm sec. Pressing speed 8 - 3 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Nsdpfxoph Uk No Ag Newc Number of pressing cylinders/driving cylinders 1 pc. Operating pressure max. 300 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 3 bar Main pump BOSCHREXROTH axial piston pump approx. 145 L/min Oil volume approx. HLP 46 MW 1000 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Auxiliary pump BOSCHREXROTH, gear pump 10 L/min Pressure stabilization for up to 300 sec. Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Connection hydraulics main motor 40 kW Sliding table press with 400 T capacity, Closing speed up to 100 mm/ ( adjustable via touch screen ) Opening speed up to 100 mm/sec ( adjustable via touch screen ) Starting press speed 10 mm/sec ( adjustable via touch screen ) table top size 1500x1500mm ram size approx. 1600x1500mm Oil temperature monitoring 55 degree warning, 60 degree shutdown Automatic lubrication ( adjustable via touch screen ) Free positioning of the ram ( adjustable via touch screen ) SICK/PILZ light barriers 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram protection Circuit oil cooling ( adjustable via touch screen ) Ejector in table, 20 T press force, 350mm travel Ejector moves outwards with the table Table plate milled flat, with DIN 22 T grooves Pressure adjustment from 60 T to 400 T ( adjustable via touch screen ) Travel limitation either by pressure or position Set-up mode, single stroke and cycle sequence ( adjustable via touch screen ) Swiveling control panel on the cabinet Two-hand operation, with opening button, manual/single stroke/cycle switchover button Installation, commissioning, instruction against separate charge The control is supplied by SIEMENS. ( S 7 1200 ) Also the touch screen monitor with 9 inch. The remote maintenance unit SECOMEA -Ethernet is included in the delivery. The side of the press has two 1000 mm high and 800 mm wide windows with double doors. (sliding table press, hydraulic press, hydraulic press, double column press)

Condition: new, Best price 4499 Eur (EXW Jonava, Lithuania) Dimension of sliding table- 2200x375mm Gross cut capacity- 1500mm Width of cut between saw blade and rip fence - 1140mm Saw blade diameter - 400mm Height of cut (90°) - 115mm Height of cut (45°)- 105mm Speed of main saw spindle - 4500/6000rpm Main spindle diameter - 30mm Tilting saw blade - 0-45º Saws lifting, up and down, electrical control. Main motor - 5,5 kW Scoring saw blade diameter - 120mm Speed of scoring saw blade - 7000-8000rpm Scoring saw diameter - 20mm Scoring motor - 1,1 kW Weight: 700 kg Nwsdpodnxydsfx Ag Noc * Using the blade 400mm, the smaller should be removed. Reduced saw blade should be used with not more than 350 mm main shield.

Condition: repair required (used), Year of construction: 1999, functionality: not functional, Prismatrice Storti 4x35hp roller input Exit command house Nedpfx Aslxqk Reg Nowc machinery to restore

Condition: good (used), Year of construction: 1989, Pressing area 2550 x 1350 mm Number of press cylinders #6 Total pressing force 140 t Opening width approx. 400 mm Operating voltage: 3 x 400 V + N, 50 Hz. Total connected load approx. 26 kW Space requirement (L x W x H) approx.: 3400 x 1600 x 2000 mm Weight: approx. 5500 kg Hydraulic hot plate press Down-piston design Electric hot platens Pressing pressure continuously adjustable via pressure switch Hydraulic pump Central control panel with all operating and Digital temperature display for both hot platens Press cycle counter Safety ripcord Rack compensation Main switch Note for used machines: • Errors in technical specifications and subject to prior sale. Njdpfxowd N Rmj Ag Nswc • Subject to change without notice. • Prices quoted are for pickup from the location - free shipping! • The machines have been cleaned and functionally tested. • All machines are sold as seen, without any warranty. The buyer is free to inspect the machines on site. • Special agreements are only possible in writing. (We will only respond to inquiries if you provide your address and telephone number!)
