Condition: used, Year of construction: 2010, CNC Intorex TMC 3000 Maschining centre 8 (9) axis -Max. working lenghts 3000mm -Max working square 220x220mm -Max. working diameter 450mm (when wood round) -Stroke axis X 3800mm -Stroke axis Y 460mm (plus 230, minus 230) -Stroke axis Z 510mm -Stroke axis Y2 360mm (turning) -Stroke axis Y3 360mm (milling) -Stroke axis Y4 360mm (sanding) -Stroke axis B (rotary +/- 90°) Power: -Axis A (rotary main motor) 22,2 kw 0-1500 upm -Axis Y2 11kw 1000-4500 upm -Axis Y3 11kw 1000-6000 upm -Axis Y4 2,2 kw 3000 upm max. 24.000 upm -Electrospindle (HSC) 12 kw max. 24.000 upm - Toolchanger 6 positions HSK 63 F - Total installed power 70 kw Bob Hsunk Rmoahtcewl - Weight approxm. 9,5 tons

Condition: used, Year of construction: 2011, Biesse Skill 300 CTS CNC Machine Description: Working area X and Y: 2900 x 1150 x 110mm Table type: Beam table Number of milling motor axes: 3 Drilling unit: BH-17L Tool holder: Iso-30 Changer: 10 positions Rack Bjbswc Swtj Hahtcewl Number of vacuum pumps: 1 Fences: Yes Office software license: No (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: new, Year of construction: 2024, Morbidelli M200 CNC CONTROLLED MACHINING CENTER - C.E. Safety instructions - Morbidelli m200 3715x1620 Z250 - Volt 400 EU - Frequency 50 Hz - PRO-SPACE safety devices - Plate passage Y 2200 mm Bob Haju Illmohtcjwl - Retractable safety belts - "TECPAD wired" remote control with 7" touchscreen monitor - Tool changer TRB14 (version Y=1620) - Tool changer FAST14 - 1 vacuum pump, output 250/300 m³/h at 50/60 Hz - Central optimized suction nozzle on rear drilling head - Drilling unit with pneumatic vertical positioning (single Z-axis) - RO.AX F31LTC drilling unit - Suction hood for drilling unit - Drilling unit with inverter - Pressure booster - 5-axis unit "Prisma 5" version "KT" - Suction hood for 5-axis electrospindle - 7-position extraction hood for 5-axis electrospindle - Device for liquid cooling (air type) - 6 "TV FLEXMATIC" work tables 1600 - Conveyor belt for chip and remnant removal for X=3710mm - Removable chip collection container at the end of the machine frame - Sensor for reading the tool length - 4 devices for loading aid H=75 1600 - Front stops H=75 for 6 supports - 12 x fixed suction cups 145x145 H=75 mm - 6 x rotary suction cups 145x55 H=75 mm - Preparation for clamping cylinder for 6 supports TV FLEX / TV FLEXDRIVE / TV FLEXMATIC - Maestro connect: service contract for 1 year (kit gateway "plug&play" included) - SCM DIGITAL SOLUTIONS: MAESTRO CONNECT - Human-machine interface software (HMI) MAESTRO ACTIVE - Machine user interface software Maestro lab - Hardware key for Maestro - Additional hardware key for Maestro (for USB slot) - Mobile operating console "eye-M TOP" - TELESOLVE remote maintenance via the Internet - Mobile control unit with 6.5 m cable length - S-N-D 3-position selector switch - MACHINE LANGUAGE: German - incl. delivery, 3 days training in advance, 1 week installation and training - New machine is still in original packaging

Condition: used, Year of construction: 2018, Working dimension X: 3.710 mm Working dimension Y: 1.620 mm Working dimension Z: 250 mm Number of milling spindles: 2 Main motor power: 10 kW MORBIDELLI JQX spindle: Yes Bwob Haev Ht Dwjhtcsl Milling spindle liquid-cooled: Yes Rotation speed max: 24.000 rpm 4th axis: Yes 5th axis: 5-axes spindle Tool clamping system: HSK-F63 Tool changer positions: 28 SCM Tool changer TRB 14: Yes SCM Tool changer FAST 14: Yes Vertical drilling spindles: 17 SCM Drilling aggregate F 29 LTC: Yes Horizontal drilling spindles in X: 8 Horizontal drilling spindles in Y: 4 Groove saw: in X-direction Cantilever machine: Yes Machine table: Pod and rail table Number of consoles: 8 Positioning aid: Yes Crosshair laser: Yes Vacuum pump: Yes Number of vacuum pumps: 1 Capacity vacuum pump: 250 m³/h Safety device: Bumper SCM Pro-Space: Yes Chip conveyor: Yes Interface for .dxf data: Yes SCM Machine table TV FLEX: Yes SCM TecPad: Yes Workpiece support aids: Yes Automatic central lubrication: Yes Control: SCM eye-M Conformity marking: CE mark Weight: 4.950 kg Space requirement Length: 7,36 m Space requirement Width: 2,65 m Space requirement Height: 2,82 m

Condition: good (used), Year of construction: 2018, operating hours: 10,200 h, 5-axis CNC: HOMAG Venture 115/BMG 110 K Led table 2x vacuum pump Cooling unit for 5-axis spindle 12 kW Bjb Hahtjv Aitgecewl Woodwop 7 Bought new in 2018 Work table: X= 3100 mm Y= 1430 mm Z= 160 mm Bumper safety technology HOMAG Power Touch Horizontal drilling machine 4 units Vertical drilling machine v12 Grooving saw +-90 degree rotation Tool changer 14 places Tool changer for saw with a diameter of 350 mm Pneumatic preparation for holder Software package Woodwop Professional CAM plug-in

Condition: used, Year of construction: 2018, Used machine Year of manufacture: 2018 SALE DIRECTLY BY CUSTOMER: Machine location: 88436 Oberessendorf SALE DIRECTLY BY CUSTOMER: Machine location: 88436 Oberessendorf MACHINE NUMBER 393.830 Basic machine completely in standard version: For detailed technical data see data sheet for PROTEC type 571 Processing unit with PowerBlock with 21 spindles and 1 grooving saw (BK1341) Beb Hev E Sz Eeahtcewl - 13 vertical drilling spindles - 6 horizontal drilling spindles in Y - 2 horizontal drilling spindles in X - 1 grooving unit in Y 4th drilling axis in Y Milling unit Profit HSK63F with 3-way magazine for automatic tool change, Motor 5.5 kW (S1), 1000-20000 rpm with frequency converter, right and left rotation, for tool holder HSK63F with collet 462E/OZ25, milling cutter length up to 130 mm Workpiece sizes and weights: - Workpiece width (X): min. 60 mm / max. 1,000 mm - Workpiece thickness (Z): min. 6 mm / max. 60 mm - Workpiece length (Y): min. 250 mm in throughfeed mode, max. 5,600 mm programmable workpiece length in software - Workpiece weight: max. 75 kg Air connection: 7 bar + Foldable roller table, inlet + Foldable roller table, outlet + Auxiliary stop 600 mm with integrated rollers + DXF import postprocessor for programming system + ASCII import postprocessor for 3D generator e.g. Truncad + HSK and milling cutter set + HSK assembly set + HSK cleaning set + counter pressure device for above + suction distributor D. 160 mm 80/80/80

Condition: new, Year of construction: 2024, Functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 200 mm, spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel X / Y / Z: 3,000 / 2,000 / 200 mm Accuracy: 0.01 mm Spindle Spindle power: 3.0 kW Spindle speed: 0 - 18,000 rpm, variable Spindle diameter: 3.175 - 12.7 mm Spindle cooling: air Working area and equipment Bjb Hahtewgbtlocowl Maximum material height: 120 mm Work table size: 3,000 x 2,000 mm Extraction table: 5.5 kW double stage, divisible into 6 zones Felt carpet thickness: 4.5 mm Plotter equipment 1st head: 380V 5.5 kW water-cooled electric spindle 2nd head: Electric oscillating knife 3rd head: Rolling tool EQUIPMENT - PC Includes machine control software and Ethernet interface - Supported file formats: vector formats, DXF, G-code - Camera for detecting print marks - Extractor with dual filter and 3.0 kW motor - Extraction tube and collector for the spindle

Year of construction: 1999, Condition: ready for operation (used), Main Drive Number of axis 5 Additional Equipment Energy Chains: Various models Bwjb Haswblcaehtcsl This 5-axis MAKA FPM 470 CNC Wood Machining Centre was manufactured in 1999. Ideal for complex woodworking projects, it offers precision and versatility. If you are looking to get high-quality milling capabilities, consider the MAKA FPM 470 machine we have for sale. Contact us for more information about this machine. Application Types CNC Wood Machining

Condition: used, MAKA KPF 555 CNC machining center for wood processing. Special price ex-works. Bwjb Haevdurwjhtcel Technical specifications: On demand table width: 1.300 mm table length: 6.000 mm portal height above suction cups: approx. 200 mm portal height above console: about 250 mm main spindle: 8 kW

Condition: used, Year of construction: 2020, Working dimension X: 3.200 mm Working dimension Y: 920 mm Working dimension Z: 70 mm Number of milling spindles: 1 Main motor power: 7,5 kW Rotation speed max: 24.000 rpm Tool clamping system: HSK-F63 Tool changer positions: 7 Vertical drilling spindles: 9 Bob Hsvb Nv Seahtcewl Horizontal drilling spindles in X: 4 Horizontal drilling spindles in Y: 2 Groove saw: in X-direction Vertical working surface: Yes Machine table: Feed-through technology Vacuum pump: Yes Number of vacuum pumps: 1 Capacity vacuum pump: 8 m³/h Special workpiece clamping system: Vacuum clamping system Safety device: enclosed cabin Interface for .dxf data: Yes Remote control: Yes Control: PC control Software: HOLZ-HER CAMPUS, HOLZ-HER CAMPUS NC-HOPS, DIREKT CNC NC-HOPS 7 Declaration of CE-conformity: Yes Conformity marking: CE mark Weight: 1.800 kg Space requirement Length: 3,7 m Space requirement Width: 2,95 m Space requirement Height: 2,47 m

Condition: used, Year of construction: 2019, Used machine Year of manufacture 2019 Basic machine - DYNESTIC 7532-10.5 Automatic Dynestic table For classic nesting processing with wear plate Processing length 3100 mm Machine frame in welded construction with ground and hardened prism guides for the traveling column, aggregate head and consoles Traveling column in gantry design Rack and pinion drive, helical gears, in X and Y directions, Ball screw spindles in Z direction for precise positioning Technical data: Processing dimensions: Max. support surface on nesting table: X = 3100 mm Y = 1560 mm Max. travel distances X = 4695 mm Y = 2100mm Z = 293 mm Max. drive-over height DYNESTIC table Z = 100 mm from top edge of table (without wear plate) Maximum programmable speed Vector speed: 128.0 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min DYNESTIC table Fixed, continuous machining table with grid division, continuous grooves in X and Y direction, spacing of the grooves 50 mm with 25 meters of sealing cord for clamping the wear plate Vacuum field 1-circuit vacuum system Drilling unit 7877, 19 spindles Drive power 1.7 kW 13 vertical spindles can be called up individually Arrangement in U-shape 5+4 in X and 4 in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from screw end (depending on plate thickness) Spindle extension stroke: 70 mm Direction of rotation: clockwise / anti-clockwise in Change n(max.) 1000 - 4400 min-1 continuously adjustable Mounting: M 10 thread - 11 mm fit without tools, without mounting 6 horizontal spindles 2 double drilling spindles in X direction 1 double drilling spindle in Y direction Mounting: M 10 thread, 11 mm fit Total drill length max. 63 mm from screw end Bjbsu Druyo Hahtcowl without tools, without mounting Milling unit 7842, Power: 12.0 kW (S6) n(max.) = 1000 - 24000 min-1 continuously adjustable, max. power at 12000 min-1 to 24000 min-1 air-cooled with HSK-F 63 tool holder with right-hand threaded nut (for right-hand rotating tools) with collet chuck with HSK shaft Ceramic ball bearing (hybrid bearing) Tool weight max. 6 kg (incl. holder) Tools: milling and grinding tools max. Ø 160 mm Safety paneling in accordance with CE standard Safety fence on the side and rear Vacuum pump 500 m³/h dry runner Personal safety through light barriers in the front area of the machine Handheld control unit for remote control of the machine with the following operating functions: > Start / stop of the machining program > Speed control of the machining cycles > Reset button > Manual feed / rapid traverse for all axes > EMERGENCY STOP CAMPUS V7 CAD/CAM software 1x machine license Consisting of: 1. CAMPUS NC-HOPS 2. CAMPUS MT-Manager 3. CAMPUS Workcenter 4. CAMPUS DXF interface CAMPUS NC-HOPS Graphical variant system with WOP and CAD/CAM properties for creating part variants with macro technology Automatic central lubrication Automatic lubrication according to defined lubrication intervals Additional sealing against dust through overpressure in each guide carriage Simultaneous lubrication for all linear guides in X, Y and Z directions, for all ball screws in Y and Z directions for all milling spindle guides

Condition: used, Year of construction: 2014, Used machine Year of manufacture: 2014 Condition: well maintained Technical data: Processing length in X = 200 - 3200 mm Max. travel without re-clamping 1300 mm in Y = 70 - 920 mm Material thickness Z = 8 - 70 mm Beboulp Edj Hahtcewl Equipment: Milling unit: 6.5 kW (S6-40), air-cooled with HSK-F 63 tool holder Drilling unit: 1.7 kW, 15 spindles Tool changer: 6-way magazine pick-up system, pneumatic 19" flat screen Campus software 1 machine license inc. Cabinet Control light ECO vacuum system, 1-circuit vacuum system 8m³/h Automatic central lubrication combined lubrication points for all linear guides in X, Y and Z directions Milling tools are not included Scope of delivery! Availability: short term Location: Röllbach

Condition: new, Year of construction: 2021, CNC machining unit for milling Tool spindle position: 90° Machine connection: Holz Her with HSK 63 F Drilling: 3000 - 9000 rpm Spindle speed: max. 15,000 rpm Gear ratio i = 1:1.5 Rotation direction: left/right Torque: max. 20 Nm Tool holder: ER32/ER16 Spindle for omega cutters: ER16 Availability: Short-term Bjb Hahtewb Ehijcewl Storage location: Hochheim

Condition: used, Year of construction: 2005, Used machine Bweb Haheq Tfqastcjl Year of construction 2005 technical data: - Basic machine 555 - Workpiece support with 8 consoles, pneumatically clamped - Drilling unit 7968, 18 vert. Drilling spindles with 32 mm grid, individually retrievable, arranged in T-shape, 12 in X-axis and 6 in Y-axis, max. drilling diameter 35 mm (depending on panel thickness), spindle stroke: 70 mm, direction of rotation: right/left alternating, n= 4725 min-1 infinitely variable, 2 horizontal drilling units in X-direction, 1 horizontal drilling unit in Y-direction - Sawing unit 7946, 3.5 kW, 90° pneumatically tiltable, n = 5300 min-1, tool holder A Ø = 200mm, I Ø = 30mm, B = max. 3.5 mm, sawing/ grooving in X and Y direction - Milling unit 7935 with 16 kW spindle, water-cooled - Trimming unit 7982 for lock case trimming - Tool changer 7996, 18-position magazine (plate) - Vacuum pump with 140 m³/h - Manual control unit - PC control with TwinCAM WOP system - Siemens control system Availability: short term Storage location: Poland

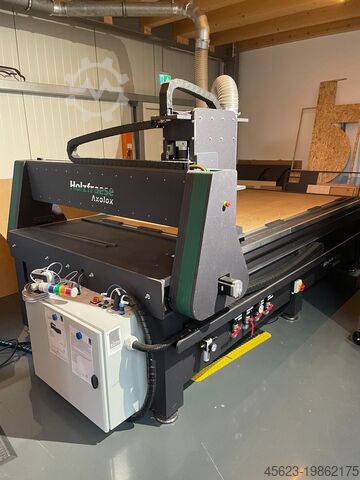

Condition: new, Year of construction: 2024, New machine Year of construction: 2024 Travel 2500 x 1300 x 180 mm in 19 mm Forescolour consisting of a milling table (X-axis), a portal (Y-axis), a Z-axis unit in compact panel and base frame, with adjustable machine feet, milling bed in 19 mm MDF as sacrificial panel Beb Hjudqgroahtcswl Table openings pre-equipped lengthwise and crosswise Mechanics set consisting of profile guides incl. profile guide carriage, ball screw and precision racks. . All elements assembled, pre-lubricated incl. test run, ready for immediate operation. Machine feet, adjustable. High-performance grease for lubricating the guide carriages. Control set consisting of control cables, energy chains, planetary gears, stepper motors, high-performance output stages, power supply unit and toroidal transformer, completely pre-assembled in the control box, as well as sensors for each axis. Switching relay for automatic control of the existing extraction system Brush seals as dust protection. CE-compliant safety device with accompanying extraction unit and laser scanner mounted on one side for workspace monitoring, with 275° and 5.5 m field range (positioning of the machine in a corner of the room). Manual control unit equipped with all necessary functions for operating the machine, incl. emergency stop button and dead man's switch Tool length sensor for determining the tool length and changing the active zero offset High-frequency spindle with 2.2 KW, incl. union nut, frequency converter, mains filter, braking resistor and collet set. 21.5 inch monitor as built-in monitor, incl. mini PC with Windows 10, CAD software Rhino 7.0, G-code generator Estlcam V 11, Beamicon2 control software, as well as mouse and keyboard, pre-installed in an ergonomic desk. (RECOMMENDATION: Data should be transferred via USB stick, as otherwise automatic updates could disrupt operations). Incl. milling bed designed as a vacuum table, consisting of twelve adjustable sub-elements. Cross table made of PE with a cover plate made of MDF. Vacuum pump from Becker with a capacity of 160 m³/h, as oil rotor. (recommended use: processing of coated chipboard materials) 2 plugs with alternating current 16 A, 400 V are required for the power connection of the vacuum pump The customer must provide HDF 3 mm raw on both sides for the entire vacuum table (5000 x 2100 mm) as a sacrificial plate Incl. 10-piece cutting tool set: 2 pcs. 5 mm TAC double-edged cutters. 8 pcs. 4 mm solid carbide single flute cutters. (Tool selection can be customized as required) Availability: short term Storage location: Schweinfurt

Condition: used, Year of construction: 2001, Used machine Year of construction: 2001 Condition: Function tested Equipment and technical data: Milling aggregate 4.4 kW Bebjkwg R Io Hahtcjwl HSK 63 F tool holder Speed 1,000 - 18,000 rpm water-cooled Tool changer: 4-fold lateral Drilling head: 9 vertical drilling spindles in 32 mm increments Horizontal drilling spindle: 1+1 Vertical drilling spindle: 1+1 Grooving saw in X-direction Control: Twin CAm 32 Vacuum pump 40 cbm/h Incl. vacuum cups Travel distances: X-axis: 2,685 mm Y-axis: 1,095 mm Z-axis: 140 mm Weight: approx. 3,500 kg Machine is delivered complete in all mechanical, electrical and electronic components and overhauled where necessary All guides checked; console guides replaced New PC control unit for the TWIN CAM control system All axis modules checked and serviced Location: Hochheim Availability: by arrangement

Condition: new, Year of construction: 2024, New machine Year of manufacture: 2024 Travel path 5000 x 2100 x 180 mm In 19 mm Forescolor finish, consisting of a milling table (X-axis), a gantry (Y-axis), a Z-axis unit made of compact board and a base frame, with adjustable machine feet, and a milling bed made of 19 mm MDF as a sacrificial board. Table openings pre-installed longitudinally and transversely. Mechanical set consisting of profile guides including profile guide carriages, recirculating ball screws, and precision racks. All elements assembled, pre-lubricated, including a test run, and immediately ready for use. Adjustable machine feet. High-performance grease for lubricating the guide carriages. Control set consisting of control cables, energy chains, planetary gears, stepper motors, high-performance power amplifiers, power supply, and toroidal transformer, fully pre-assembled in the control box, as well as sensors for each axis. Bsbswb Eh As Hahtcewl Switching relay for automatic control of the existing extraction system. Brush seals for dust protection. CE-compliant safety equipment with a mobile extraction system and a single-sided laser scanner for monitoring the work area, with a 275° and 5.5 m field range (positioning the machine in a corner of the room). Handheld control unit with all the necessary functions for operating the machine, including an emergency stop button and deadman's switch. Tool length sensor for determining the tool length and changing the active zero offset. High-frequency spindle with 2.2 kW, including union nut, frequency converter, line filter, braking resistor, and collet set. 21.5-inch monitor as a built-in monitor, including a mini PC with Windows 10, Rhino 7.0 CAD software, Estlcam V 11 G-code generator, Beaicon2 control software, and a mouse and keyboard, pre-installed in an ergonomic console. (RECOMMENDATION: Data transfer should be done via USB stick, as otherwise automatic updates could disrupt operations.) Includes a milling bed designed as a vacuum table, consisting of twelve adjustable sub-elements. A cross table made of PE with an MDF cover plate. A vacuum pump from Becker with a capacity of 160 m³/h, designed as an oil-operated impeller. (Recommended use: machining coated chipboard.) Two 16 A, 400 V AC plugs are required for the vacuum pump's power connection. The customer must provide 3 mm HDF, raw on both sides, as a sacrificial plate for the entire vacuum table (5000 x 2100 mm). Includes a 10-piece cutting tool set: 2 x 5 mm TAC double-flute cutters. 8 x 4 mm solid carbide single-flute cutters. (Tool selection can be adjusted as needed.)

Condition: used, Year of construction: 2018, Wing unit Bwob Hahtsv E S Avocsl for wood Her CNC machining centers used Year of manufacture 2018 HSK 63 F mount with torque support with 2 horizontal tool spindles suitable for holding a CLAMEX grooving cutter and a saw blade Technical data: max. drive speed 8000 rpm max. output speed 12,000 rpm Permissible operating temperature 85° Unit can be swiveled 360° around the drive axis Noise level 80 db(A) Weight 3.257 kg Availability: short term Storage location: Hochheim

Condition: new, Year of construction: 2021, Compact horizontal unit with two tool outlets for Clamex machining (P14) within the center of the surface -For Clamex machining (P14) within the center of the surface -For drilling and milling Technical specifications: Max. input speed: 8000 rpm Max. output speed: 12000 rpm Gear ratio i=1:1.48 Max. torque Mt= 15 Nm Bwob Howb Ehcoahtcol Permissible operating temperature: 85° Unit can be rotated 360° around the drive axis

Condition: used, Year of construction: 2015, Used machine Year of manufacture: 2015 Condition: Functionally tested Equipment and technical data: Processing length in X = 200 - 3200 mm Max. travel without re-clamping 1300 mm in Y = 70 - 920 mm Material thickness Z = 8 - 70 mm With height-adjustable infeed roller conveyor for 4-sided milling / complete formatting 1 processing field with length stop Bob Haovzuw Uohtcjwl 1 roller conveyor for supporting the workpieces downwards 5 roller conveyors for supporting sheet material in a way that protects the material 1 movable support for small parts With drilling unit 7883 / 15 spindles 9 vertical spindles, L-shaped arrangement, 5 in X and 4 in Y direction 32 mm grid, max. drill diameter 35 mm Total drill length 70 mm from screw end (depending on panel thickness) Spindle extension stroke 70 mm 6 horizontal spindles 2 double drilling spindles in X direction 1 double drilling spindle in Y direction Drive power 1.7 kW Integrated saw unit for sawing/grooving in X direction Milling unit 7830 10.3 kW HSK F 63 6-way tool changer 7887 Tool length measuring system LASER Automatic central lubrication - automatic lubrication according to defined lubrication intervals For all ball screw spindles in X, Y and Z direction With 21.5" flat screen With vacuum system ECO, 1-circuit vacuum system 8 m³/h - HOLZHER Cabinet Control Base - HOLZHER Campus V6 - Single Evolution Software Availability: short term Location: Hochheim

Condition: used, Year of construction: 2019, Used machine Year of manufacture 2019 Basic machine - DYNESTIC 7532-10.5 Automatic Dynestic table For classic nesting processing with wear plate Processing length 3100 mm Bweb Haevymfuehtcol Machine frame in welded construction with ground and hardened prism guides for the traveling column, aggregate head and consoles Traveling column in gantry design Rack and pinion drive, helical gears, in X and Y directions, Ball screw spindles in Z direction for precise positioning Technical data: Processing dimensions: Max. support surface on nesting table: X = 3100 mm Y = 1560 mm Max. travel distances X = 4695 mm Y = 2100mm Z = 293 mm Max. drive-over height DYNESTIC table Z = 100 mm from top edge of table (without wear plate) Maximum programmable speed Vector speed: 128.0 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min DYNESTIC table Fixed, continuous machining table with grid division, continuous grooves in X and Y direction, spacing of the grooves 50 mm with 25 meters of sealing cord for clamping the wear plate Vacuum field 1-circuit vacuum system Drilling unit 7877, 19 spindles Drive power 1.7 kW 13 vertical spindles can be called up individually Arrangement in U-shape 5+4 in X and 4 in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from screw end (depending on plate thickness) Spindle extension stroke: 70 mm Direction of rotation: clockwise / anti-clockwise in Change n(max.) 1000 - 4400 min-1 continuously adjustable Mounting: M 10 thread - 11 mm fit without tools, without mounting 6 horizontal spindles 2 double drilling spindles in X direction 1 double drilling spindle in Y direction Mounting: M 10 thread, 11 mm fit Total drill length max. 63 mm from screw end without tools, without mounting Milling unit 7842, Power: 12.0 kW (S6) n(max.) = 1000 - 24000 min-1 continuously adjustable, max. power at 12000 min-1 to 24000 min-1 air-cooled with HSK-F 63 tool holder with right-hand threaded nut (for right-hand rotating tools) with collet chuck with HSK shaft Ceramic ball bearing (hybrid bearing) Tool weight max. 6 kg (incl. holder) Tools: milling and grinding tools max. Ø 160 mm Safety paneling in accordance with CE standard Safety fence on the side and rear Vacuum pump 500 m³/h dry runner Personal safety through light barriers in the front area of the machine Handheld control unit for remote control of the machine with the following operating functions: > Start / stop of the machining program > Speed control of the machining cycles > Reset button > Manual feed / rapid traverse for all axes > EMERGENCY STOP CAMPUS V7 CAD/CAM software 1x machine license Consisting of: 1. CAMPUS NC-HOPS 2. CAMPUS MT-Manager 3. CAMPUS Workcenter 4. CAMPUS DXF interface CAMPUS NC-HOPS Graphical variant system with WOP and CAD/CAM properties for creating part variants with macro technology Automatic central lubrication Automatic lubrication according to defined lubrication intervals Additional sealing against dust through overpressure in each guide carriage Simultaneous lubrication for all linear guides in X, Y and Z directions, for all ball screws in Y and Z directions for all milling spindles

Condition: new, Year of construction: 2025, Exhibition machine Year of manufacture: 2025 Equipment and technical data: The Masterwood CNC machining center PROJECT TF is ideal for complex CNC machining in the smallest of spaces, both for solid wood, panel materials or other materials. Advantages: - Very small space requirement - Maximum time savings thanks to extremely fast production times - Fast amortization thanks to low purchase price - Quick learning of the technology thanks to extremely simple operation - Cleanliness of the workpieces with low suction power thanks to machining from below - Extremely fast, simple and variable programming with the MASTERWORK software (standard) - Extremely fast and simple programming of complete cabinets through the use of Palette CAD (option) Technical data: Axes: X-axis: Max. workpiece length: unlimited Min. workpiece length: 250mm Travel speed: 0-25 m/min. Y-axis: Max. workpiece width: 1,000mm for all units Min. workpiece width: 85mm Travel speed: 0-50 m/min. Z-axis: Max. workpiece thickness: 60mm Min. workpiece thickness: 10mm Travel speed: 0-20 m/min. The minimum and maximum workpiece sizes depend on the weight and also on the ratio of length to width! Units: 16mm drilling head: Vertical spindles in X direction: 5 pieces Vertical spindles in Y direction: 5 pieces Horizontal double drilling spindle in X direction: 2+2 pieces Horizontal double drilling spindle in Y direction: 1+1 pieces Distance between drilling spindles: 32mm Speed of drilling spindles: 4,000 rpm. Motor: 1.7 kW Groove saw: in X direction Speed: 4,000 rpm Max. saw blade diameter: 125mm Motor: 1.7 kW (The groove saw is integrated in the drill head) Control: Personal computer Operating system: Windows 10 Pro - 64 bit Processor: Intel Hard disk with at least 300 GB storage space Color screen Integrated video card 2 Ethernet cards Program: MASTERWORK MACHINE VERSION Other data: Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec. Extraction nozzle: 1 x 150mm Other features: - Air tables in the work area - Roller table in the inlet and outlet - Sensor for plate measurement - Ball screw and linear guides - Rack and pinion drive - Import of DXF files (Operating instructions, circuit and pneumatic diagram are included in digital form) Bweb Hahtov E Szxjcjl "PARTNERSHIP EDITION" consisting of: Milling unit, including MASTERWORK software extension Speed: 1,000 to 18,000 rpm. Motor: 4.5 kW with ISO 30 mount Incl. integrated suction control (when drilling only the drill head is suctioned, when milling only the milling unit is suctioned) 6-way tool changer Tool equipment, consisting of: 3 pieces 5mm – GL 70mm - blind hole drill (right) 2 pieces 5mm – GL 70mm - blind hole drill (left) 1 piece 5mm – GL 70mm - through drill (left) 2 pieces 8mm – GL 57.5mm - blind hole drill (right) 2 pieces 8mm – GL 57.5mm - blind hole drill (left 1 piece 10mm – GL 57.5mm – blind hole drill (right 1 piece 10mm – GL 57.5mm – blind hole drill (left 1 piece 10mm – GL 70mm – blind hole drill (left) 1 piece 8mm – GL 70mm - blind hole drill (right) 1 piece

Condition: new, Year of construction: 2021, Compact horizontal unit with two tool outlets for Clamex machining (P14) within the center of the surface -For Clamex machining (P14) within the center of the surface -For drilling and milling Technical specifications: Max. input speed: 8000 rpm Max. output speed: 12000 rpm Gear ratio i=1:1.48 Max. torque Mt= 15 Nm Bweb Hahswb Eg Sstcol Permissible operating temperature: 85° Unit can be rotated 360° around the drive axis

Condition: used, Year of construction: 2015, Used machine Year of manufacture: 2015 Condition: Functionally tested Technical specifications: Axes: X-axis: Max. workpiece length: unlimited Min. workpiece length: 250 mm Travel speed: 0-25 m/min. Y-axis: Max. workpiece width: 1,000 mm for all units Min. workpiece width: 80 mm Travel speed: 0-50 m/min. Z-axis: Max. workpiece thickness: 60 mm Min. workpiece thickness: 10 mm Travel speed: 0-20 m/min. The minimum and maximum workpiece sizes depend on the weight and the length-to-width ratio! Units: Milling unit with 4.5 kW motor (frequency-controlled) including MASTERWORK software extension Speed: 1,000 to 18,000 rpm including integrated extraction control (only the drill head is vacuumed during drilling, only the milling unit during milling) 4-station tool changer for ISO 30 taper 16 mm drill head: Vertical spindles in X direction: 5 Vertical spindles in Y direction: 5 Horizontal double drilling spindle in X direction: 2 + 2 Horizontal double drilling spindle in Y direction: 1 + 1 Drill spindle spacing: 32 mm Drill spindle speed: 4,000 rpm Motor: 1.7 kW Grooving saw: in X-direction Speed: 4,000 rpm Max. saw blade diameter: 125 mm Motor: 1.7 kW (The grooving saw is integrated into the drill head) Program: MASTERWORK MACHINE VERSION Additional data: Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec. Extraction nozzle: 1 x 150 mm Other features: - Air tables in the work area - Roller table in the infeed and outfeed - Sensor for plate measurement - Ball screw and linear guides - Rack and pinion drive - Central lubrication - Import of DXF files Machine dimensions: 2100 x 2410 x 1510 mm Weight: approx. 1300 kg Bsb Haowb Eg Ejhtcjwl Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2000 m³/h Air velocity: 25 - 30 m/s Extraction nozzle: 1 x 150 mm Availability: Short term Location: Hochheim

Condition: new, Year of construction: 2022, Exhibition machine Year of construction: 2022 Equipment and technical data: Basic machine 7402 with pin-jet dowel insertion function Hand-held control unit 2D barcode scanner UPS Quattro HSK package incl. 4-fold tool changer XL drilling head Double drilling spindle in Y Bwjb Heqv Iahoahtcjl Automatic central lubrication Location: Hochheim Availability: approx. week 32/2022
