Used machining centers (vertical) X-axis travel 800-999mm for sale (155)

Condition: good (used), Year of construction: 1999, operating hours: 52,964 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 550 mm, controller model: Heidenhain MillPlus, spindle speed (max.): 12,000 rpm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS X-axis: 800 mm Y-axis: 650 mm Z-axis: 550 mm Control: Heidenhain MillPlus Table Table length: 1,100 mm Table width: 650 mm Table load: max. 800 kg Feed rate X-axis: 20,000 mm/min Y-axis: 20,000 mm/min Z-axis: 20,000 mm/min Spindle Spindle mount: 40 ISO / BT / MK Spindle power: 15 kW Speed: max. 12,000 rpm Tool changer Number of tools: 24 Fsdewnbqgopfx Adtjpr Number of controlled axes: 3 MACHINE DETAILS Length: 3,400 mm Width: 2,400 mm Height: 2,800 mm Weight: 8,700 kg EQUIPMENT - 4th axis - Chip conveyor - Coolant system - Control cabinet

Year of construction: 2007, condition: good (used), Technical data shown i pdf file in attachment. Parts shown by hand not come. Chucks on the table are not included. Fedpfx Adsmnp D Iotspr Machine vices not come.

Condition: new, Year of construction: 2025, - FANUC 0i-MF Plus "NEW" Fsdpowkf Izofx Adtspr - 10.4" LCD color screen - Diagonal, MANUAL GUIDE i Machine Table - Table size: 1,120 x 560 mm - Load capacity: 1,000 kg - T-slot width: 18 mm - Number of T-slots: 5 - T-slot spacing: 100 mm - Table height from floor: 900 mm Travel paths and distances - X / Y / Z travel paths: 1,050 / 560 / 560 mm - Spindle nose to table surface: 150 - 710 mm - Spindle center to column: 600 mm Linear axis guides & speeds - Flat guides in X / Y / Z axes - Rapid traverse X/Y/Z: 36/36/34 m/min - Milling feed: 1 – 10,000 mm/min - Minimum increment: 0.001 mm Tool magazine (CAM type) / tool changer - Tool holder: BBT-50 (optional SK-50) - Number of magazine positions: 24 - System: random - Max. tool diameter: Ø 105 mm - Max. tool diameter with free adjacent positions: Ø200 mm - Max. tool length: 300 mm - Max. tool weight: 15 kg Spindle - Spindle taper: BTT-50 BIG-PLUS® (optional SK-50) - Drive type: 2-stage gearbox - Speed level 1: 80 - 1,500 rpm - Speed level 2: 1,500 - 8,000 rpm - Drive power (30 min/continuous): 11 / 7.5 kW - Torque (30 min/continuous): 236/161 Nm up to 369 rpm - Lubrication: Grease - Inner bearing diameter: Ø80 mm - Spindle cooling: Oil Coolant, chip, and compressed air management - Coolant system including 400-liter tank and pumps - External coolant around the spindle - Internal cooling 50 bar - Bed flushing, 0.85 kW / 130 l/min., (optional) - Chip spirals on the right and left side of the machine bed Chips are conveyed to the front of the machine - Chip spiral (optional: belt or scraper belt chip conveyor) Chips are conveyed to the left side of the machine - Compressed air nozzle on the spindle (M32/M33) - Compressed air through the spindle (M38/M39), (Optional) - Compressed air and coolant gun Other Equipment - Pivoting control panel - Electronic handwheel (wired) - Central oil/air lubrication system - Spindle oil cooler - Fully enclosed housing - Work light - Heat exchanger on the control cabinet - Auto-Power OFF function - Hand tool set - Signal light - Transformer 400 VAC, 50 Hz - CE Declaration of Conformity

Condition: used, Year of construction: 2000, 1650 mm 810 mm 810 mm control HEIDENHAIN TNC 426 PB 40 30 - 6000 U/min 2 x 16 St. 1800 x 780 mm Fsdpjuia E Ijfx Adtepr 5 20 m/min 17 / 20,5 kW 11400 kg 5585 x 2440 x 2360 mm

Condition: used, Year of construction: 2016, travel -x axis 800 mm travel -y axis 450 mm travel -z axis 510 mm control HEIDENHAIN - TNC620 table dimension (L x W) 1.000 x 450 mm numbers of positions in the tool changer 30 Milling machining centers - vertical | DOOSAN - DNM 4500 equipped with 30-way tool changer, ITC cooling system and chip conveyor. The machine only has 5.365h spindle hours. The machine is in a well-maintained condition. The machine video from the production plant will be shared on request. Technical data of the machine will follow soon. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DNM4500 | DNM-4500 Fpjdpfx Ajwq S Alsdtsr

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 15 [kW] Fpjdpfxeuhbu Us Adter - Spindle speeds : 12000 [rpm] - Number of spindle hours : 0 [h] LINEAR AXES - Travels on X/Y/Z axes : 900/600/600 [mm] - Rapid traverses rates (X/Y/Z) : 48 [m/min] - Distance table / spindle nose (min./max.) : 100-700 [mm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 - Tool exchange time : 3.8 [sec] TABLE - Table dimensions : 1000 X 600 [mm] - Maximum weight upon table : 650 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 20 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3500 X 2400 [mm] - Machine height : 3000 [mm] - Machine weight : 7000 [kg] EQUIPMENT - CNC : Fanuc Oi MD - Interface : RS232 / USB - Interactive programming : Manual guide Oi,10,4 - Electronic handwheel - Rigid tapping - 3 colors status lamp - Coolant tank * with high-pressure pump : 20 [bars] * with paper filtering unit - Coolant through spindle - Micro-lubrification coolant - Chips conveyor

Condition: ready for operation (used), Year of construction: 2007, operating hours: 1,889 h, functionality: fully functional, travel distance X-axis: 860 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 10,000 rpm, number of axes: 3, Machining centre with only 1,889 spindle hours! TECHNICAL DETAILS Travel X-axis travel: 860 mm Y-axis travel: 560 mm Z-axis travel: 600 mm Spindle data Max. spindle speed: 10,000 rpm MACHINE DETAILS Fedpfxsw Ngmuj Adtepr Spindle hours: 1,889 h Power-on hours: 42,782 h Number of controlled axes: 3 Control model: HEIDENHAIN iTNC530

Condition: good (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 12030326, travel distance X-axis: 810 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 500 mm, table width: 900 mm, table length: 400 mm, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 24, No reserve price - guaranteed sale at the highest bid! 2024 serviced TECHNICAL DETAILS X-axis travel: 810 mm Y-axis travel: 410 mm Z-axis travel: 500 mm Spindle tip to table: 115 mm Spindle center to column: 425 mm Table Table size: 900 x 400 mm T-slots: 14 x 3 x 125 mm Max. table load: 300 kg Table height: 815 mm Feed rate X,Y axis: 36,000 mm/min Z axis: 30,000 mm/min Spindle Spindle taper: ISO SK40 Spindle speed: 10,000 rpm Motors Spindle motor power: 10 kW Servo motor power X,Y,Z: 2.3 / 2.3 / 3.3 kW Tool changer (ATC) Type: Arm Tool capacity: 24 tools Max. tool diameter: Ø 150 mm (with free adjacent positions) Fpedpfevupnbsx Adtjr Max. tool weight: 7 kg Max. tool length: 300 mm Machine accuracy Positioning accuracy: ±0.005 / 1000 mm Repeatability: ±0.003 / 1000 mm MACHINE DETAILS Air pressure: 7 kg/cm² Energy requirement: 20 kW Machine dimensions (LxWxH): 3600 x 2000 x 2500 mm Machine weight: 3,500 kg Voltage and energy Voltage: 3-phase, 380-400 V AC Frequency: 50/60 Hz Total power: 20 kW Cable specifications: Main voltage and earth cable min. 8 mm² EQUIPMENT - Electronic handwheel - Fully enclosed splash guard - Powerful AC spindle motor - Steel telescopic covers for X, Y and Z axes - Halogen work lamp - Automatic central lubrication system - Control lamp - Spindle blow-out device - Screws and feet for leveling - Manual and parts list - Machine is sold without vice and tools

Condition: excellent (used), Year of construction: 2004, operating hours: 56,860 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 520 mm, controller manufacturer: Siemens, controller model: 840 D, operating hours of spindle: 28,100 h, number of slots in tool magazine: 30, The machine can be inspected under power at any time. Fpodpfx Adovncmkjter The spindle was replaced at approximately 5,500 hours. The control system was replaced, PCU50, in March 2024. Our Hedelius is in very good condition.

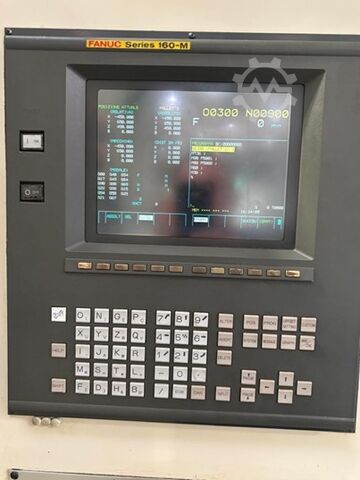

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 97-X1286, travel distance X-axis: 850 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 80, TECHNICAL DETAILS Control CNC system: FANUC 160M X-axis: 850 mm Y-axis: 650 mm Z-axis: 700 mm Spindle Spindle mount: BT50 Spindle speed: 10,000 rpm Spindle cooling: High pressure 30 bar (1/2 spindle cooling) Tool storage capacity: 80 places Table & pallets Fpsdpfx Adsv Dhq Totjr Table size (working arch diameter): 850 mm Pallet size: 600 x 600 mm Parting angle: Continuous B-axis Maximum load capacity: 1,200 kg Pallet changer: 6 stations Rapid traverses Rapid traverse X-axis: 24 m/min Rapid traverse Y-axis: 24 m/min Rapid traverse Z-axis: 24 m/min MACHINE DETAILS Total weight: 19,000 kg EQUIPMENT - Chip conveyor - Smoke extractor - CE marking

Condition: used, Year of construction: 2013, travel -x axis 800 mm travel -y axis 520 mm travel -z axis 550 mm control HEIDENHAIN - iTNC 530 number of spindle speeds 10.000 U/min numbers of positions in the tool changer 24 520 x 950 (B x L) mm Milling machining centers - vertical | POSmill - C 800 Kompakt equipped with 24- way tool changer and ITC. Fjdpfov Td Iaex Adtspr The machine is in a well-maintained condition. For further technical details, please refer to the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C800 | C-800 | C800Kompakt | C -800-Kompakt

Condition: like new (used), Year of construction: 2022, travel distance X-axis: 800 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, Here’s the very 1st used MACH 845-8T Toolroom VMC to appear on the 2nd hand market! This low hours, highly spec’d and immaculate example is equipped with DynaPath’s Windelta touch screen control has been rented to a FE College and is now availabel for sale...its in as new condition, has an 8,000RPM spindle, 8Gb memory, 1,000 blocks of look ahead and is Wi-Fi enabled for remote support from MACH & DynaPath..(that’s included on this used machine tool ) Taken from MACH Machine Tools marketing material, they say; This small footprint, high build and component part quality toolroom VMC features MACH’s cleverly designed 8 position ATC that’s arrange around the 10,000 RPM spindle, for simple, efficient and quick tool changes. As with all MACH CNC machines, the MDS 845-8T is equipped with DynaPath’s feature packed Windelta control system, with touch screen user interface. The control is capable of accepting multiple programme formats via its inbuilt USB, Ethernet or wireless interfaces. It can be programmed Conversationally, via DXF, in ISO/EIA G-Code formats and has a DFX and DFX program editor in built, making the control capable of accepting and editing programmes in any machine format. As a standard feature its equipped with full Wi-Fi connectivity for remote factory support. It has a huge 8Gb of memory, 1000 blocks of look ahead, for high quality and fast 3D contouring, a solid-state hard drive, Yaskawa digital drives and servo motors and a Delta spindle drive that controls the 10,000 RPM Direct Drive spindle, all mounted in an air-conditioned electrical cabinet. Specified way beyond its price point and backed up by the now legendary, MACH-DynaPath’s worldwide Wi-Fi remote support and team of dedicated engineers. Specification: Travels: X/Y/Z: 800 / 450 / 450 mm Spindle Nose to Table: 90 ~ 537 mm Centre of spindle to column: 435 mm Spindle Taper: BT40 Spindle Max RPM: 8,000 RPM Table Size: 850 x 420 mm T-Slots: 18 x 85 x 4off Fpsdpfx Ajmmgpdjdtsr Max Table Load: 220 kg Max Rapid Rate: 20 m/min Max Cutting Rate: 10 m/min X/Y/Z Axis Type: Linear rail with roller bearings + Ball Screw ATC Type: 8-Tool Independent Arm, arrange around the spindle Max Tool Dia: 63 mm Ø Max Tool Weight: 5 kg Tool Change time: (Tool to Tool) : 2.8 sec Spindle Motor: 5.5 kW (7 HP) / 35 Nm X/Y/Z Servo motor rating: Yaskawa 0.85 / 0.85 / 1.3 kW Positioning Accuracy: 0.005 um Repeatability: ±0.003 um Power requirement: 15 Kva (supplied with 415V-220V 7kVA Transformer for UK) Air requirement: 6 kg/cm3 Footprint: (LxWxH): 2200 x 2539 x 2304 mm Weight: 3750 kg Control System: DynaPath WinDelta with 15" Touchscreen LCD D11 Console, MPG Handwheels, Conversational + DXF + ISO/EIA G-Code UKAS & CE compliant safety modules, interlocks & certification. 415V to 220V 7kVA Supplied with: UKCA/CE safety enclosure, interlocks and electrical equipment, 10,000 RPM BT40 spindle, set of 8 pull studs, through spindle coolant, bed wash, coolant/air gun, swarf augers, LED machine lighting, end of cycle light stack, electrical cabinet air conditioning, MPG, 8Gb of memory, DFX File reader with program editor, 1000 blocks look ahead, Wi-Fi remote support.

Condition: new, Year of construction: 2024, operating hours: 25 h, SPINNER VC850 high-performance machining center Travels X850, Y510, Z510 mm in "Advanced" version with patented guide cover concept High-precision MILLING SPINDLE up to 12,000 rpm / 15.2KW / 97Nm (max) as in-line spindle with direct drive without belt Tool holder on spindle SK40 DIN69871 TOOL MAGAZINE with 32 tool stations MAGAZINE CLAP pneumatic in the working area Fjdpfxsk Raywj Adtepr DIRECT MEASURING SYSTEMS in X/Y/Z axis CONTROL FANUC 0i-F Plus with the following basic functions: - Contouring control with Fanuc iHMI user interface - Fanuc 15" LCD touch screen, - User memory 2MB, max. 1000 program numbers - USB interface for NC program data exchange, Ethernet interface - max. 4 axes can be interpolated simultaneously - 6+48 workpiece coordinate systems available - 400 tool compensation pairs, with tool life monitoring - with G-code & M-code guidance functions - Comprehensive Fanuc cycle package "Milling" as standard, as G-code and under MGi - e.g. tapping without compensating chuck, thread cutting and engraving. Helical and cylindrical interpolation functions - with scaling, mirroring and coordinate system rotation functions - Parallel programming in the background - Runtime and piece counter - Inch-metric changeover - Electronic handwheel as standard - Dialog language for control trilingual German/English/French UNIVERSAL CHIP CONVEYOR VC850 exiting the machine to the RIGHT PREPARING THE SPINDLE FOR HIGH PRESSURE to use the additional tank up to 22 bar HIGH PRESSURE TANK 22 bar with paper belt filter for flushing centrally through the spindle PREPARATION SPINNER-STANDARDMESSTASTER Blum Cordless SPINDELTASTER Spinner-Blum with tool holder suitable for the milling spindle ADDITIONAL HOOD on top for closed working area, required for high-pressure rinsing or highly atomizing processes or extraction STANDARD DOCUMENTATION GERMAN consisting of machine manual and CNC manuals supplied in digital form on the control unit. Paper manuals for an additional charge RING EYES for crane unloading, set consisting of 4 pcs. absolutely necessary for crane transportation STANDARD PAINTING two-colored in light grey RAL7035 and blue grey RAL5008 Electrical version EUROPA-STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN mains (5-wire) Remarks: The price includes warranty services only within Germany. For new and demo machines, the pictures are not necessarily the pictures of the individual machine but of comparison machines The accessories shown, such as clamping devices or tool holders, are only included in the scope of delivery to the extent listed in the technical description. Ask for a detailed offer ex works. Visit our factory near Munich or one of our showrooms. GGF we have other offers of comparable machines. Subject to prior sale.

Condition: excellent (used), Year of construction: 2000, DESCRIPTION Hermle C 800 V CNC vertical machining center was built in 08.2000 in Germany. The milling center operates in three axes and the maximum X / Y / Z travels are 800, 600 and 500 mm. The machine is equipped with a Sinumerik 840D numerical control with a LAN cable to an external computer. In addition, the lathe is equipped with, among others: Chip conveyor, Hydraulic clamping, Magazine for 87 tools, Turning finder and Control cabinet air conditioning. The spindle rotates at a maximum speed of 15,000 rpm. Spindle hours approx. 4500 h. The total weight of the milling center is approx. 7 tons. Technical data of the Hermle C 800 V CNC milling center - Travel X / Y / Z axis: 800/600/500 mm - rapid traverse: 35 m/min - maximum spindle speed: 15.000 rpm Fodpjiva Dkefx Adtjpr oil mist extraction - spindle power: 19 kW - operating voltage: 400V; 3PH; 50Hz - control voltage: 220V AC; 24V DC - machine dimensions (L x W x H): 2,3 x 3 x 2,65 m - Total weight: 7000 kg Equipment of the Hermle C800V CNC milling center - CNC control: Sinumerik 840D - Tool magazine capacity: 87 pieces - Lamp sockets: SK40 - cooling pump through the tool: 40 bar - control cabinet air conditioner - rotating viewfinder - chip conveyor Separately additionally available with to see on the photos! tool presetter Various SK40 holders Touch probe Heidenhain TS32 Neuwetig

Condition: good (used), Year of construction: 2003, functionality: fully functional, Manufacturer: Hermle Model: C40U Year of manufacture: 2005 Control: Heidenhain TNC530i Travel X/Y/Z: 850/700/500 mm Rapid traverse X/Y/Z: 40,000/40,000/40,000 mm/min Table size: 750 x 750 mm Main spindle speed: 18,000 min-1 Number of tool positions: 40 Spindle taper: SK 40 Fsdpfx Adjvcmcrjtopr Options: Renishaw probe Oil mist separator Minimum quantity lubrication Blum laser tool measurement Through-spindle cooling 40 bar Chip conveyor

Condition: good (used), Year of construction: 2001, operating hours: 6,785 h, functionality: fully functional, machine/vehicle number: 88745-38, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, table load: 800 kg, spindle speed (max.): 36,000 rpm, New spindle and computer installed in 2018 No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X / Y / Z: 800 / 600 / 400 mm Number of axes: 3 Speed: 36,000 rpm Tool holder: HSK 50 E Fsdpfx Aowi Ndkodtopr Tool changer: 30-station Table: 880 x 700 mm Workpiece weight: 800 kg MACHINE DETAILS Dimensions: approx. 2.85 x 3.15 x 3.0 m Weight: approx. 8.5 t On-time: 179,460 h (total) On-time since 2018: 38,141 h Spindle hours since 2018: 6,785 h EQUIPMENT - Incl. 29 tool holders - No coolant/minimal quantity lubrication - Spindle cooling system - Incl. probe - Without Vice and clamping device (shown in picture)

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 12090339, travel distance X-axis: 900 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 550 mm, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 36, TECHNICAL DETAILS X-axis travel: 900 mm Fpodpjwu Ekdefx Adtsr Y-axis travel: 600 mm Z-axis travel: 550 mm Control: Siemens Sinumerik 828 D Spindle speed: 10,000 rpm Tool changer: 36 positions MACHINE DETAILS Machine number: 12090339 Weight: 4,000 kg Connected load: 20 kVA

Condition: used, Year of construction: 2018, An immaculate ex University research facility machine that is hardly been used. Photographed as it it arrived and not yet cleaned! Fpjdpfowzyd Eox Adtor 2018 built HAAS Mini Mill... Machine Control: Haas CNC Table Size: 36" x 12" Machine Travels (X/Y/Z) : 16" x 12" x 10" (406 x 305 x 254 mm) Spindle To Table Distance : 4" - 14" (100 - 346mm) Table Capacity : 500 Lbs.(1200 Kgs) Spindle Speeds : 6,000 Max RPM Rapid Traverse Rate (X/Y/Z) : 600 IPM (15M/Min) Maximum Cutting Feed Rate : 500 IPM (13 M/Min) Tool Changer Style : Carousel Tool Changer Capacity : 10 Stations Tool Change Time : 4.2 Seconds Max Tool weight : 12 Lbs. Spindle Drive : 7.5 HP Equipped with: 40 Spindle Taper, 10 Station Automatic Tool Changer, Coolant system, Rigid Tapping, Tooling & Manuals

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 174 h, functionality: fully functional, machine/vehicle number: VT0620, High-Performance Machining Center SPINNER VC850 Travel ranges X850, Y510, Z510 mm "Advanced" configuration variant with patented guideway cover design Base machine configured as VC850-5A Including rotary-tilt table D=350mm High-performance milling spindle up to 12,000 rpm Power 22.6 kW / 108 Nm as built-in hybrid spindle with direct drive (no belt) This results in a particularly low machine height of only approx. 2,420 mm Spindle tool interface SK40 DIN69871 TOOL MAGAZINE with 48 tool stations MAGAZINE DOOR pneumatically operated within the work area DIRECT MEASURING SYSTEMS on X/Y/Z axes HEIDENHAIN TNC640 control, height adjustable, with angle-adjustable keypad: - Path control with 19" multi-touch screen in stainless-steel design PORTABLE HANDWHEEL HR510 FS "Advanced Function Set 3" option number 21 "CAD Import" option number 42 "KinematicsOpt" option number 48 "Advanced Function Set 1" option number 8 "Advanced Function Set 2" option number 9 "Touch probe functions" option number 17 Energy-saving function incl. automatic machine shutdown TNC 620 / TNC 640 Heidenhain software option "Heidenhain DNC" option number 18 Fully integrated 2-axis ROTARY-TILT TABLE SPRT-350 centrally mounted in the work area with: - Rotary table with faceplate D=350mm - Tilting range A-axis -110 / +46 degrees - Additional clamping plate approx. 200x350mm arranged to the left - Counter bearing to support the rotary table bridge - High-precision direct measuring systems centrally on both rotary axes - Hydraulic brakes per axis, holding torque 3,600Nm DUAL ROTARY FEEDTHROUGH in the center of the C-axis UNIVERSAL CHIP CONVEYOR VC850 Fjdsw Auryepfx Adtjpr discharging to the RIGHT from the machine PREPARATION of the spindle FOR HIGH PRESSURE for auxiliary tank use up to 70/80 bar HIGH PRESSURE TANK 70bar with paper band filter for central through-spindle flushing Blow air at the spindle head Compressed air centrally through the milling spindle Rinsing gun PREPARATION FOR SPINNER STANDARD PROBE Blum Wireless SPINDLE PROBE Spinner-Blum with tool interface matching the milling spindle Electrical PREPARATION FOR EXTRACTION AUTOMATIC DOOR for the workspace door Universal robot interface UNIROB I/O PACKAGE consisting of: 4 free M-functions with 2 PLC outputs I/O 24VDC 4 PLC inputs for feedback from the 4 M-functions Wired to terminal strip in the control cabinet STANDARD DOCUMENTATION 3D MODEL (CAM) LIFTING EYE BOLTS for crane unloading STANDARD 2-TONE PAINTING in light grey RAL7035 and blue grey RAL5008 Electrical design EUROPEAN STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN-system (5-wire) Notes: The price includes warranty services only within Germany. For new and demo machines, images may not necessarily represent the individual machine but rather comparable units. Depicted accessories such as clamping devices or tool holders are included only to the extent listed in the technical description. Please request a detailed ex works quotation. Visit our factory near Munich or one of our showrooms. We may also have similar machines available. Subject to prior sale.

Condition: good (used), Year of construction: 2016, operating hours: 3,252 h, functionality: fully functional, travel distance X-axis: 860 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, table width: 910 mm, table length: 560 mm, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 24, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel range XYZ: 860 x 560 x 600 mm Table size: 910 x 560 mm Spindle taper: BT40 Spindle speed: 10,000 rpm Control: FANUC Oi-MF Tool changer: 24-position MACHINE DETAILS Machine weight: 5,800 kg Additional motor power: 23 kVA Power-on time: 21,697 h Program run time: 3,252 h Machining time: 2,272 h Part counter: 11,601 pcs EQUIPMENT Fedpowu En Aefx Adtopr - Coolant system - Low-voltage lighting - Chip conveyor

Condition: like new (used), Year of construction: 2023, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 480 mm, Manufacturer: Brother Fjdpfx Aew E Ixljdtspr Model: W-1000 XD1 Year of manufacture: 2023 Commissioning: 2024 Operating hours: See pictures Control system: CNC D00 and plain text dialog programming Axes: 4 X-axis travel: 100 mm Y-axis travel: 500 mm Z-axis travel: 480 mm + column extension 150 mm 4th axis: 360° Spindle speed: 16 - 16,000 rpm Spindle taper: BBT-30 (BT-30) Tool positions: 21 (high-speed tool changer) Special features: Internal coolant supply 15 bar with self-cleaning pre-filter system Coolant tank 150 liters 'Twin' chip conveyor system for coarse and fine chips including filtration unit Side automatic door for robotic loading Emulsion mist extraction for work area 700 m³/h CNC rotary table Brother T200 Ad.L with counter bearing, clamped 2 x 4-way rotary unions Workpiece clamping hydraulically, 80-210 bar Tool breakage monitoring: Renishaw Laser Robot interface Part clamping control via differential pressure sensors (2-fold) Machine light; Ethernet interface Includes: Robotic cell Fanuc 6-axis robot (payload approx. 25 kg) 120 liter immersion cleaning bath (heated) for pre-cleaning of parts Automatic part infeed and outfeed via 12-station pallet shuttle Complete system in as-new condition, can be inspected under power. Sale direct from owner, no intermediaries.

Year of construction: 2004, condition: excellent (used), used machining center Brand: Hermle Model: U740 Year: 2004 Serial No.: 16716 Weight: 7300kg Power: 26KVA CNC: Heidenhain iTNC 530 Type: 4 + 1 axis (Spirsin model 8117CF/225) 16 tool charger. General technical data: Fast forwards: - X axis: 30m/min. - Y axis: 30m/min. - Z axis: 20m/min. - Axis B: 15 rpm. Tours: - X axis: 915mm / 895 to 915mm (Tool holder head -5º to 90º / Tool holder head > 50º to 95º) - Y axis: 500mm (In all positions of the tool holder head) - Z axis: 500mm / 470mm (Tool holder head 90º-95º) Positioning precision in the 3 axes 0.010mm (Temperature at 20º) Maximum load on table: 700kg Table measures: 900x500mm Spindle rpm: 12,000rpm Hollow Shaft Water Cooled Spindle Motor Milling head with automatic degree rotation from -5º to +95º sk 40 tool clamping system 16 tool magazine - Maximum tool diameter: 80mm - In case of adjacent free posts maximum tool diameter 100mm - Maximum tool length: 250mm - Maximum tool weight 6kg Cooling system by coolant with a 210L tank and a flow rate of 30Ltrs./min. It has an electronic control for manual handling of the machine. Chip collector: - Brand: BMF - Model: SPE 63/12-300 Z600 Fjdpfxjktkdbs Adtopr - Year: 2004

Condition: excellent (used), 5-axis work center, ISO 40 spindle attachment, 22000 rpm, Xmm850 axis, Y420, Z420, tilting and tilting table Fjdpfx Adswcdv Iotepr

Condition: ready for operation (used), Year of construction: 1999, operating hours: 2,466 h, functionality: fully functional, machine/vehicle number: 13147, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, table width: 560 mm, table length: 1,000 mm, TECHNICAL DETAILS Travel X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm Spindle Speed range: 20 – 12,000 rpm Tool holder: SK40 Table Dimensions: 1,000 x 560 mm Tool magazine: 30 positions MACHINE DETAILS Fodpjw Nqh Ajfx Adtopr Weight: 7,000 kg Spindle hours: 2,466 h Machine operating hours: 34,485 h Power: 15 kW (at 40% duty cycle) Frequency: 50 Hz Operating voltage: 400 V Control voltage: 24 V Total rated current: 44 A EQUIPMENT Chip tray Heidenhain TNC430 control Heidenhain touch probe system Extraction unit Electronic handwheel

Condition: excellent (used), Year of construction: 2017, operating hours: 16,193 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, rotational speed (max.): 15,000 rpm, number of slots in tool magazine: 38, swivel angle A-axis (min.): -139 °, swivel angle A-axis (max.): 91 °, swivel angle C-axis (max.): 360 °, A similar machine was recently successfully auctioned! Bidding obliges the buyer to pick it up on time by March 31, 2025! TECHNICAL DETAILS X-axis travel: 850 mm Y-axis travel: 700 mm Z-axis travel: 500 mm Control type: Heidenhain TNC 640 Rapid traverse linear X-Y-Z: 35 - 35 - 35 m/min Linear acceleration X-Y-Z: 6 m/s² Linear feed force X-Y-Z: 7,000 N Max. jaw width: 625 mm Workpiece dimensions Max. diameter: Ø 650 mm Max. height: 500 mm Interference circle (A-axis) in 0° position: Ø 885 mm Spindle data Speed: 15,000 rpm Power/torque: 20% duty cycle, 20 kW / 173 Nm Tool holder: SK 40 Tool interface Type: SK 40 Magazine positions: 38 pieces Chip-to-chip time: approx. 6 s Tool length: max. 300 mm Tool diameter with adjacent position occupied: Ø 80 mm Tool diameter without adjacent position occupied: Ø 125 mm Tool weight: max. 8 kg Magazine load: max. 152 kg Swivel rotary table Clamping surface: Ø 650 x 540 mm Centering hole: Ø 32 H7 Swivel range: +91° / -139° Drive type C axis: worm Speed of swivel axis A: 25 rpm Speed of rotary axis C: 30 rpm Table load One-sided drive: 600 kg Fpedjv Hmdqepfx Adtsr Accuracy according to ISO 230-2 Deviation (A in X-Y-Z axis): ≤ 0.006 mm Cooling system (IKZ) Standard tank capacity: 122 l Cooling lubricant tank capacity: max. 570 l at 40 bar Pressure: max. 40 bar Flow rate: 11/27 l/min Mains connection (IKZ): 400 V / 50/60 Hz Power consumption (IKZ): up to 20 kVA Filter: police filter, paper belt filter Operating pressure Hydraulic pressure: 120 bar Compressed air: 6 bar Lubrication system: minimum quantity grease lubrication MACHINE DETAILS Control switch-on time: 24,403 h Machine switch-on time: 23,349 h Program run: 16,193 h Spindle time: 13,916 h Weight: approx. 9.5 t Mains connection Voltage: 400 V / 50/60 Hz Power consumption: up to 30 kVA EQUIPMENT - BLUM measuring probe - BLUM tool laser measurement - Extendable chip drawer - Swivel rotary table - Chip flushing gun - Emulsion mist extraction - Scraper belt conveyor - Blow-off device - Blowing air through the center of the spindle - Manual cabin door - Manual cabin roof - Polycarbonate safety windows - Electrical heat compensation from Heidenhain. - Electrical manual control module from Heidenhain.
