Used Extruder Screws for sale (5,375)

Year of construction: 1993, operating hours: 1,04,599 h, condition: good (used), Brand Cincinnati Milacron Austria GmbH Type CMT 35 Machine number 2005723/10 Type Screw Conical Double Screw Year of manufacturing 1993 Ndsdpfx Abevl Hzgoujd Machine hours 104,599 hours Screw Diameter 35mm Dimensions (LxWxH) 3200 x 1500 x 1720 mm Weight (approx) 2000kg

Condition: like new (used), Year of construction: 2013, BLOW EXTRUDER HDPE Model EuroTruder 75 Made by Euro-Stel, Belgium Nodpfewivdkex Abusdd YOM 2013 extruder: diameter 75x28 D - with neck sweder and granulate hopper mold is not included EXCELLENT CONDITION

Condition: ready for operation (used), Year of construction: 2002, Extruders and oil screw presses for soybean processing, obtaining oil and soybean cake. There are two extruders and two presses. One extruder and one press work in tandem and form a pressing line. Nedpetxinajfx Abusdd The motor power of the press is 22 kW and the power of the extruder is 55 kW. the capacity of one line is 500-800kg/h The price refers to one line (exstruder+press)

Year of construction: 2011, condition: good (used), - Incl. extruder, corrugator, cutting saw, sliding saw, table, molds and die head / set - Suitable for single wall pipes up to 220mm Ndsdpoua E H Sofx Abujd

Condition: good (used), functionality: fully functional, Year of construction: 2000, Echo - Progres extruders for the production of HC hollow core slabs, quantity 5 units. The listed price is per unit. Njdpfx Abjxzamdousdd

Condition: good (used), Year of construction: 2025, Maynards is offering the machinery and equipment from GoodYear’s 17–22 inch passenger car and SUV tire production facility in Fulda. On-site production will continue until the end of September 2025. We invite you to express your interest and submit offers for the complete facility or larger equipment packages. Immediate purchase is possible. Products (until closure): - High-performance and ultra-high-performance tires - Run-on-flat tires - SUV/4x4 tires - Diameter range: 17–22 inches Plant and Systems: - Mixing lines (Banbury 1–3) - Extrusion lines (Triplex, Quadruplex) - Apexing and filling/weighing systems - Steel cord production (winders, extruders, carousel, spoolers) - Tire building machines (R2.5, SOC-88, R1, ISR1, cutting machines) - Calendering lines (Comerio, framework, winding machines) - Tire curing and finishing lines - Tire curing presses (HF & Krupp, 77 units) - Grinding and cut-to-length machines (Matteuzzi, Collmann, Roentgen, TR5, TR7) - Cutting and calendering systems (Bias 66, KEF HTBC, rubber calender) - Tire carts - Tire testing equipment Utilities and Supply Systems: - Steam boiler systems - Water treatment - Oxygen supply & compressors Storage and Infrastructure: - Silos & oil tanks - Fire protection and safety systems (plant fire brigade) - Material handling and transport equipment (forklifts, tow tractors, pallet trucks) - Hydraulic pallet turners Ndsdpfjxa Dqdex Abusd Workshop Area: - Maintenance of machinery and equipment Notes: - All machinery and equipment is offered “as is, where is.” - All Goodyear-specific data has been removed, and the software has been reset to factory settings.

Condition: used, Polystruder Extruder with Berringer water ring Pelletizer, 250 HP, 3 phase motor, with screen changer, includes spin dryer, and hopper. Ndjdpfx Abjxd D I Dsujd

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, working height: 950 mm, conveyor belt speed: 833 mm/s, conveyor belt thickness: 7 mm, cylinder diameter: 190 mm, TECHNICAL DETAILS Working dimensions: 70 - 4000 mm Leg length: 5.0 mm to 12.0 mm Profile height automatic: 4.0 mm to 24 mm Profile height manual: up to 35 mm Butyl cylinder Ndsdjxur Awopfx Abuod Butyl cylinder diameter: 190 mm Butyl cylinder length: 250 mm Butyl cylinder volume: 7.5 l Operating temperature butyl: 100°C to 140°C MACHINE DETAILS Working height: 650 mm to 950 mm Conveyor belt height: 0 mm to 7 mm Conveyor speed: 5 m/min to 50 m/min Connected load: 5 kW Compressed air consumption (for 1 m × 1 m frame): 23 standard litres Air consumption when refilling butyl: 300 standard litres/min Pneumatic input pressure: 6.5 bar to 8.0 bar Pneumatic operating pressure: 6.5 bar Maximum butyl extrusion pressure: 280 bar Maximum operating pressure: 300 bar EQUIPMENT Butyl cylinder Conveyor belt Pneumatic system

Year of construction: 1996, condition: ready for operation (used), functionality: fully functional, screw conveyor diameter: 25 mm, TECHNICAL DETAILS Screw diameter: 2 x 25.0 mm Nodpfx Abexx Uk Eousdd L/D: 40:1 MACHINE DETAILS Total power: 12.0 kW EQUIPMENT Platform 4-way dosing system from Brabender Scholz dosing control Easytouch (year of manufacture 2009) 1x side feeder Degassing Strand die Water bath by Collin Scheer granulator SGS 50-ET

Year of construction: 2009, condition: excellent (used), max in operation for 4 years die 700 mm dosing 1+3 components Nodpfxjxu N Iqo Abuedd NGR trimming recycling - including Futec optical flaw inspection system manufacturing year 2009 machine is designed for low-gel film production for the semiconductor industry - including Fuji dual turret automatic winder manufacturing year 2009

Condition: good (used), functionality: fully functional, Twin screw extruder / laboratory extruder - 2 x 30mm screw diameter - 4x heating zones - dosing - Control system Njdpfx Abou Hik Djusdd

Year of construction: 2016, condition: ready for operation (used), This Krauss Maffei KME 45 XS was manufactured in 2016. It features a 23 kW rated drive power and a maximum drive speed of 2486 rpm. The gear ratio stands at 1:12.4, ideal for consistent performance in extrusion processes. Consider the opportunity to buy this Krauss Maffei KME 45 XS single screw extruder. Contact us for more information. Nsdpfxsxyl R Se Abusdd Application Types Extrusion

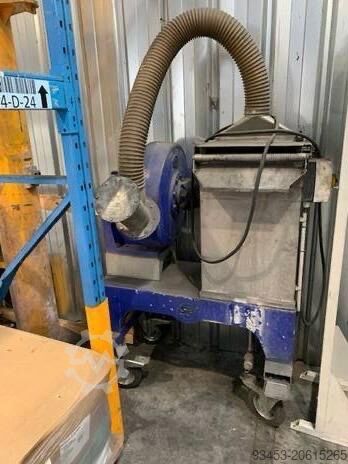

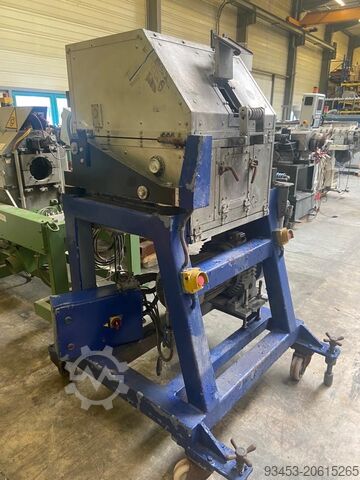

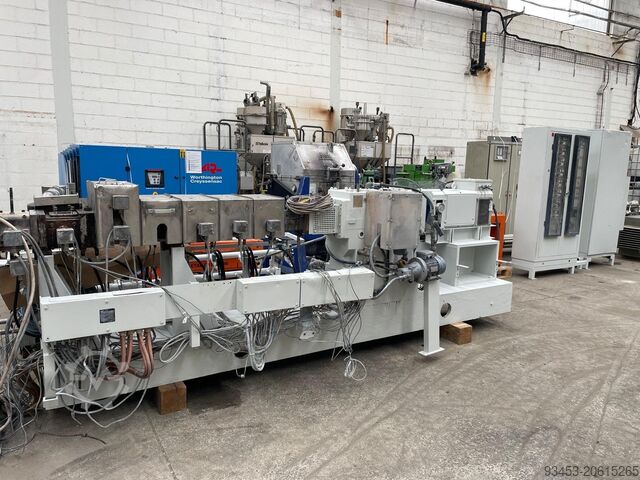

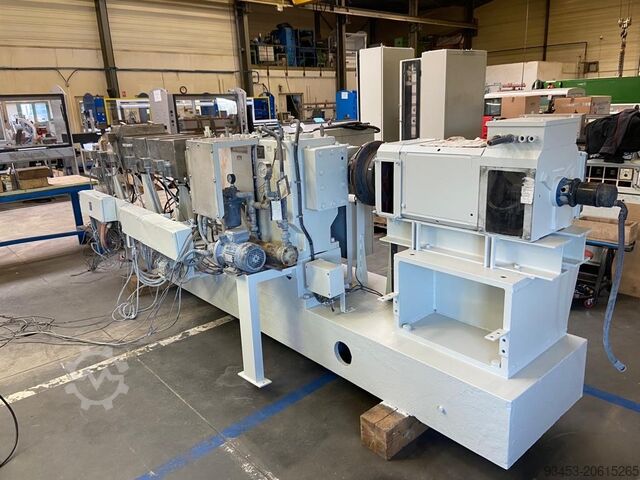

Year of construction: 1989, condition: good (used), Extruder ZSK 58/32 D Year: 1989 Njdpfx Aexzfdbobuodd Stainless steel cooling tank Sheer dryer Sheer granulator

Condition: reconditioned (used), Screw stages for compressors Atlas Copco, Kaeser Ndsdpfx Aexy Aaqebusd

Year of construction: 2010, operating hours: 29,000 h, condition: excellent (used), Category: Twin-screw extruder Number: DE27699 Manufacturer: Coperion - Werner & Pfleiderer Type: ZSK 50 MCC+ Year: 2010 Screw diameter: 2 x Ø 50.0 mm L/D: 48:1 Motor: 129 kW Details: Co-rotating, segmented screws and barrel, vacuum pump, temperature control unit, 2x side feeders, 1x side degassing The extruder is in very good condition and has only 29,000 operating hours. Options: 7-fold dosing system from Motan Colortronic, dryer (Motan LA 1200/4), IPS strand extraction, strand conveyor belt, water bath, granulator, vibrating screen. All options are available immediately at extra charge. This offer does not meet your requirements? Please visit our website Plama or send us your detailed enquiry. We offer suitable equipment for almost every budget. Ndedpfexykcgex Abusd

Year of construction: 2020, condition: excellent (used), functionality: fully functional, Layers: 5 Web Width: 1,500 mm Film thickness range: 10–45 μm Output: - 15 μm: up to 745 kg/h - 17 μm: up to 845 kg/h - 23 μm: up to 905 kg/h Final film widths (per bobbin): - 3 x 500 mm - 6 x 250 mm - 3 x 400 mm - 2 x 750 mm Coextrusion Structure / Number of Layers: 5 layers Layer distribution: B / A / D / A / C Percentage: 10 / 35 / 10 / 35 / 10 % Raw materials: - LLDPE: 2.8–5.0 g/10min (190°C/2.16kg) - VLDPE: 2.8–5.0 g/10min (190°C/2.16kg) Extruder "A": 90/33 L/D, Maximum LLDPE output: 800 kg/h Extruder "B": 60/28 L/D, Maximum LLDPE output: 200 kg/h Extruder "C": 60/28 L/D, Maximum LLDPE output: 200 kg/h Extruder "D": 60/28 L/D, Maximum LLDPE output: 200 kg/h Flat die lip width: 2,050 mm Ndodpexyuffsfx Abued Roll width: 2,100 mm Chill roll C1 diameter: 1,600 mm Maximum mechanical speed: 650 m/min MATERIAL FEEDING AND DOSING "A": - 1 main component material feed - 1 additional component material feed - 1 gravimetric batch dosing system (mounted directly on the extruder, 3 components) MATERIAL FEEDING AND DOSING "B, C, D": - 3 main component material feeds - 6 additional component material feeds - 3 gravimetric batch dosing systems (mounted directly on the extruder, 3 components each) Extruder "A": - SML Single-Screw Extruder SML-ES-90/33 - Tool unit: Manually operated screen changer SML-MF-man/90 Extruder "B, C, D": - 3 SML Single-Screw Extruders SML-ES-60/28 - 3 Tool units: Manually operated screen changers SML-MF-man/60 Cloeren 5-layer/3-up Stretch Film System consisting of: - 1 five-layer feedblock FG - 1 automatic flat die, 2,050 mm (for automatic die control) - 1 die splitting system for flat die body separation and cleaning - 1 vacuum box, 2,050 mm - 1 triple-chamber vacuum box SML-TC/2050mm Cooling and take-off unit: - 1 casting section SML-CS/2100/650 - 1 electrostatic edge pinning device - 1 thickness measuring unit (X-ray sensor for automatic dies, stretch wrap film) - 1 recovery system for feeding stretch wrap film with vertical scraptruder for SML 90 mm single-screw extruder - 1 antistatic pipe - 1 power supply unit for antistatic pipes Winding unit: - 1 Cast Film Turret Winder Series W4000 for stretch wrap films - Max. end film width: 3 x 500 mm - Number of turrets: 1 - Number of winding shafts: 4 - Winding shaft diameter: 3" - Max. mechanical winding diameter (3" bobbins): 400 mm - Min. winding diameter: 82 mm - Winding tension: 15–100 N/m - Contact pressure: 50–500 N - Cycle time (3" core magazine): 20–25 s - High-speed Cast Film Turret Winder for stretch wrap film—compatible with 3" air shafts, contact winding mode - 1 automatic core and roll handling system W4000 4S1T (per turret) - 1 oscillating frame SML-OF/2100 Control and data logging: - 1 SML Automatic Control System SML-CS-2/SMILE/4 extruder - 1 SML Data Logging System: SMILE Process Analyzer - 1 E-container (20 ft) Chiller: Frigosystem Compressor unit: MSD V 30-37

Condition: excellent (used), We are offering an unused single-screw extruder from stock. The unit was operated exclusively for test purposes and is therefore in excellent, near-new condition. Ideal for laboratory, material development, small batch production, or custom extrusion applications. — Technical Data & Features • Screw diameter: 30 mm • L/D ratio: 25:1 • Condition: unused / test runs only • Drive: 3 kW SEW motor with gearbox • Heating zones: 4 zones with temperature controllers • Control cabinet: included in scope of delivery • Currently not connected, but can be integrated without issue • Die: Strand die can be customized or newly manufactured upon request Nodpjxxim Isfx Abujdd • Design: robust laboratory/pilot plant construction • Mobile: base plate with heavy-duty castors – easy to position — Special Features • Very compact design • Ideal for filament, profiles, laboratory tests and material trials • Barrel and screw in excellent condition (see photos) • Immediately available from stock

Year of construction: 2016, condition: ready for operation (used), General Data Machine weight 1100 kg Measurements height 1960 mm Dimensions Machine Length 2120 mm Injection Unit Screw diameter 45 mm Ndsdpoxyl Svofx Abujd This Krauss Maffei KME 45 XS single screw extruder was manufactured in 2016. It features a screw diameter of 45 mm and a length of 1350 mm, with a drive power of 23 kW and a maximum speed of 2486 rpm. The machine includes five heating/cooling zones and can handle a maximum air flow of 5 × 630 m³/h. If you are looking to get high quality extrusion capabilities consider the Krauss Maffei KME 45 XS machine we have for sale. Contact us for more information. Application Types Extrusion

Condition: good (used), Year of construction: 1999, operating hours: 17,620 h, Brand: Collin Lab & Pilot Solutions GmbH Extruder model: E 30 M Low Boy Screw type: Single screw Screw Ø: 30 mm L/D ratio: 25 mm Nodpfxjxx Tnpj Abuedd Operating hours: 17,620 h Year of manufacture: 1999

Condition: used, Perry is offering a high quality used Winkworth model ZX190-9 stainless steel mixer / extruder. Manufacturer: Winkworth Material: Stainless steel Year of Manufacture: 2018 Capacity: 190 litre (product dependent) Type Of Blades: (2) stainless steel wing blade shafts Motor: 11kw motor & gearboxes Also Includes: main electrical control panel - Separate ICS model i-Temp ci 90t 18 heating/cooling unit. - External jacket rated 3.5 bar design pressure at 250 deg.c. Ndedpfexyxytox Abuod - Top mounted Coperion model P30-BV-150 vacuum sequencing receiver with rotary lock valve. This unit is ready to run. A video of this mixer is available below.

Condition: used, Battenfeld plasticising screw Ø 18 mm- as good as new - removed from Battenfeld VM75/60/60 R1040 Nodpfx Asu Tv A Dsbuodd - removed from running machine - fully functionalinlet: 17,80 mm centre: 17,80 mm outlet: 17,80 mm stroke volume: 22.9 cm³ injection pressure: 2593 bar manufacturer: Battenfeld type: Ø 18 mm spare part no.: 100TM842 Dition: neuwertig

Year of construction: 2014, condition: excellent (used), functionality: fully functional, Farmet extruder FE250, 22kw motor, with command cabinet, made to extrude soybean, grain, rapeseed/sunflower after prepressing, or pet food (with additional cutting head, not included). Condition is very good, most of working parts replaced. Capacity 250-400kg/h Ndsdjwbkykjpfx Abuod

Condition: new, Machine function: puffing and expanding corn, rice, millet, and sorghum. The end product can be flavored, seasoned, or mixed with other flours before extrusion. Flavoring options: paprika, salt, pepper, garlic powder, mushrooms, natural proteins. Capacity: 12–20 kg/h processed raw material. Nedpjxvxd Rsfx Abuedd Motor drive: 4 kW, 0.18 kW. Hopper: maximum 5 kg material. With steam extractor.

Year of construction: 2013, operating hours: 1,000 h, condition: ready for operation (used), Additional Equipment 2x electrical melt pressure transducer 1/2 “UNF diaphragm pressure transducer 2x ground temperature sensor with sword probe This REIFENHÄUSER BI Trudes 115 was manufactured in 2013. Ideal for pipe extrusion, this machine represents a robust addition to any production line. Contact us for more information. Application Types Ndsdpfx Aswgf Efjbuod Extrusion

Condition: used, Used BCH stainless steel jacketed sigma mixer / extruder. Approximate working capacity 100 litre (product dependent) with maximum total capacity 250 litre. 304 Stainless steel mixing chamber measures approximately 720mm Long x 780mm Wide x 700mm Deep. Internal rated 100 mbar (90% Vacuum) design pressure at 150 deg.c. External 304 stainless steel jacket rated 6.8 bar design pressure at 170 deg.c. Has (2) 304 stainless steel Sigma blades driven by (2) 4kw motors with gearboxes. 304 Stainless steel screw discharge driven by 4kw motor with gearbox. Unit air operated hinged lid. Includes control panel. Nodpfxsxxh Rlo Abuedd
