Used Tool milling machines - univ.conv. 700-999mm X-axis travel for sale (31)

Condition: used, X-AXIS MOVEMENT: 800 MM X-AXIS WORK FEED RATE: 10-600 MM/MIN X-AXIS RAPID TRAVEL: 1500 MM/MIN Y-AXIS MOVEMENT: 450 MM Y-AXIS WORK FEED RATE: 10-600 MM/MIN Y-AXIS RAPID TRAVEL: 1500 MM/MIN Z-AXIS MOVEMENT: 250 MM Z-AXIS WORK FEED RATE: 10-600 MM/MIN Z-AXIS RAPID TRAVEL: 1500 MM/MIN TABLE EXTERIOR LENGTH: 800 MM EXTERIOR WIDTH: 300 MM TSLOT SIZE: 12 MM NUMBER OF TSLOTS: 6 DISTANCE BETWEEN: 50 MM Cgslowg Trgoinnvnst MAXIMUM DISTANCE BETWEEN THE VERTICAL SPINDLE AND THE TABLE: 365 MM

Condition: excellent (used), Machine in very good condition including accessories. Clamping table area mm 250 x 1130 Cslowaib Dsinnvnsgt Working stroke: longitudinal mm 800 cross mm 350 vertical mm 450 Taper in spindle ISO 40 Range of revolutions r.p.m. 45 - 4500 Number of revolutions steps 16 Main motor output kW 2,2/3,0 Total machine input kVA 4,0 Machine dimensions mm 2650 x 1980 x 2260 Machine weight kg 1760

Condition: good (used), Year of construction: 1997, x-travel 600 mm y-travel 450 mm z-travel 400 mm Control Heidenhain 430 ITNC tool taper SK 40 spindle turning speed - stepless 13465 U/min voltage 400 V Cgslinnswbi A Dsvnot control voltage 24 V weight of the machine ca. 6 t

Condition: excellent (used), Year of construction: 2012, XYZ 2000 Turret Milling Machine 3 Axis Newhall DRO (X, Y & Knee) Spindle Taper R8 Spindle speeds to 500 – 4200 rev/min Table Size 1270 x 254mm Table Travel: X - 812mm Y - 406mm Knee Travel: Z - 406mm Quill Travel Z - 127mm For sale with Jet Machinery Ltd Jet Machinery Stock No: #78864 Machine Serial Number: 11546 Cost: £7,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Colinnvjvllnronjgt Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: used, Universal Milling Machine ERNAULT SOMUA HES ZHV1 Travel X : 700 mm Travel Y : 250 mm Travel Z : 350 mm Rotation : from 40 to 2000 RPM Table size : Length 1200 mm x Width 300 mm Vertical/horizontal universal swivel head Scale 3 axes EAE Rapid 3 axes Cjlinnvswff Dfsnegt Voltage380 V Width: 2000 mm Depth: 1800 mm Total height in height: 1600 mm Weight: approx 1,5 T

Condition: good (used), Year of construction: 1972, Table size 2,000 x 450 mm X-axis 1,250 mm Y - axis 400 mm Z - axis 400 mm Spindle speed 18 - 1,400 rpm Spindle run-up ISO 50 Incl. coolant device Incl. counter bearing Cjlijtqmhmjnnvnegt

Condition: used, Year of construction: 1982, x-travel 850 mm y-travel 600 mm z-travel 500 mm table surface area 1200 x 550 mm spindle taper SK 40 control HEIDENHAIN, TNC 121 spindle turning speed range 36 - 1800 U/min quill stroke 120 mm feeds 5 - 2000 mm/min rapid traverse longitudinal 4 m/min rapid traverse vertical 2 m/min milling head -swivable +/- 90 ° table rotating 360 ° total power requirement 12 kW weight of the machine ca. 5 t dimensions of machine L x W x H 2,80 x 2,0 x 2,61 m Cjlinnstqqwqevnogt Accessories: vertical head with hydr. tool clamping and quill retraction, univ. table, various tool fixtures, coolant

Condition: used, Year of construction: 1998, Technical details: x-travel: 980 mm y-travel: 340 mm z-travel: 440 mm spindle taper ISO: SK 50 (vertikal) distance table/horizontal spindle: max. 440 mm cross rail adjustment - horizontal: 700 mm range of revolution per miute: 32 - 1600 / 18 step U/min Cjliovbf Dfennvnegt spindle taper: SK 50 (horizontal) swival range +/-: Fräskopf: bei 90° = 360° und bei 45° = 360° Grad clamping surface area: 1120 x 320 mm table swivable approx.: 45° rechts/links total power requirement: 10 kW dimension machine xH: 2,4 x 2,1 x 1,8 m The machine is currently in the technical department. Equipment: 2x counter bearing Ø 56 mm 3-way measuring system ACU-RIDE Cooling water system with pump Chip/oil drip tray Hand crank *

Condition: used, Universal tool milling machine MAHO type MH 800 P with digital display and HEIDENHAIN TNC 121 path control . 8 built in 1982 Machine overhauled by MMD in 2008, then rarely used in the workshop by an electronics company. Travel paths X: 700 mm, Y: 450 mm, Z: 500 mm Table size 1050 x 627 mm Spindle mount ISO 40 Spindle speed rpm 18 levels Feed rate X, Z axis 10-500 mm/min. continuously variable Feed rate Y axis 5-250 mm/min. continuously variable Rapid traverse X, Z axis 1.4 m/min. Rapid traverse Y axis 0.7 m/min. Vertical spindle displacement 100 mm Vertical spindle feed 0.02 / 0.03 / 0.05 / 0.08 / / mm/rev Horizontal spindle displacement 100 mm Spindle drive 5.5 kW Mains connection 380 Volt, 50 Hz, 10 kW - NC path control HEIDENHAIN TNC 121 - Vertical milling head with automatic. Quill feed 0.02 - mm/rev (6 levels) - Hydro-mechanical tool clamping - Coolant device in the machine base - Universal built-in rotary table, 360° rotatable, 30° swivel and tiltable, 225 mm transverse adjustment - Rotary table with direct division 72 x 5° and indirect division via perforated disk 1:120 = 1 rev. = 3° - Swiveling control panel - Central lubrication - Operating instructions, - Machine mounted on a steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirement L x W x H 2650 x 2000 x 2450 mm Cgolijv Amrysnnvnet Weight 3700 kg + 550 kg steel plate Weight 4250 kg (weighed) very good condition

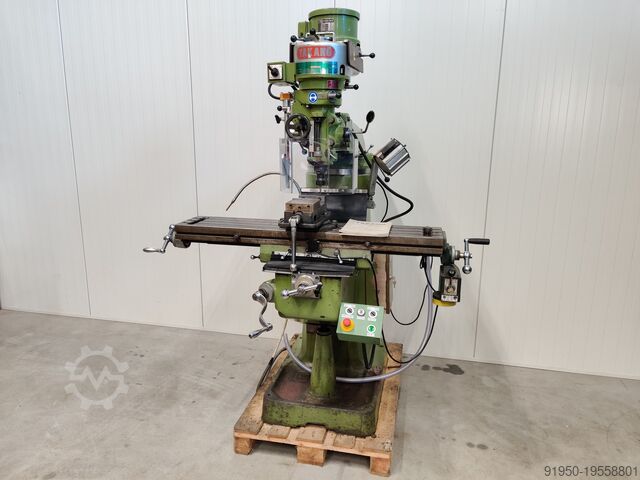

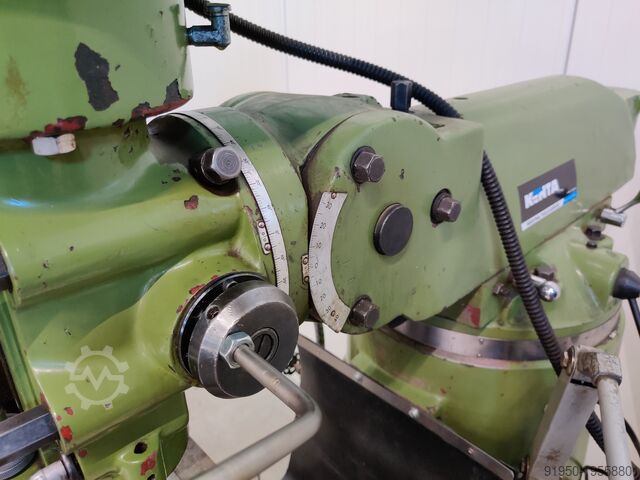

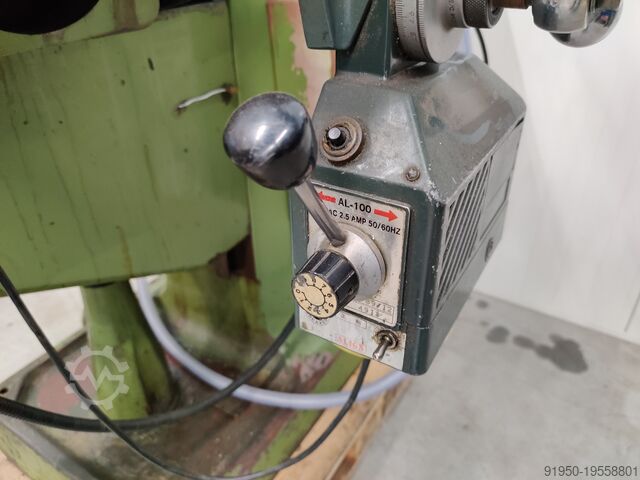

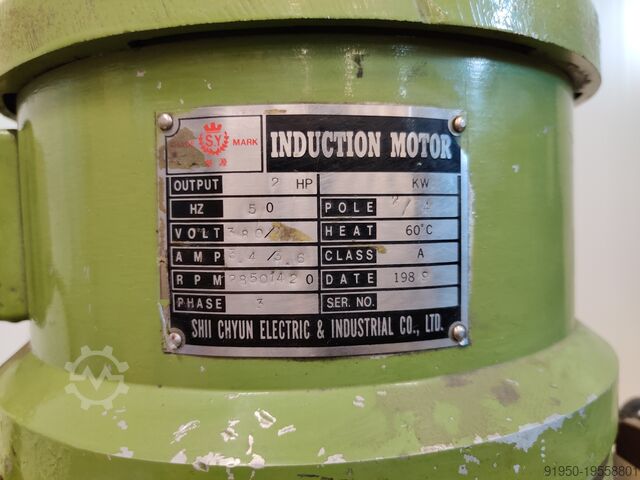

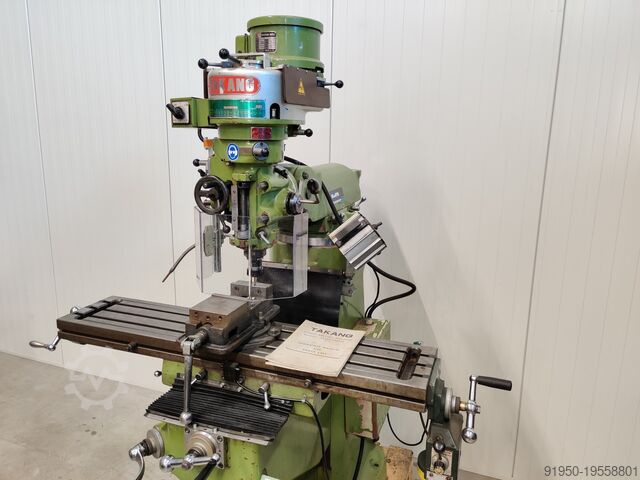

Condition: used, Year of construction: 1987, Milling machine TAKANG Type: TKM-2V year 87 with 2-axis digital readout Travel: X760mm Y305mm Z406mm Working table: 1245X230mm Spindle holder: ISO 30 Cgsliequtczennvnet Spindle speeds: 70-3,000 rpm with many accessories

Condition: good (used), Machine number: Table clamping surface: 1,000 x 400 mm Travel: 800 - 300 - 400 mm Speed range: 50 to 2,500 rpm Feed rate: 5 to 500 mm/min Rapid traverse: 1,500 mm/min Mounting: SK40 Cgelief Dqumsnnvnot Condition: good, ready for use Accessories: Connection: 3 kW Weight: 2,5 t Dimensions: 2,000 x 1,900 x 1,900 mm

Condition: used, We are offering a Deckel FP2L with a 3-axis Heidenhain digital readout for sale. Technical specifications: Spindle mount: SK40 Speed: 40 - 2000 X travel: 1000 mm Y travel: 320 mm Z travel: 400 mm Cgslinjv Hc U Eonvnet Table size: 1000 x 400 mm The machine has automatic feed in all axes.

Condition: used, Year of construction: 1965, x-travel 700 mm y-travel 350 mm z-travel 450 mm table surface area 940 x 510 mm spindle taper SK 40 spindle turning speed range 32 - 1600 U/min Cjlinjvzhh Tjnvnegt feed - longitudinal/cross 8 - 400 mm/min feeds vertical 4 - 200 mm/min total power requirement 4,5 kW dimensions of machine L x W x H 1,85 x 1,62 x 1,83 m Accessories: vertical head with quill retraction, univ. table, counter bearing, coolant

Condition: reconditioned (used), Year of construction: 1988, Universal tool milling machine Make: DECKEL Model: FP 3 L Active Year of manufacture: unknown - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray RAL5008 gray-blue Mach. no.: 2302-2319 Csleh Rv U Ejinnvnogt Milling head type: 2271 Milling head number: 700-0883 with guarantee geometric acceptance with test report Accessories: - 3-axis active digital display HEIDENHAIN TNC 111 - Universal table 1000 x 520 mm (T-slot: 16 mm) - Vertical milling head SK 40 with Tightening thread S 20 x 2 - Central lubrication, electric - Coolant system - Operating instructions - Drill grinding device with diamond disk -used, as seen-

Condition: excellent (used), Working travels 700 x 400 x 400 mm Spindle taper ISO40 Cgolshctcgeinnvnst Spindle speeds 50-2'500 rpm Active Digital read-out Misc. accessories MARCELS MASCHINEN CH

Year of construction: 1986, Condition: excellent (used), machine/vehicle number: 12024, table mounting size: 290 x 1250 mm table movement x: 800 mm table movement y: 360 mm table movement z: 450 mm milling head swivelling by: 90/45 ° spindle taper: ISA 40 spindle turning taper: 56 - 4500 rpm tailstock stroke: 125 mm tailstock carriages: 0,035; 0,14; 0,7 mm/min spindle drive: 1,8/2,4 kW space needed: 2000 x 1900 x 2300 mm Cgjlinnef Tc R Uevnjt weight: 1700 kg

Condition: good (used), Table clamping surface: 1,000 x 400 mm Travel paths: 800 – 300 – 400 mm Speed range: 50 to 2,500 rpm Feed: 5 to 500 mm/min Rapid traverse: 1,500 mm/min Holder: SK40 Condition: good, ready for use Accessories: Heidenhain digital display, various holders See pictures Connection: 3 kW Weight: 2.5 t Cslinnjvmnlcovnegt Dimensions: 2,000 x 1,900 x 1,900 mm

Condition: used, Year of construction: 1998, Technical details: x-travel: 820 mm y-travel: 280 mm z-travel: 410 mm spindle taper ISO: SK 40 Cgolinnveva Ei Ssnjt distance table/horizontal spindle: min. 30 / max. 440 mm cross rail adjustment - horizontal: 650 mm range of revolution per miute: 40...2000 / 18step U/min swival range +/-: bei 90°: 360° und bei 45°: 360° Grad clamping surface area: 1120 x 250 mm table swivable approx.: 45° rechts / links feed:: X/Y: 12,5 - 830 + Z: 5,2 - 260 mm/min rapid traverse: X/Y: 2500 und Z: 1040 mm/min. total power requirement: 10 kW machine weight approx.: 2000 kg dimension machine xH: 2,2 x 1,8 x 1,7 m Ausstattung: 2x Gegenlager Ø 55mm Kühleinrichtung: Pumpe und Zuführung Bedienung über 3-Wege Messsystem ACU-Ride und Bedientafel Maschinenfüße *

Condition: repair required (used), Year of construction: 1980, x-travel 800 mm y-travel 300 mm Cgjlieuynl Tsnnvnet z-travel 400 mm total power requirement 3 kW weight of the machine ca. 2,,2 t dimensions of the machine ca. 2,5*2*2 m

Condition: used, Year of construction: 1993, Technical details: x-travel: 850 mm y-travel: 630 mm z-travel: 500 mm spindle motor: 12 kW spindle turning speed range: 25 - 4200 U/min spindle cone ISO: 40 quill stroke: 90 mm feed range: 1 - 10000 mm/min table-size: 800 mm total power requirement: 15 kW weight of the machine ca.: 4 t dimensions of the machine ca.: 4,3 x 4,4 x 2,3 m with CNC HEIDENHAIN TNC 407 Cjlinnevb Dcyovnsgt - NC rotary table - splash housing - diverse toolholders *

Condition: used, x-travel 800 mm y-travel 400 mm z-travel 300 mm Cgolinnveqpl Uuenet digital readout Heidenhain table surface area 1000 x 520 mm turning speed range 40 x 2000 U/min spindle taper SK 40 total power requirement 2,2 kW weight of the machine ca. 2,2 t dimensions of the machine ca. 1700 x 1600 x 1800 m

Condition: used, x-travel 400 mm y-travel 300 mm z-travel 380 mm table length 710 mm table width 380 mm spindle turning speed range 45 - 2240 U/min spindle taper SK 40 quill stroke 90 mm pinole diameter 90 mm total power requirement 7,5 kW weight of the machine ca. 1,9 t Cgelinnvjvu Ha Ujnst dimensions of the machine ca. 1,7 x 1,7 x 1,9 m Tool milling machine - Digital display - Horizontal milling device - Universal milling head with spindle sleeve - 2nd milling head (small) - Tailstock - Coolant system - Machine light - Chip tray - Emergency stop device - Documentation

Condition: used, Year of construction: 2003, x-travel:760 mm y-travel:290 mm z-travel:370 mm turning speeds:60 - 4200 U/min table::750 x 230 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,13 mm/U feed range:19 - 890 (x) mm/min spindle cone:SK 30 column arm:171 - 476 mm total power requirement:2,4 kVA weight of the machine ca.:0,95 t dimensions of the machine ca.:2,05 x 1,63 x 2,07 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Cjlijt U Rm Uennvnegt Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: used, x-travel 800 mm y-travel 300 mm z-travel 400 mm General overhaul in 1997 Cgslijuynlmennvnjt total power requirement 3 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 2*2*1,8 m Factory overhauled by DMG in 1997

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 300 mm z-travel 400 mm table length 1350 mm table width 320 mm spindle turning speed range 58 - 1710 U/min spindle taper SK50 total power requirement 4,0 kW weight of the machine ca. 2,3 t Cgjlinovn U I Tjnvnet dimensions of the machine ca. 2,0 x 1,7 x 2,1 m Tool milling machine - Digital display - Coolant system - Machine light - Chip tray - Emergency stop device
