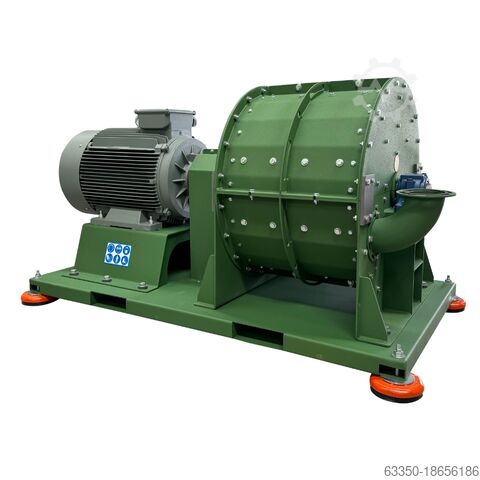

Hammer mill in solid construction, hardly close
Motor 55 kW, rotor with drive and flywheel,
rotor diameter: 600 mm,
rotor width: 1020 mm,
rotor speed: approx. 780 rpm,
impact hammers made of Hardox 400, (hammer width: 110 mm)
Impact plates : Hardox 400,
wear plates: Hadrox 400,
adjustable gap between rotor and grinding track,
hydraulic unit ,
Grate basket hydraulically retractable,
rear part of the housing can be swivelled hydraulically for inspection and maintenance work,
Length: approx 3100 mm...
2
4
4
Rotor diameter: 300 mm
0ywzk8k
Rotor width: 500 mm
3-knife rotor
2 rows of stator knives
inlet cross section approx. 490 x 500 mm
drive motor: 7,5 kW
3
Rotor diameter: 450 mm
Rotor width: 600 mm
Closed 3-knife rotor
Dysw0i
2 rows of stator knives
inlet cross section approx. 600 x 578 mm
Drive motor: 55 kW
Machine ideal for shredding massive parts
4
4
Rotor diameter: 600 mm
Rotor width: 930 mm
7-knife rotor
2 rows of stator knives
inlet cross section approx. 600 x 900 mm
Eaxju2wsc
drive motor: 75 kW
weight approx. 6000 kg
4
Rotor diameter: 420 mm
Rotor width: 1000 mm
5-knife rotor
Number of rotor knives: 5x2 staggered
2 rows of stator knives
inlet cross section approx. 600 x 1000 mm
drive motor: 55 kW
B0s8v3oxof
weight approx. 3500 kg
5
Rotor diameter: 500 mm
Rotor width: 1000 mm
5-knife rotor (5 x 2 rotor knives)
2 rows of stator knives
Bw77rgpghr
inlet cross section approx. 600 x 1050 mm
drive motor: 75 kW
accessories:
suction blower , air classifier
Suitability:
The cutting mill GK 1000 is universally applicable.
Ideal for large-volume injection moulded parts, pipes, profiles, films and thermoplastic waste.
4
Rotor diameter: 500 mm
Rotor width: 800 mm
5-knife rotor
2 rows of stator knives
inlet cross section approx. 800 x 450 mm
C3b09iu3
drive motor: 55 kW
4
Rotor diameter: 400 mm
Rotor width: 1000 mm
3-knife rotor
Bwjjqs8s33
2 rows of stator knives
inlet cross section approx. 400 x 1000 mm
drive motor: 75 kW
4
Rotor diameter: 500 mm
Rotor width: 500 mm
3-knife rotor
2 rows of stator knives
inlet cross section approx. 560 x 500 mm
Fz2eca9
drive motor: 37 kW
Machine in noise protection design
Feed hopper also in noise protection design
3
Rotor diameter: 180 mm
Rotor width: 120 mm
3-knife rotor
2 stator knives
inlet cross section approx. 180 x 120 mm
drive motor: 2,2 kW
Phla9
6
Rotor diameter: 420 mm
Rotor width: 650 mm
I0di3whmq
5-knife rotor
2 rows of stator knives
inlet cross section approx. 420 x 650 mm
drive motor: 30 kW
Machine with full sound insulation and suction fan
2
Rotor diameter: 320 mm
Rotor width: 440 mm
2 x 3-blade rotor / 6 rotor blades
Rotor knives staggered (paddle rotor)
2 rows of stator knives
inlet cross section approx. 440 x 300 mm
drive motor 7,5 kW
weight approx. 800 kg
Bwjjlhjnuk
4
Rotor diameter: 300 mm
Rotor width: 500 mm
rotor knives: 5 pieces, 2 stator knives
inlet cross section: approx. 300 x 500 mm
Drive motor 22 kW
Matching available as option:
Bsh0fkm20d
Conveyor belt type RHI 40/4, 4000x400 mm,
drive 0,75 kW, with metal detecting bridge MSG 4
No. 11735
4
Rotor diameter: 400 mm
Rotor width: 600 mm
Bt9gis99mj
3-knife rotor
2 stator knives
inlet cross section approx. 400 x 600 mm
drive motor: 30 kW
Rotor with additional flywheel
2
Rotor diameter: 450 mm
Rotor width: 600 mm
3-knife rotor
2 stator knives
inlet cross section approx. 450 x 600 mm
Bub0dwj0bu
drive motor: 22 kW
3
Rotor diameter: 630 mm
Rotor width: 1000 mm
Sutnoo
3-blade rotor (guillotine rotor)
6 stator knives
inlet cross section approx. 680 x 1000 mm
Drive motor: 75 kW
2
Roller retraction at the hopper
Ebqxhhe7m
Rotor blade row: 5
Stator knife row: 2
Rotor width: 520 mm
Rotor Ø: 340 mm
Inlet dimensions: 500 x 350 mm
2
Rotor blade series: 3
Stator blade row: 2
Rotor width: 280 mm
Rotor Ø: 280 mm
Inlet dimensions: 300 x 300 mm
Ndqtzhrv
4
Rotor diameter: 280mm
Oxlb2
Rotor width: 300 mm
3 knife rotor
2 stator knife rows
inlet cross section approx. 300 x 280 mm
drive motor 11 kW
With noise protection box and noise protection funnel
and suction fan
4
Rotor diameter: 450 mm
Rotor width: 600 mm
3 knife rotor
2 stator knife rows
Brqxbtkdcb
inlet cross section approx. 450 x 600 mm
drive motor 30 kW
3
Rotor blade series: 4
Stator blade row: 2
Rotor width: 600 mm
J939bj
Rotor Ø: 280 mm
Inlet dimensions: 400 x 600 mm
3
Rotor diameter: 600 mm
Rotor width: 1000 mm
6-knife rotor - cross shear cut rotor
2 stator knife rows
inlet cross section approx. 650 x 100 mm
drive motor 75 kW
Machine features:
The cross-shear cutting rotor ensures optimum material acceptance
material intake and distribution and thus high performance with reduced energy consumption.
Electro-hydraulic opening of the upper part of the mill
and the screen basket. The sieve position can be rotated
Brqwyvg0jd
The sieve insert can be rotated by 180°...
4
- Year of manufacture: 2006
- Operating hours (as of end of July 2020): 6,527.20
- conveyor belt 5500 x 1000 (mm)
- metal search bridge
- suction
- cyclone
- 2 x rotary valves
- double big bag station + fine material
- dedusting system
- metal separator
- fine material separator
- 2 x hoppers
- external switch cabinet
Ndhvv8yx
- motor power: 75 kW
- 6 rotor knife bars á 3 knives; 2 / 3 stator knives
-sale on customer order, location 91790 Raitenbuch-
Inspection duri...
4
Rotor diameter: 200 mm
Rotor width: 200 mm
3-knife rotor
2 stator knife rows
inlet cross section approx. 390 x 300 mm
(screw intake)
drive motor 5,0 + 2,2 kW
With blower 0,55 kW, E-circuit + FU
Oxla7
Weight approx. 850 kg
Suitability:
Shredding of plastics such as ABS, POM, PA6, PE, PP, PG, smaller hollow bodies, etc.
Functional principle:
A horizontally arranged screw forcibly doses the material flow axially to the rotor from the inside. The centrifugal force generated by the rotating rotor thr...
4
Rotor diameter: 450 mm
Boznzjna
Rotor width: 800 mm
5 x 5 knife rotor (staggered)
2 stator knife rows
inlet cross section approx. 600 x 800 mm
drive motor 55 kW
With noise protection box, mobile
4
Rotor diameter: 300 mm
Rotor width: 140 mm
10 rotor knives
2 rows of stator knives
Brqwklomht
inlet cross section approx. 250 x 300 mm
drive motor 5,5 kW
2
Rotor diameter: 300 mm
Rotor width: 140 mm
10 rotor knives
2 rows of stator knives
Nc8xsv9z
inlet cross section approx. 250 x 300 mm
drive motor 4 kW
3
9-knife rotor
3 rows of stator knives
rotor diameter 400 mm
working width 500 mm
Brqwgzaixh
Infeed cross section for window profile bars
approx. 200 x 460 mm
drive motor 30,0 kW
4
Rotor diameter: 2 x 150 mm (duplex rotor)
Rotor width: 200 mm
Ytgstw
2 x 12 rotor blades
2 + 1 stator knives
inlet cross section approx. 350 x 200 mm
drive motor 15 kW
The counter-rotating cutting rotors of the SM Duplex ensure good intake behaviour for bulky thin-walled parts and for light hollow bodies. The granulator can be used as a central granulator or as an auxiliary granulator on the injection moulding or blow moulding machine.
This makes it suitable for the size reduction of sprues or r...
3
Rotor diameter: 450 mm
Bn8tppcg
Rotor width: 600 mm
9-knife rotor, 2 stator knife rows
Feed cross-section approx. 200 x 600 mm for long profiles.
Feed hopper for horizontal feeding of long profiles.
Drive motor 37 kW
Suitability:
Shredding of H-PVC window profiles.
1
Rotor diameter: 300 mm
Rotor width: 600 mm
3-knife rotor
Brqwbnldov
4 stator knife rows
inlet cross section approx. 250 x 600 mm
drive motor 37 kW
2
Rotor diameter: 450 mm
Rotor width: 500 mm
Ebp3m7kss
5-knife rotor
4 stator knife rows
inlet cross section approx. 450 x 500 mm
drive motor 30 kW
1
Rotor diameter: 260 mm
Rotor width: 410 mm
3-knife rotor
Pvdj0y
2 stator knife rows
inlet cross section approx. 260 x 410 mm
drive motor 11 kW
2
Rotor diameter: 340 mm
rotor width: 410 mm
Brqwedfwc8
3 rotor knives, 2 stator knife rows
inlet cross section approx. 340 x 410 mm
Cutting mill with integrated sound insulation.
Ideal for plastics processing on blow moulding, injection moulding and extrusion lines
3
Rotor diameter: 260 mm
Rotor width: 260 mm
3-knife rotor, 2 stator knife rows
inlet cross section approx. 260 x 260 mm
drive motor 5,5 kW
Cutting mill with mounted feeding device
for bar stock
Gxabb0
Weight approx. 500 kg
5
Rotor diameter: 400 mm
Rotor width: 600 mm
3-knife rotor, 2 stator knife rows
inlet cross section approx. 400 x 600 mm
drive motor 30 kW
Brqvl8womn
3
Rotor diameter: 450 mm
Rotor width: 600 mm
Paddle rotor
3x3 rotor blades (staggered), 2 stator blade rows
inlet cross section approx. 550 x 625 mm
Ncm2men7
drive motor 30 kW
Suitability:
Preferably for shredding hollow blowing bodies and bulky shaped pieces such as bottles, canisters, jugs, bowls, baskets, buckets, tubs, etc.
3
Rotor diameter: 450 mm
Rotor width: 600 mm
9-knife rotor, 2 stator knife rows
infeed cross section approx. 200 x 600 mm for long profiles
Oxk8d
Feed hopper for horizontal feeding of long profiles with additional infeed for short pieces
drive motor 45 kW
Suitability:
Shredding of PVC window profiles
5
inlet cross section approx. 650x800 mm
3-knife rotor (staggered knives)
2 stator knife rows
rotor diameter 500 mm
rotor width 800 mm
Jwlzha
5
3-knife rotor
Nbsbckdd
3 rows of stator knives
rotor diameter: 250 mm
working width: 460 mm
inlet cross section: approx. 470 x 320 mm
3
3-knife rotor
2 stator blade rows
rotor diameter: 350 mm
rotor width: 250 mm
inlet cross section for profiles: approx. 250 x 100 mm
Machine in noise protection housing
Brqvakys9g
3
Inlet cross section approx. 500x700 mm
rotor diameter 500 mm
rotor width 700 mm
9 rotor blade rows, 3 stator blade rows
weight: approx. 2600 kg
Oxk2j
