Used Horizontal Center for sale (17,771)

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 735 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: FANUC 16iM, spindle speed (max.): 13,000 rpm, The machine is available from 01.10! TECHNICAL DETAILS Travels Travel X: 735 mm Travel Y: 610 mm Travel Z: 610 mm Workpiece Table size Length: 400 mm Table size Width: 400 mm Workpiece weight: max. 400 kg Spindle and Tool Tool changer: 50 stations Spindle taper: BT 40 Spindle speed: max. 13,000 rpm Spindle motor power: 22 kW CNC control: FANUC 16iM Dwedpfx Adsw Euc Redef MACHINE DETAILS Dimensions & Weight Machine dimensions (L x W x H): 3,987.8 mm x 2,232.7 mm x 2,893.1 mm Machine weight: 15,000 kg

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 2434, nominal power (apparent): 16 kVA, input voltage: 400 V, 4.5 kW spindle (2800-18000 rpm) pneumatic rotary table -90 °, 0 °, +90 °, intermediate angles manually set 4 pneumatic clamps pneumatic bumpers quick tool change system Dedowgmxtjpfx Addewf cooling system Windows 10 touchscreen operator panel with online access automatic tool diameter correction axes operating on linear bearings, brushless motors axes working range: X – 3050 mm, Y – 410 mm, Z – 300 mm, I – 180°

Condition: used, Year of construction: 2005, x-travel 700 mm y-travel 630 mm z-travel 700 mm Control SIN 840 D SIEMENS spindle turning speed - stepless 10.000 U/min power capacity at 100 % load 13,00 kW feeding force at 40 % ED 18,00 KW tool taper HSK-A63 spindle diameter in front bearing 80 mm feed X/Y/Z/-axis 1 - 50.000 mm/min rapid traverse X/Y/Z 50,00 m/min feed capacity X/Y/Z 5,00 kN B - axis 360 x 1 ° B-axis 30,00 U/min size of pallet 2x 500 x 500 mm workpiece weight 500 kg 0 700 x 700 x 750 mm tool magacine with 40 Plätzen tool length - max. 350 mm tool diameter 80 mm tool diameter with 2 vacant positions 150 mm weight of tools max. 10,00 kg Chip to chip time 4,00 sec. total power requirement 24,00 kW weight of the machine ca. 15,00 t Dwsdpfx Adjwhqtqedof dimensions of the machine ca. 4,00 x 4,00 x H3,00 m Horizontal machining center with SIEMENS SIN840D (PCU50); chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

Condition: good (used), Year of construction: 2007, Parts shown by hand not come. Dedpforpn Dvox Addowf Technical details shown on picture.

Condition: good (used), Year of construction: 2008, operating hours: 9,267 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 850 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, workpiece height (max.): 1,000 mm, workpiece diameter (max.): 1,000 mm, workpiece weight (max.): 1,200 kg, total height: 30,410 mm, total length: 70,000 mm, total width: 44,270 mm, spindle speed (min.): 20 rpm, spindle speed (max.): 6,000 rpm, coolant supply: 30 bar, spindle motor power: 26 W, spindle nose: ISO 50, number of spindles: 60, tool length: 550 mm, tool diameter: 250 mm, Equipment: chip conveyor, rotational speed infinitely variable, Horizontal machining center with automatic pallet changer "DOOSAN mod.HM 630" with CNC Fanuc 18i-MC Dwedpfxetvf Smj Addsf

Year of construction: 2021, condition: as good as new (ex-display), Highlights: - Powerfull motorizied spindle 16.000 U/min | 206 Nm - Hydraulic clapming for fixtures - Latest Machine Generation Basic machine G640 Work area travel range: X = 1.050 mm, Y = 800 mm, Z = 1.050 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Machine cooling system with an air-cooled cooling unit Machine control series FANUC 31i-MODEL B Plus Cycle package for measuring probes (RENISHAW) Control panel to enter tool data at tool loading and unloading position Rotary table with GROB pallet clamping system (B-axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication GROB spindle diagnostics GSD Single disc-type magazine HSK-A 63 with 50 pockets Tool cleaning device Electromechanical tool breakage detection device Twin palette changer Setup station driven by a three-phase servomotor Setup station door, manually-operated, for manual loading/unloading Additional control panel Pallet 630 x 630 mm, T-slots Equipping the pallet with 12 fluid connections Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (23 bar, ICS) Compressed air feed through spindle center External compressed air supply via a flexibly adjustable hose Cutting fluid recirculation on the weekend Flush gun at the work area Air gun at the work area Part clamping system in work area, customer-specific Hydraulic power unit for the part clamping system KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) Cooling unit for hydraulic proportional valves Part clamping system in setup station of pallet changer, customer-specific KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP7: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP10: Compressed air, seating check system (P2.1) KP11: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) KP12: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) Touch probe Renishaw RMP60 Dwodpfxolaugae Addef 12-month warranty

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 825 mm, workpiece weight (max.): 1,500 kg, spindle speed (max.): 10,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 1,050 mm Travel Y-axis: 800 mm Travel Z-axis: 825 mm C-axis indexing: 1° Table Clamping area front-to-back: 630 mm Clamping area diameter: 630 mm Workpiece weight: max. 1,500 kg Spindle / Head Speed range: up to 10,000 rpm Drive power: 30 kW Tool magazine Magazine type: chain magazine Number of tool positions: 160 Workpiece automation Dwsdpjwztlvefx Addjf Storage type: pallet changer Number of storage slots: 6 Control system Type of control: CNC Control model: Mazatrol MACHINE DETAILS Electrical connection data Connection voltage: 400 V Line frequency: 50 Hz Dimensions & weight Space requirement left/right: 6,770 mm Space requirement front/back: 3,830 mm Total height: 3,225 mm Total weight: approx. 17,000 kg EQUIPMENT Chip conveyor Internal coolant supply Fully enclosed work area High-pressure pump The machine will be provided partially disassembled, ready at floor level.

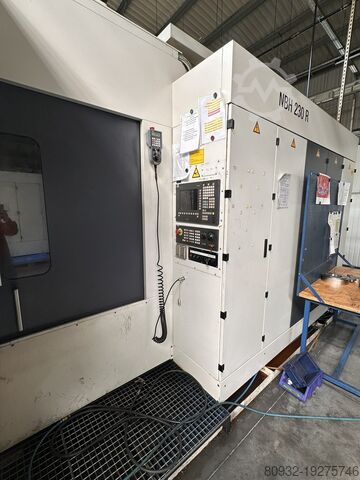

Condition: used, Year of construction: 2009, functionality: fully functional, machine/vehicle number: A.1003260.01, Machine designation: Machining center Manufacturer: Hueller Hille Model: NBH230 Year built: 2009 Serial number: A.1003260.01 Dwjdjwpi Ucspfx Addsf Control: Sinumerik 840D Travel paths: X-axis: 1200 Y-axis: 800 Z-axis: 1200 Tool holder: HSK100 Spindle speed: 10000 rpm Feed (X-Y-Z axis): 1-60000 mm/min Rapid traverse (X-Y-Z axis): 60m/min Rapid traverse (B-axis): 15 rpm Tool palette: 630x800mm NC rotary table: 0.001 deg Tool magazine: 3 cassettes of 50 tools each Measuring system: Direct with incremental scale Position uncertainty: 0.007mm Position deviation: 0.004mm Tool change time: 2.5-4.5 sec Chip-to-chip time: approx. 6.2 sec Pallet change time: 14.5 - 17 sec Connected load: 69 kW Compressed air system: 5 bar Coolant system: approx. 1250l Chip conveyor with inclined discharge: 1200 mm height

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, spindle speed (max.): 8,000 rpm, Equipment: rotational speed infinitely variable, Machining center with large tool magazine and ICS (internal coolant supply)! TECHNICAL DETAILS X-axis travel: 600 mm Y-axis travel: 560 mm Z-axis travel: 560 mm Dwedpfx Aewynxzeddof Feed and Rapid Traverse Feed rate X/Y/Z axis: 1 – 60,000 mm/min Rapid traverse X/Y/Z: 60 m/min Feed force X/Z: 9,600 N Feed force Y: 8,000 N B-axis feed: 9,250 °/min B-axis: 360 × 0.001° Spindle Spindle speeds - stepless: 8,000 rpm Drive power 40% duty cycle: 20 kW Drive power 100% duty cycle: 13 kW Torque at 40% / 100% duty cycle: 191 / 124 Nm Tool interface: SK40 Pallets and Workpiece Pallet size: 2 × 400 × 500 mm Max. workpiece weight: 600 kg Tool Magazine Tool magazine: 180 stations Tool diameter: 90 mm Tool diameter with 2 empty adjacent positions: 160 mm Max. tool length: 350 mm Max. tool weight: 3.50 / 12.00 kg Control CNC control: SIN840D MACHINE DETAILS Electrical Data Total power consumption: 65 kW Weight and Dimensions Machine weight: approx. 16.00 t Space required: approx. 9.00 × 4.50 × 3.50 m Operating hours: 38,826 h EQUIPMENT Coolant system with ICS Dual chain magazine with 180 stations Chip conveyor BLUM tool laser measurement Electronic handwheel

Condition: not inspected (used), Year of construction: 2004, functionality: unexamined, machine/vehicle number: 53071, travel distance X-axis: 450 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, table width: 350 mm, table length: 940 mm, No reserve price – guaranteed sale to the highest bidder! Bidding obligates the buyer to collect the item by 31/07! Machining center with double spindle and double rotary table! TECHNICAL DETAILS Swivel table dimensions: approx. 940 × 350 mm Max. spindle speed: up to 16,000 rpm Spindle interface: HSK A63 Travel X-axis: 450 mm Travel Y-axis: 500 mm Travel Z-axis: 450 mm Rapid traverse X-Y-Z axis: 60 m/min Control System Controller: SIEMENS SINUMERIK 840 D MACHINE DETAILS Electrical Data Mains voltage: 3 × AC 400 V Frequency: 50 Hz Control voltage: DC 24 V Max. main fuse: 160 A Connected load: 72 kW Dimensions & Weight Dimensions (L × W × H): 6,000 × 5,000 × 2,800 mm Weight: 22,000 kg EQUIPMENT Dwjdpewyk Tujfx Addjf The machine features three linear axes and one rotary axis. Transport is likely by truck with a width over 3,000 mm. Transport height and width can be confirmed during dismantling and loading.

Condition: good (used), Year of construction: 2013, operating hours: 17,904 h, functionality: fully functional, machine/vehicle number: 19261, travel distance X-axis: 500 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 15,000 rpm, number of slots in tool magazine: 71, Geometry protocol available TECHNICAL DETAILS Control: Fanuc 30iM X travel: 500 mm Y travel: 560 mm Z travel: 500 mm Spindle-to-table distance: 80 - 640 mm Spindle Speed: 15,000 rpm Power: 15 kW Torque: 119 Nm at 1,200 rpm Tool holder: BT40 Spindle bearing inner diameter: 70 mm Spindle speed command: 5-digit direct S command Spindle alignment: electric Tool clamping force: 11.8 kN NC rotary table Dwjdpfx Adewm D Irjdef B-axis: 0.001° Pallet size: 300 x 300 mm Table load (max.): 250 kg Workpiece size (max.): Ø530 x 760 mm Pallet clamping surface: (M12 x P1.75) x 32 Feed rate Rapid traverse speed (X/Y/Z): 60,000 mm/min Feed rate (X/Y/Z): 1 – 60,000 mm/min Jog feed rate (X/Y/Z): 0 – 4,000 mm/min Min. travel increment (X/Y/Z): 0.001 mm Min. travel increment B-axis: 1 degree Tool magazine Number of tool positions: 71 stations Max. tool diameter (with adjacent tools): 90 mm Max. tool diameter (without adjacent tools): 150 mm Max. tool length: 300 mm Max. tool weight: 8 kg Tool selection: Fixed address system Tool change arm: W-gripper type Tool-to-tool change time: Dependent on tool weight Tool change time: Chip-to-chip Target value dependent Tool station spacing: 95.25 mm Automatic pallet changer (PC2) Number of pallets: 2 Change method: Rotary table Pallet change time (pallet-to-pallet): 6.5 s Total pallet change time: 7.0 s Pallet clamping force: 41.5 kN Max. pallet weight: 40 kg MACHINE DETAILS Machine height: 2,683 mm Footprint (not including maintenance area): 2,145 x 3,655 mm Machine weight: 8,300 kg Power supply: 50 kVA On-time: 51,149 h Program run: 30,722 h Machining time: 17,904 h Workpiece counter: 1,389 pieces EQUIPMENT - Chip management with Chip conveyor - Coolant system with paper belt filter and 70 bar high-pressure internal cooling (ICS) - Workpiece measurement with Renishaw OMP60 touch probe - Tactile tool breakage monitoring - 2-station pallet changer - Transformer - Flushing gun

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 630 mm z-travel 560 mm total power requirement 60 kW weight of the machine ca. 12.5 t dimensions of the machine ca. m H E L L E R (Germany) 5 Axis - CNC Controlled Horizontal Machining Centre Model FST- MC 160 / 800 / E Year 1998 Only approx. 500 hours in operation _____ Working range: Longitudinal stroke X axis 800 mm Vertical stroke Y axis 630 mm Cross stroke Z axis 560 mm NC rotary table Tilting A axis 180 ° Turning B axis 360 ° Size of pallet, approx. 250 x 620 mm Tool holder HSK 63A Spindle speeds, infinitely variable 63 - 20,000 rpm Feeds / quick feeds XYZ 1 - 70,000 mm/min Spindle drive 24 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Weight, approx. 12,500 kg Accessories / Special Features * 5-Axis SIEMENS CNC Path Control, Model SINUMERIC 840 D, allows working operation on 5 sides. * Workpiece handling system: Workpiece is mounted on a pallet outside the machine and is transported via a conveyor into a lifting/turning device, which brings the workpiece onto the table, where it is automatically clamped and machined. * 40-position tool magazine with tool replacement door, and laser-operated tool breakage control. * Internal high pressure coolant supply, 50 bar. * Coolant preparation unit with filter and temperature control. * Oil mist exhaust. * Separate cooling aggregate for motor spindle and switch cabinet. * CO² fire extinguisher. * Chip conveyor. * Complete covers for the working area. Dedpjt Hwrhjfx Addjwf Machine comes from the design department of an car manufacturer and was only used for trials. The new price in 1998 was approx. 1.3 million DM (EUR 650,000.00). The machine is very suitable for medium-sized production series. Ideal for aluminium.

Condition: ready for operation (used), Year of construction: 2022, operating hours: 6,490 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 700 mm, rotational speed (max.): 15,000 rpm, number of slots in tool magazine: 123, TECHNICAL DETAILS Control: CELOS control with Siemens 840D sl Operate X travel: 650 mm Y travel: 950 mm Z travel: 700 mm Spindle Speed: up to 15,000 rpm Interface: HSK-A63 Power: 21 kW (40% duty cycle), 16 kW (100% duty cycle) Torque: 111 Nm (40% duty cycle), 85 Nm (100% duty cycle) Tool clamping force: 25 kN Worktable NC swivel table, max. permissible load: 600 kg Dwodpexamm Isfx Addsf Workpiece dimensions Max. interfering contour diameter: 630 mm Height: 700 mm Tool magazine Type: Wheel magazine Capacity: 123 spaces Permissible tool weight: 15 kg Permissible total weight per wheel: 300 kg Cooling system Coolant tank: 1,300 L Drive motor A-axis and B/C-axis liquid-cooled B/C-axis gearbox liquid-cooled Measuring systems Renishaw infrared probe, tool breakage monitoring Tool measurement in working area Blum laser, tool length and diameter measurement Linear axis measuring systems direct, absolute, resolution 0.00001 mm (10 nm) Feed rates Max. feed rate X-Y-Z: 60,000 mm/min Rapid traverse X-Y-Z: 60 m/min Accuracy Machine accuracy X-Y-Z: A

Condition: used, Year of construction: 2009, machine/vehicle number: 31-43414, Heller MC16 No. 31-43514, year of manufacture 2009 Spindle revolutions 1/min. 45-16000 SK40 Travel mm X 630 Y 630 Z 630 Djdpfx Aowffd Soddjwf Travel speed mm/min 1-40000 Number of tools 80 Tool diameter mm 70/150 (with free adjacent locations) Tool length mm 320 Number of pallets 2 Pallet dimensions 400 x 500 Max. pallet load kg 500 B-axis NC Control Sinumerik 840D Heidenhain probe Yes Power kVA 60 Machine No. 73 ATL iTM400HP no. 14916 Y.O.M. 2009 Power kVA 30 Deburring chamber standard 400 / 400 mm Max. gas pressure 20 bar Siemens Multipanel with Windows CE operating system

Condition: used, Year of construction: 2003, x-travel 1000 mm y-travel 800 mm z-travel 800 mm control SIN840D speeds 10 - 10.000 U/min feed range 1 - 36000 mm/min B - axis 360 x 1 ° repeating accuracy + / - 3 " surface area 2 x 500 x 630 mm tool diameter 100 mm workpiece length 650 mm workpiece weight max. 40 kg tool taper DIN 69871 SK 50 Dwjdpfx Adjwhqtkjdef workpiece weight 800 kg tool magacine with 100 Plätzen wotkpiece diameter with 2 vacant positions 325 mm Chip to chip time ca. 8,00 sec. change time of pallets ca. 12,00 sec total power requirement 65,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 7,80 x 3,50 x H3,40 m Horizontal machining center with SIEMENS SIN840D control. NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle Magazine with 2 cassette à 50 pockets.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Working Area Working envelope (X/Y/Z): 450 × 450 × 450 mm Maximum workpiece height: 700 mm Pallet size: 320 × 320 mm Maximum pallet/table load: 300 kg Spindle Number of spindles: 2 Tool spindle: 10,000 rpm, 95 Nm Speed extension: 18,000 rpm Tool interface: HSK 63 Feed Acceleration: 10 m/s² Rapid traverse: 60 m/min Chip-to-chip time: 2.6 s Tool Magazine Tool positions: 2 × 60 Tool magazine with 60 positions: included MACHINE DETAILS Weight Machine weight: approx. 14 t Control Control system: Siemens Sinumerik 840D EQUIPMENT Double-spindle, 4-axis horizontal machining center 4 machine pallets Renishaw probe Infrared receiver for probe, Renishaw model Vaf72a0p Operator panel at workpiece setup station Operator panel at tool setup station Workpiece setup stations manually rotatable Hydraulic workpiece clamping, 60 bar Pneumatic support control at workpiece setup stations Automatic swing door Extended coolant supply 70 bar / 1,500 l VF 250 coolant chiller Work area flushing Dedpewx Er Njfx Addewf Emulsion mist extraction Roto-Clear Automatic setup sequence Automatic teardown sequence Run-time and quantity recording Status lamp, 3 colors Modem for remote diagnostics Control cabinet lighting

Year of construction: 1998, condition: excellent (used), functionality: fully functional, TECHNICAL DETAILS x-way: 720 mm y-way: 630 mm z-way: 630 mm control: OKUMA OSP 7000 pallet size: 500 x 500 mm spindle speed: 10 - 5000 rpm tool holder: 10-fold pallet station tool holder: MAS BT 50 tool places: 200 pieces EQUIPMENT - tool breakage probe - Renishaw probe - High pressure coolant system Dwodpok R Tp Usfx Addjf - Coolant mist extraction system - Spindle load and torque monitoring - Thread milling - Chip conveyor The scope of delivery is not shown in the pictures but in the description text.

Condition: used, Year of construction: 1995, x-travel 600 mm y-travel 560 mm z-travel 560 mm Control SIEMENS 840 C total power requirement 12 kW Dedpfx Adst Hw R Rodowf weight of the machine ca. 10000 kg dimensions of the machine ca. m

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: 2052582, travel distance X-axis: 1,626 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 813 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, nominal power (apparent): 22 kVA, controller manufacturer: Haas, controller model: Haas, table width: 914 mm, table length: 1,626 mm, table load: 4,536 kg, rotary table diameter: 760 mm, rotational speed (max.): 6,000 rpm, number of spindles: 1, number of slots in tool magazine: 30, Equipment: chip conveyor, rotational speed infinitely variable, Condition: very good (used) 4-axis horizontal machining center Brand: Haas Equipment: Tool holder SK50 Tool positions: 30+1 Year of manufacture: 03/2008 Dwsdsw Uz Anopfx Addsf Weight: 13,600 kg Additional information: Machine has been newly painted Price on request

Condition: used, Year of construction: 2009, machine/vehicle number: 31-43487, Heller MC16 No. 31-43487, Year of Manufacture: 2009 Spindle speed: 45-16,000 rpm SK40 Travel range: mm X 630 Y 630 Z 630 Travel speed: mm/min 1-40,000 Number of tools: 80 Tool size: mm 70/150 (with free adjacent locations) Tool length: mm 320 Number of pallets: 2 Pallet dimensions: 400 x 500 Max. pallet load: kg 500 B-axis NC Control: Sinumerik 840D Heidenhain probe: Yes Dsdjwfd Eujpfx Addjwf Power: kVA 60 Machine No. 64

Condition: used, Year of construction: 2000, x-travel 1000 mm y-travel 1000 mm z-travel 950 mm Control FANUC Pro-3 feed X/Y/Z/-axis 1 - 50.000 mm/min rapid traverse X/Y/Z 50,00 m/min tool taper HSK-A 100 turning speeds 20 - 12.000 U/min spindle drive 25 / 30 kW torque milling spindle 420 Nm spindle diameter in front bearing 110 mm B - axis 360 x 0,001 ° size of pallet 2x 800 x 800 mm Djdevxwpzepfx Addswf table load capacity 1.800 kg dimension of workpiece 1.000 x 950 mm workpiece height max. 1.000 mm tool piece magazine with 188 tool length - max. 475 mm tool diameter 320 mm weight of tools max. 20,00 kg total power requirement 65,00 kW weight of the machine ca. 30,00 t dimensions of the machine ca. 8,00 x 5,30 x H3,50 m Horizontal machining center with FANUC Porfessional 3 control, NC rotary table, el. handwheel, chip conveyor, coolant filter KNOLL VRF 450/2300, through-spindle coolant, 188-station tool magazine. New spindle in 2023 Machine can be inspected under power.

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: A.1001840.01, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, total height: 2,900 mm, total length: 4,200 mm, total width: 2,900 mm, overall weight: 12,500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Working Area Max. workpiece contour: 750 × 700 mm Transport load per pallet: approx. 500 kg Clamping surface pallet DIN 55201, Form A2: 500 mm x 500 mm Distance table center to spindle nose in Z: 100 mm Distance table top to spindle nose in Y: 85 mm Working Spindle Standard tool holder: SK 40 Ball bearing in front bearing: 80 mm Standard speed range: 10,000 rpm Feed Feed rate X-, Y-, Z-axis: 1 – 50,000 mm/min Feed force X-, Y-, Z-axis, 40% duty cycle: approx. 5,000 N Rapid traverse X-, Y-, Z-axis: 50 m/min Acceleration: approx. 7 m/s² Ball screw (lead): 40 (20) mm Tool Magazine Chain magazine 40 tool positions: max. quantity 40 Tool change position: via spindle Max. tool diameter: 80 mm Max. tool length: 350 mm Max. tool change time: 2.5 s MACHINE DETAILS Electrics Operating voltage, three-phase, frequency: 400 V, 50 Hz Control voltage, frequency: 230 V, 50 Hz Connected load: 27 kVA Dedpfxowx Ed Eo Addswf Fuse protection: 80 A

Year of construction: 2002, condition: used, functionality: fully functional, Horizontal machining center with double chain magazine. TECHNICAL DETAILS x-way: 600 mm y-way: 560 mm z-way: 560 mm control: Siemens Sinumerik 840D B - axis: 360 x 0,001 ° spindle speed - stepless: 8.000 rpm feed X/Y/Z/ axis: 1 - 60.000 mm/min feed B axis: 9.250 °/min rapid traverse X/Y/Z: 60.00 m/min feed force X/Z: 9.600 N Feed force Y: 8,000 N drive power 40 % ED: 20,00 KW driving power 100% ED: 13,00 kW Tool holder: SK40 Torque at 40% / 100% ED: 191 / 124 Nm Pallet size: 2x 400 x 500 mm workpiece weight: max. 600 kg Dsdpfx Adonh Rn Aodowf tool magazine: 180 tool diameter: 90 mm tool diameter with 2 free places: 160 mm tool length: max. 350 mm Tool weight: max. 3.50 / 12.00 kg MACHINE DETAILS total power requirement: 65,00 kW machine weight: approx. 16,00 t space requirement: approx. 9.00 x 4.50 x 3.50 m EQUIPMENT Coolant system with IKZ Double chain magazine with 180 places Chip conveyor BLUM tool laser measurement electronic handwheel

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 15,000 rpm, number of slots in tool magazine: 61, TECHNICAL DETAILS X-axis travel: 630 mm Y-axis travel: 630 mm Z-axis travel: 500 mm B-axis: 360,000 × 0.001° Spindle Dsdpfx Adsv S H Dnodewf Spindle speed: 0 – 15,000 rpm Spindle drive: 32 kW Tool holder: HSK 63 Pallet system & tool magazine Pallet size: 500 × 500 mm Number of tools in magazine: 61 MACHINE DETAILS Length: 6 m Width: 2.80 m Height: 3 m Electrical system Voltage: 400 V Frequency: 50 Hz Rated current: 76 A Power supply: 3-phase AC Machine weight: approx. 22 t EQUIPMENT - VR6 cylinder head for machining

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: GM3974/02-07, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 630 mm, controller model: Siemens 840 C, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS X-axis travel: 800 mm Y-axis travel: 700 mm Z-axis travel: 630 mm Control: Siemens 840 C Spindle Spindle speed: max. 12,000 rpm Tool holder: HSK 80 Axes B-axis: 360 × 0.001° A-axis (tool carrier): +40 / -95° Tools & pallet system Number of tools in magazine: 61 Dwjdsv S Htiepfx Addsf Pallet size: 500 × 500 mm MACHINE DETAILS Space requirement: approx. 6,200 × 3,000 mm Machine weight: approx. 25,500 kg Electrical data Power supply: 3PH / AC 400 V 50 Hz Rated current: 102 A
